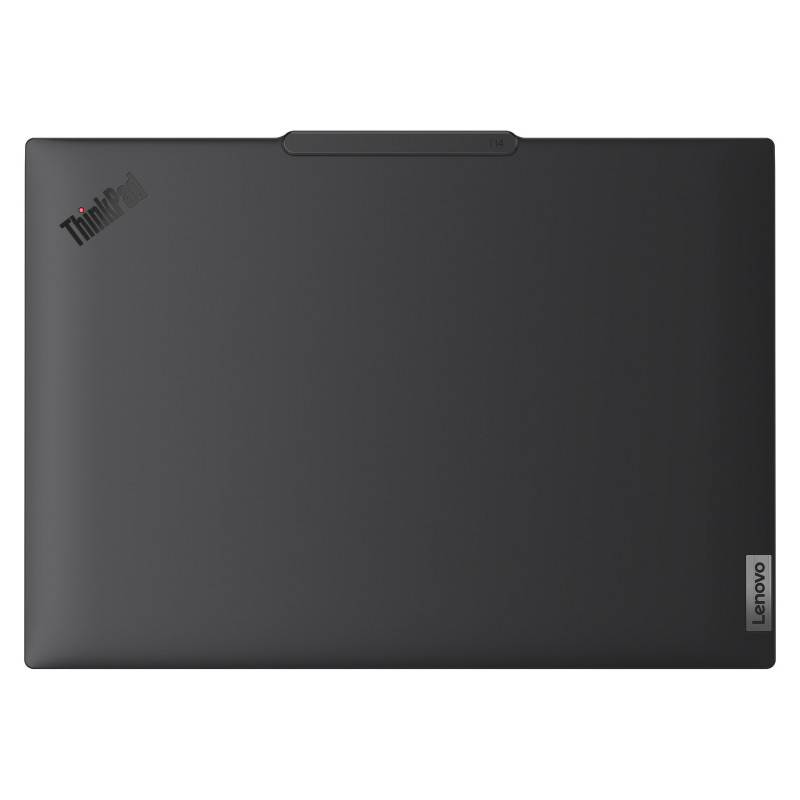

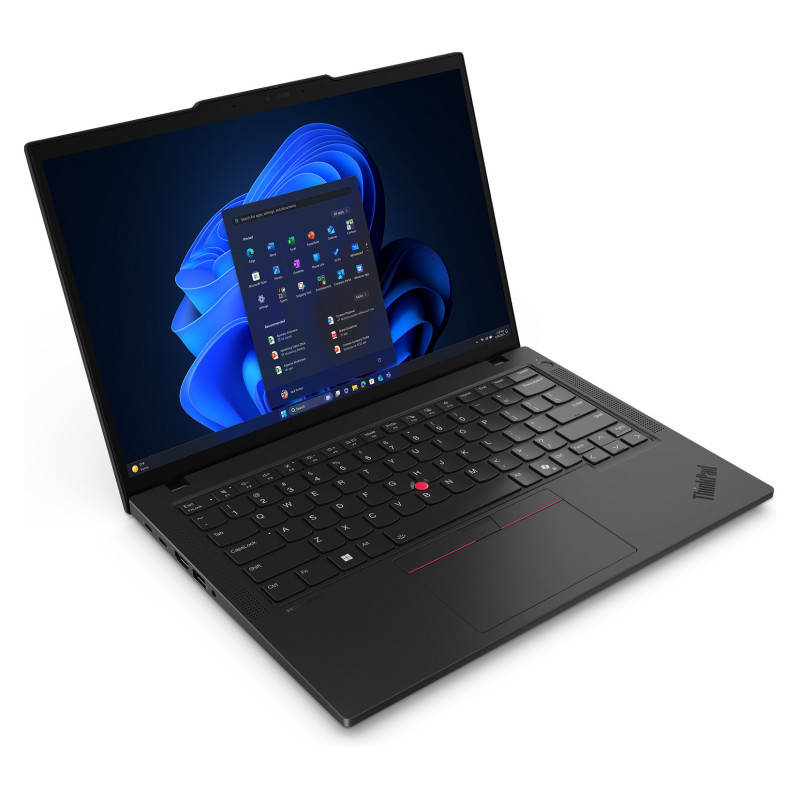

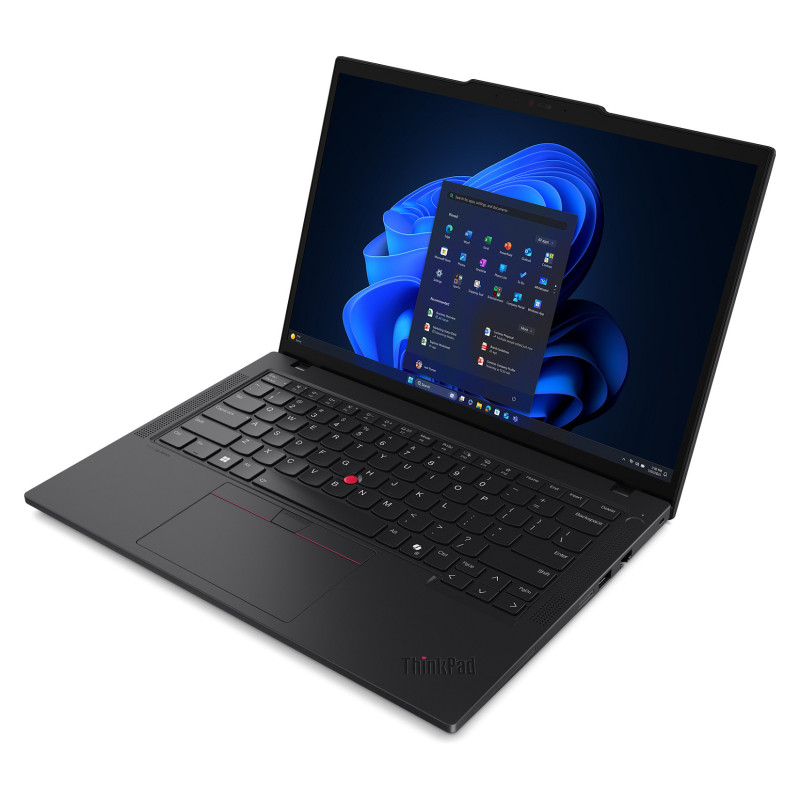

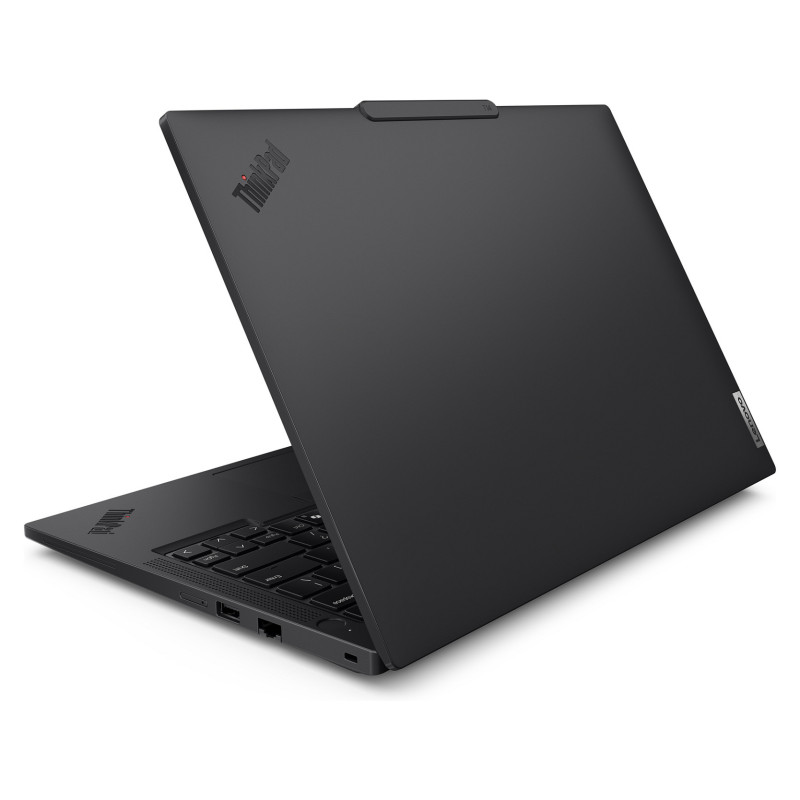

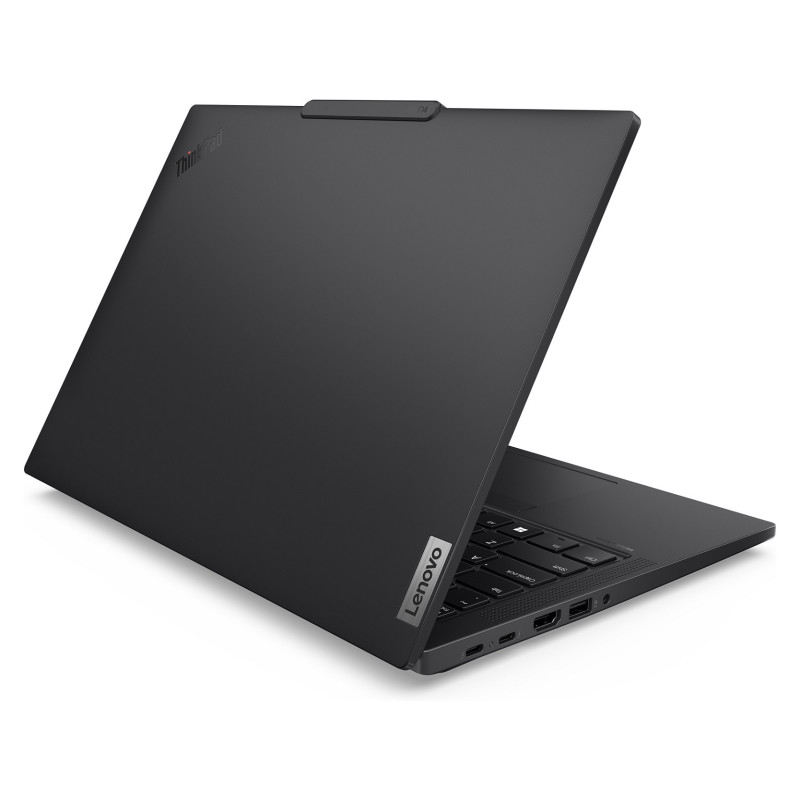

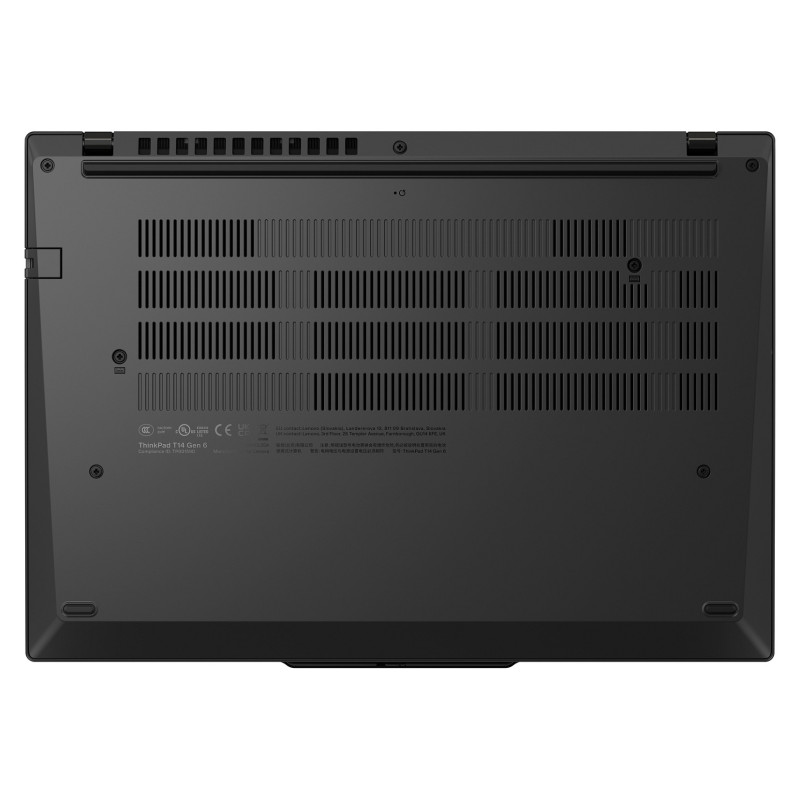

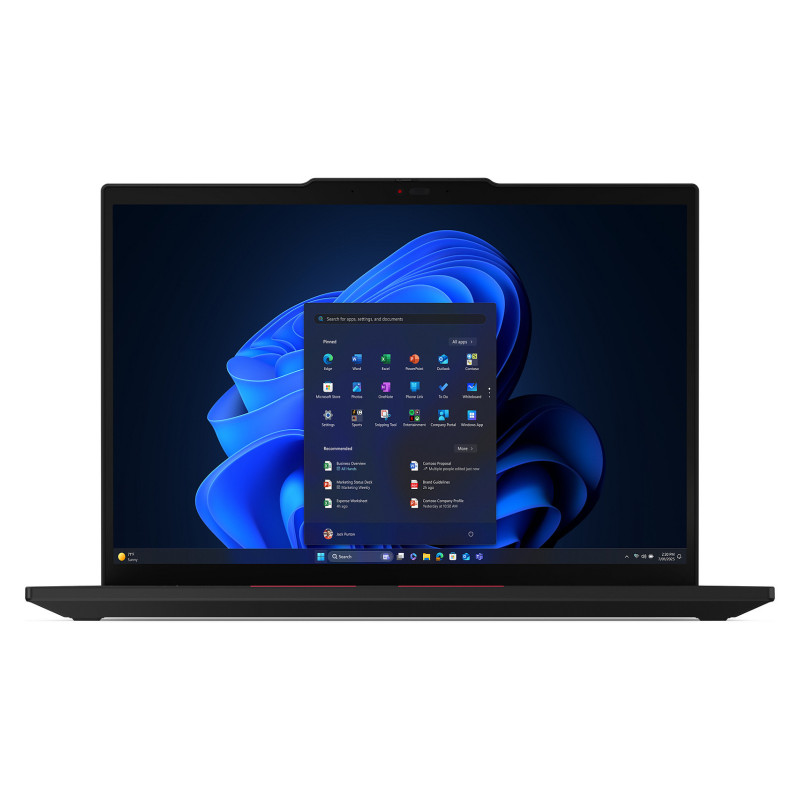

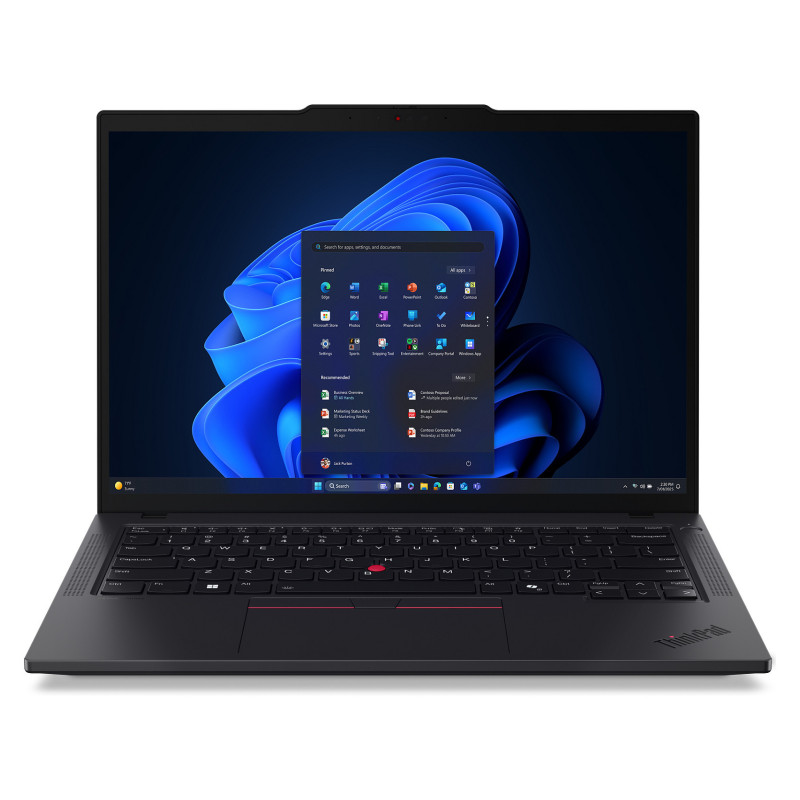

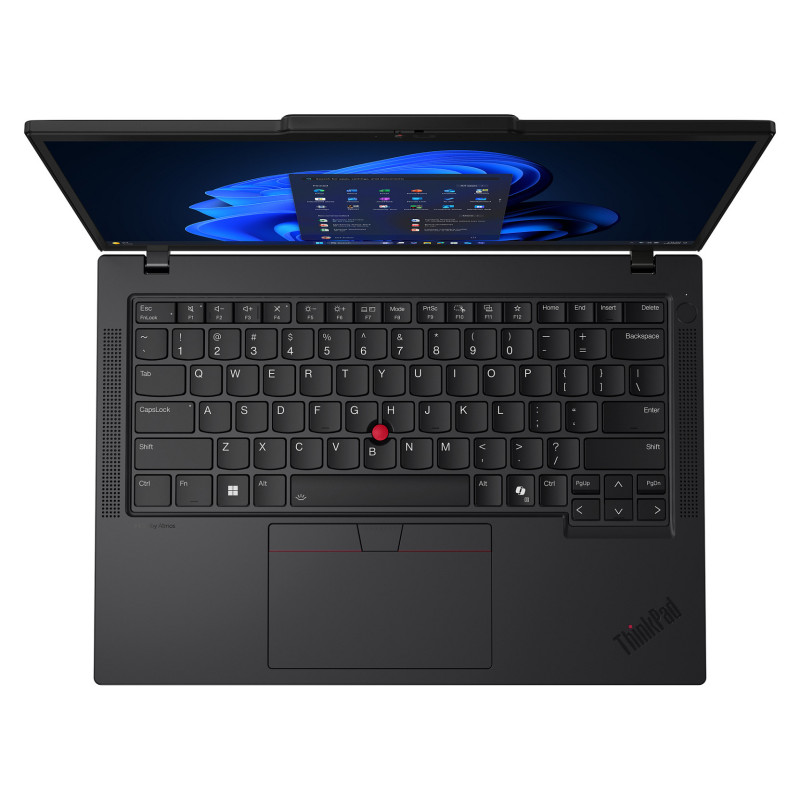

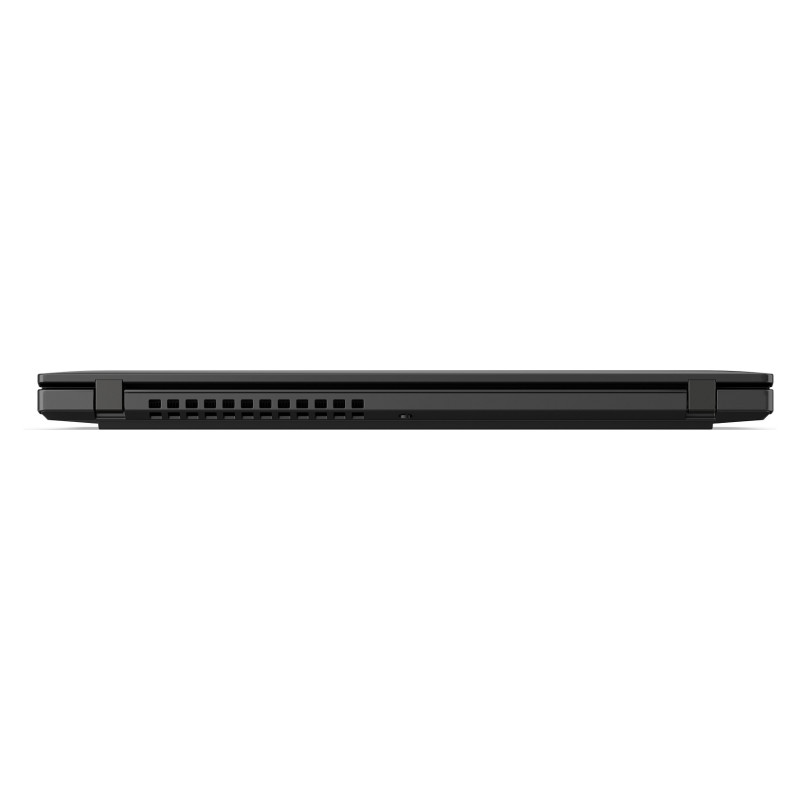

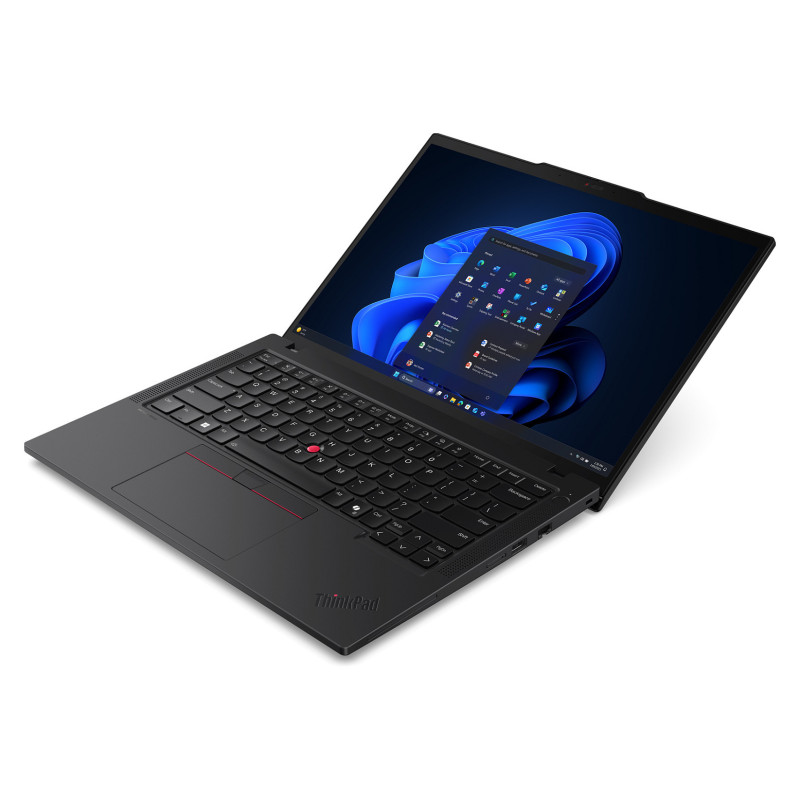

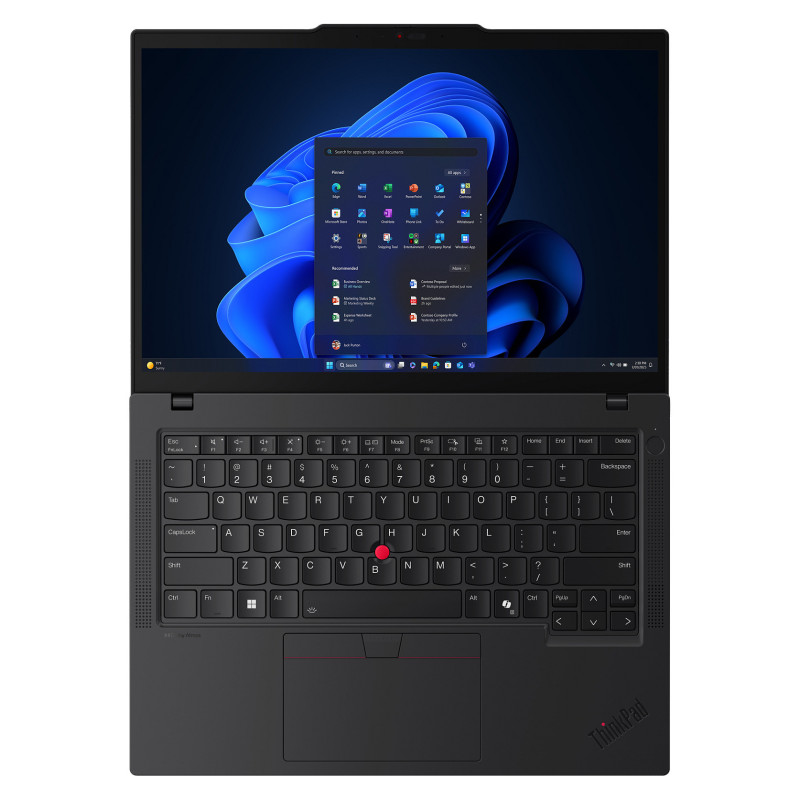

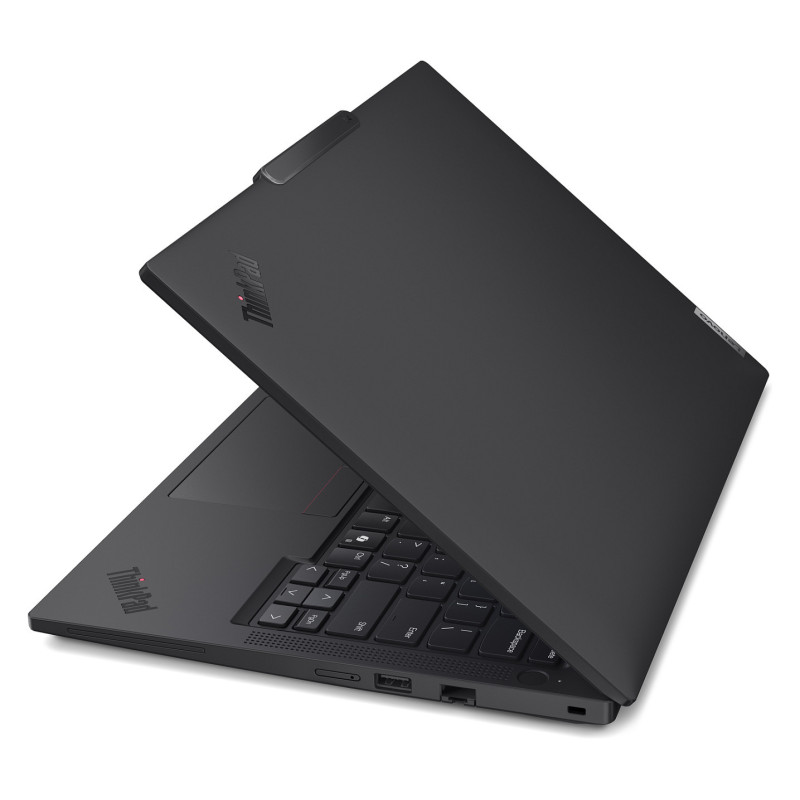

Lenovo ThinkPad T14 Gen 6 (Intel)

Lenovo ThinkPad T14 Gen 6 (Intel). Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255U. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Product colour: Black. Weight: 1.38 kg

Design

Product type: Laptop
Product colour: Black
Form factor: Clamshell

Display

Display diagonal: 35.6 cm (14")
Display resolution: 1920 x 1200 pixels
HD type: WUXGA
Panel type: IPS
Feature: LED backlight
Native aspect ratio: 16:10
Feature: Anti-glare screen
Display brightness: 500 cd/m²
RGB colour space: sRGB
Colour gamut: 100%
Maximum refresh rate: 60 Hz
Contrast ratio (typical): 1000:1

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 2)
Processor model: 255U
Processor cores: 12
Processor threads: 14
Processor boost frequency: 5.2 GHz
Performance cores: 2
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4.2 GHz
Low Power Efficient-core Max Turbo Frequency: 2.4 GHz
Performance-core base frequency: 2 GHz
Efficient-core base frequency: 1.7 GHz
Low Power Efficient-core Base Frequency: 700 MHz
Processor cache: 12 MB
Processor base power: 15 W
Maximum turbo power: 57 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Memory

Internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory clock speed: 5600 MHz
Memory form factor: SO-DIMM
Memory layout (slots x size): 2 x 32 GB
Maximum internal memory: 64 GB

Storage

Total storage capacity: 1 TB
Storage media: SSD
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Optical drive type: No

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Audio

Audio chip: Realtek ALC3287
Number of built-in speakers: 2
Speaker power: 2 W
Feature: Built-in microphone
Number of microphones: 2

Camera

Front camera resolution (numeric): 5 MP
Feature: Infrared (IR) camera
Feature: Privacy camera
Privacy type: Privacy shutter

Network

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Antenna type: 2x2
WLAN controller model: Intel Wi-Fi 6E AX211
WLAN controller manufacturer: Intel
Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.3
WWAN: Upgradable

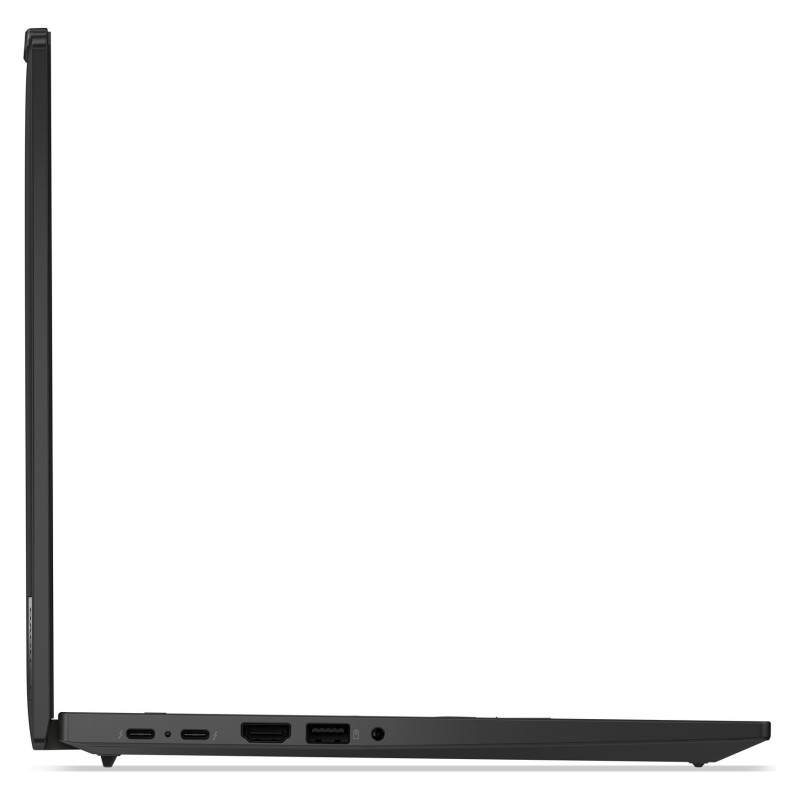

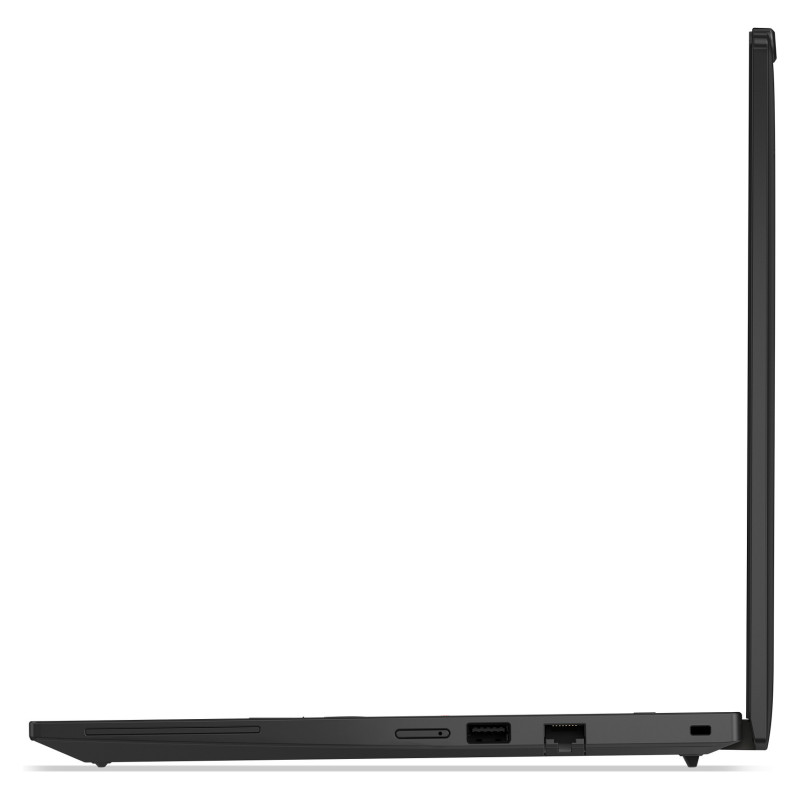

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Feature: Intel® Thunderbolt 4
Feature: Combo headphone/mic port
Feature: USB Sleep-and-Charge

Performance

Motherboard chipset: Intel SoC

Keyboard

Pointing device: ThinkPad UltraNav
Feature: Keyboard backlit
Keyboard language: German

Software

Operating system architecture: 64-bit
Operating system language: German
Operating system installed: Windows 11 Pro

Battery

Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 57 Wh

Power

AC adapter power: 65 W
AC adapter frequency: 50/60 Hz
AC adapter input voltage: 100 - 240 V
Feature: USB Type-C charging port
Feature: USB Power Delivery (USB PD)

Security

Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Fingerprint reader
Feature: Smart card reader
Feature: Windows Hello
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): 5 - 43 °C
Operating relative humidity (H-H): 8 - 95%
Storage relative humidity (H-H): 5 - 95%

Certificates

Certification: ENERGY STAR,TCO,EPEAT Gold,RoHS

Weight & dimensions

Width: 315.9 mm
Depth: 223.7 mm
Height (front): 1.09 cm
Height (rear): 1.61 cm
Weight: 1.38 kg

Packaging content

Feature: AC adapter included
