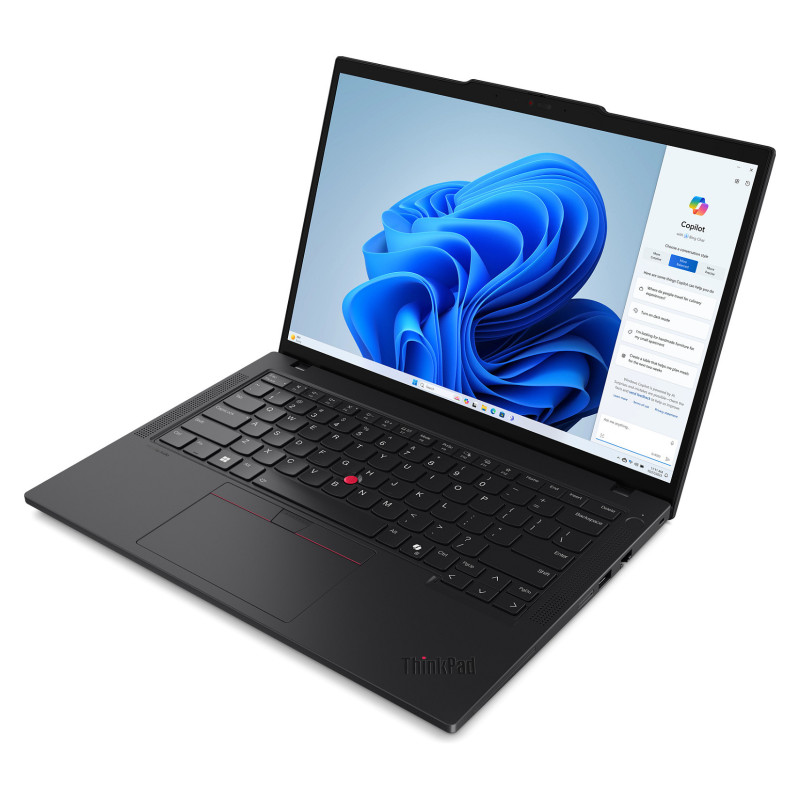

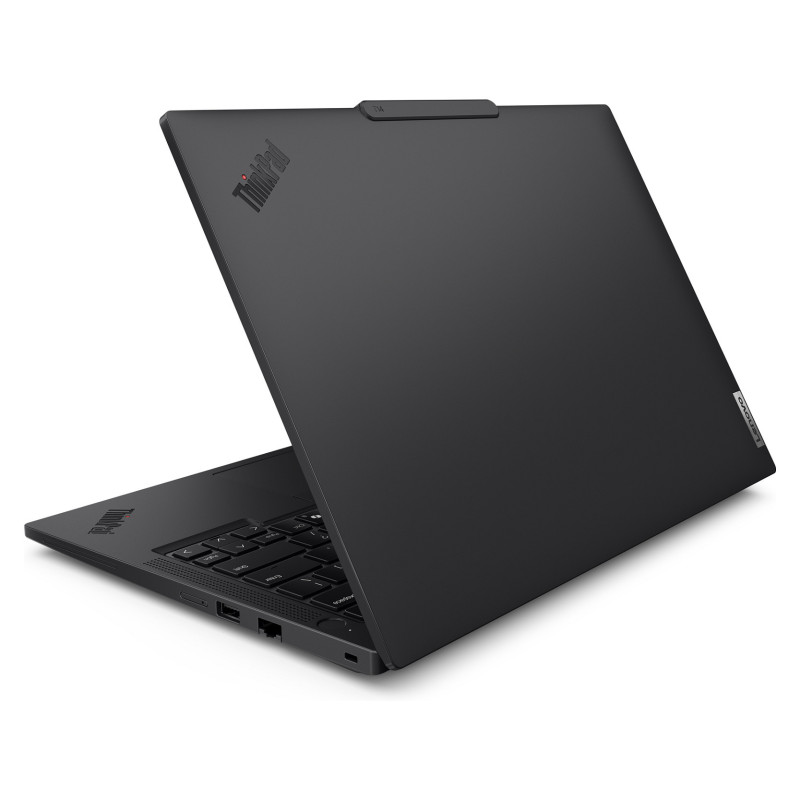

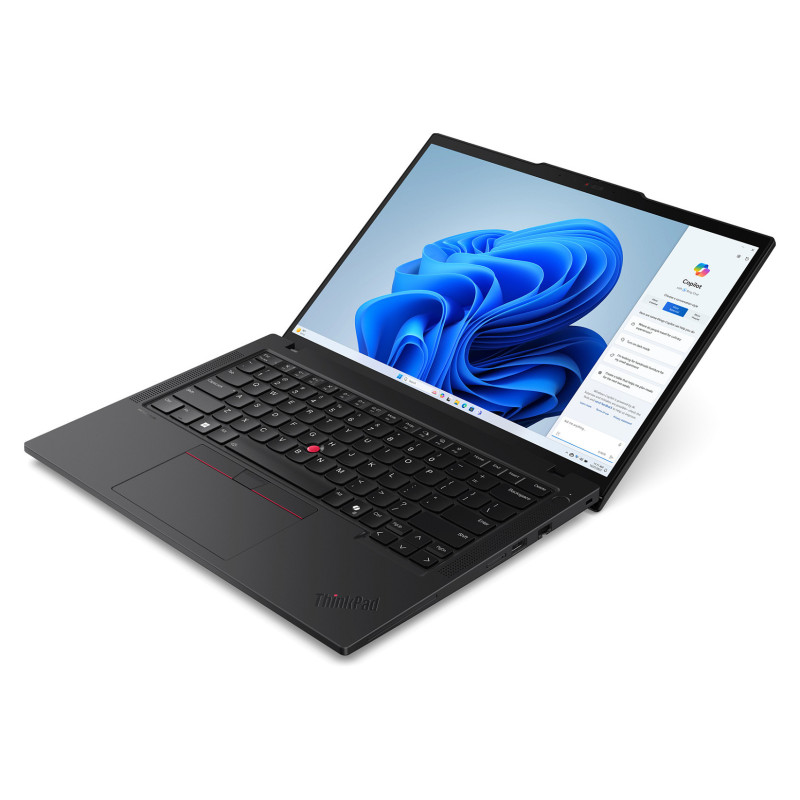

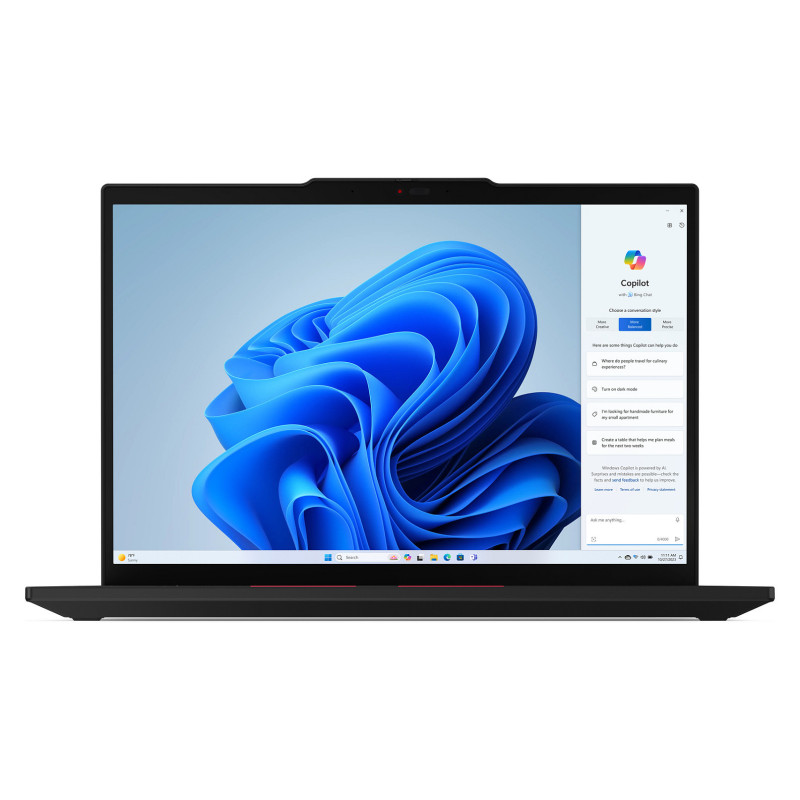

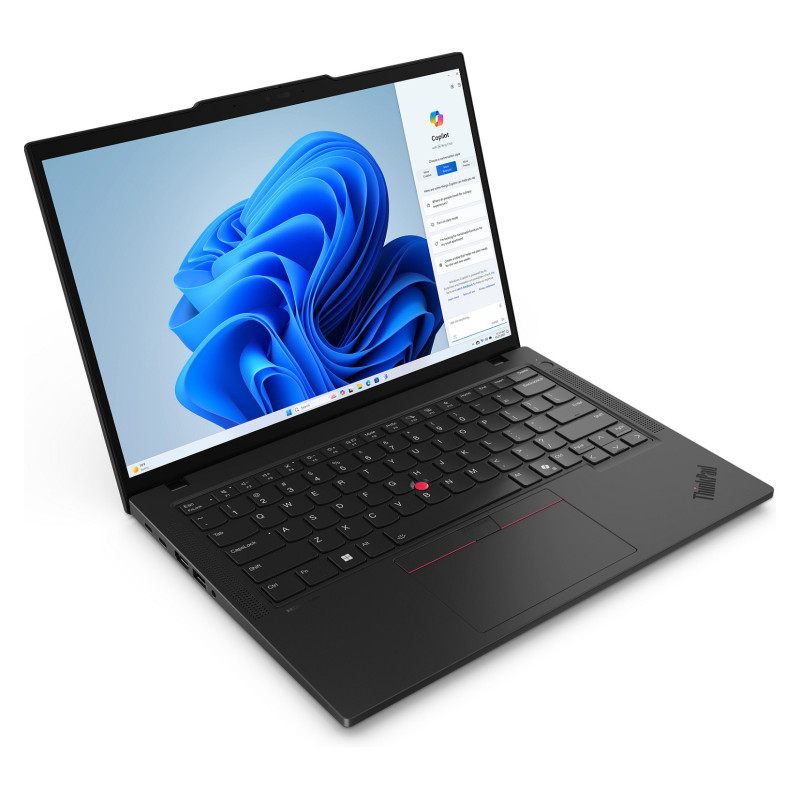

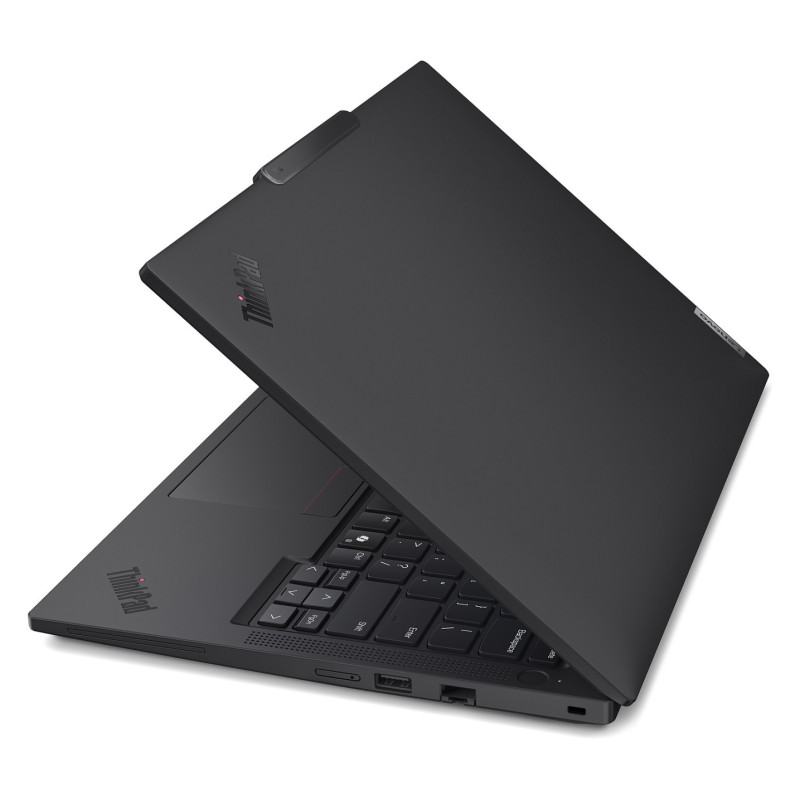

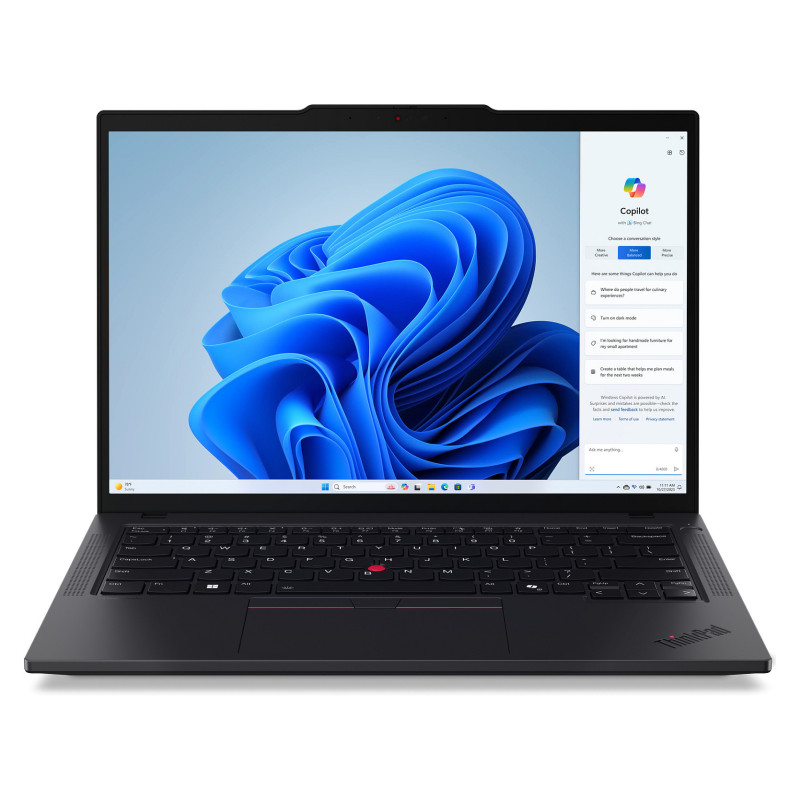

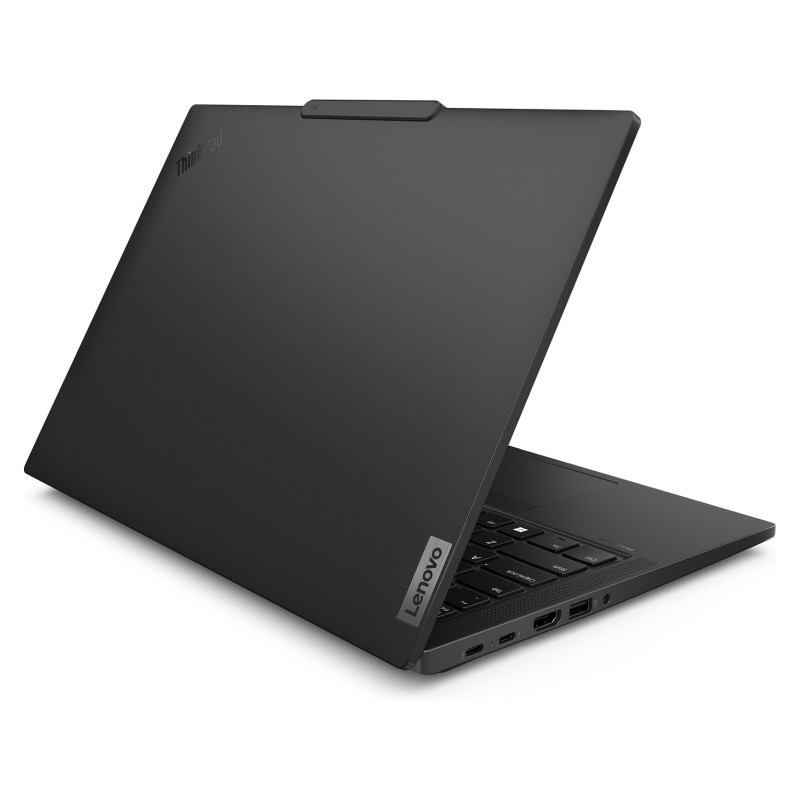

Lenovo ThinkPad T14 Gen 5 (Intel)

Lenovo ThinkPad T14 Gen 5 (Intel). Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 5, Processor model: 135U. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels, Touchscreen. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Product colour: Black

AI-Driven Productivity — On the Go

Powered by Intel® Core™ Ultra processors, the 14ʺ Lenovo ThinkPad T14 Gen 5 laptop taps into AI-assisted productivity like never before. Enjoy optimized performance with workloads pushed to dedicated AI engines, including the low-power neural processing unit (NPU) that enables you to do more, unplugged. Choose Intel vPro®, for multilayer security, professional-grade performance, reliable stability, and complete management for IT. And, fuel your efficiency with Windows Copilot, launched with a single keystroke, to adjust PC settings or switch between projects.

Next-Level Viewing — Bold & Bright

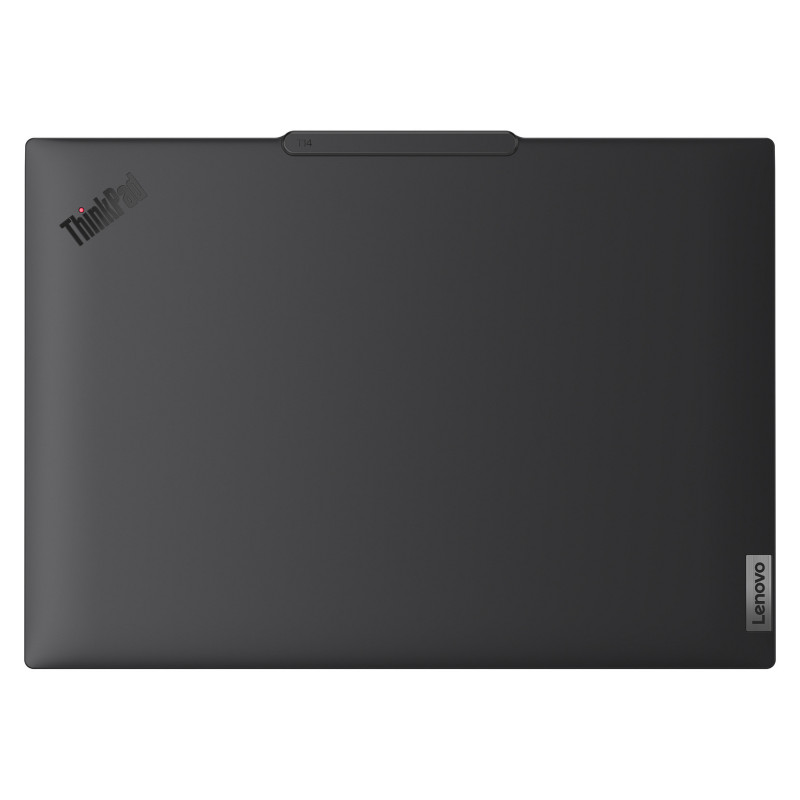

Whether — watching or creating, experience superb content quality on the 14" ThinkPad T14 Gen 5 laptop. Its 3M optical solutions boost display efficiency, maximizing the brightness levels while reducing power usage. Plus narrow bezels along with Dolby Vision® ensure you'll enjoy rich, vibrant visuals. Certified for Eyesafe® and TÜV Low Blue Light protection, it prevents eye fatigue during long work hours. Moreover, it's slim, lightweight, and comes in two elegant colors Eclipse Black and Luna Grey to match your personal style.

Inclusive Design for Easy Access

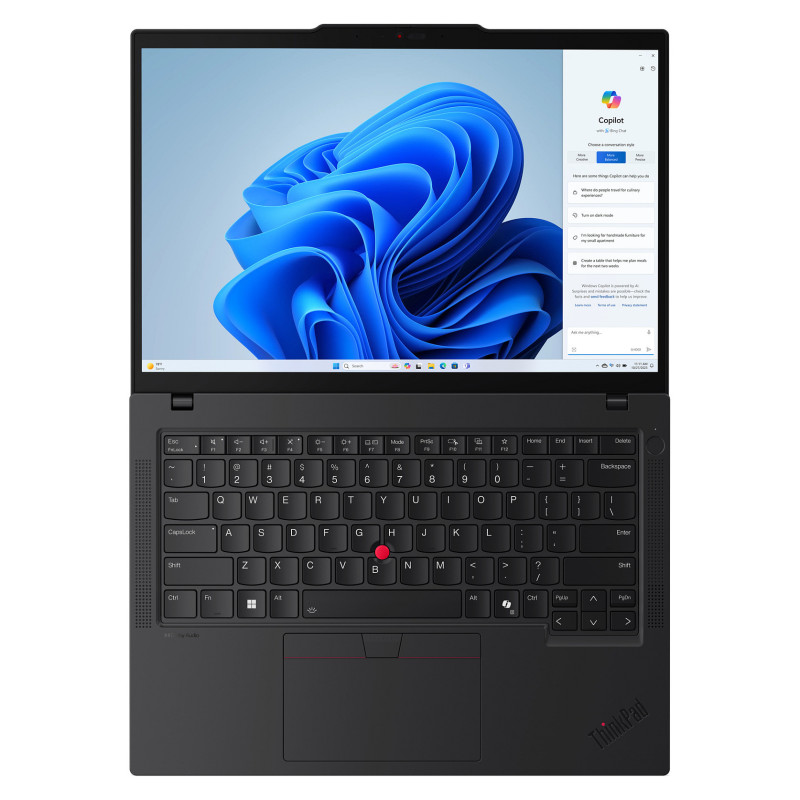

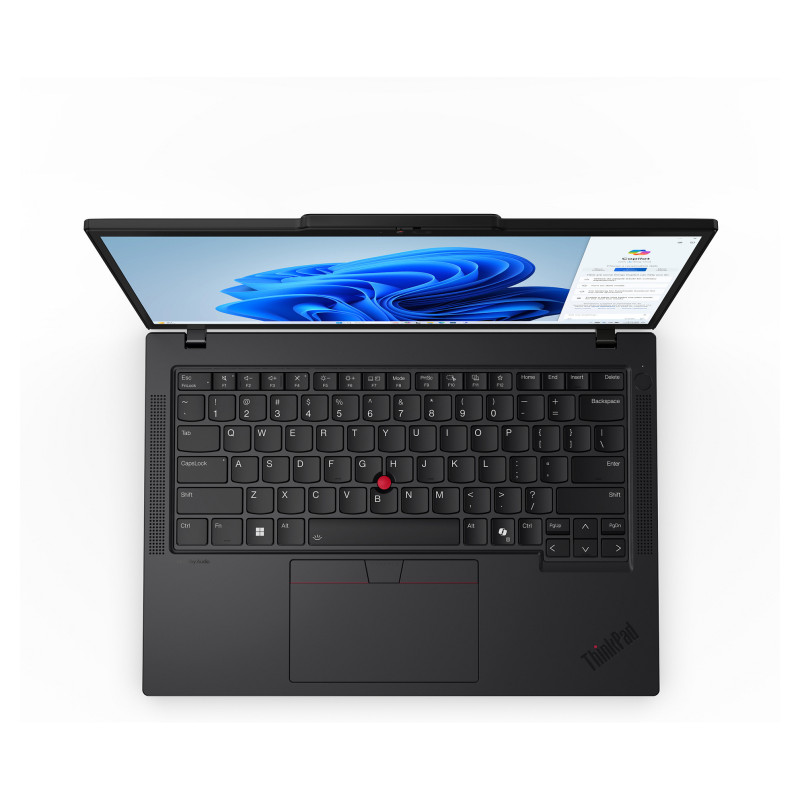

Our redesigned ThinkPad keyboard now includes tactile markings to help visually impaired folks easily find the correct keys. Our TrackPad is even bigger now, at 120mm / 4.72ʺ. And our beloved red TrackPoint still lets you navigate — but with a double tap, it opens the ThinkPad TrackPoint Quick Menu to optimize audio-visuals, set alerts against muting, and even take notes with the Dictation Toolbar for handy speech-to-text transcription.

Go Calm, Cool, & Secure

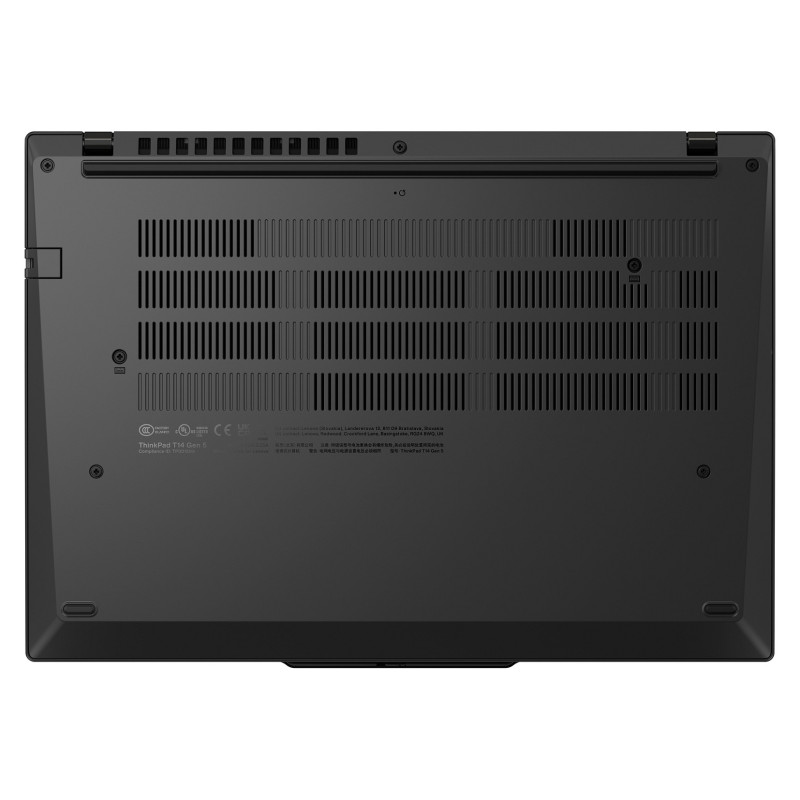

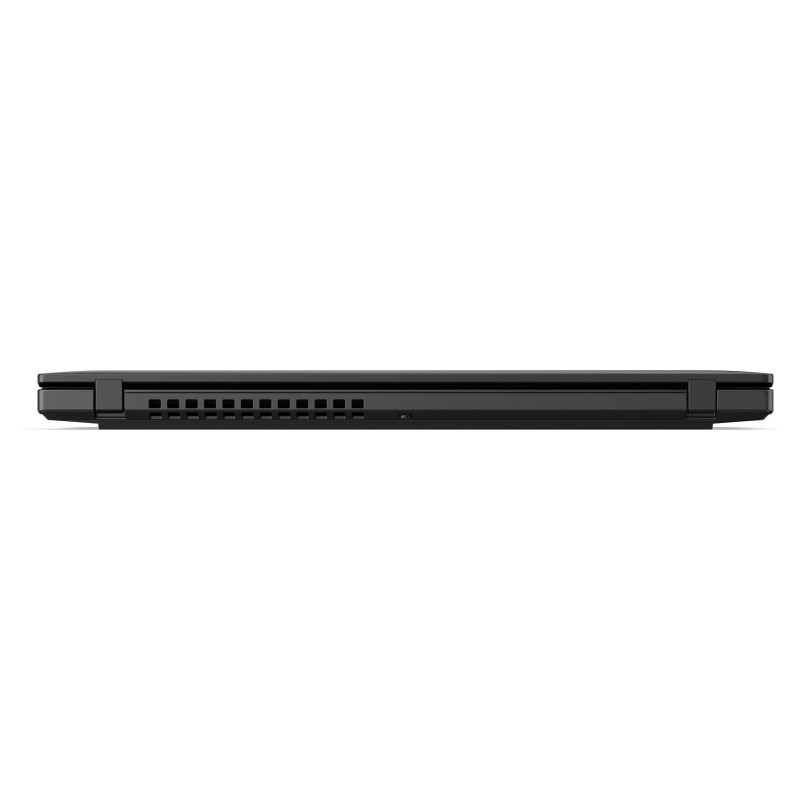

Level up your efficiency with advanced thermal management and adaptive battery enhancement tailored to your workflow. The ThinkPad T14 Gen 5 laptop comes equipped with dual fans and strategically placed rear air vents to ensure optimal cooling efficiency while you crunch your computing tasks. And, adapting to your workload, it extends battery life when you need it the most. Plus, it includes ThinkShield security for comprehensive data protection and comes with an optional match-on-chip fingerprint reader integrated with the power button to enable secure device access.

Simplified Swaps & Repairs

Engineered to endure, the ThinkPad T14 Gen 5 laptop is designed for easy upgrades with swappable components. You can easily replace or repair your system memory, SSD, battery, keyboard, and WWAN with convenient customer replaceable units (CRUs) even without tech expertise. In fact, for its ease of maintenance and remarkable do-it-yourself serviceability, this laptop boasts an industry-leading 9.3/10 on the iFixit Repairability Score. So, whether you wish to upgrade components or extend your device's lifespan, you can trust our support services to keep your system and your business — up and running.

Built Strong, Stays Strong

We use the US Department of Defense's MIL-STD-810H to create a balance of reliability and durability for ThinkPad laptops. Meeting or exceeding 12 standards, 26 procedures, and 200+ quality checks ensure that these devices run in extreme conditions, including harsh variables like Arctic wilderness, desert dust storms, extreme temps, pressure, humidity, vibration, and more. What's more, while the ThinkPad T14 Gen 5 is built for durability, it's also engineered to be power efficient with an ENERGY STAR® 8.0 certification.

Specifications may vary depending upon region / model.

Design

Product type: Laptop
Product colour: Black
Form factor: Clamshell
Housing material: Glass fibre, Polycarbonate (PC)

Display

Display diagonal: 35.6 cm (14")
Display resolution: 1920 x 1200 pixels
Feature: Touchscreen
HD type: WUXGA
Panel type: IPS
Feature: LED backlight
Native aspect ratio: 16:10
Feature: Anti-glare screen
Display brightness: 500 cd/m²
RGB colour space: sRGB
Colour gamut: 100%
Maximum refresh rate: 60 Hz
Contrast ratio (typical): 1500:1

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel® Core™ Ultra (Series 1)
Processor model: 135U
Processor cores: 12
Processor threads: 14
Processor boost frequency: 4.4 GHz
Performance cores: 2
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 4.4 GHz
Efficient-core Max Turbo Frequency: 3.6 GHz
Low Power Efficient-core Max Turbo Frequency: 2.1 GHz
Performance-core base frequency: 1.6 GHz
Efficient-core base frequency: 1.1 GHz
Low Power Efficient-core Base Frequency: 700 MHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Processor socket: BGA 2049
Processor base power: 15 W
Maximum turbo power: 57 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, Windows ML
Total processor performance up to: 22 TOPs
NPU performance up to: 11 TOPs
GPU performance up to: 8 TOPs

Memory

Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory clock speed: 5600 MHz
Memory form factor: SO-DIMM
Memory layout (slots x size): 2 x 16 GB
Memory slots: 2x SO-DIMM
Maximum internal memory: 64 GB
Memory channels: Dual-channel

Storage

Total storage capacity: 256 GB
Storage media: SSD
Total SSDs capacity: 256 GB
Number of SSDs installed: 1
SSD capacity: 256 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Optical drive type: No

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Audio

Audio chip: Realtek ALC3287
Audio system: Dolby Audio
Number of built-in speakers: 2
Speaker power: 2 W
Feature: Built-in microphone
Number of microphones: 2

Camera

Feature: Front camera
Front camera resolution (numeric): 5 MP
Feature: Infrared (IR) camera
Feature: Privacy camera
Privacy type: Privacy shutter

Network

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Antenna type: 2x2
WLAN controller model: Intel Wi-Fi 6E AX211
WLAN controller manufacturer: Intel
Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.3
WWAN: Not installed

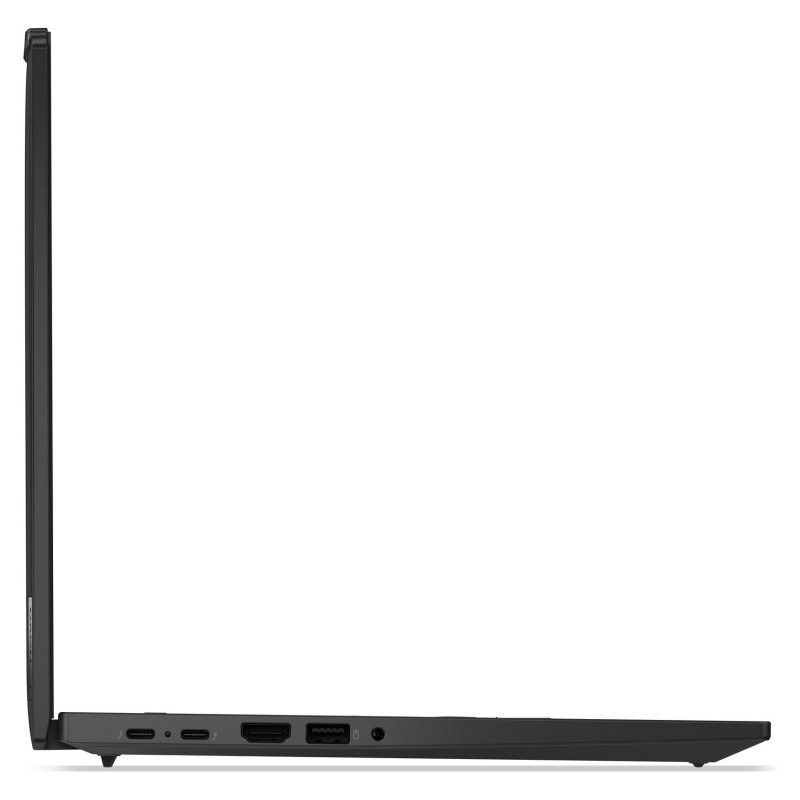

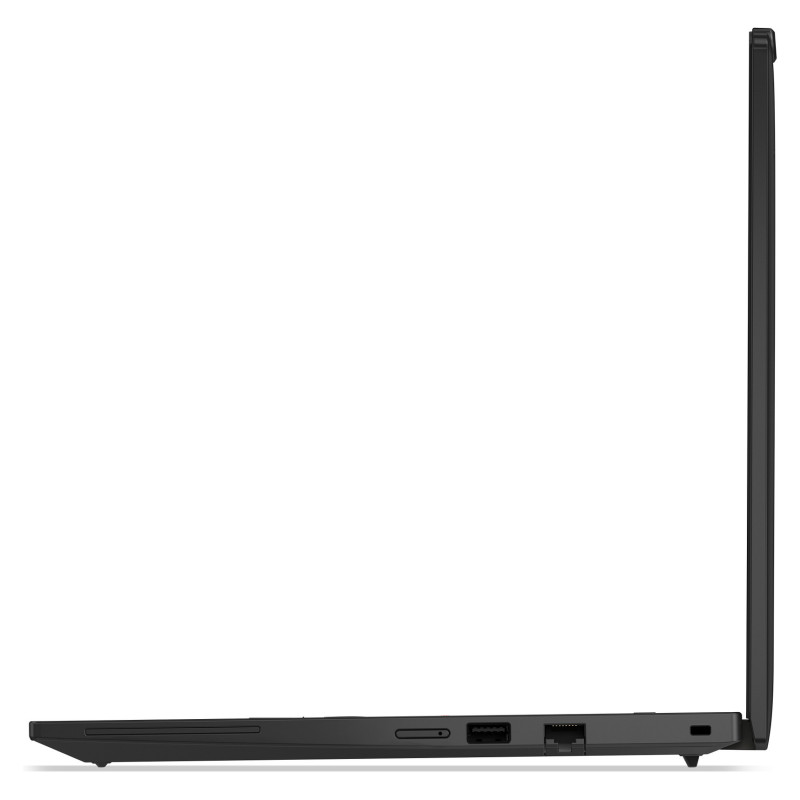

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Feature: Intel® Thunderbolt 4
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Sleep-and-Charge
USB Sleep-and-Charge ports: 1

Performance

Motherboard chipset: Intel SoC

Keyboard

Pointing device: ThinkPad UltraNav
Feature: Keyboard backlit
Feature: Spill-resistant keyboard
Keyboard language: German

Software

Operating system architecture: 64-bit
Operating system language: German
Operating system installed: Windows 11 Pro
Bundled software: Intel Connectivity Performance Suite

Battery

Battery technology: Lithium Polymer (LiPo)
Battery capacity: 52.5 Wh
Feature: Fast charging

Power

AC adapter power: 65 W
AC adapter frequency: 50/60 Hz
AC adapter input voltage: 100 - 240 V
Feature: USB Type-C charging port
Feature: USB Power Delivery (USB PD)

Security

Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Windows Hello
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Feature: Password protection
Password protection type: BIOS, Power on, SSD, Supervisor

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): 5 - 43 °C
Operating relative humidity (H-H): 8 - 95%
Storage relative humidity (H-H): 5 - 95%
Maximum shipping altitude: 3048 m

Certificates

Compliance certificates: RoHS
Certification: ErP Lot 6/26MIL-STD-810H

Sustainability

Feature: Sustainability compliance
Sustainability certificates: ENERGY STAR, EPEAT Gold, TCO

Weight & dimensions

Width: 315.9 mm
Depth: 223.7 mm
Height: 17.7 mm
Weight: 1.38 kg

Packaging content

Feature: AC adapter included
