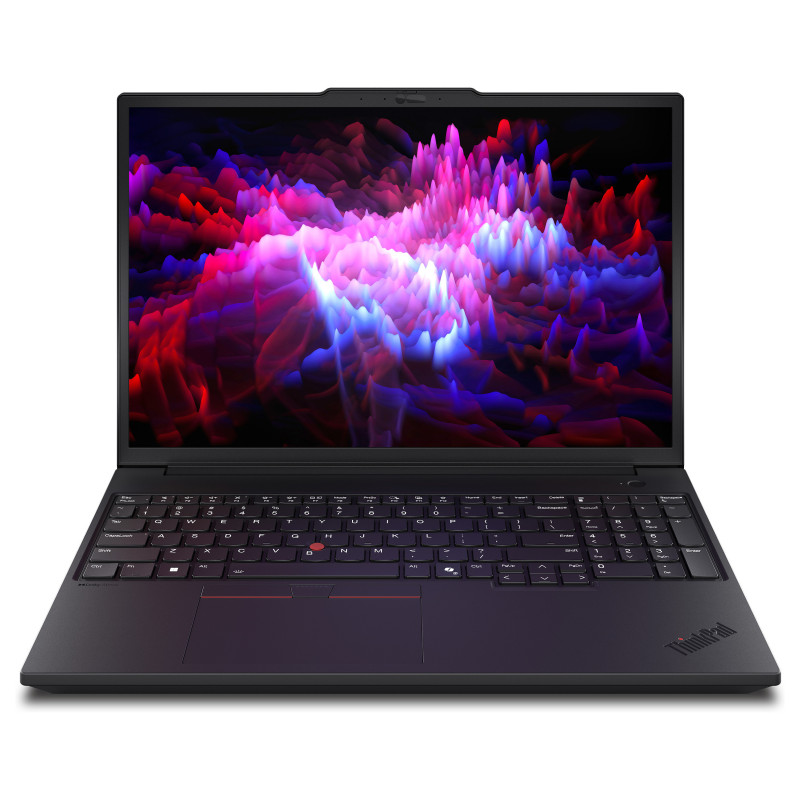

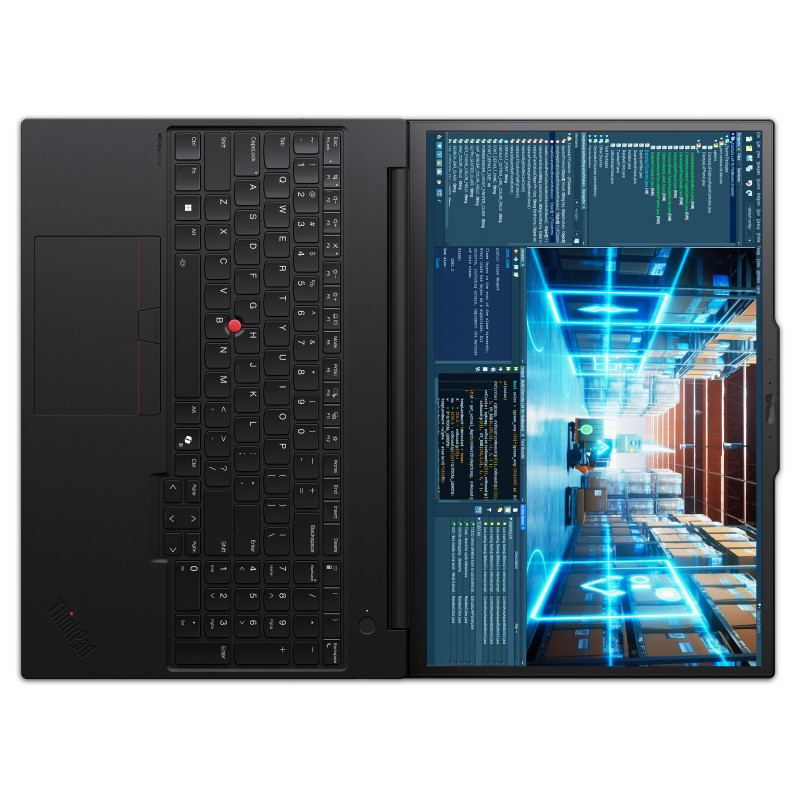

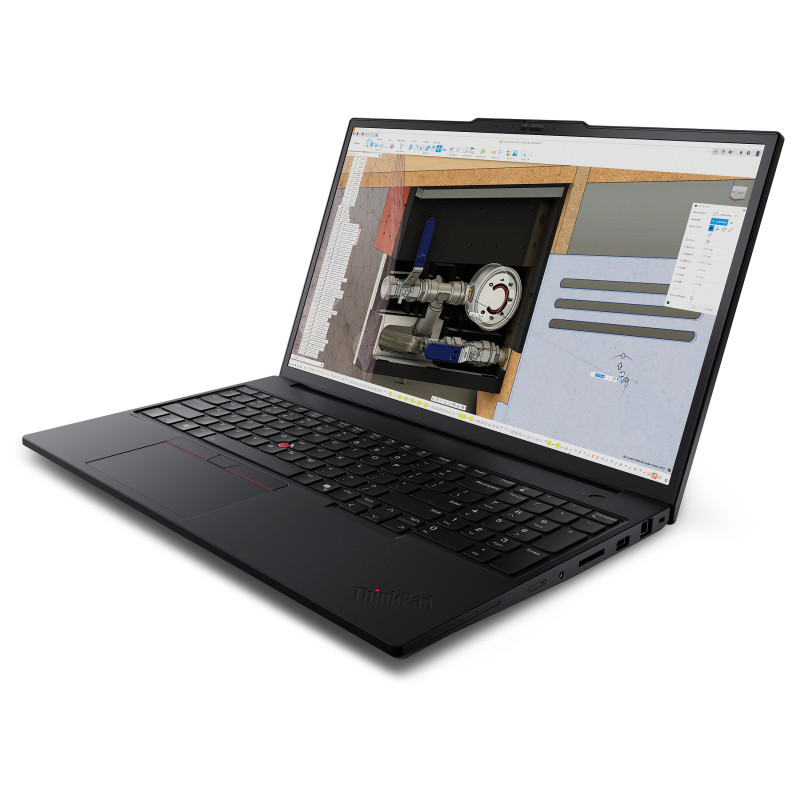

Lenovo ThinkPad P16v Gen 3 (Intel)

Lenovo ThinkPad P16v Gen 3 (Intel). Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255H. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T, Discrete graphics card model: NVIDIA RTX PRO 500 Blackwell. Operating system installed: Windows 11 Pro. Product colour: Black

Design

Product type: Mobile workstation
Product colour: Black
Form factor: Clamshell
Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Display

Display diagonal: 40.6 cm (16")
Display resolution: 1920 x 1200 pixels
Touchscreen: No
HD type: WUXGA
Panel type: IPS
LED backlight: Yes
Native aspect ratio: 16:10
Anti-glare screen: Yes
Display brightness: 400 cd/m²
RGB colour space: NTSC
Colour gamut: 45%
Maximum refresh rate: 60 Hz

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 2)
Processor model: 255H
Processor cores: 16
Processor threads: 16
Processor boost frequency: 5.1 GHz
Performance cores: 6
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 5.1 GHz
Efficient-core Max Turbo Frequency: 4.4 GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core base frequency: 2 GHz
Efficient-core base frequency: 1.5 GHz
Low Power Efficient-core Base Frequency: 700 MHz
Processor cache: 24 MB
Processor base power: 28 W
Maximum turbo power: 115 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, Windows ML
Total processor performance up to: 96 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 74 TOPs

Memory

Internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Memory clock speed: 5600 MHz
Memory form factor: SO-DIMM
Memory layout (slots x size): 2 x 16 GB
Memory slots: 2x SO-DIMM
Maximum internal memory: 96 GB

Storage

Total storage capacity: 1 TB
Storage media: SSD
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express
NVMe: Yes
SSD form factor: M.2
Optical drive type: No
Card reader integrated: Yes
Compatible memory cards: SD

Graphics

Discrete GPU manufacturer: NVIDIA
Discrete graphics card model: NVIDIA RTX PRO 500 Blackwell
Discrete graphics card memory: 6 GB
Discrete graphics memory type: GDDR7
On-board graphics card: Yes
On-board GPU manufacturer: Intel
Discrete graphics card: Yes
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc 140T

Audio

Audio chip: Realtek ALC3287
Number of built-in speakers: 2
Speaker power: 2 W
Built-in microphone: Yes
Number of microphones: 2

Camera

Front camera resolution (numeric): 5 MP
Infrared (IR) camera: Yes
Privacy camera: Yes
Privacy type: Privacy shutter

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Mobile network connection: No
Antenna type: 2x2
WLAN controller manufacturer: Intel
Ethernet LAN: Yes
Ethernet LAN data rates: 100,1000 Mbit/s
Bluetooth: Yes
Bluetooth version: 5.4
Near Field Communication (NFC): No
WWAN: Upgradable

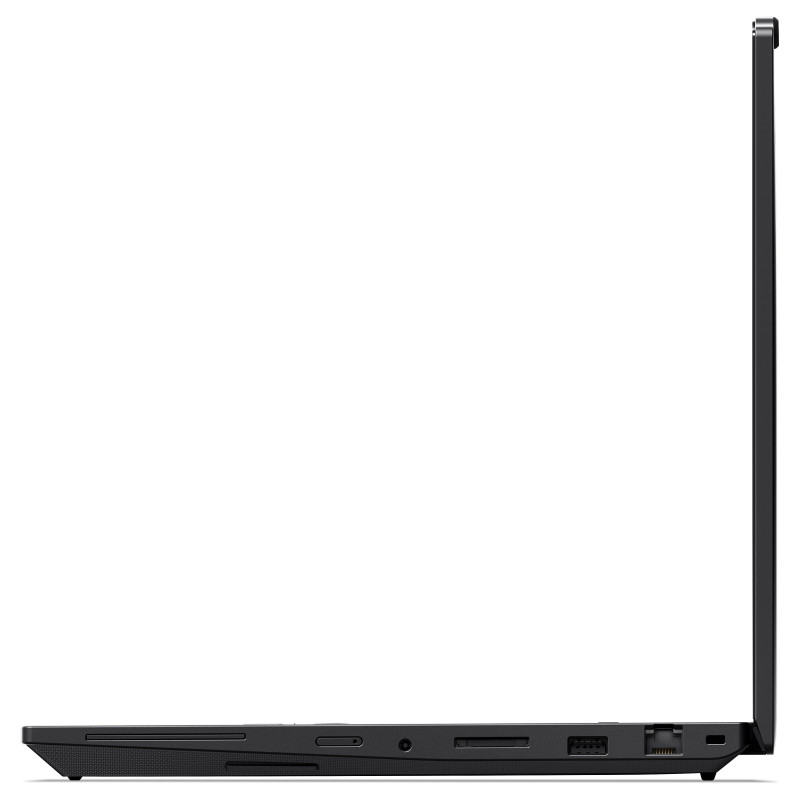

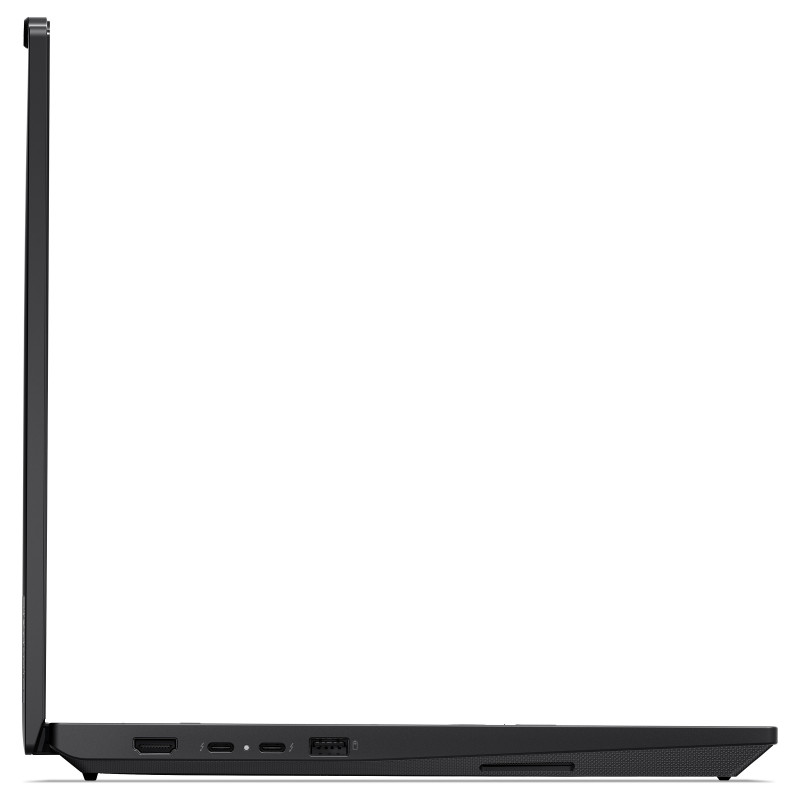

Ports interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Intel® Thunderbolt 4: Yes
Combo headphone/mic port: Yes
USB Sleep-and-Charge: Yes

Performance

Motherboard chipset: Intel SoC

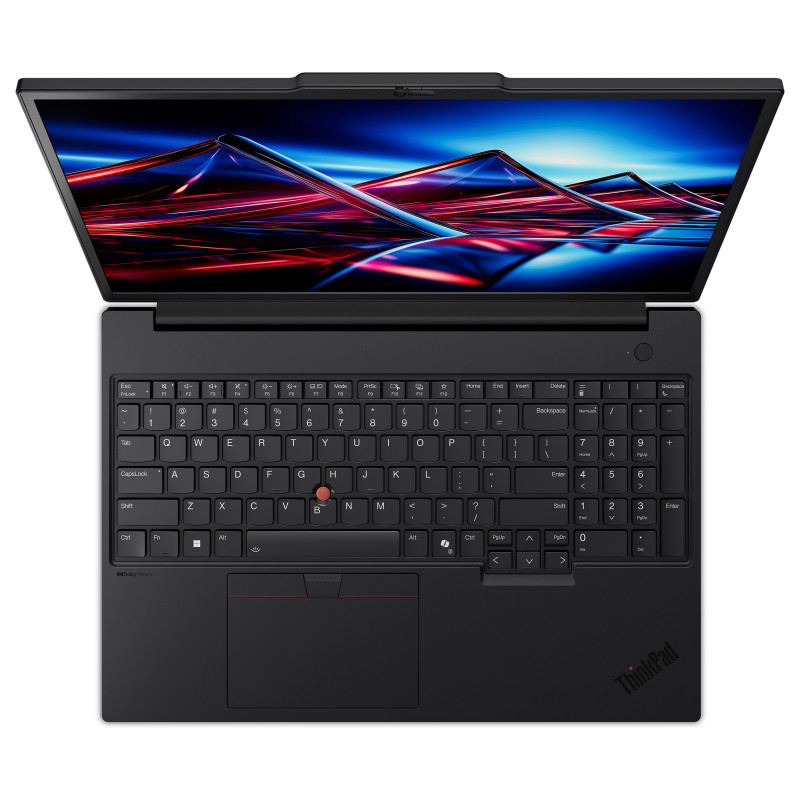

Keyboard

Pointing device: ThinkPad UltraNav
Numeric keypad: Yes
Keyboard backlit: Yes
Keyboard language: German

Software

Operating system architecture: 64-bit
Operating system language: German
Operating system installed: Windows 11 Pro
Bundled software: Lenovo AI Now

Battery

Battery capacity: 90 Wh

Power

AC adapter power: 140 W
AC adapter frequency: 50/60 Hz
AC adapter input voltage: 100 - 240 V
USB Type-C charging port: Yes
USB Power Delivery (USB PD): Yes

Security

Cable lock slot: Yes
Cable lock slot type: Kensington
Fingerprint reader: Yes
Smart card reader: No
Windows Hello: Yes
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): 5 - 43 °C
Operating relative humidity (H-H): 8 - 95%
Storage relative humidity (H-H): 5 - 95%

Certificates

Certification: ENERGY STAR,TCO,EPEAT Gold,RoHS

Weight dimensions

Width: 361.5 mm
Depth: 248.6 mm
Height (front): 1.28 cm
Height (rear): 1.96 cm
Weight: 2.1 kg

Packaging content

AC adapter included: Yes
