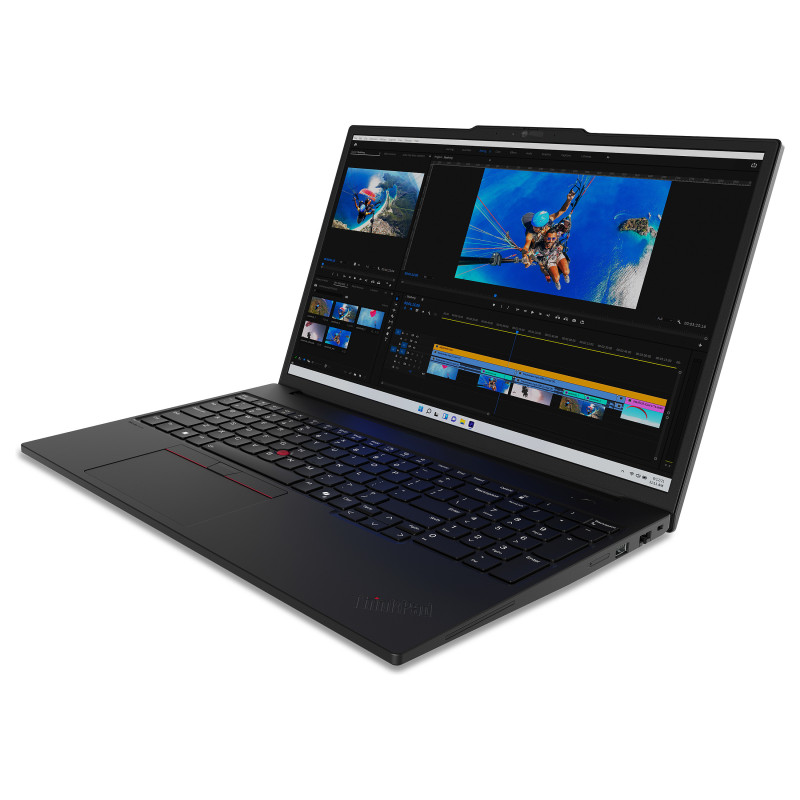

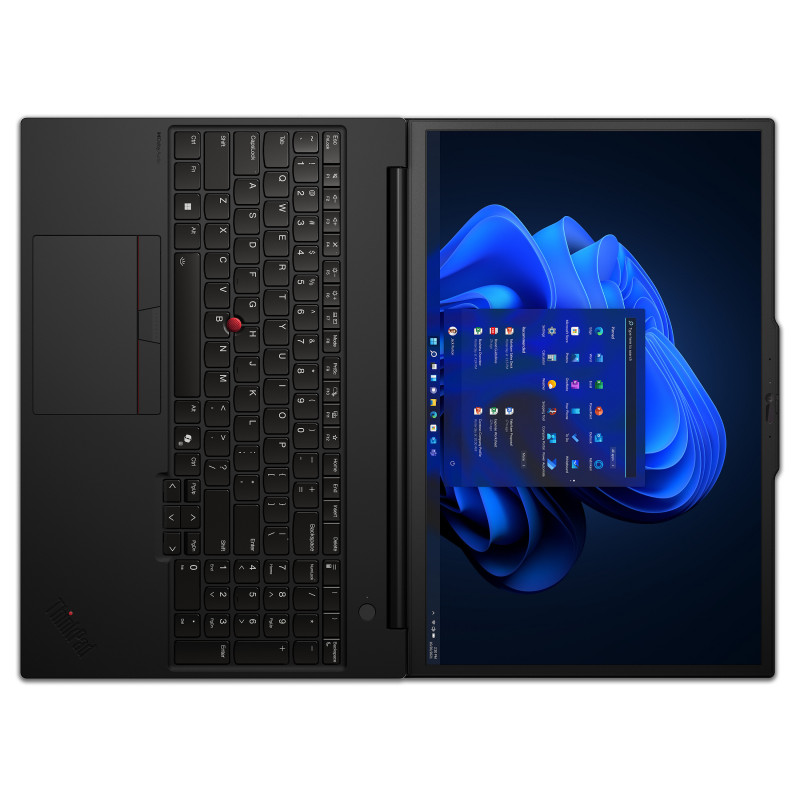

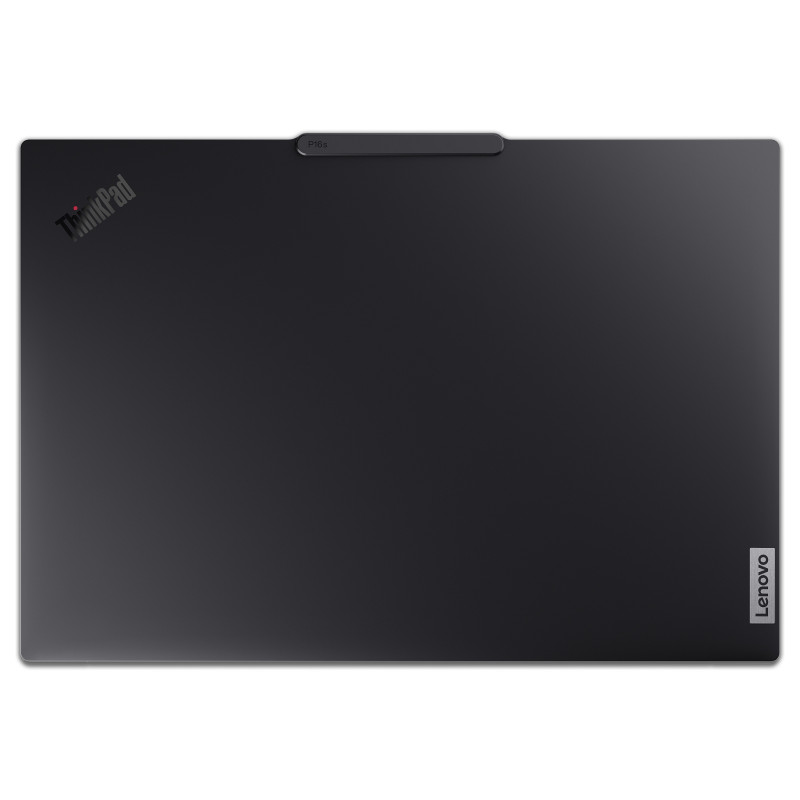

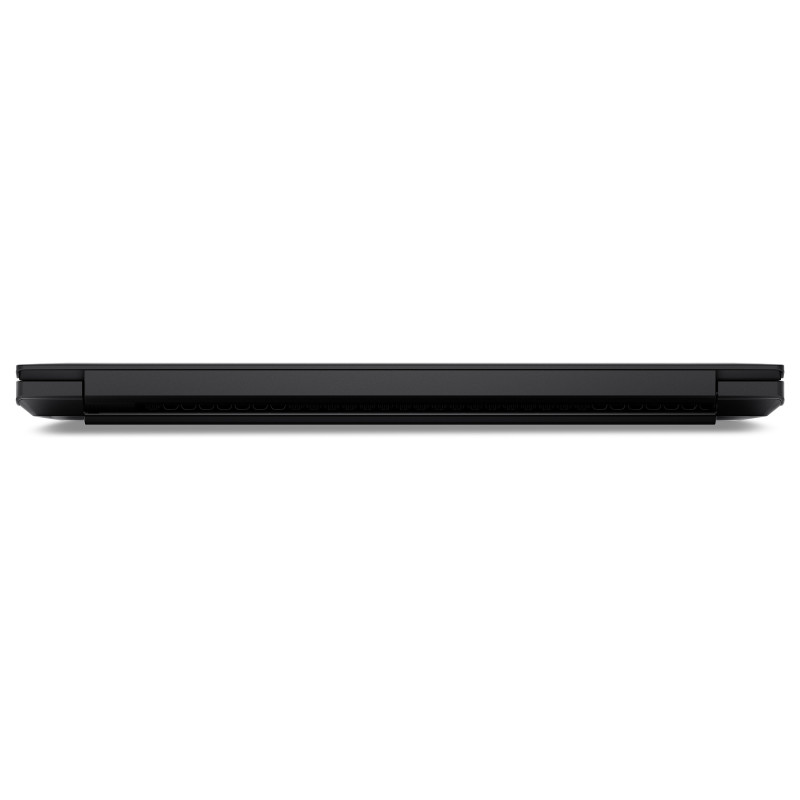

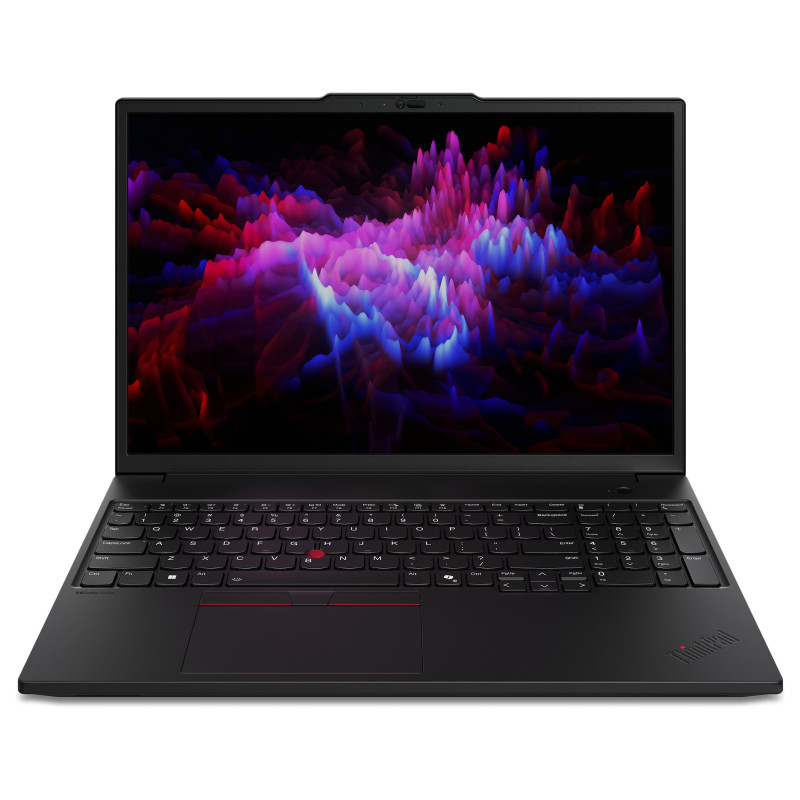

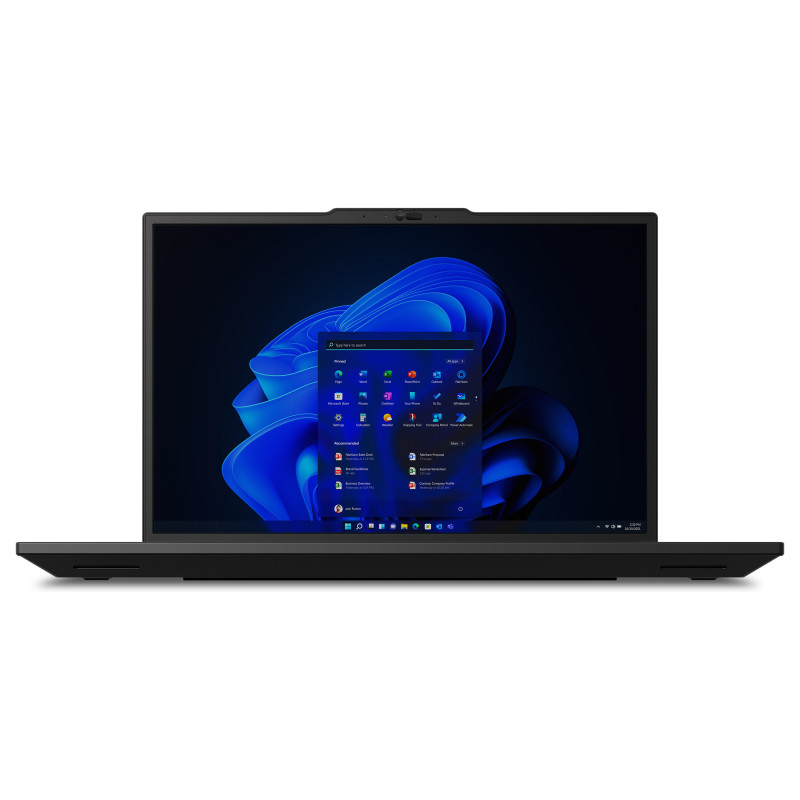

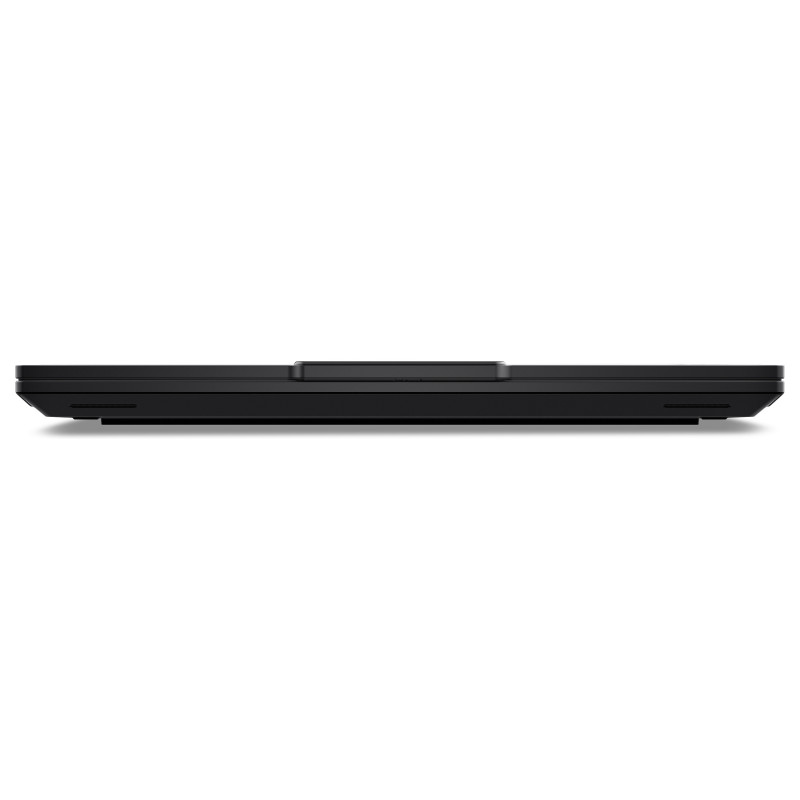

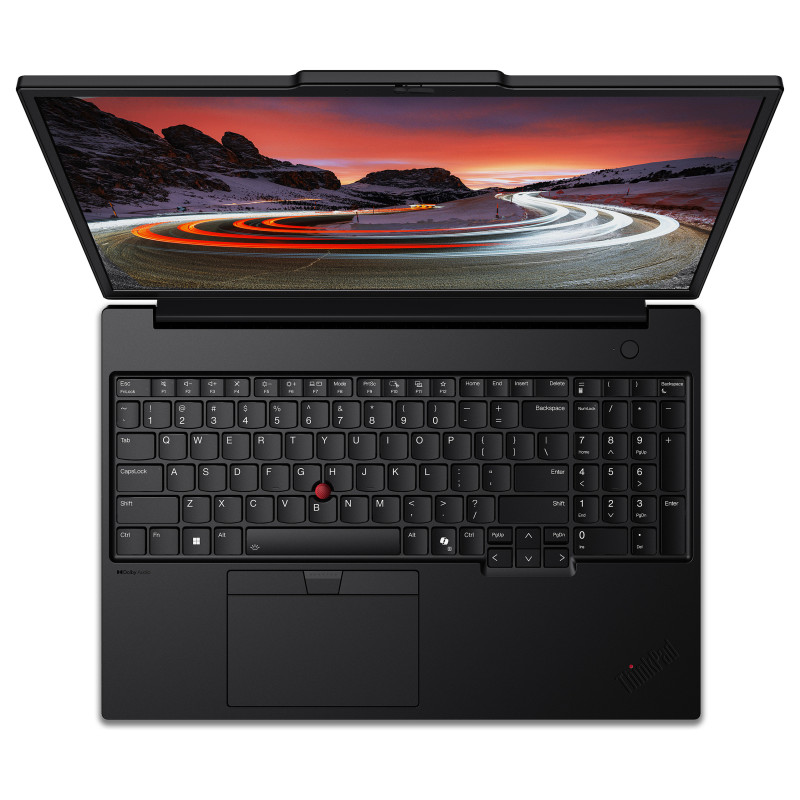

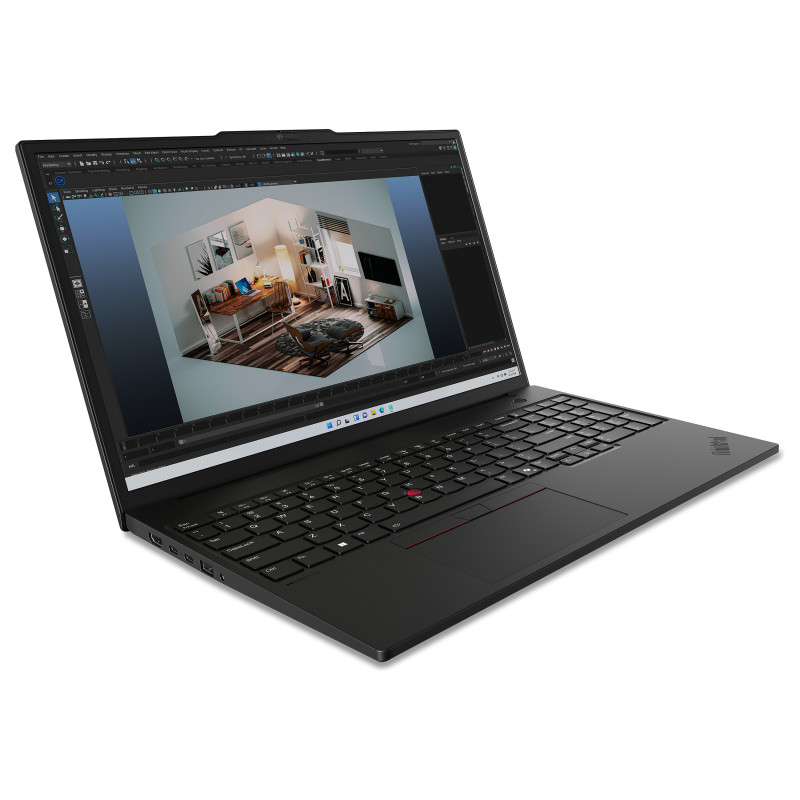

Lenovo ThinkPad P16s Gen 3 (Intel)

Lenovo ThinkPad P16s Gen 3 (Intel). Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 155H. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics, Discrete graphics card model: NVIDIA RTX 500 Ada. Operating system installed: Windows 11 Pro. Product colour: Black

Design

Colour name: Black
Product type: Mobile workstation
Product colour: Black
Form factor: Clamshell
Housing material: Aluminium

Display

Display diagonal: 40.6 cm (16")
Display resolution: 1920 x 1200 pixels
HD type: WUXGA
Panel type: IPS
Feature: LED backlight
Native aspect ratio: 16:10
Feature: Anti-glare screen
Display brightness: 300 cd/m²
RGB colour space: NTSC
Colour gamut: 45%
Contrast ratio (typical): 800:1

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel® Core™ Ultra (Series 1)
Processor model: 155H
Processor cores: 16
Processor threads: 22
Processor boost frequency: 4.8 GHz
Performance cores: 6
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 4.8 GHz
Efficient-core Max Turbo Frequency: 3.8 GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core base frequency: 1.4 GHz
Efficient-core base frequency: 0.9 GHz
Low Power Efficient-core Base Frequency: 700 MHz
Processor cache: 24 MB
Processor cache type: Smart Cache
Processor base power: 28 W
Maximum turbo power: 115 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Maximum frequency NPU: 1.4 GHz
Feature: Sparsity support
Feature: Windows Studio effects support
AI datatype support on NPU: FP16, FP32, Int8
AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, Windows ML

Memory

Internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Memory clock speed: 5600 MHz
Memory form factor: SO-DIMM
Memory layout (slots x size): 2 x 16 GB
Memory slots: 2x SO-DIMM
Maximum internal memory: 96 GB

Storage

Total storage capacity: 1 TB
Storage media: SSD
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Optical drive type: No

Graphics

Discrete graphics card model: NVIDIA RTX 500 Ada
Discrete graphics card memory: 4 GB
Discrete graphics memory type: GDDR6
Feature: On-board graphics card
On-board GPU manufacturer: Intel
Feature: Discrete graphics card
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc Graphics

Audio

Audio chip: Realtek ALC3287
Number of built-in speakers: 2
Speaker power: 2 W
Feature: Built-in microphone
Number of microphones: 2

Camera

Front camera resolution (numeric): 5 MP
Feature: Infrared (IR) camera
Feature: Privacy camera
Privacy type: Privacy shutter

Network

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Antenna type: 2x2
WLAN controller model: Intel Wi-Fi 6E AX211
WLAN controller manufacturer: Intel
Feature: Ethernet LAN
Feature: Bluetooth
Bluetooth version: 5.3
WWAN: Upgradable

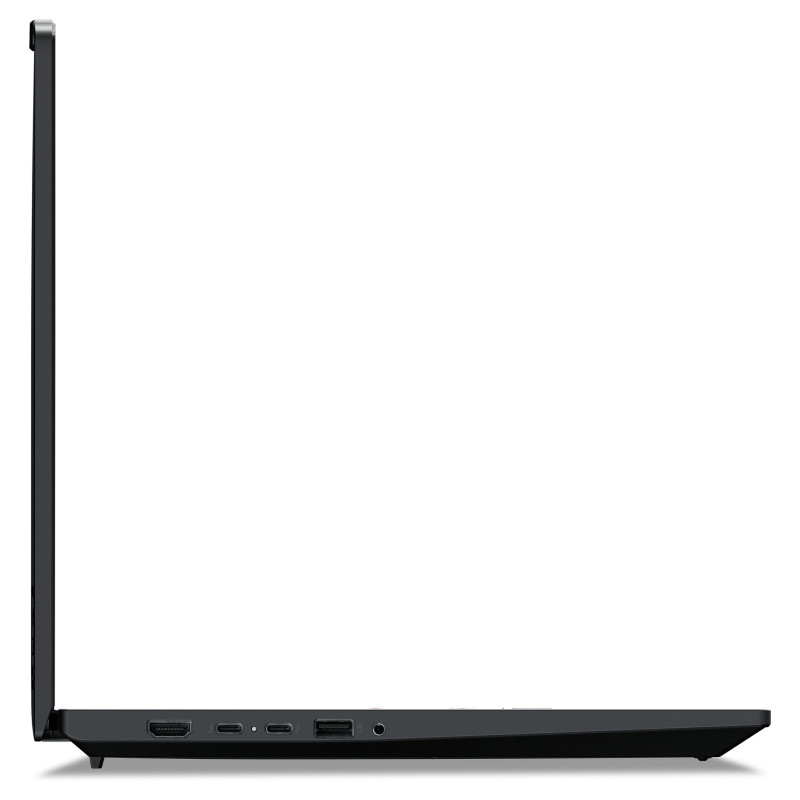

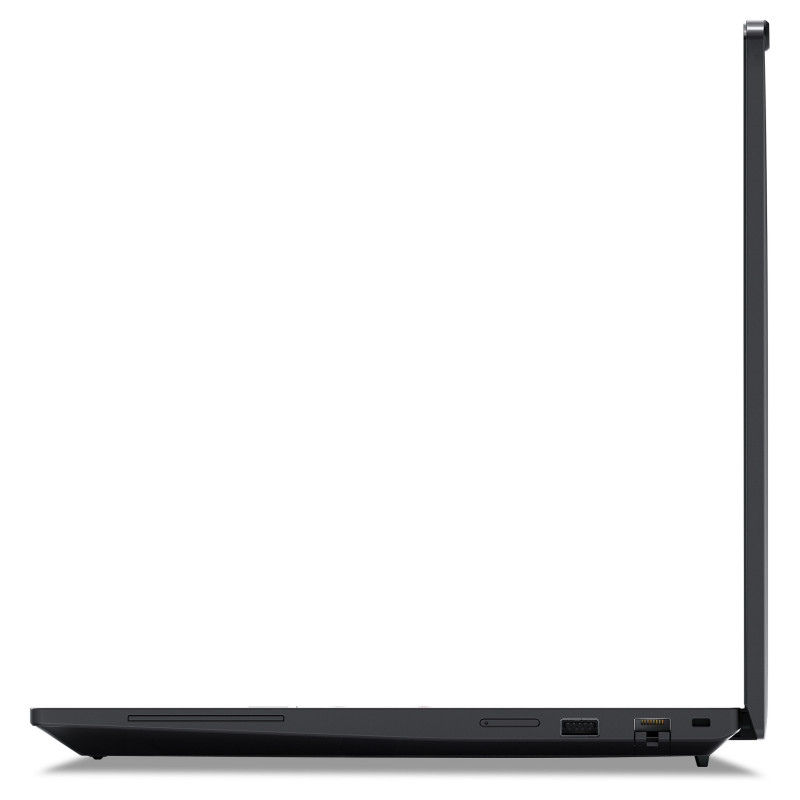

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Feature: Intel® Thunderbolt 4
Feature: Combo headphone/mic port
Feature: USB Sleep-and-Charge

Performance

Motherboard chipset: Intel SoC

Keyboard

Pointing device: ThinkPad UltraNav
Feature: Numeric keypad
Feature: Keyboard backlit
Keyboard language: German

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro

Battery

Battery technology: Lithium Polymer (LiPo)
Battery capacity: 75 Wh

Power

AC adapter power: 135 W
AC adapter frequency: 50/60 Hz
AC adapter input voltage: 100 - 240 V

Security

Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Fingerprint reader
Feature: Smart card reader
Feature: Windows Hello
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): 5 - 43 °C
Operating relative humidity (H-H): 8 - 95%
Storage relative humidity (H-H): 5 - 95%
Maximum shipping altitude: 3048 m

Weight & dimensions

Width: 361.5 mm
Depth: 248.6 mm
Height: 21.1 mm
Weight: 1.82 kg
