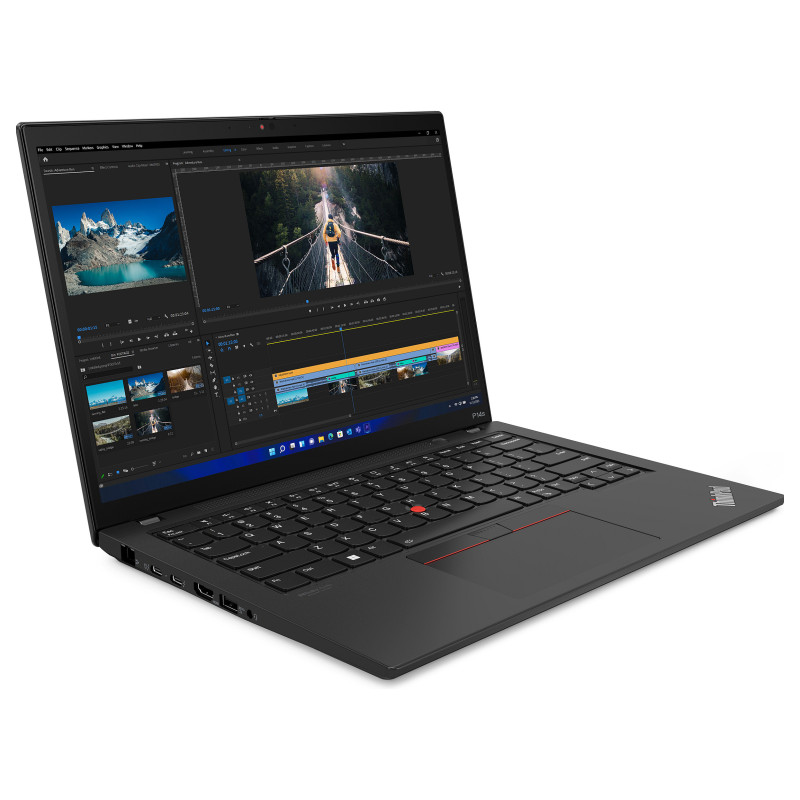

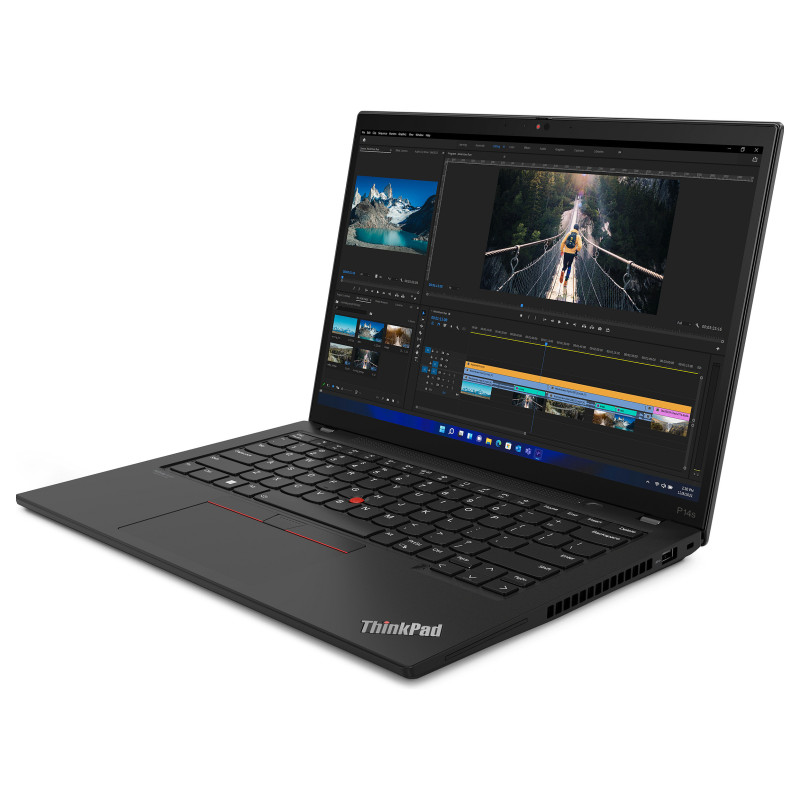

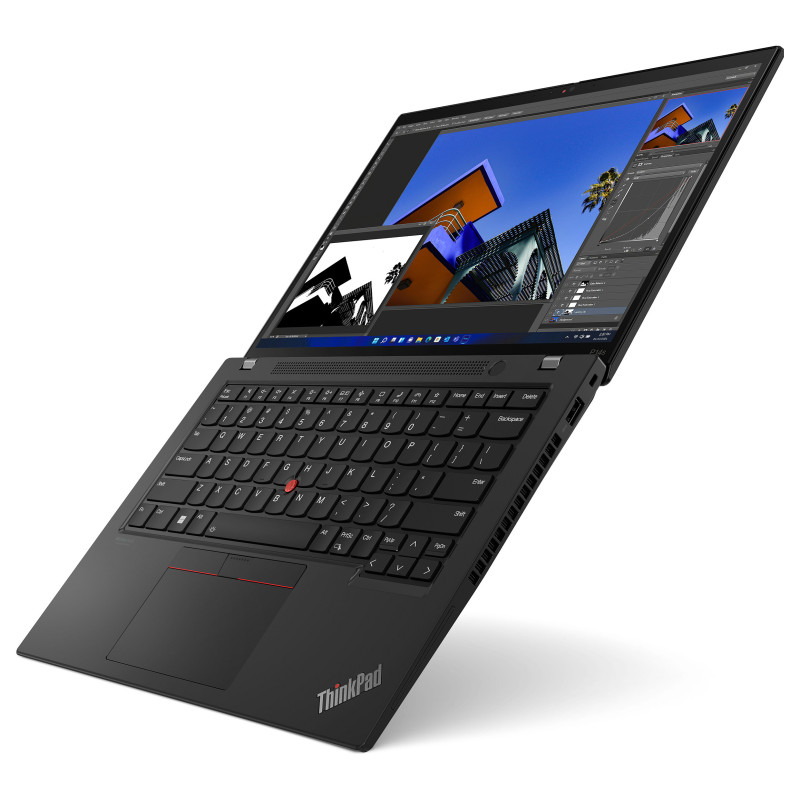

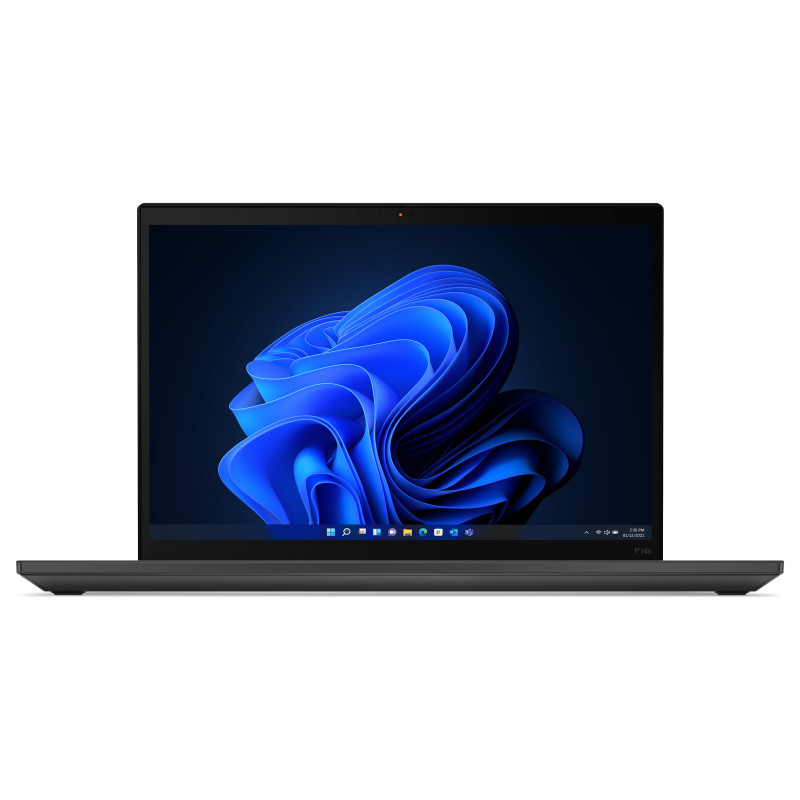

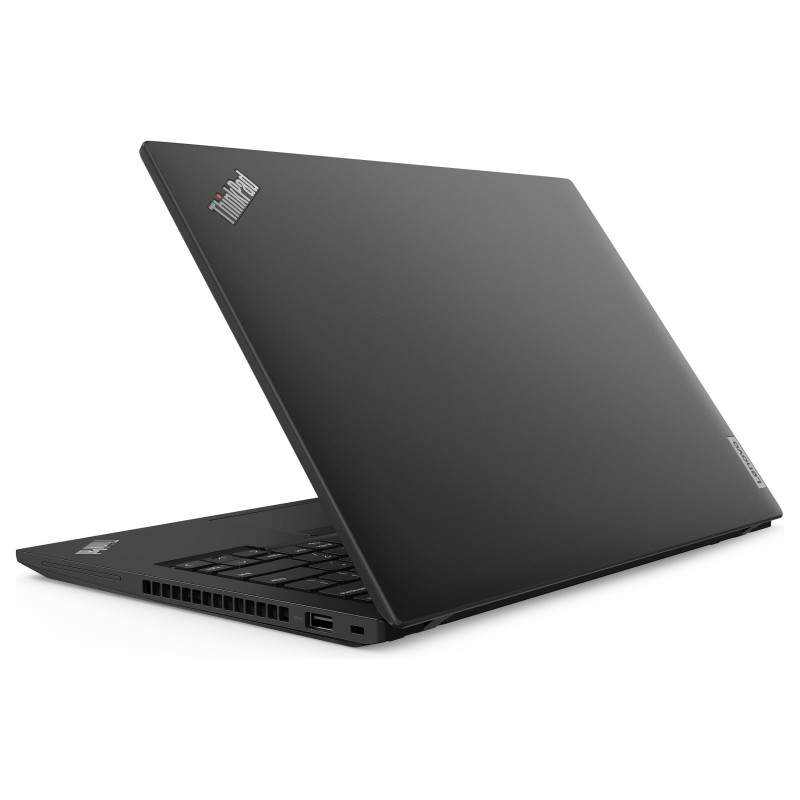

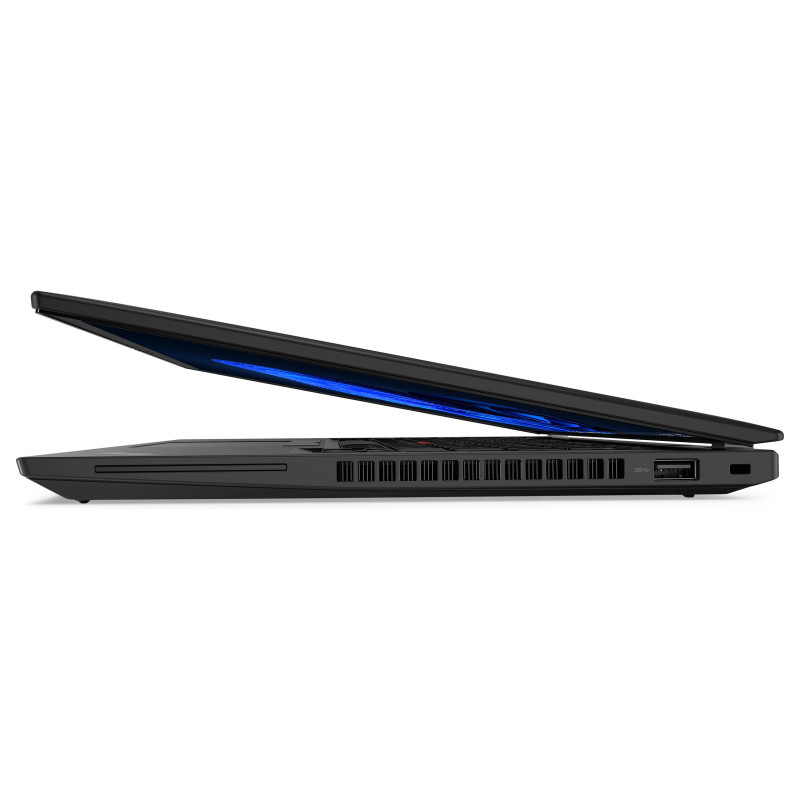

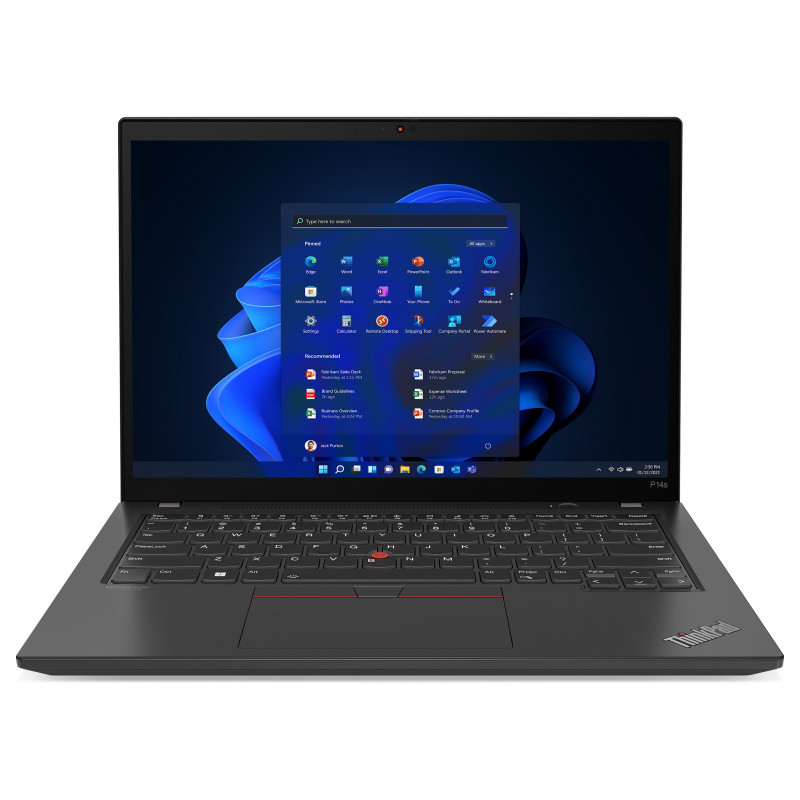

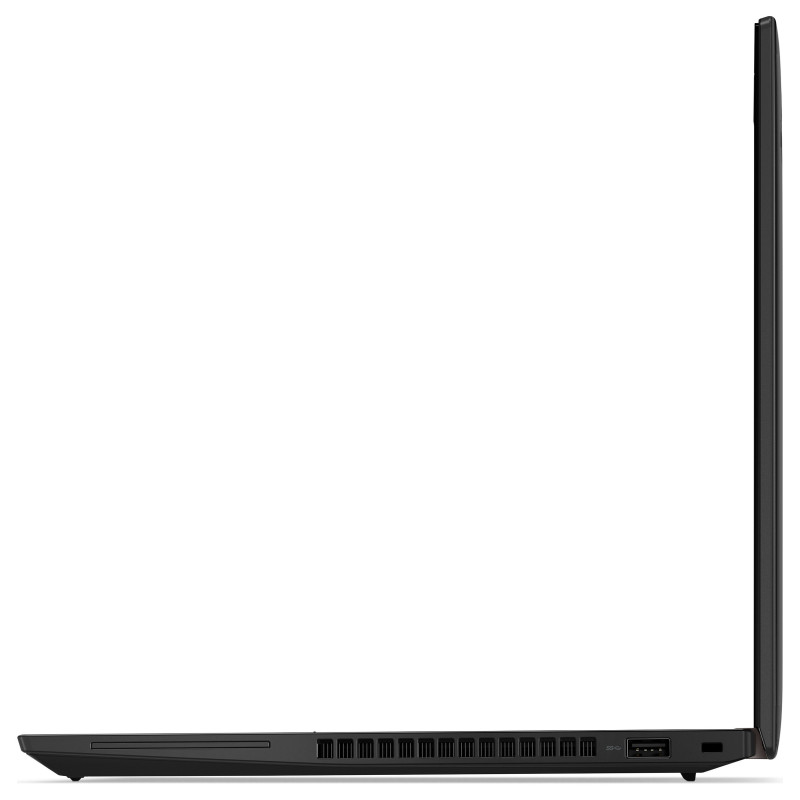

Lenovo ThinkPad P14s Gen 4 (Intel)

Lenovo ThinkPad P14s Gen 4 (Intel). Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel® Core™ i5, Processor model: i5-1340P. Display diagonal: 35.6 cm (14"), HD type: 2.8K, Display resolution: 2880 x 1800 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics. Operating system installed: Windows 11 Pro. Product colour: Black. Weight: 1.34 kg
On-the-go performance
Perfect for modern professionals, educators, and students, the Lenovo ThinkPad P14s Gen 4 (14″ Intel) mobile workstation is our thinnest and lightest. Packaged in a 14″ Thunder Black or Storm Grey chassis and powered by up to Intel vPro® with 13th Gen Intel® Core™ processors and optional NVIDIA® discrete graphics, this mobile workstation is ideal for highly mobile power users. Innovate freely, wherever life takes you.
Stunning clarity
Optimized with a 16:10 aspect ratio, the ThinkPad P14s Gen 4 (14″ Intel) mobile workstation provides the visual clarity you need to innovate on the go. With options including 2.8K OLED (2880 x 1800) resolution, full DC dimming, and Eyesafe® certification for brilliant and efficient viewing, the display makes your work come to life. And thanks to the optional 5MP + IR camera, your videoconferencing experience is just as immersive.
Perfectly packaged
With abundant memory and storage plus Ultra Performance Mode, your productivity will soar. You'll also enjoy unrivaled connectivity with multiple USB and Thunderbolt™ 4 ports, and the rapid charge battery will enable you to work from almost anywhere. Multiple WWAN and WLAN options support your performance, ease of use, and connectivity.
Certified for confidence
With numerous independent software vendor (ISV) certifications, the ThinkPad P14s Gen 4 (14″ Intel) mobile workstation performs your favorite applications—such as AutoCAD®, Revit®, SolidWorks®, and many more—seamlessly. It is also built to last in any environment, meeting multiple MIL-SPEC testing standards as well as passing more than 200 Lenovo quality tests. And a service-friendly alternate cover allows configuring on the go. So go ahead—take it for a drive, literally, anywhere you need.

Trusted companion
Equipped with ThinkShield, Lenovo's hardware and software security suite, the ThinkPad P14s Gen 4 (14″ Intel) mobile workstation is protected—as is your data. Features include a Discrete Trusted Platform Module (dTPM) to encrypt your data, a fingerprint reader with biometrics for a secure touch login, and a self-healing BIOS that can restore earlier system settings when needed. The webcam has a privacy shutter that physically blocks the camera. Lenovo has your security in mind.

Design

Colour name: Villi Black
Product type: Mobile workstation
Product colour: Black
Form factor: Clamshell
Housing material: Carbon fibre, Glass fibre, Polycarbonate (PC), Polyphenylene sulfide (PPS)

Display

Display diagonal: 35.6 cm (14")
Display resolution: 2880 x 1800 pixels
Touchscreen: No
HD type: 2.8K
Panel type: OLED
LED backlight: Yes
Native aspect ratio: 16:10
Anti-glare screen: Yes
Anti-reflective coating: Yes
Display brightness: 400 cd/m²
RGB colour space: DCI-P3
Colour gamut: 100%
Contrast ratio (typical): 100000:1
High Dynamic Range (HDR) supported: Yes
High Dynamic Range (HDR) technology: DisplayHDR True Black 500, Dolby Vision

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: 13th gen Intel® Core™ i5
Processor model: i5-1340P
Processor cores: 12
Processor threads: 16
Processor boost frequency: 4.6 GHz
Performance cores: 4
Efficient cores: 8
Performance-core Max Turbo Frequency: 4.6 GHz
Efficient-core Max Turbo Frequency: 3.4 GHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Processor base power: 28 W
Maximum turbo power: 64 W

Memory

Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory clock speed: 5600 MHz
Memory form factor: On-board + SO-DIMM
Maximum internal memory: 48 GB
Memory channels: Dual-channel
Non-ECC: Yes

Storage

Total storage capacity: 512 GB
Storage media: SSD
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Optical drive type: No
Card reader integrated: No

Graphics

Discrete graphics card model: Not available
On-board graphics card: Yes
On-board GPU manufacturer: Intel
Discrete graphics card: No
On-board graphics card family: Intel Iris Xe Graphics
On-board graphics card model: Intel Iris Xe Graphics

Audio

Audio chip: Realtek ALC3287
Audio system: Dolby Audio
Number of built-in speakers: 2
Speaker power: 2 W
Built-in microphone: Yes
Number of microphones: 2

Camera

Front camera: Yes
Front camera resolution (numeric): 5 MP
Infrared (IR) camera: Yes
Privacy camera: Yes
Privacy type: Privacy shutter

Network

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Mobile network connection: No
Antenna type: 2x2
WLAN controller model: Intel Wi-Fi 6E AX211
WLAN controller manufacturer: Intel
Ethernet LAN: Yes
Ethernet LAN data rates: 100,1000 Mbit/s
Bluetooth: Yes
Bluetooth version: 5.3
Near Field Communication (NFC): No
WWAN: Not installed

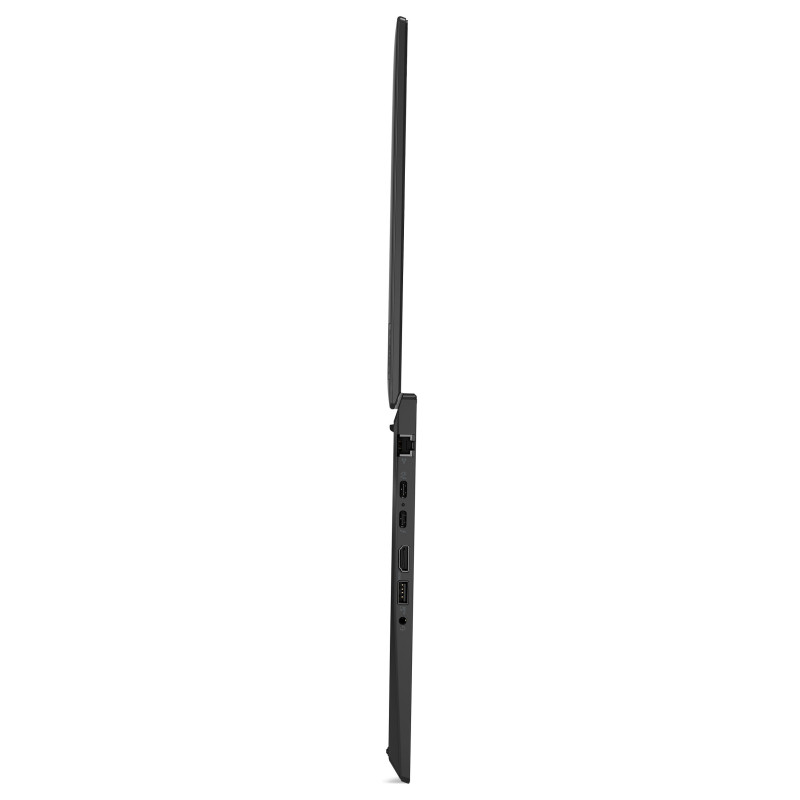

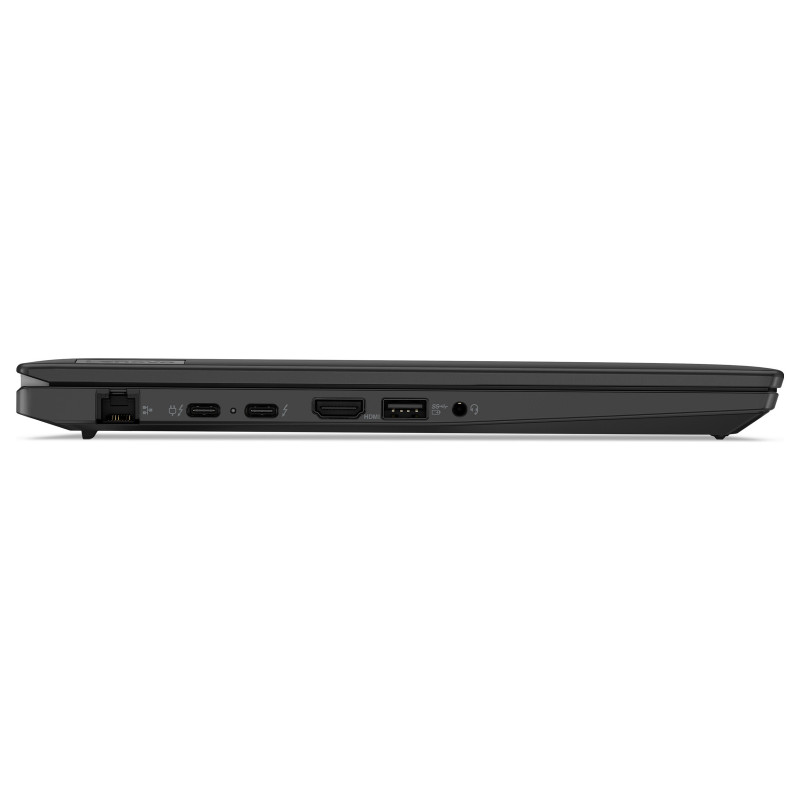

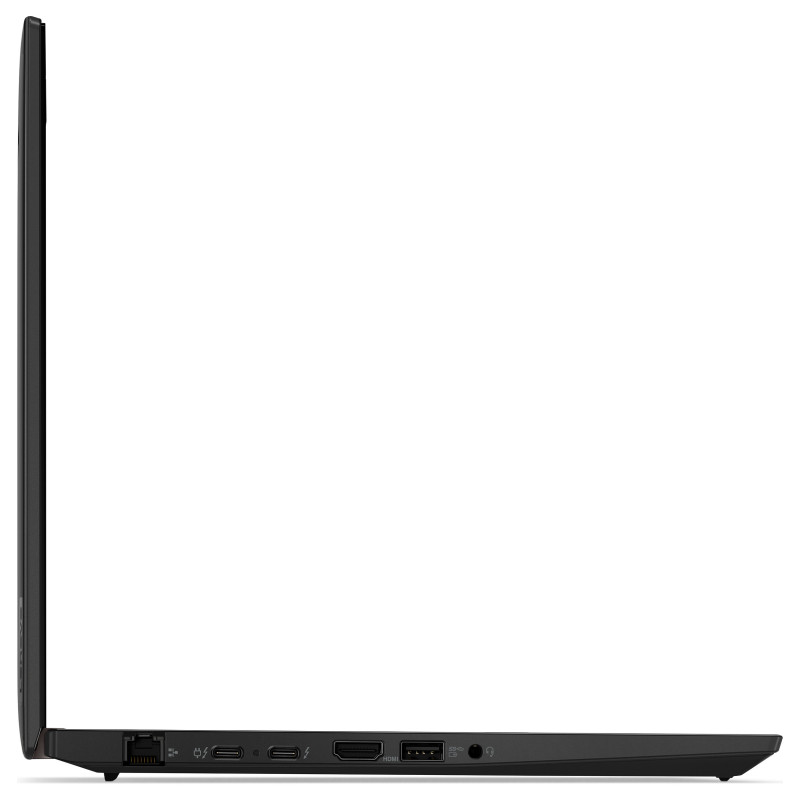

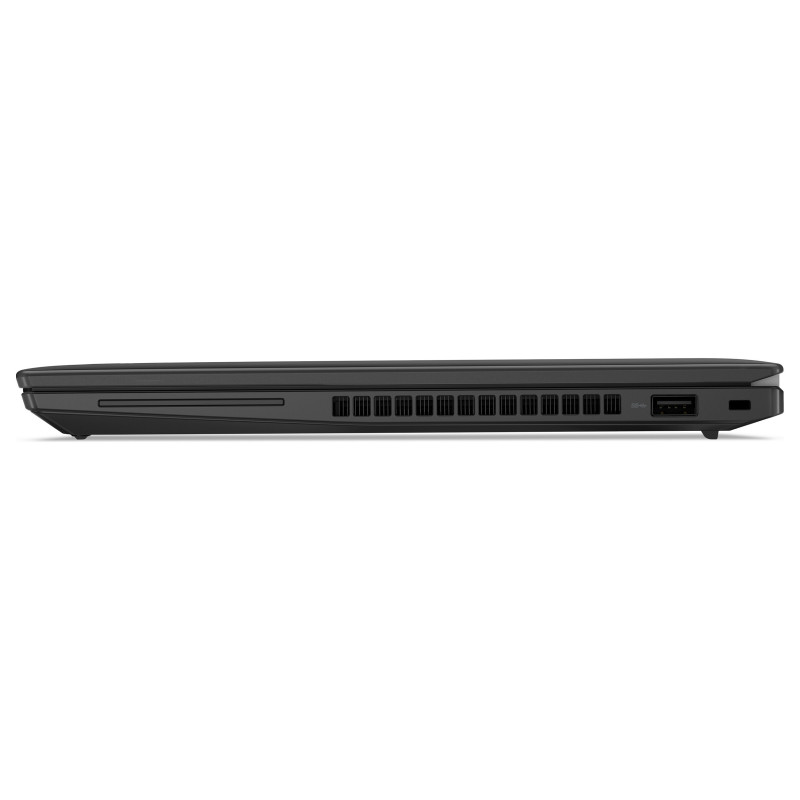

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Intel® Thunderbolt 4: Yes
Combo headphone/mic port: Yes
USB Type-C DisplayPort Alternate Mode: Yes
USB Sleep-and-Charge: Yes
USB Sleep-and-Charge ports: 1

Performance

Motherboard chipset: Intel SoC

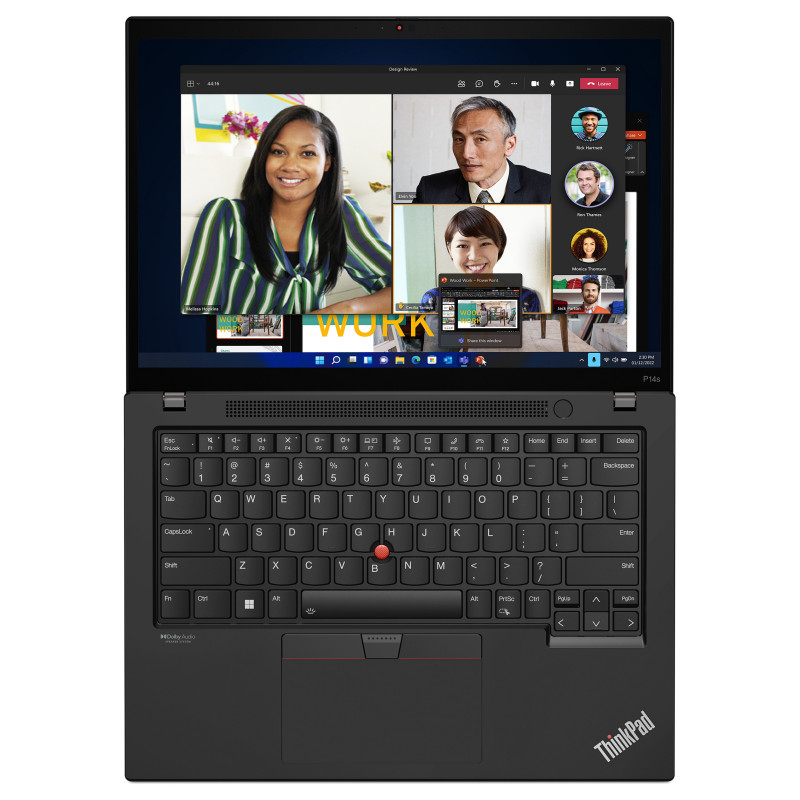

Keyboard

Pointing device: ThinkPad UltraNav
Numeric keypad: No
Keyboard backlit: Yes
Spill-resistant keyboard: Yes
Keyboard language: German

Software

Operating system architecture: 64-bit
Operating system language: German
Operating system installed: Windows 11 Pro

Battery

Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 52.5 Wh
Fast charging: Yes

Power

AC adapter power: 65 W
AC adapter frequency: 50/60 Hz
AC adapter input voltage: 100 - 240 V
USB Type-C charging port: Yes
USB Power Delivery (USB PD): Yes

Security

Cable lock slot: Yes
Cable lock slot type: Kensington
Fingerprint reader: Yes
Smart card reader: No
Windows Hello: Yes
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
Password protection: Yes
Password protection type: BIOS, Power on, SSD, Supervisor

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): 5 - 43 °C
Operating relative humidity (H-H): 8 - 95%
Storage relative humidity (H-H): 5 - 95%
Maximum shipping altitude: 3048 m

Certificates

Certification: EPEAT Gold RegisteredRoHS compliantTCO Certified 9.0MIL-STD-810H military test passedEyesafe Certified 2.0TÜV Rheinland Low Blue Light

Weight dimensions

Width: 317.7 mm
Depth: 226.9 mm
Height: 17.9 mm
Weight: 1.34 kg

Packaging content

AC adapter included: Yes
