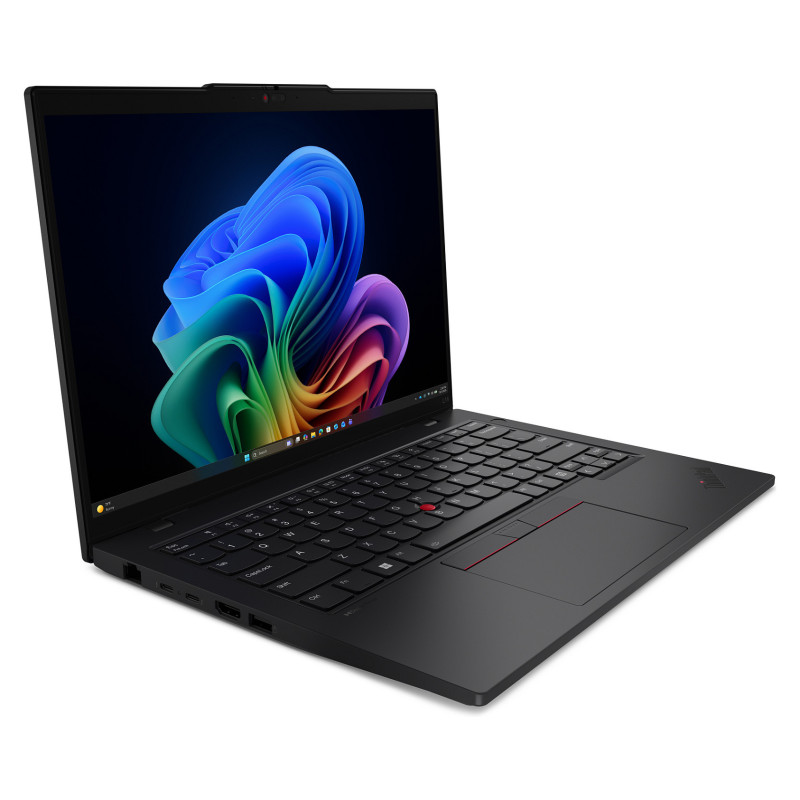

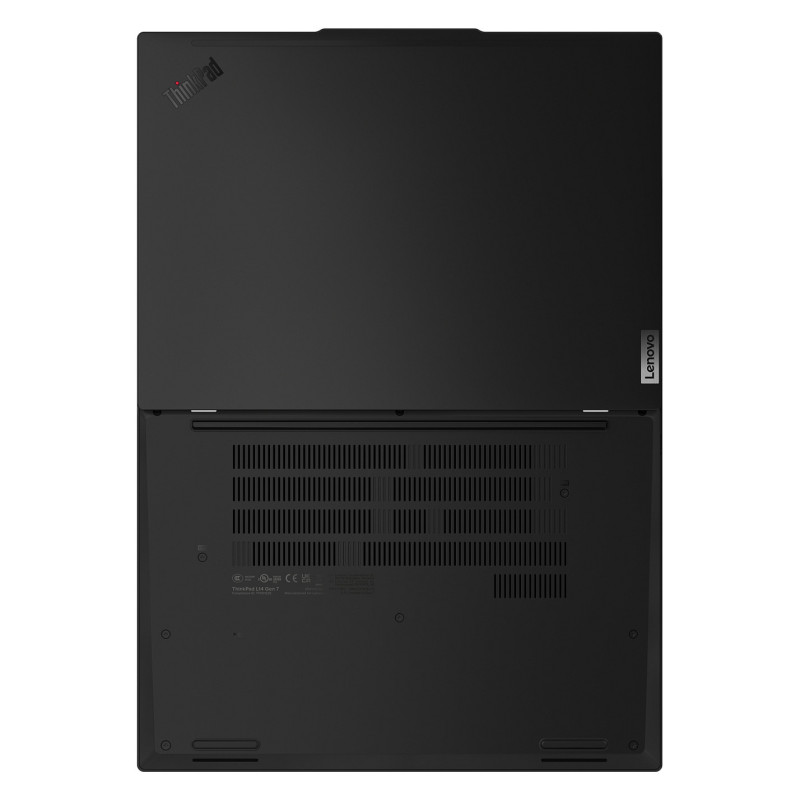

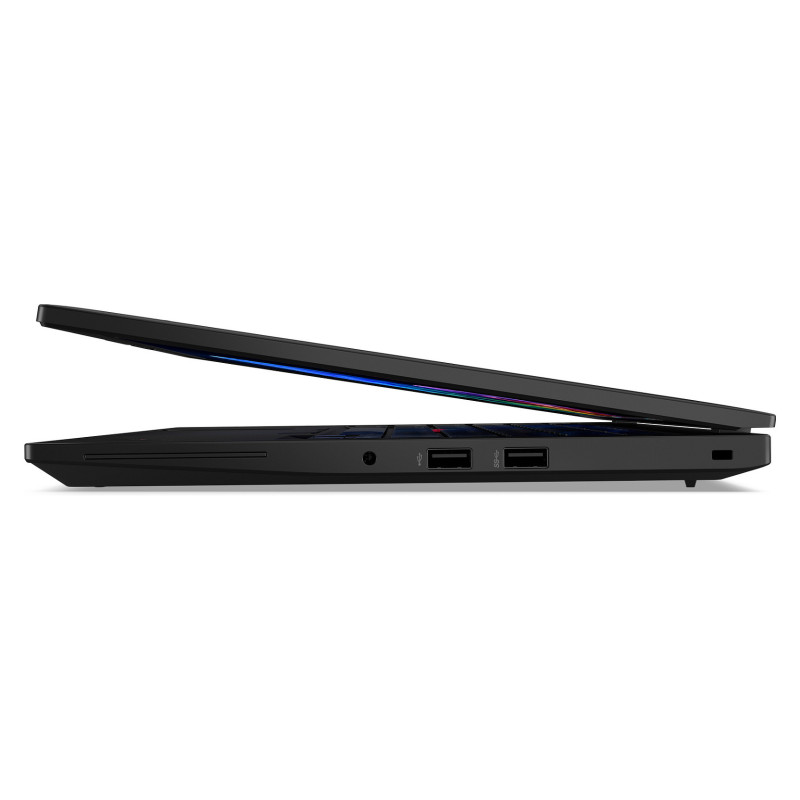

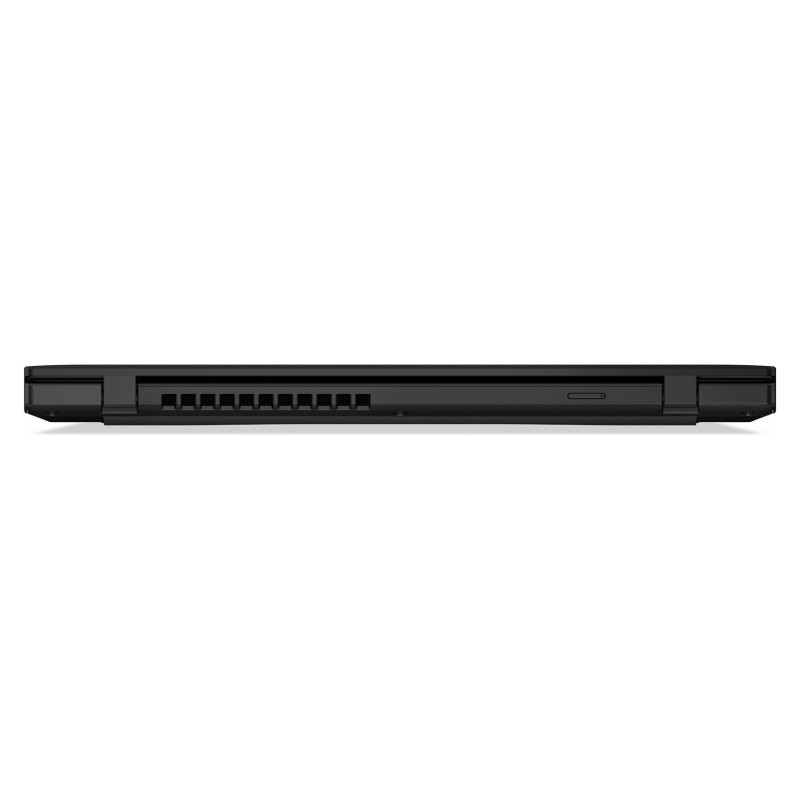

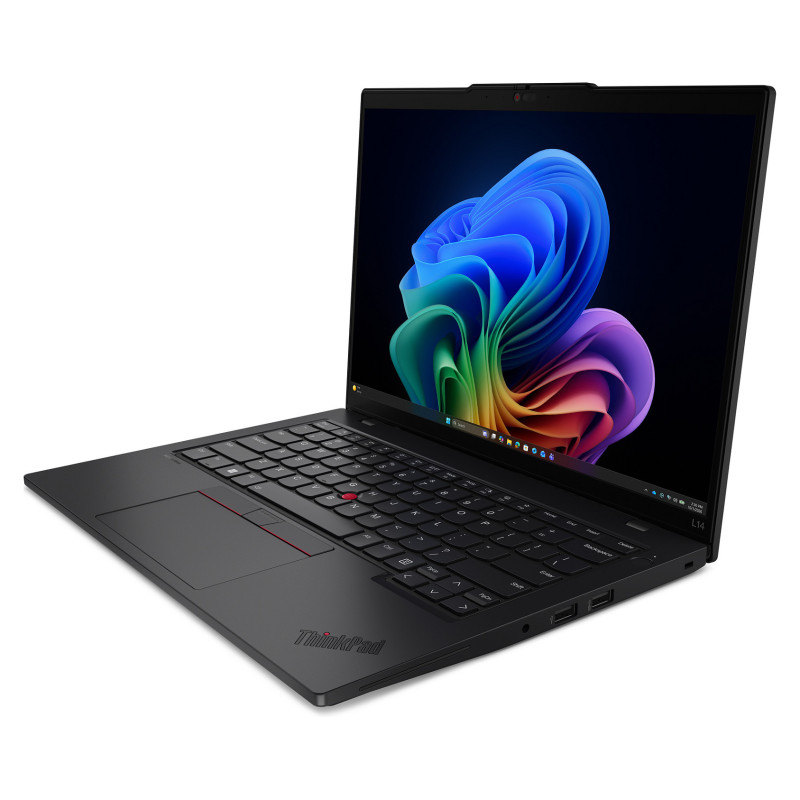

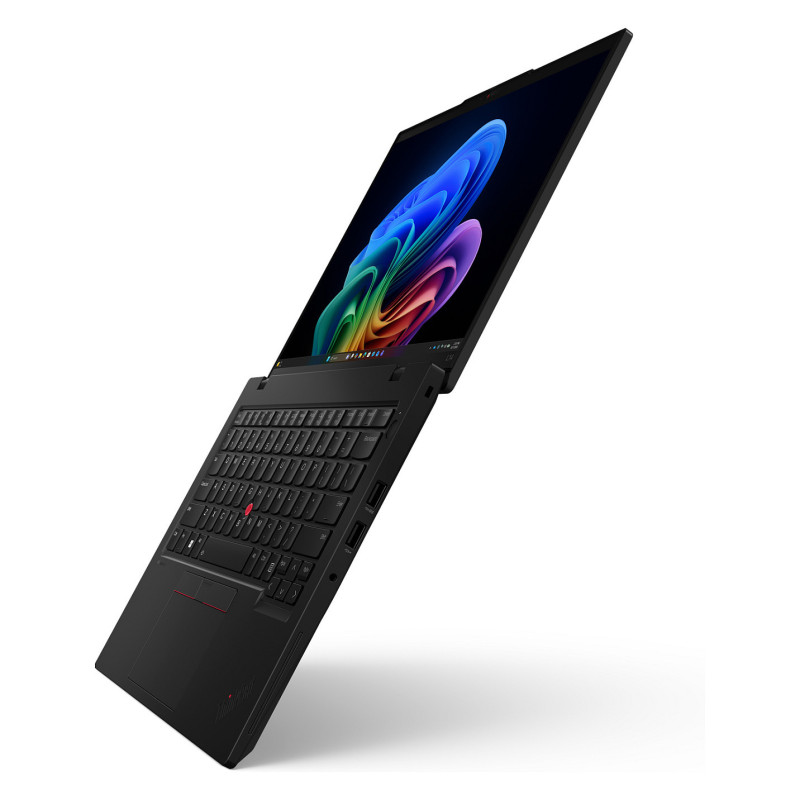

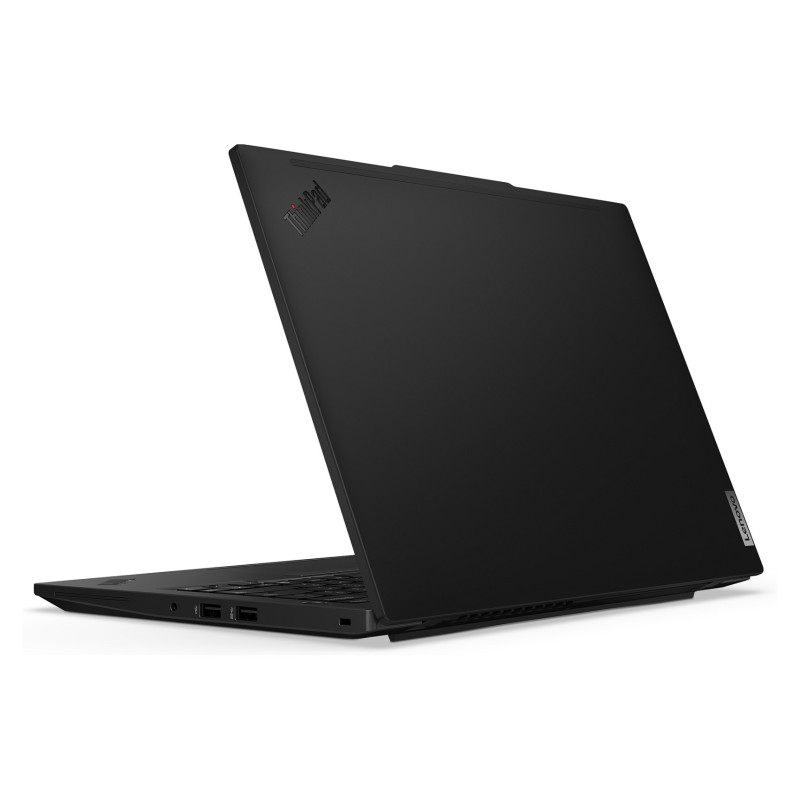

Lenovo ThinkPad L14 Gen 7 (Intel) Copilot+ PC

Lenovo ThinkPad L14 Gen 7 (Intel) Copilot+ PC. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 355. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Product colour: Black. Weight: 1.39 kg

Design

Product type: Laptop
Product colour: Black
Form factor: Clamshell
Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

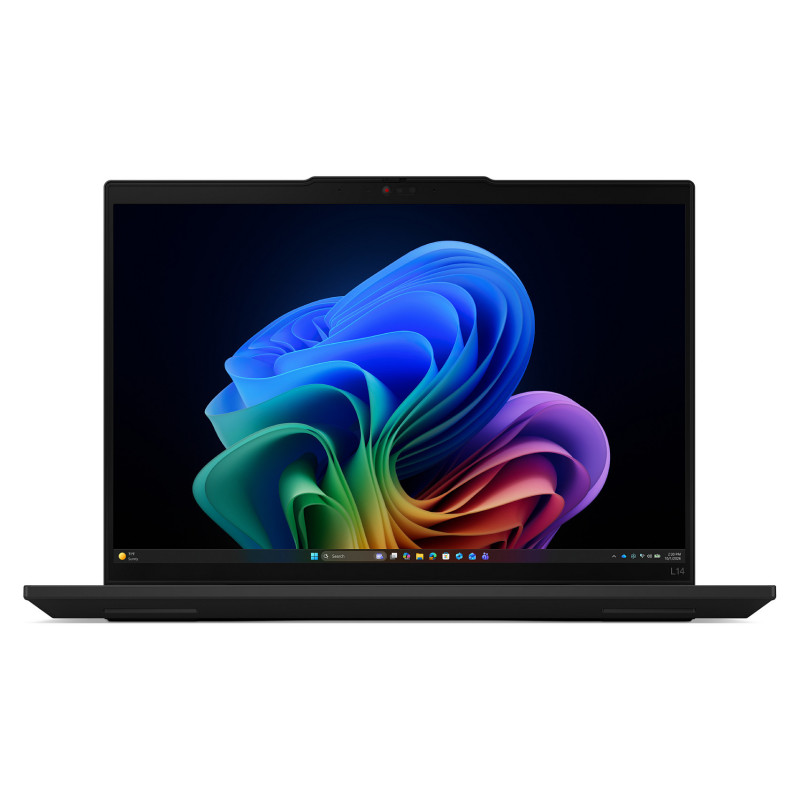

Display

Display diagonal: 35.6 cm (14")
Display resolution: 1920 x 1200 pixels
Touchscreen: No
HD type: WUXGA
Panel type: IPS
LED backlight: Yes
Native aspect ratio: 16:10
Anti-glare screen: Yes
Display brightness: 400 cd/m²
RGB colour space: NTSC
Colour gamut: 45%
Maximum refresh rate: 60 Hz
Contrast ratio (typical): 1000:1

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel® Core™ Ultra (Series 3)
Processor model: 355
Processor cores: 8
Processor threads: 8
Processor boost frequency: 4.7 GHz
Performance cores: 4
Low Power Efficient-cores: 4
Performance-core Max Turbo Frequency: 4.7 GHz
Low Power Efficient-core Max Turbo Frequency: 3.5 GHz
Performance-core base frequency: 2.3 GHz
Efficient-core base frequency: 1.7 GHz
Low Power Efficient-core Base Frequency: 1700 MHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Processor socket: FCBGA2540
Processor base power: 25 W
Maximum turbo power: 55 W

Neural processor unit (NPU)

Copilot+ PC: Yes
Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI software frameworks supported by NPU: OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to: 49 TOPs
GPU performance up to: 40 TOPs

Memory

Internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Memory clock speed: 5600 MHz
Memory form factor: SO-DIMM
Memory layout (slots x size): 2 x 16 GB
Memory slots: 2x SO-DIMM
Maximum internal memory: 64 GB
Memory channels: Dual-channel

Storage

Total storage capacity: 512 GB
Storage media: SSD
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Optical drive type: No
Card reader integrated: No

Graphics

Discrete graphics card model: Not available
On-board graphics card: Yes
On-board GPU manufacturer: Intel
Discrete graphics card: No
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics
Ray tracing acceleration: Yes

Audio

Audio chip: Realtek ALC3287
Audio system: Dolby Atmos
Number of built-in speakers: 2
Speaker power: 2 W
Built-in microphone: Yes
Number of microphones: 2

Camera

Front camera: Yes
Front camera resolution (numeric): 5 MP
Infrared (IR) camera: Yes
Privacy camera: Yes
Privacy type: Privacy shutter

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Mobile network connection: No
Antenna type: 2x2
WLAN controller model: Intel Wi-Fi 7 BE213
WLAN controller manufacturer: Intel
Ethernet LAN: Yes
Ethernet LAN data rates: 100,1000 Mbit/s
Bluetooth: Yes
Bluetooth version: 5.4
Near Field Communication (NFC): No
WWAN: Upgradable

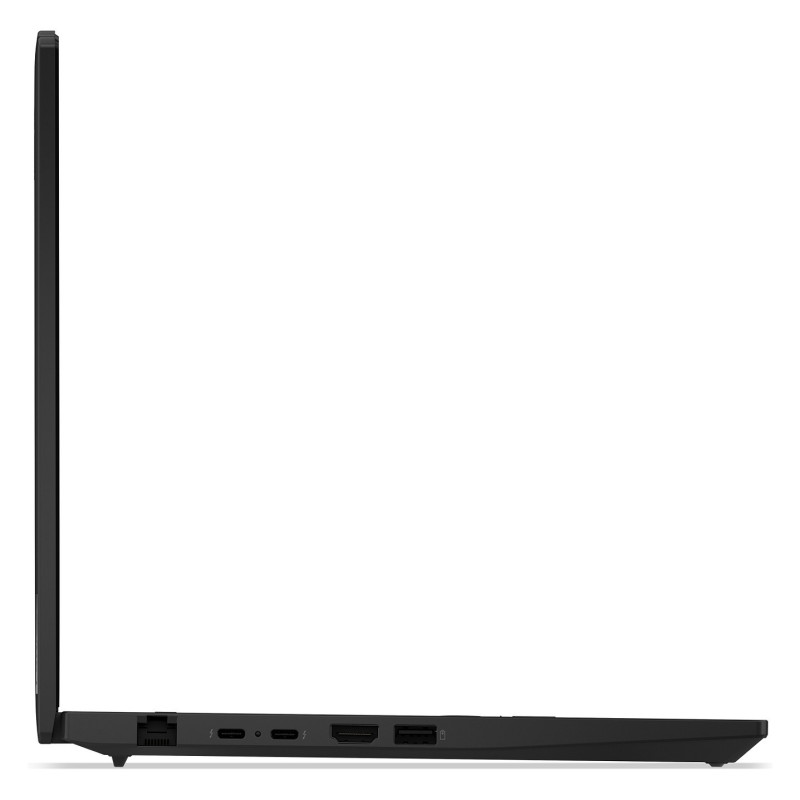

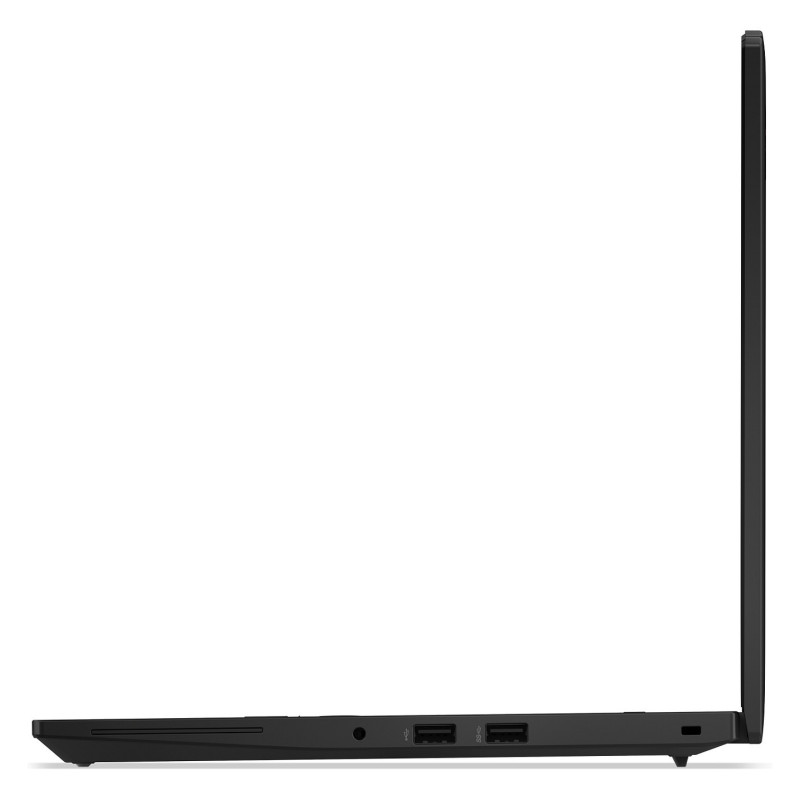

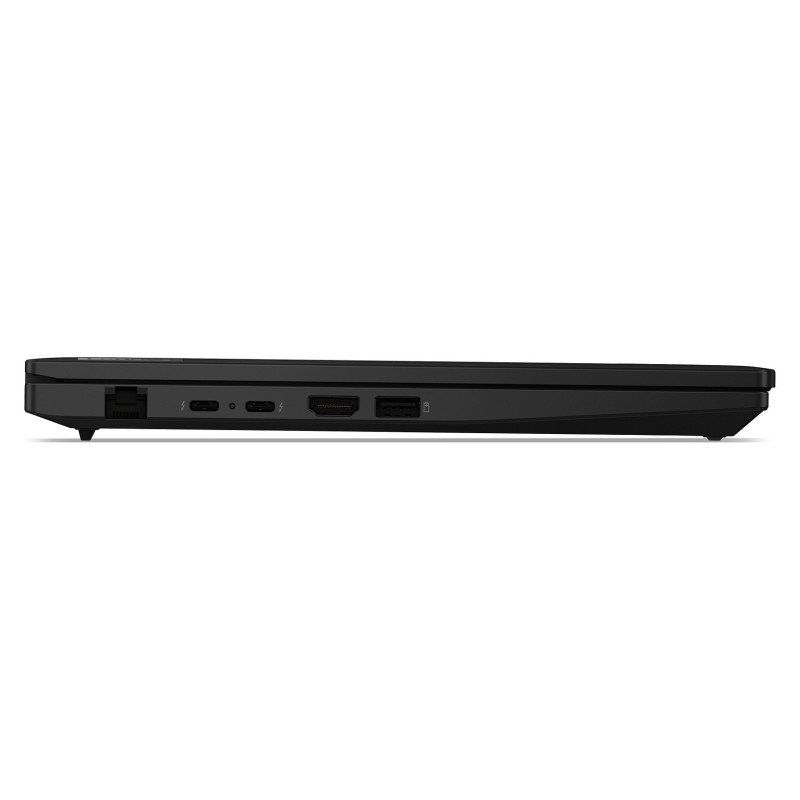

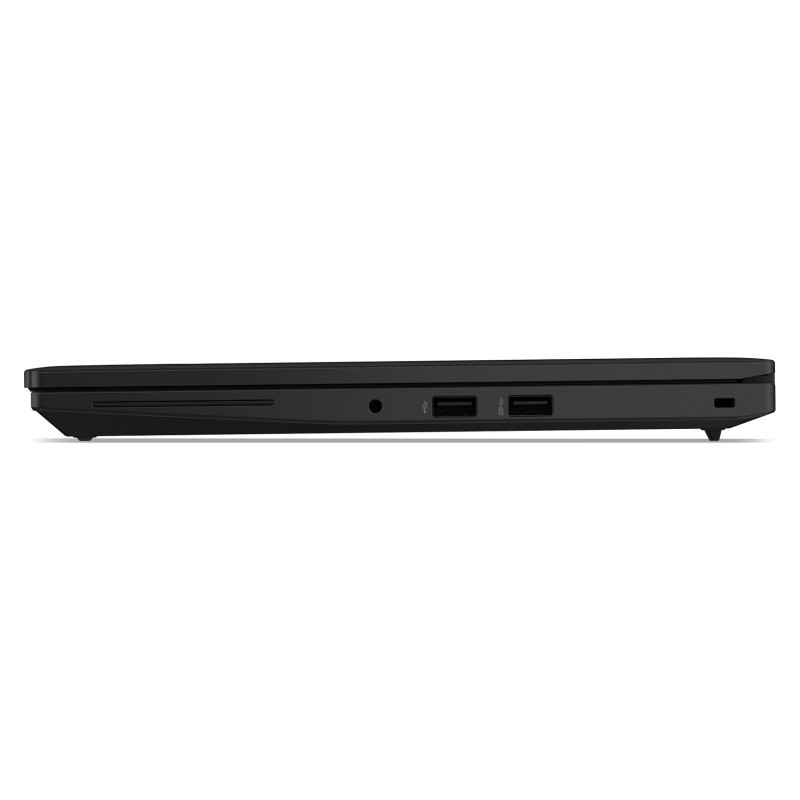

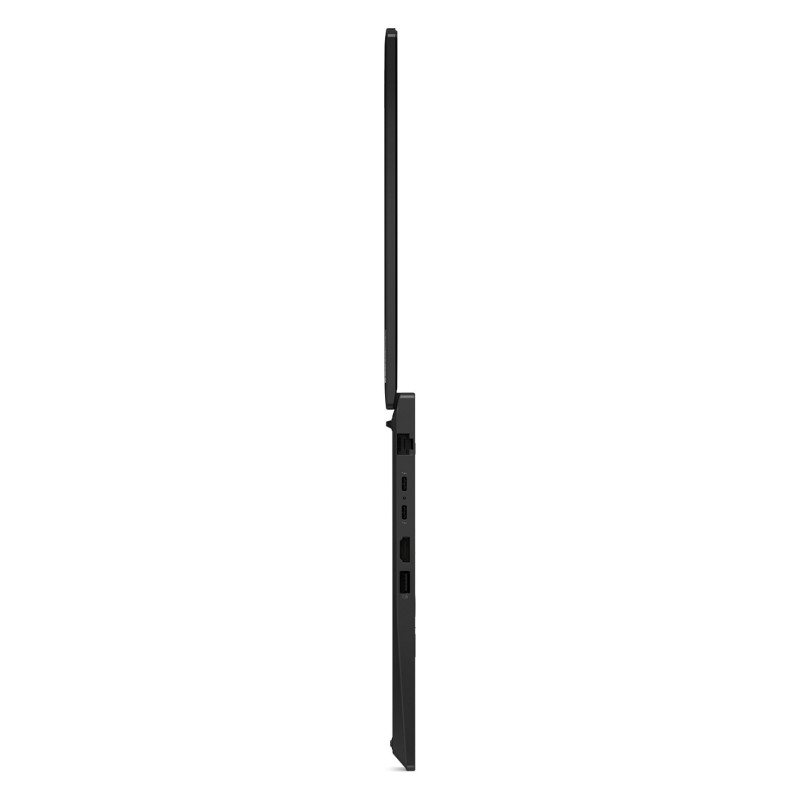

Ports interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Intel® Thunderbolt 4: Yes
Combo headphone/mic port: Yes
USB Type-C DisplayPort Alternate Mode: Yes
USB Sleep-and-Charge: Yes
USB Sleep-and-Charge ports: 1

Performance

Motherboard chipset: Intel SoC

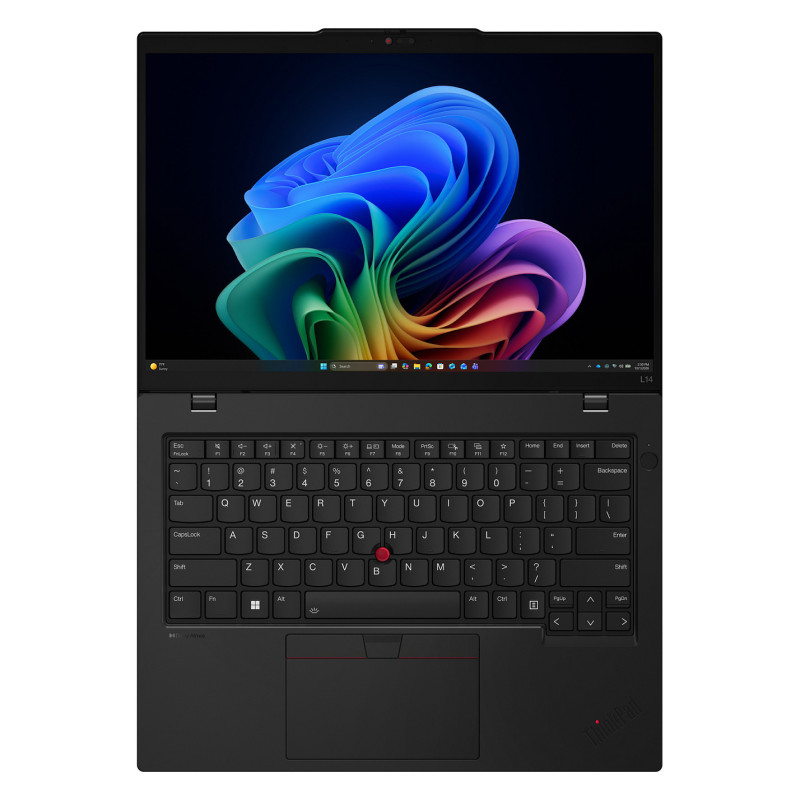

Keyboard

Pointing device: ThinkPad UltraNav
Numeric keypad: No
Keyboard backlit: Yes
Spill-resistant keyboard: Yes
Keyboard language: German
Copilot key: Yes

Software

Operating system language: German
Operating system installed: Windows 11 Pro
Bundled software: Lenovo AI Now

Battery

Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 57 Wh
Fast charging: Yes

Power

AC adapter power: 65 W
AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V
USB Type-C charging port: Yes
USB Type-C required charging power (min): 15 W
USB Type-C required charging power (max): 65 W
USB Power Delivery (USB PD): Yes

Security

Cable lock slot: Yes
Cable lock slot type: Kensington
Fingerprint reader: Yes
Smart card reader: Yes
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
Password protection: Yes
Password protection type: SSD, Supervisor, Power on

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): 5 - 43 °C
Operating relative humidity (H-H): 8 - 95%
Storage relative humidity (H-H): 5 - 95%
Maximum shipping altitude: 3048 m

Certificates

Certification: ENERGY STAR 9.0EPEAT Gold RegisteredErP Lot 6/26RoHS compliantTCO Certified, generation 10

Weight dimensions

Width: 313.7 mm
Depth: 226 mm
Height (front): 1.14 cm
Height (rear): 1.73 cm
Weight: 1.39 kg

Packaging content

AC adapter included: Yes
