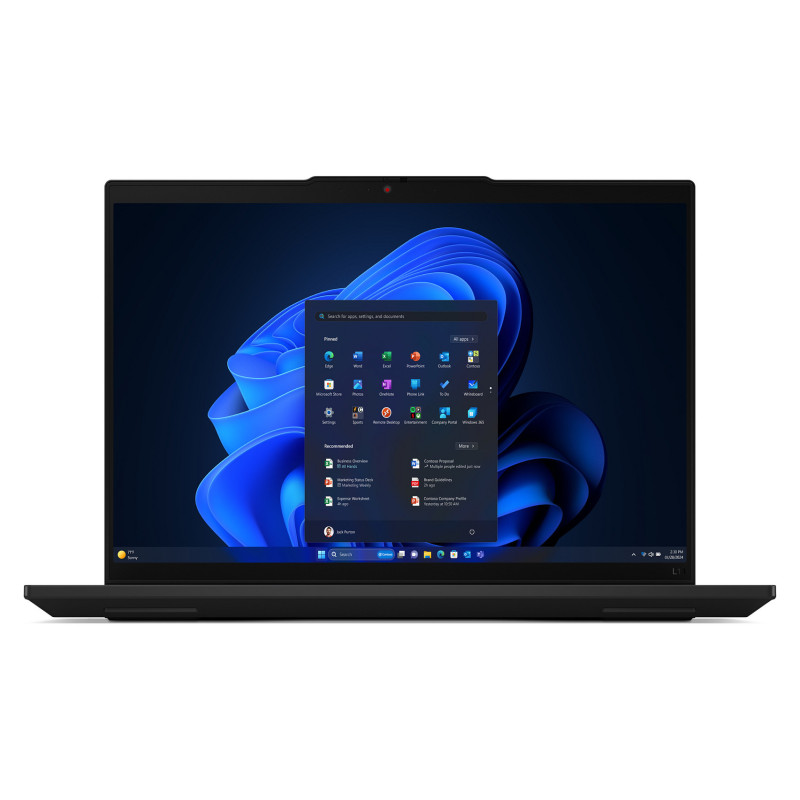

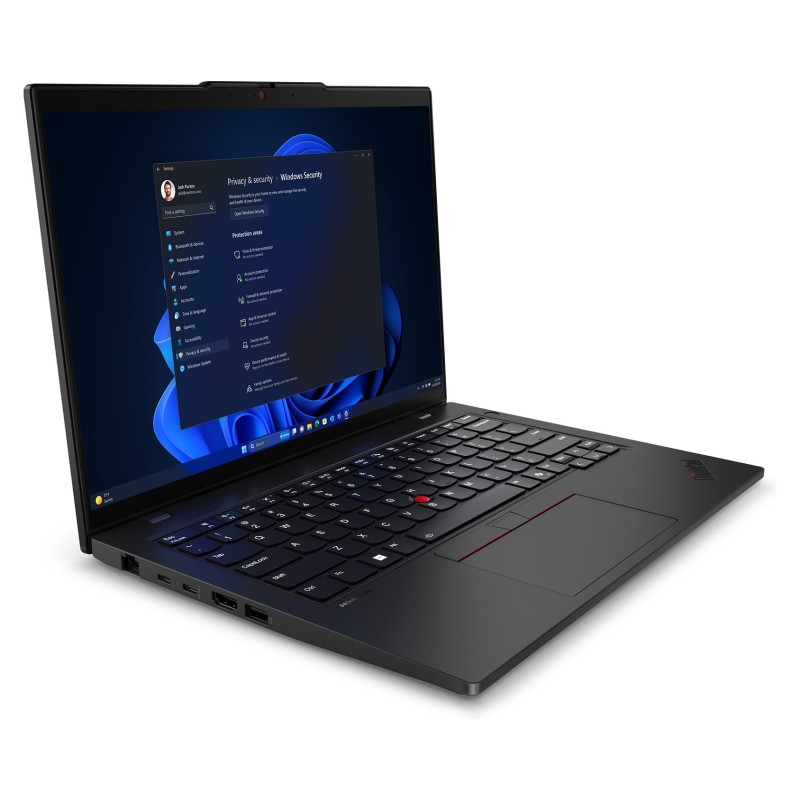

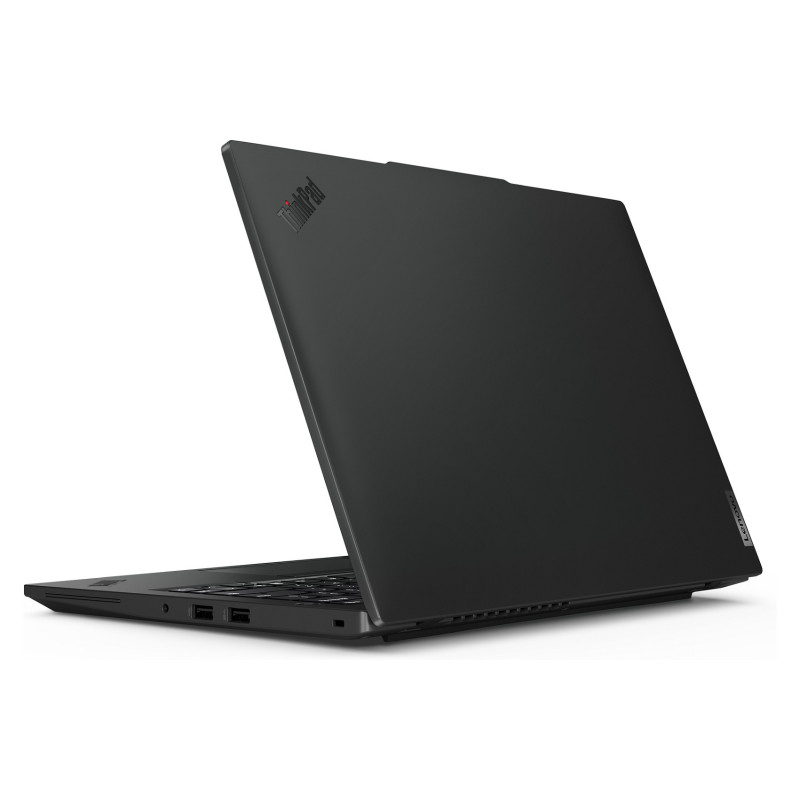

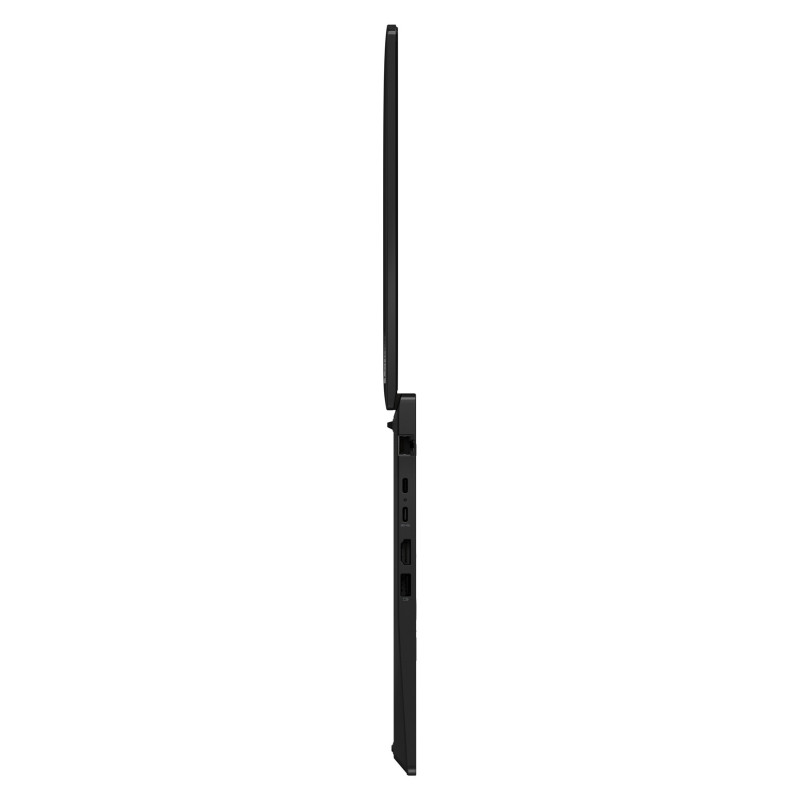

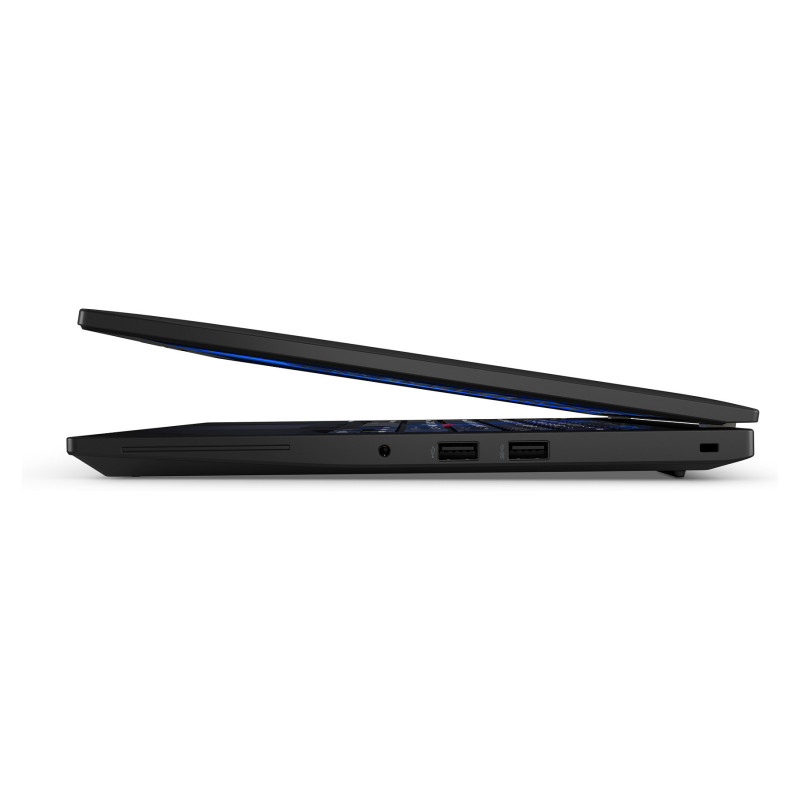

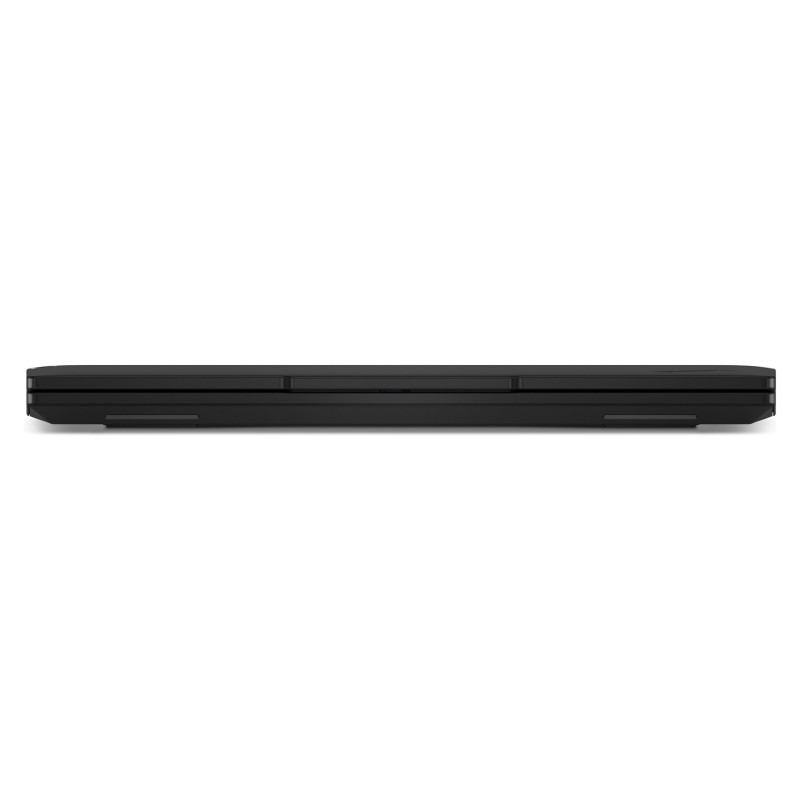

Lenovo ThinkPad L14 Gen 5 (AMD)

Lenovo ThinkPad L14 Gen 5 (AMD). Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen™ 7 PRO, Processor model: 7735U, Processor frequency: 2.7 GHz. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: AMD Radeon 680M. Operating system installed: Windows 11 Pro. Product colour: Black

Design

Product type: Laptop
Product colour: Black
Form factor: Clamshell
Display back cover material: Aluminium

Display

Display diagonal: 35.6 cm (14")
Display resolution: 1920 x 1200 pixels
HD type: WUXGA
Panel type: IPS
Feature: LED backlight
Native aspect ratio: 16:10
Feature: Anti-glare screen
Display brightness: 400 cd/m²
RGB colour space: NTSC
Colour gamut: 45%

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen™ 7 PRO
Processor model: 7735U
Processor cores: 8
Processor threads: 16
Processor boost frequency: 4.75 GHz
Processor frequency: 2.7 GHz

Memory

Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory clock speed: 4800 MHz
Memory form factor: SO-DIMM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x SO-DIMM
Maximum internal memory: 64 GB

Storage

Total storage capacity: 256 GB
Storage media: SSD
Total SSDs capacity: 256 GB
Number of SSDs installed: 1
SSD capacity: 256 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Optical drive type: No

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: AMD
On-board graphics card family: AMD Radeon
On-board graphics card model: AMD Radeon 680M

Audio

Audio chip: Realtek ALC3287
Number of built-in speakers: 2
Speaker power: 2 W
Feature: Built-in microphone
Number of microphones: 2

Camera

Feature: Front camera
Front camera resolution: 1280 x 720 pixels
Front camera HD type: HD
Feature: Privacy camera
Privacy type: Privacy shutter

Network

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Antenna type: 2x2
Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.3
WWAN: Not installed

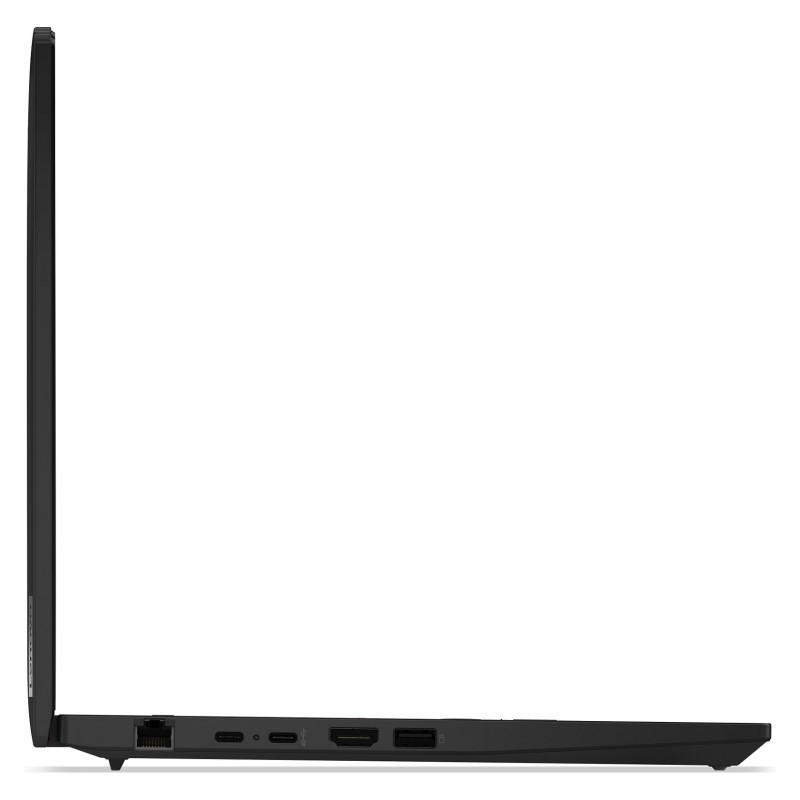

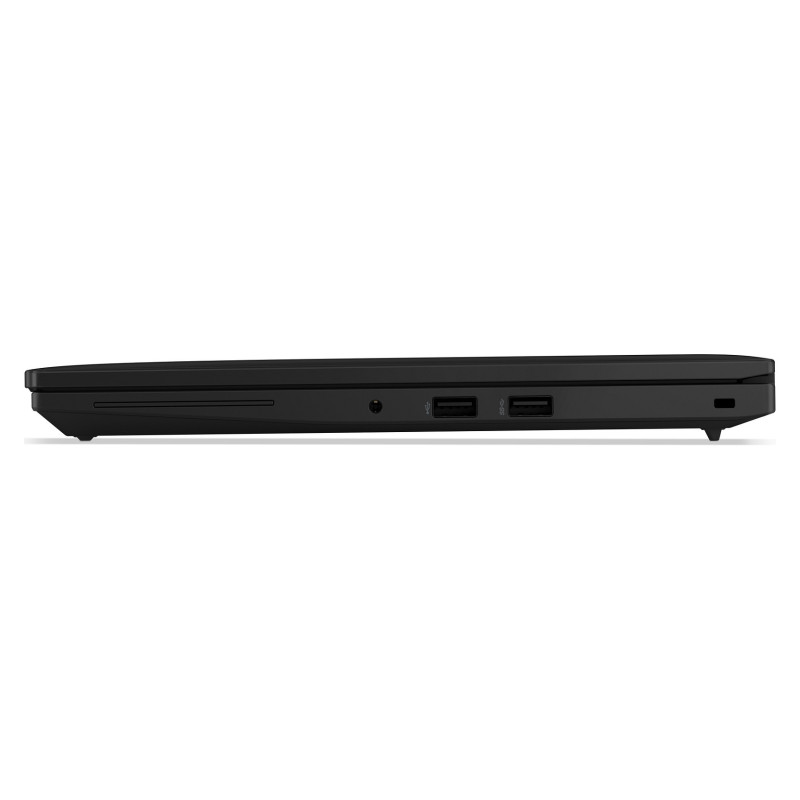

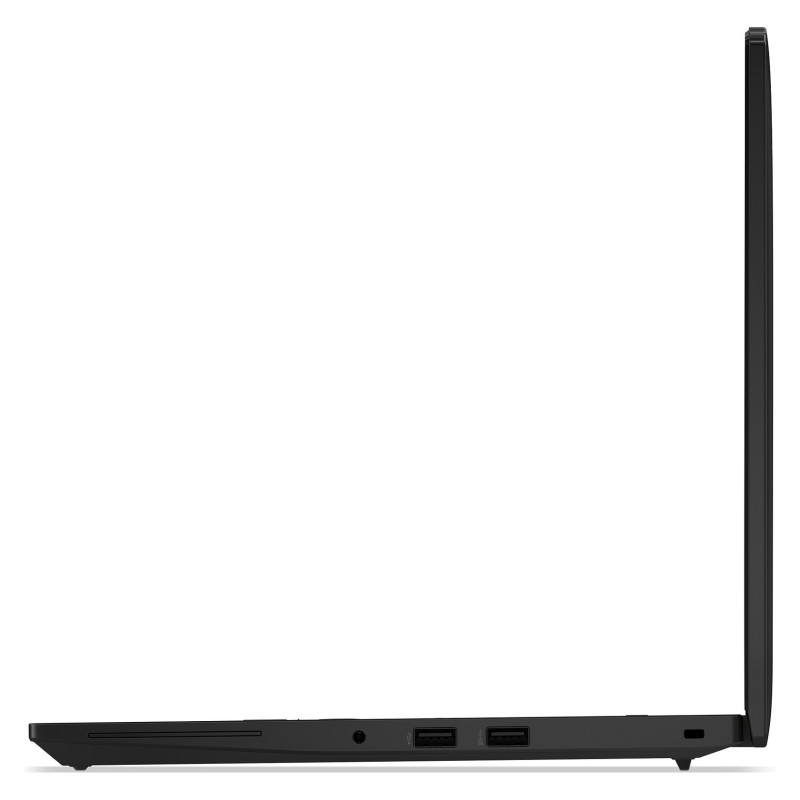

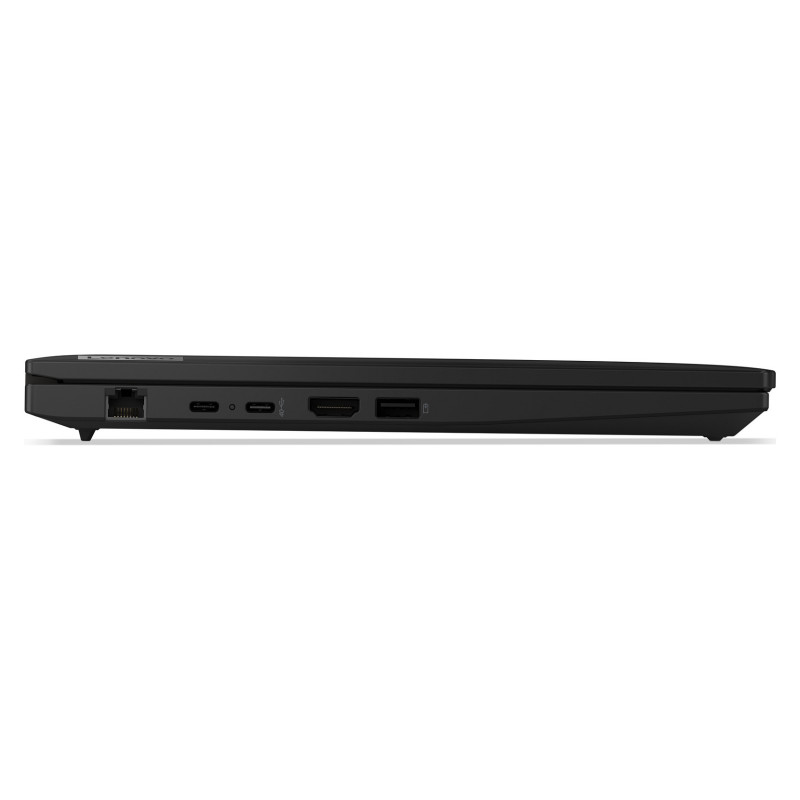

Ports & interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB4 Gen 3x2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Feature: Combo headphone/mic port
Feature: USB Sleep-and-Charge

Performance

Motherboard chipset: AMD SoC

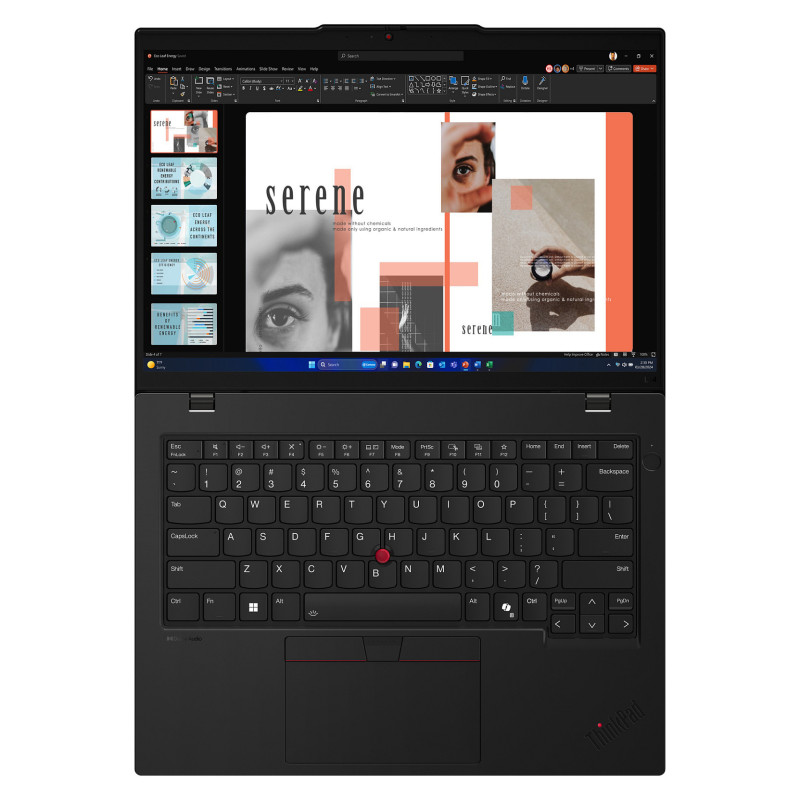

Keyboard

Pointing device: ThinkPad UltraNav
Feature: Keyboard backlit
Keyboard language: German

Software

Operating system language: German
Operating system installed: Windows 11 Pro

Battery

Battery capacity: 57 Wh

Power

AC adapter power: 65 W
Feature: USB Type-C charging port
Feature: USB Power Delivery (USB PD)

Security

Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Fingerprint reader
Feature: Smart card reader
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0

Certificates

Certification: ENERGY STAR,TCO,EPEAT Gold,RoHS

Weight & dimensions

Width: 313.7 mm
Depth: 226 mm
Height: 18.7 mm
Weight: 1.36 kg

Packaging content

Feature: AC adapter included
