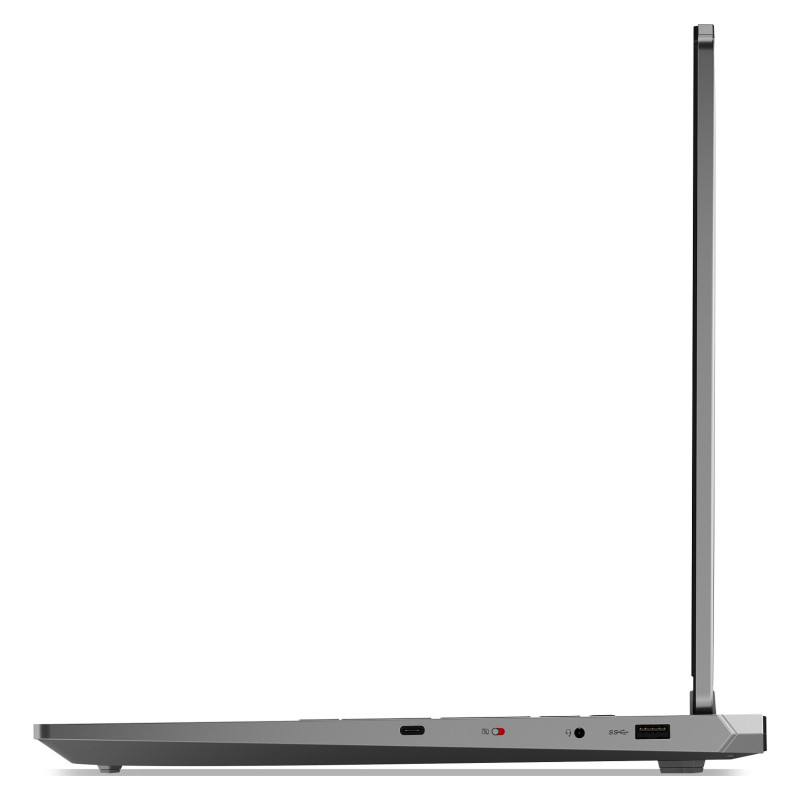

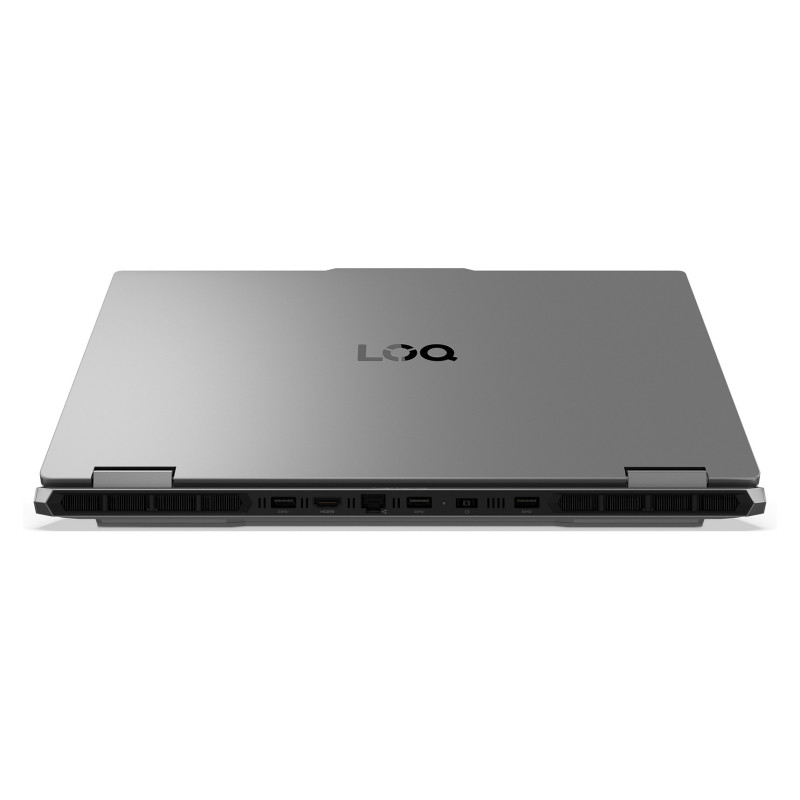

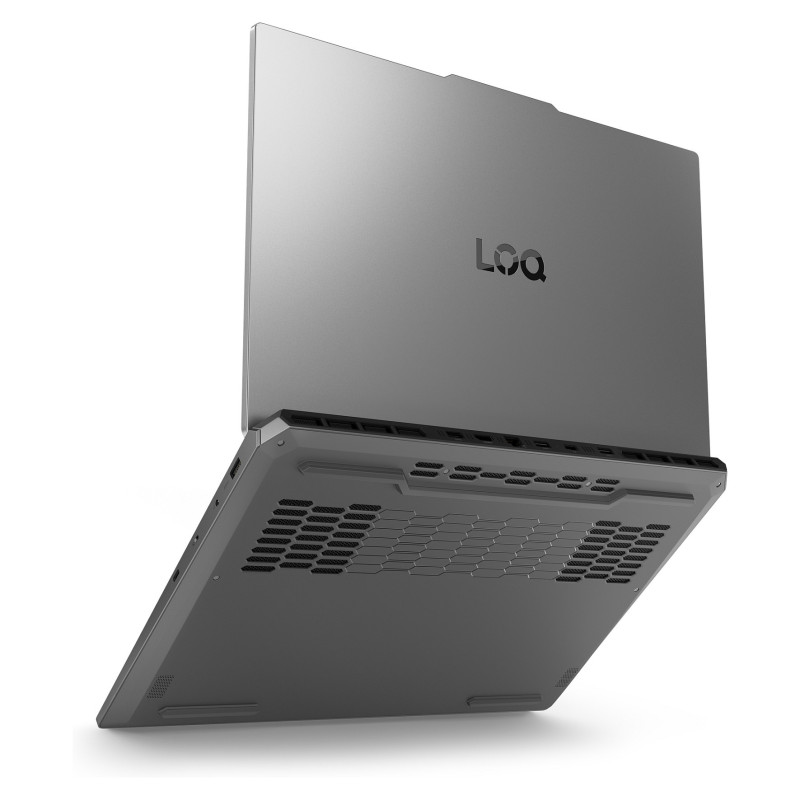

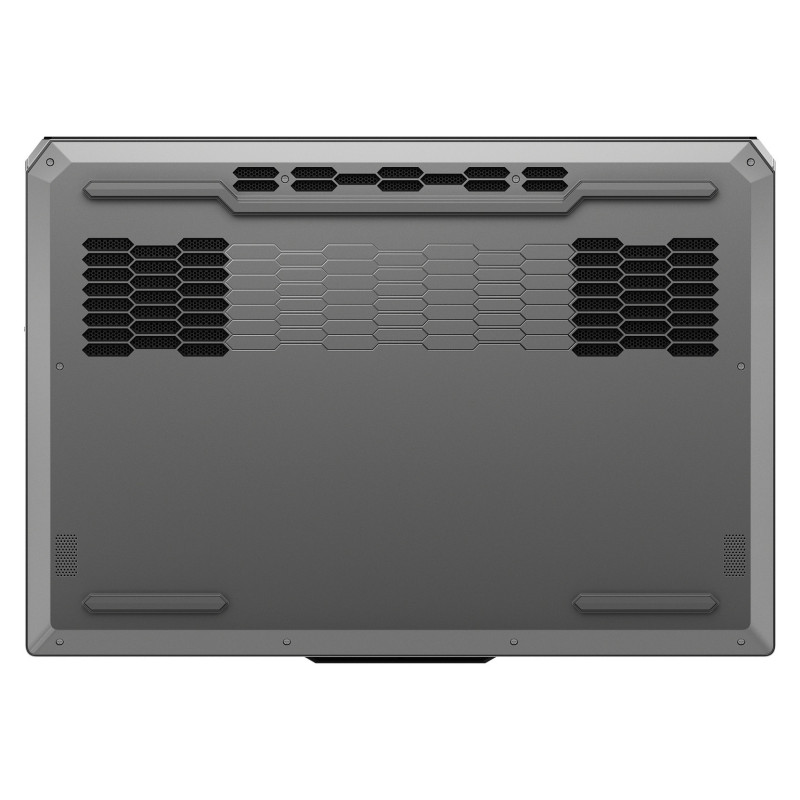

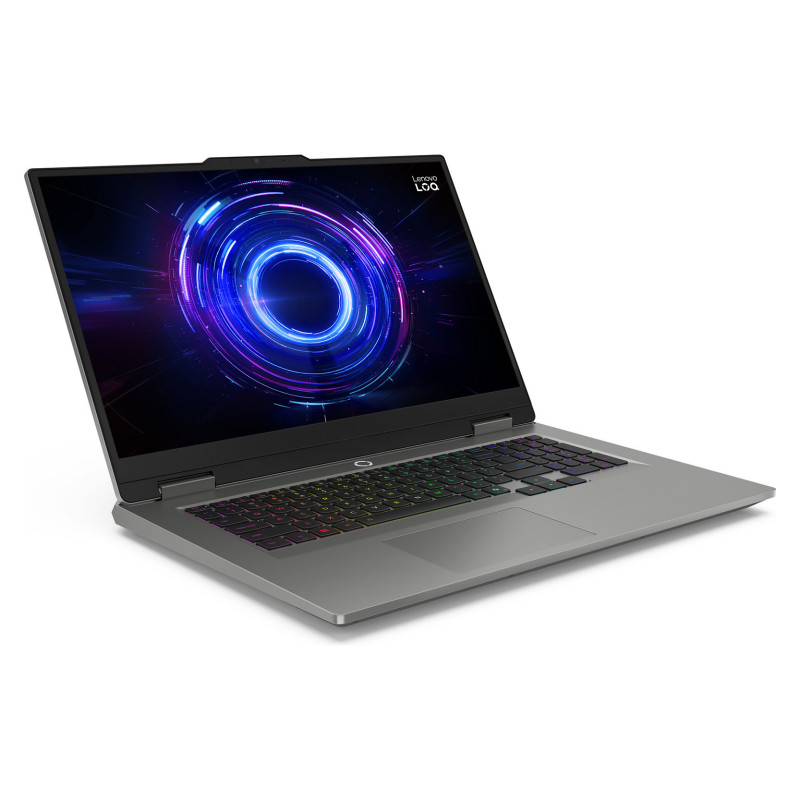

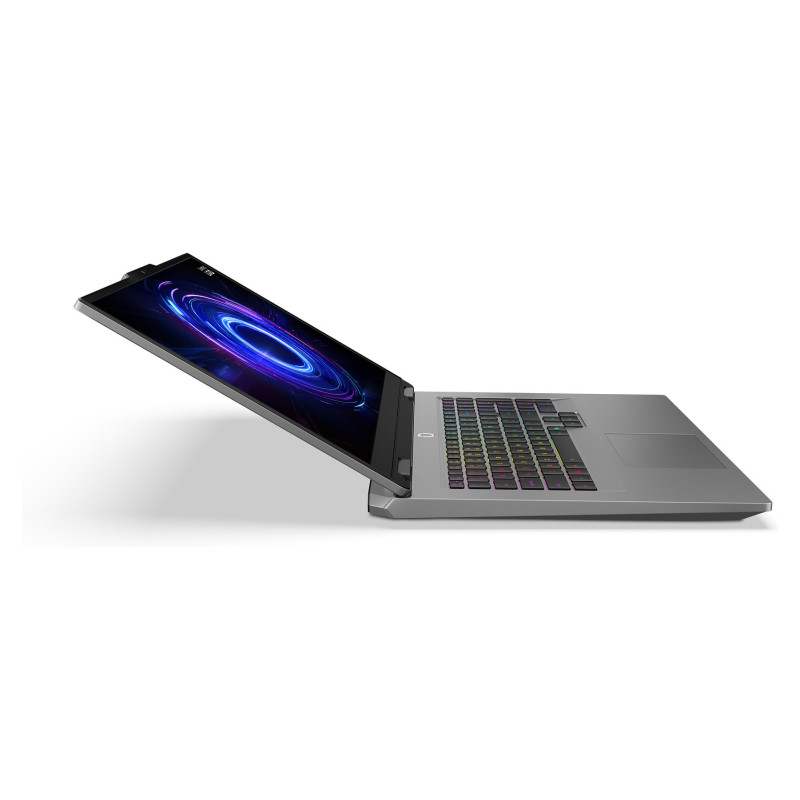

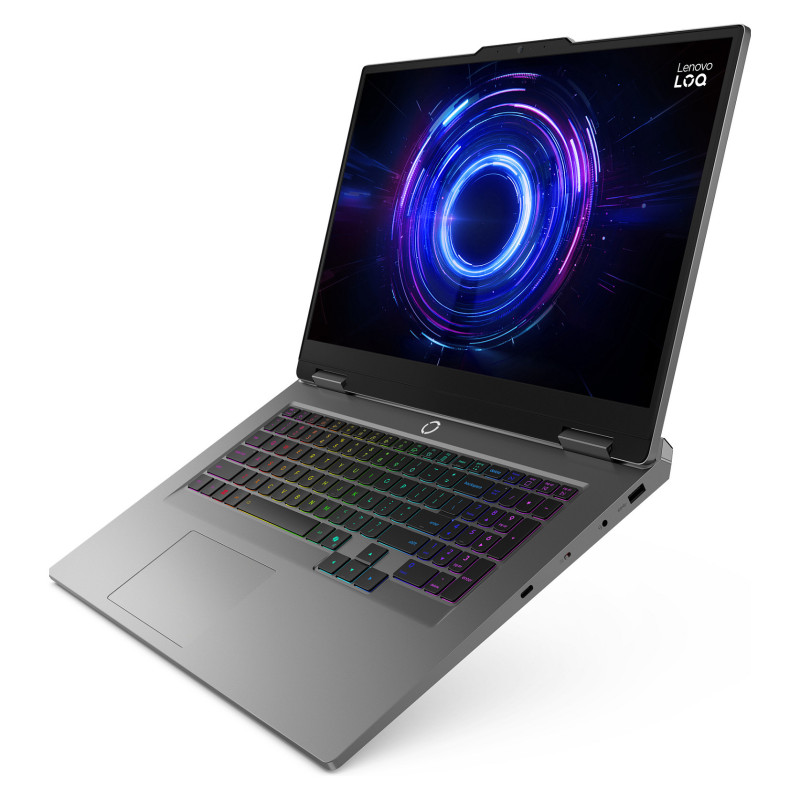

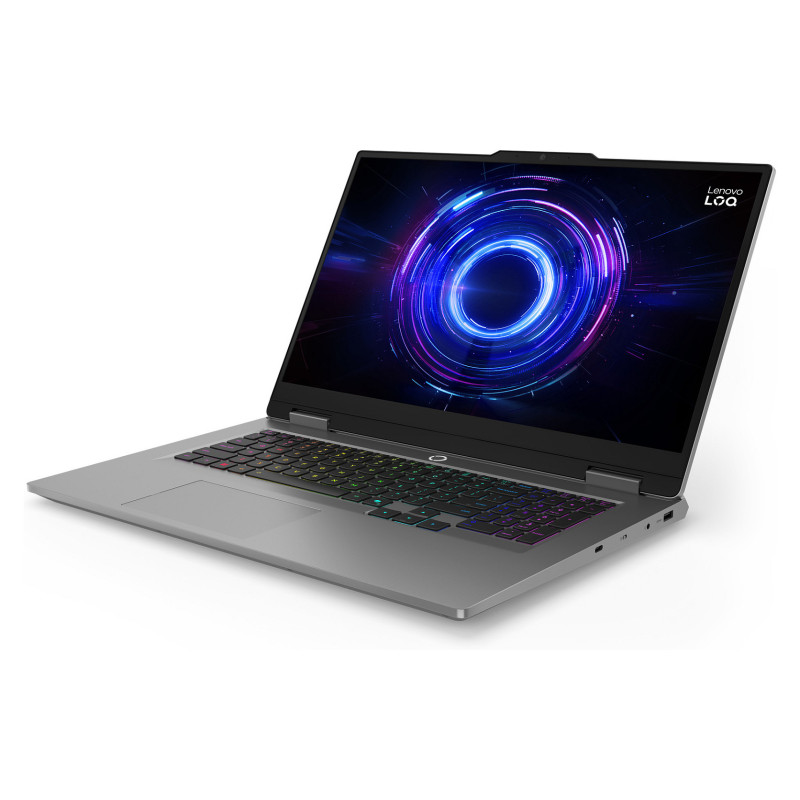

Lenovo LOQ 17IRX10

Lenovo LOQ 17IRX10. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i7, Processor model: i7-14700HX, Processor frequency: 2.1 GHz. Display diagonal: 43.9 cm (17.3"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5070. Product colour: Grey

Design

Colour name: Luna Grey
Product type: Laptop
Product colour: Grey
Form factor: Clamshell
Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)

Display

Display diagonal: 43.9 cm (17.3")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Panel type: IPS
Feature: LED backlight
Native aspect ratio: 16:9
Feature: Anti-glare screen
Display brightness: 300 cd/m²
RGB colour space: sRGB
Colour gamut: 100%
Maximum refresh rate: 165 Hz

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i7
Processor generation: Intel® Core™ i7 (14th gen)
Processor model: i7-14700HX
Processor cores: 20
Processor threads: 28
Processor boost frequency: 5.5 GHz
Processor frequency: 2.1 GHz
Performance cores: 8
Efficient cores: 12
Performance-core Max Turbo Frequency: 5.5 GHz
Efficient-core Max Turbo Frequency: 3.9 GHz
Performance-core base frequency: 2.1 GHz
Efficient-core base frequency: 1.5 GHz
Processor cache: 33 MB
Processor cache type: Smart Cache
Processor base power: 55 W
Maximum turbo power: 157 W

Memory

Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory clock speed: 5600 MHz
Memory form factor: SO-DIMM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x SO-DIMM
Maximum internal memory: 32 GB

Storage

Total storage capacity: 512 GB
Storage media: SSD
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Optical drive type: No

Graphics

Discrete GPU manufacturer: NVIDIA
Discrete graphics card model: NVIDIA GeForce RTX 5070
Discrete graphics card memory: 8 GB
Discrete graphics memory type: GDDR7
Feature: On-board graphics card
On-board GPU manufacturer: Intel
Feature: Discrete graphics card
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel® UHD Graphics

Audio

Audio chip: Realtek ALC3287
Number of built-in speakers: 2
Speaker power: 2 W
Feature: Built-in microphone
Number of microphones: 2

Camera

Front camera resolution (numeric): 5 MP
Feature: Privacy camera
Privacy type: Privacy shutter

Network

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Antenna type: 2x2
Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.2
WWAN: Not installed

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Feature: Combo headphone/mic port

Performance

Motherboard chipset: Intel HM770

Keyboard

Pointing device: Touchpad
Feature: Numeric keypad
Feature: Keyboard backlit
Keyboard backlit colour: RGB
Keyboard backlit zone: 24-zone RGB
Keyboard language: German

Software

Operating system installed: No

Battery

Battery capacity: 60 Wh

Power

AC adapter power: 245 W
AC adapter frequency: 50/60 Hz
AC adapter input voltage: 100 - 240 V
Feature: USB Type-C charging port
Feature: USB Power Delivery (USB PD)

Security

Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): 5 - 43 °C
Operating relative humidity (H-H): 8 - 95%
Storage relative humidity (H-H): 5 - 95%

Certificates

Certification: RoHS

Weight & dimensions

Width: 398.4 mm
Depth: 276.2 mm
Height (front): 2.29 cm
Height (rear): 2.52 cm
Weight: 2.9 kg

Packaging content

Feature: AC adapter included
