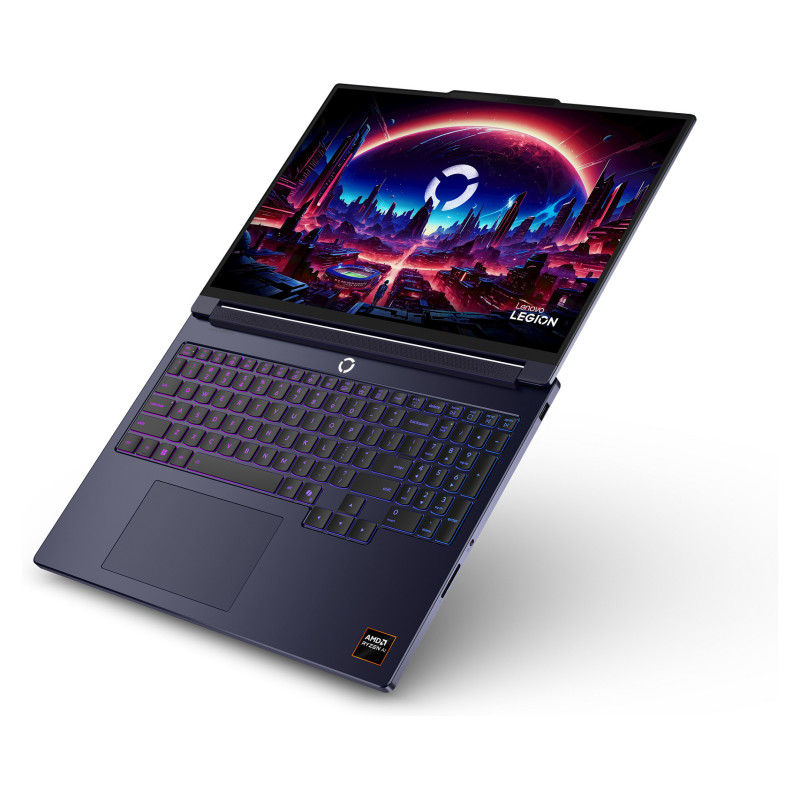

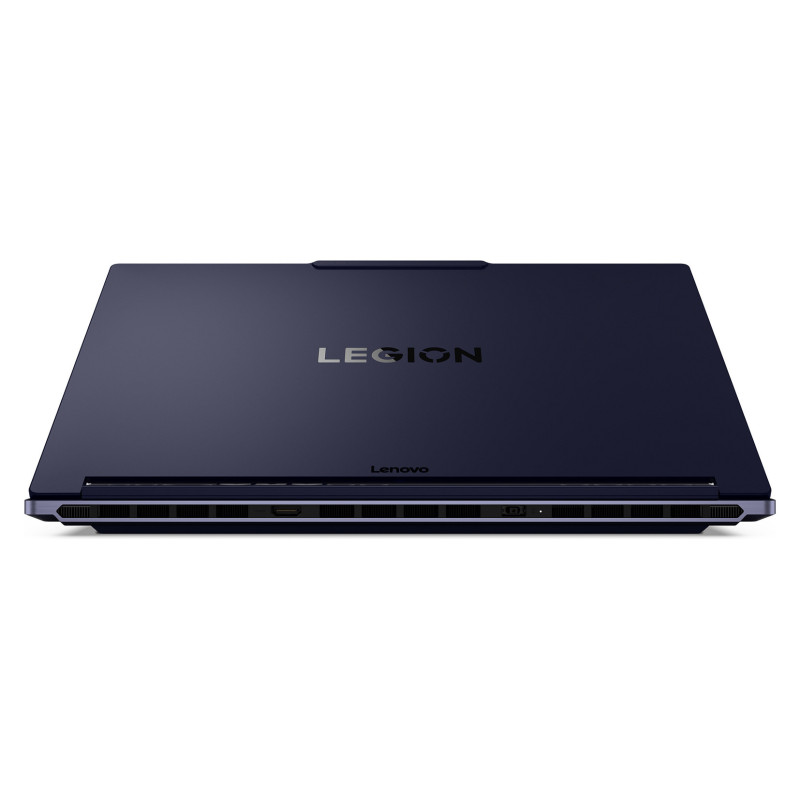

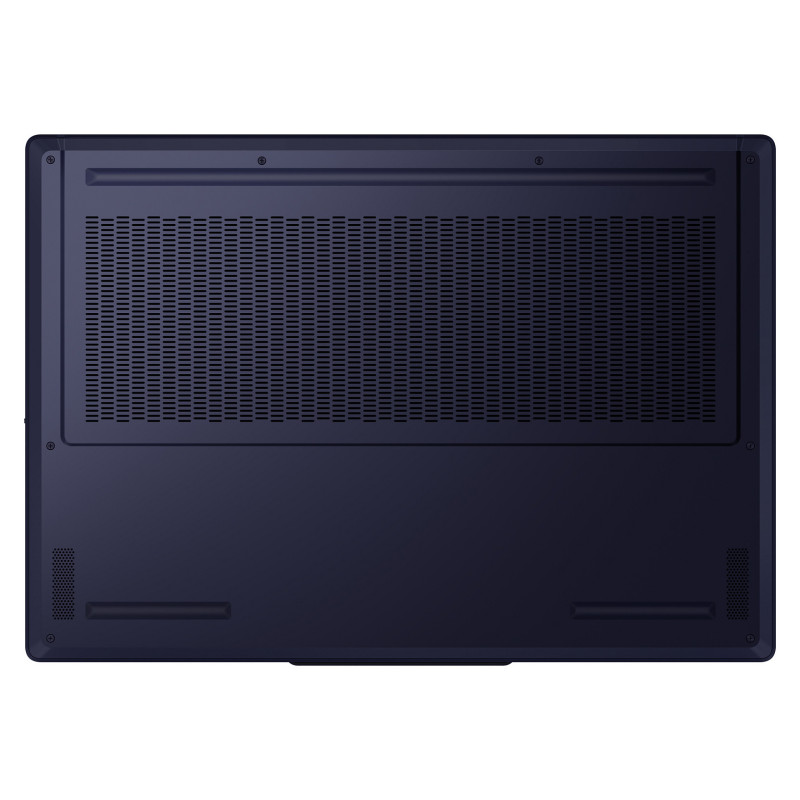

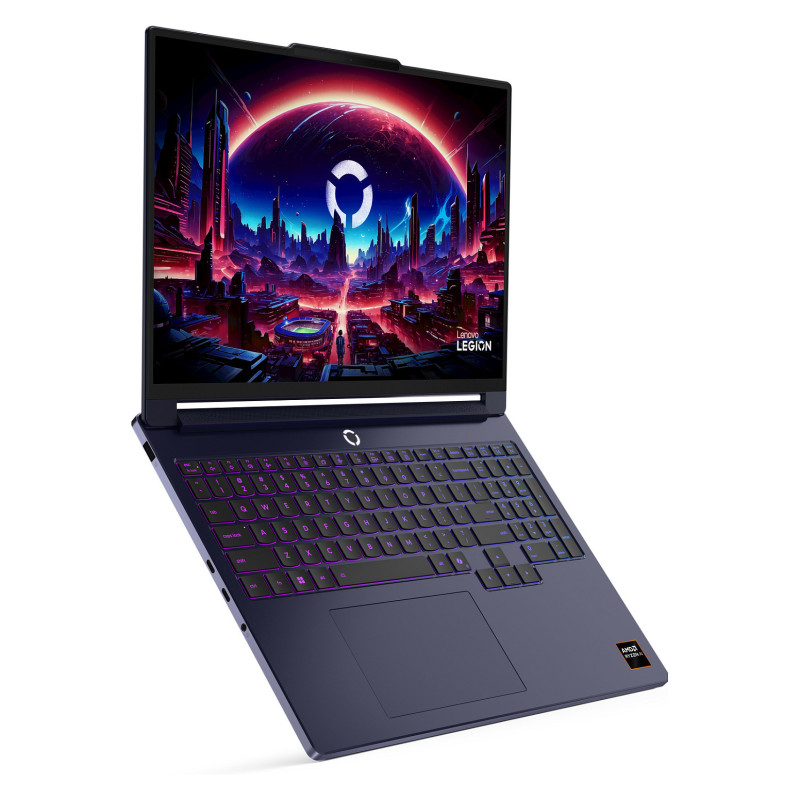

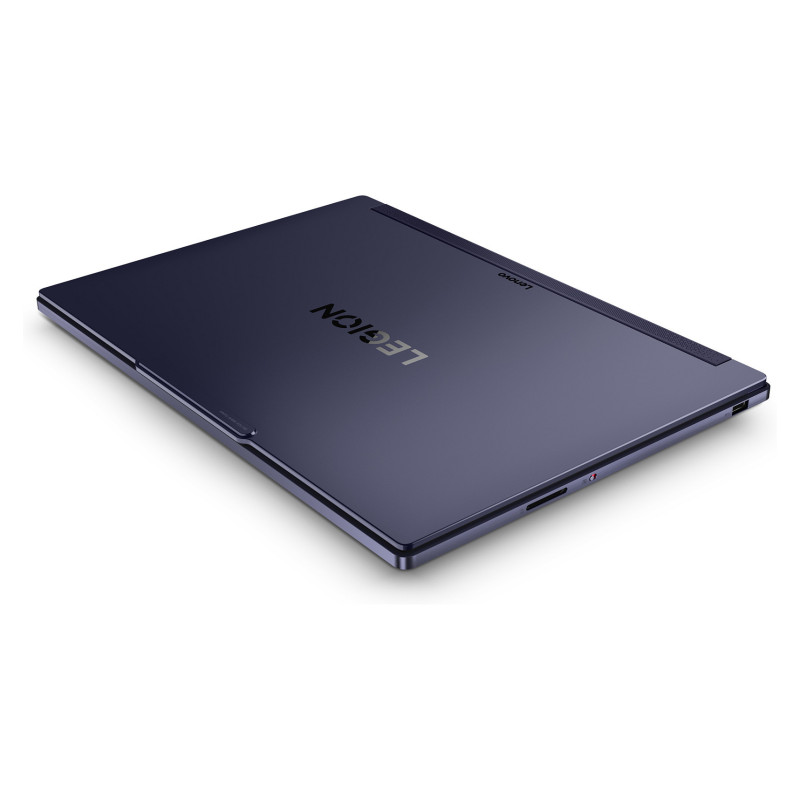

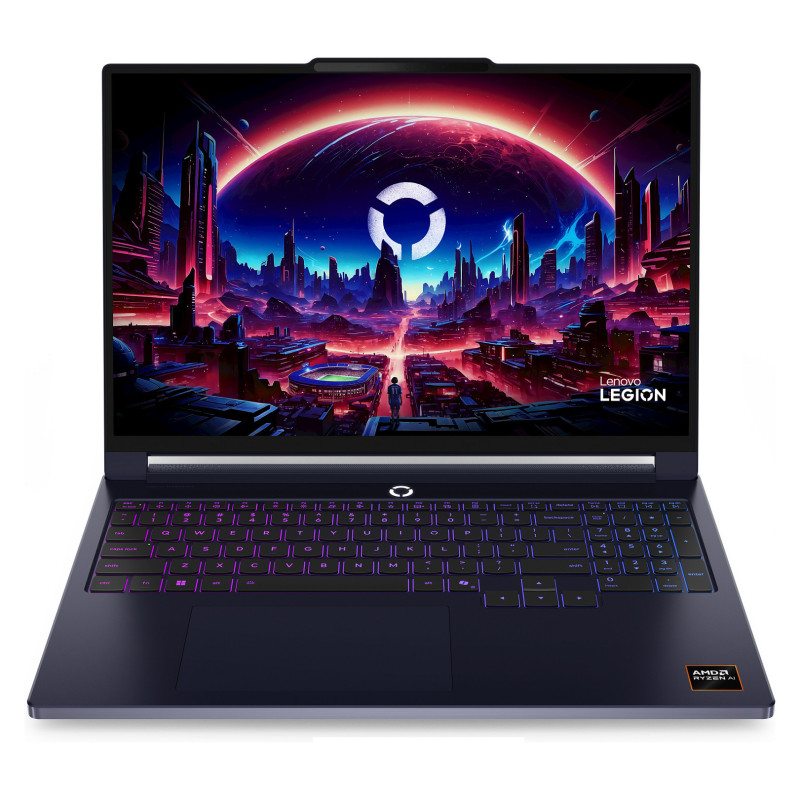

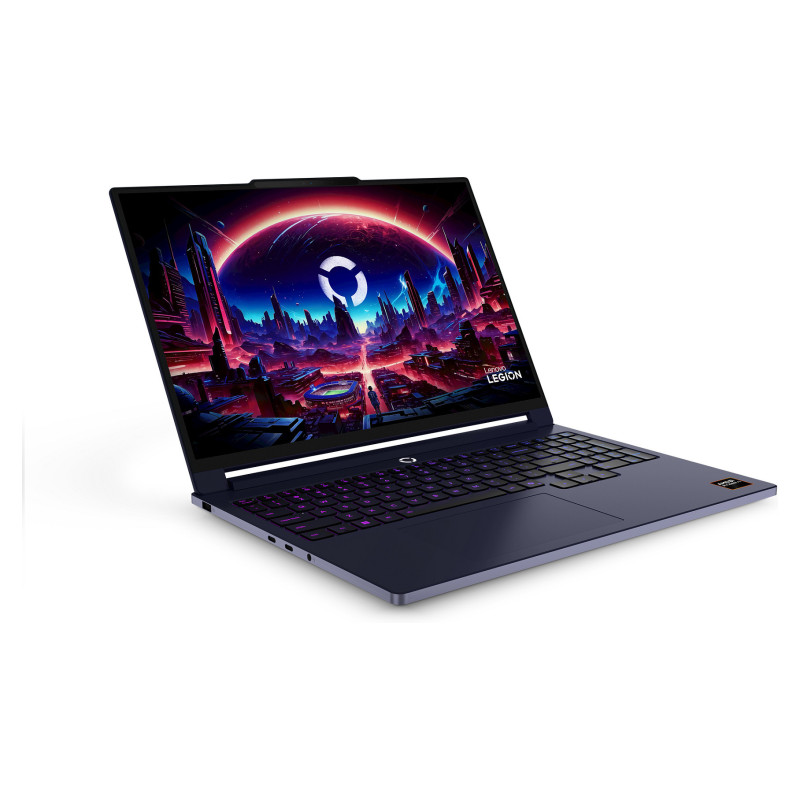

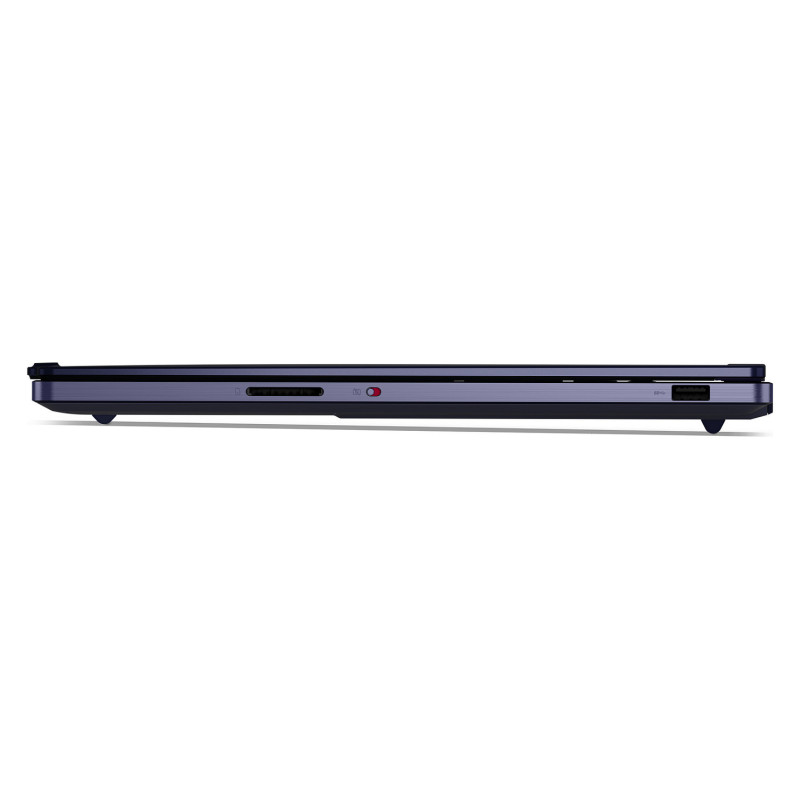

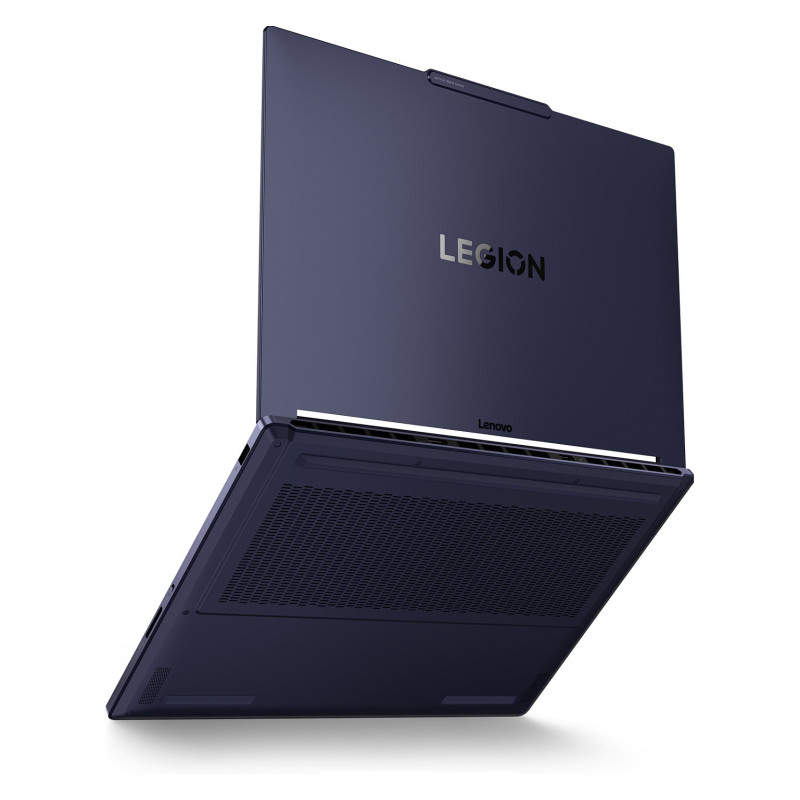

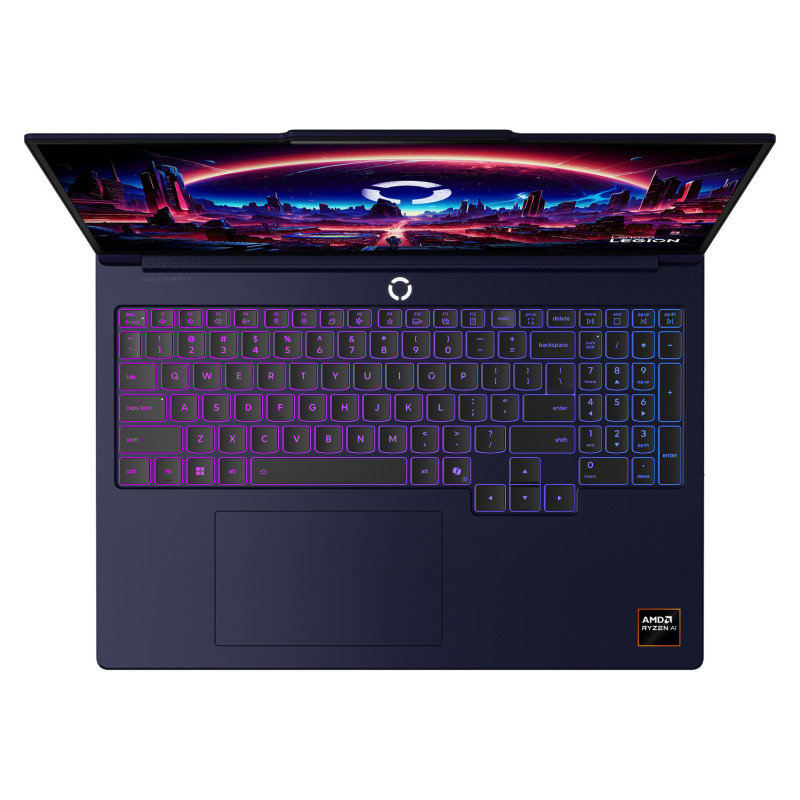

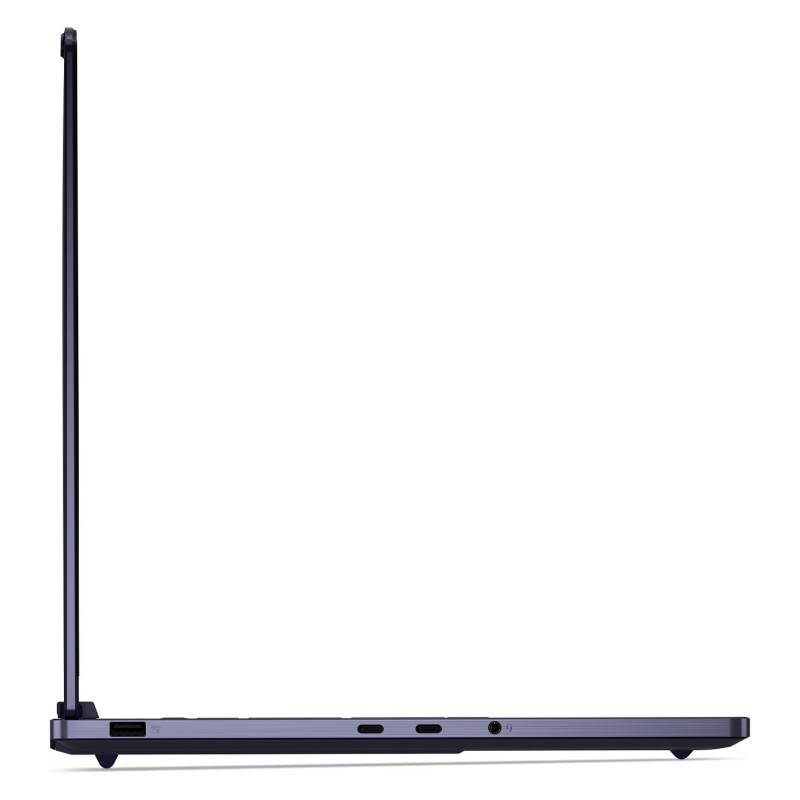

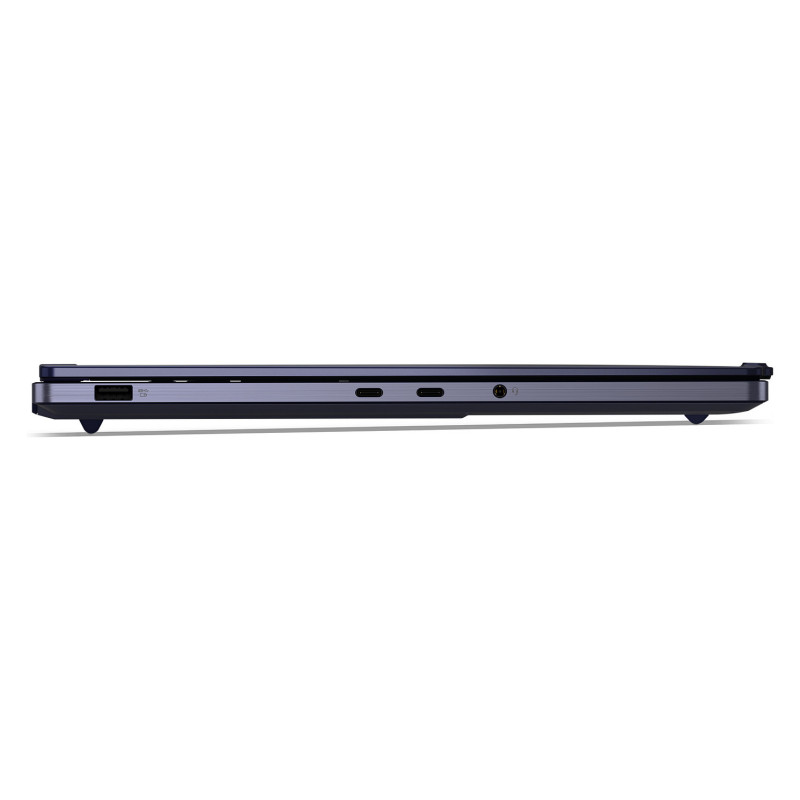

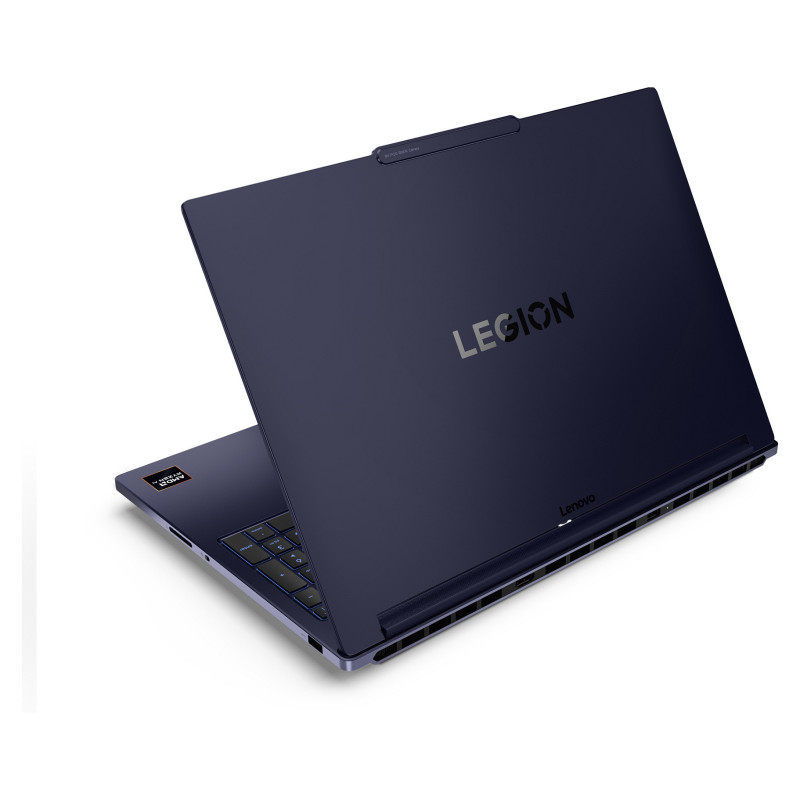

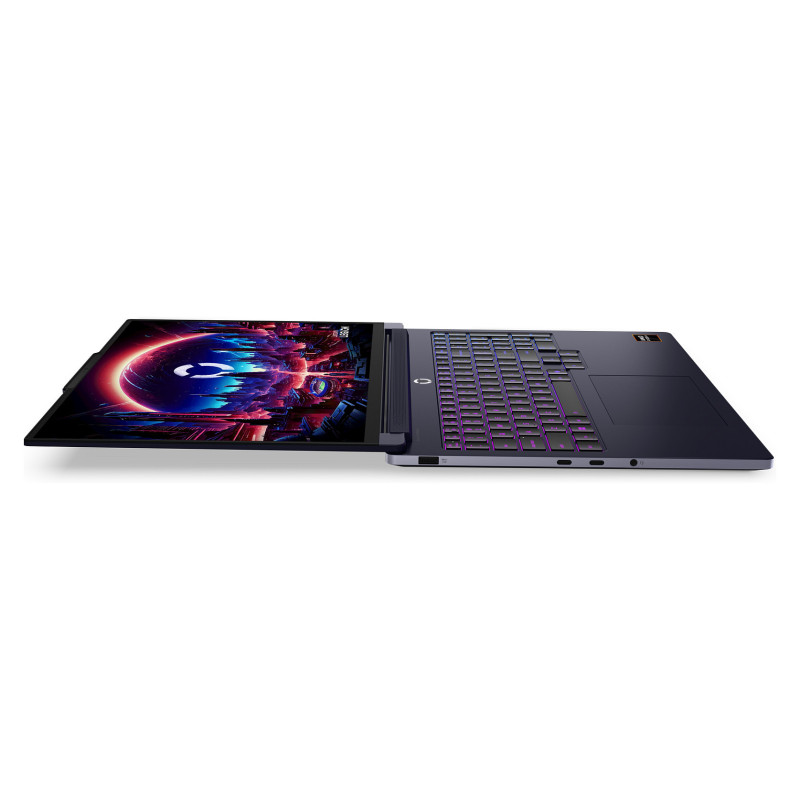

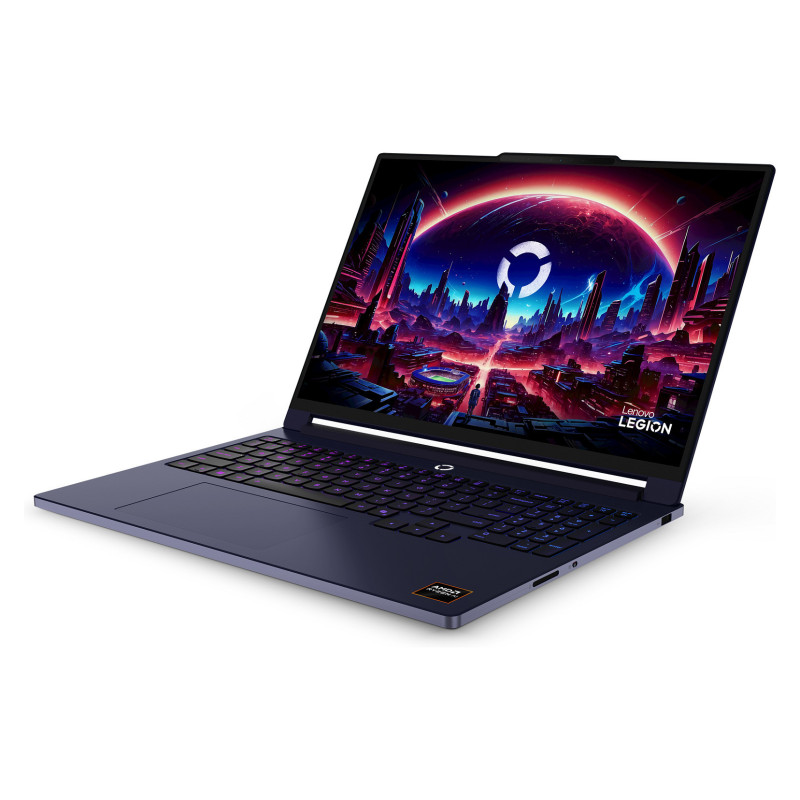

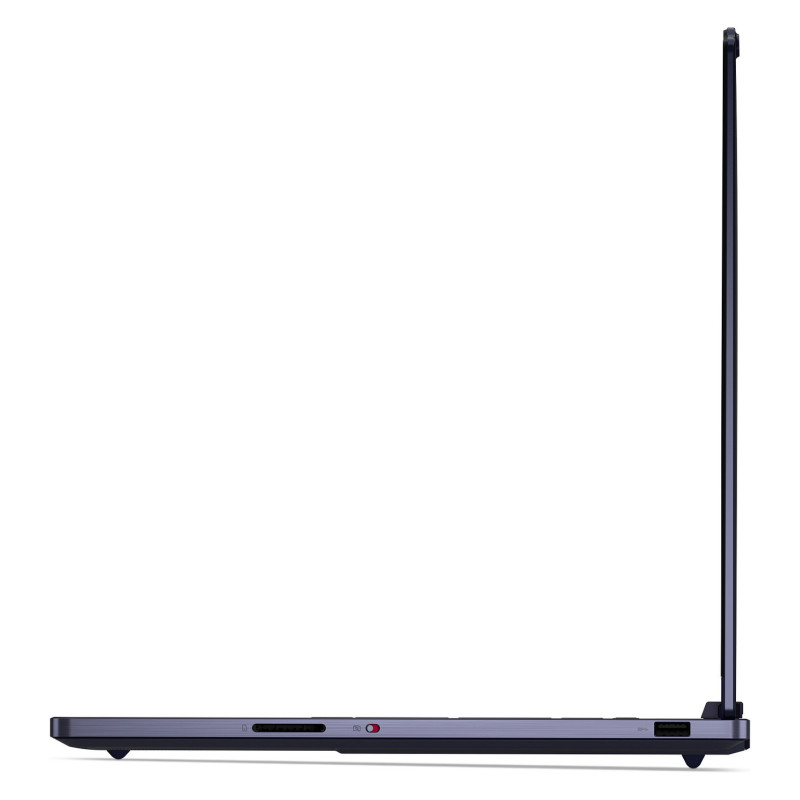

Lenovo Legion 7 16AGP11 Copilot+ PC

Lenovo Legion 7 16AGP11 Copilot+ PC. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen AI 9 HX, Processor model: 470, Processor frequency: 2 GHz. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 890M. Operating system installed: Windows 11 Home. Product colour: Blue

Design

Colour name: Nebula
Product type: Laptop
Product colour: Blue
Form factor: Clamshell
Housing material: Aluminium
Display back cover material: Aluminium
Market positioning: Gaming

Display

Display diagonal: 40.6 cm (16")
Display resolution: 2560 x 1600 pixels
HD type: WQXGA
Panel type: OLED
Feature: LED backlight
Native aspect ratio: 16:9
Display surface: Gloss
Display brightness: 500 cd/m²
Maximum display brightness (HDR): 1100 cd/m²
Standard Dynamic Range (SDR) brightness: 500 cd/m²
RGB colour space: DCI-P3
Colour gamut: 100%
Maximum refresh rate: 240 Hz
Contrast ratio (typical): 1000000:1
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: DisplayHDR True Black 1000

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen AI 9 HX
Processor generation: AMD Ryzen AI 400 Series
Processor model: 470
Processor cores: 12
Processor threads: 24
Processor boost frequency: 5.2 GHz
Processor frequency: 2 GHz
Processor cache type: L2 & L3
L3 cache: 24 MB
L2 cache: 12 MB
Processor base power: 28 W

Neural processor unit (NPU)

Neural processor unit (NPU): AMD Ryzen AI
Total processor performance up to: 86 TOPs
NPU performance up to: 55 TOPs

Memory

Internal memory: 32 GB
Internal memory type: LPDDR5x-SDRAM
Memory clock speed: 8533 MHz
Memory form factor: On-board
Maximum internal memory: 32 GB

Storage

Total storage capacity: 1 TB
Storage media: SSD
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD memory type: TLC
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2242 (22 x 42 mm)
Optical drive type: No
Feature: Card reader integrated
Compatible memory cards: SD

Graphics

Discrete GPU manufacturer: NVIDIA
Discrete graphics card model: NVIDIA GeForce RTX 5060
Discrete graphics card memory: 8 GB
Discrete graphics memory type: GDDR7
Feature: On-board graphics card
On-board GPU manufacturer: AMD
Feature: Discrete graphics card
On-board graphics card family: AMD Radeon
On-board graphics card model: AMD Radeon 890M
Total Graphics Power (TGP): 115 W
Feature: NVIDIA G-SYNC

Audio

Audio chip: Realtek ALC3306
Audio system: Nahimic Audio
Number of built-in speakers: 4
Feature: Built-in microphone
Number of microphones: 2

Camera

Feature: Front camera
Front camera resolution (numeric): 5 MP
Feature: Infrared (IR) camera
Feature: Privacy camera

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Antenna type: 2x2
Feature: Bluetooth
Bluetooth version: 5.4
WWAN: Not installed

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB4 Gen 3x2 ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Sleep-and-Charge
USB Sleep-and-Charge ports: 1

Performance

Motherboard chipset: AMD SoC

Keyboard

Pointing device: Touchpad
Feature: Numeric keypad
Feature: Keyboard backlit
Keyboard backlit colour: RGB
Keyboard backlit zone: 24-zone RGB
Keyboard language: German
Feature: Copilot key

Software

Operating system language: German
Feature: Microsoft Copilot
Trial software: Office
Operating system installed: Windows 11 Home
Bundled software: Office Trial

Battery

Battery technology: Lithium-Ion (Li-Ion)
Number of battery cells: 4
Battery capacity: 84 Wh
Battery life (max): 12.8 h
Continuous video playback time (max): 14.8 h
Feature: Fast charging
Fast charging time (50%): 30 min

Power

AC adapter power: 245 W
AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V
Feature: USB Type-C charging port
USB Type-C required charging power (min): 65 W
USB Type-C required charging power (max): 140 W
Feature: USB Power Delivery (USB PD)

Security

Feature: Windows Hello
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Feature: Password protection
Password protection type: HDD, Power on, User

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): 5 - 43 °C
Operating relative humidity (H-H): 8 - 95%
Storage relative humidity (H-H): 5 - 95%
Maximum shipping altitude: 3048 m

Weight & dimensions

Width: 361.4 mm
Depth: 254.2 mm
Height (front): 1.55 cm
Height (rear): 1.69 cm
Weight: 1.8 kg

Packaging content

Feature: AC adapter included
