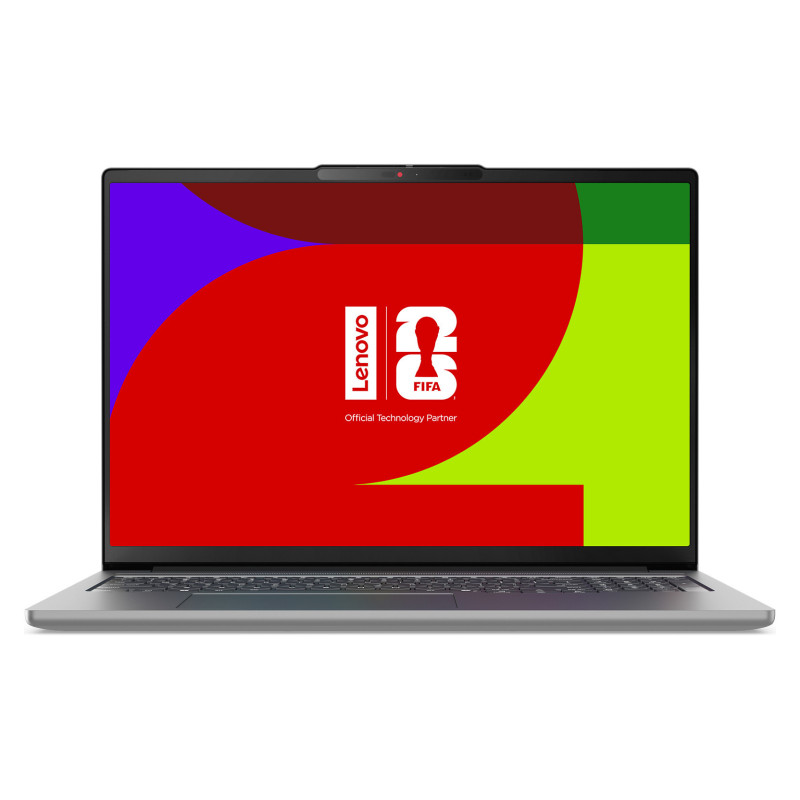

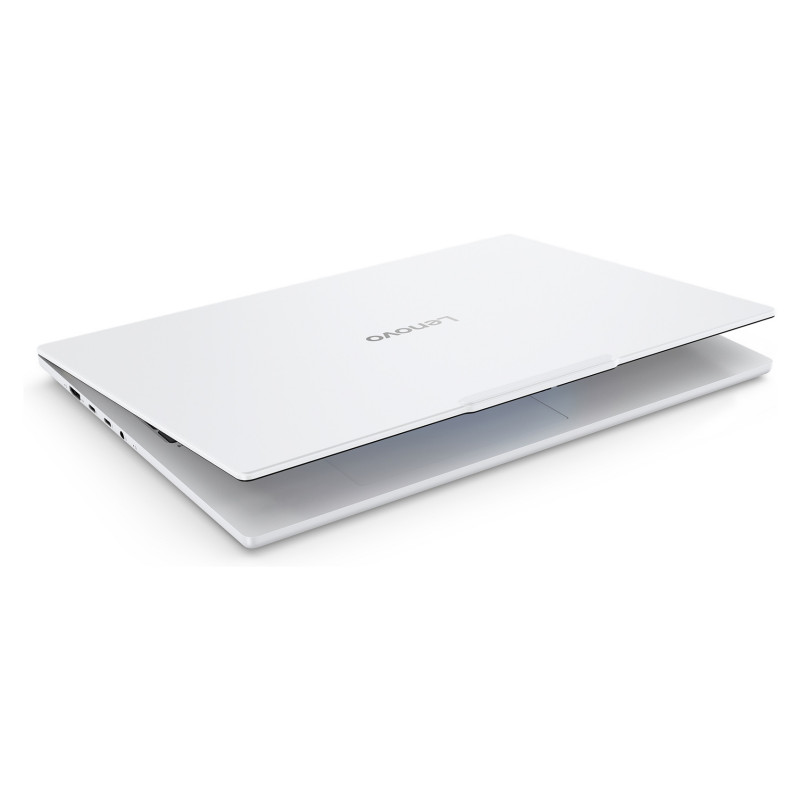

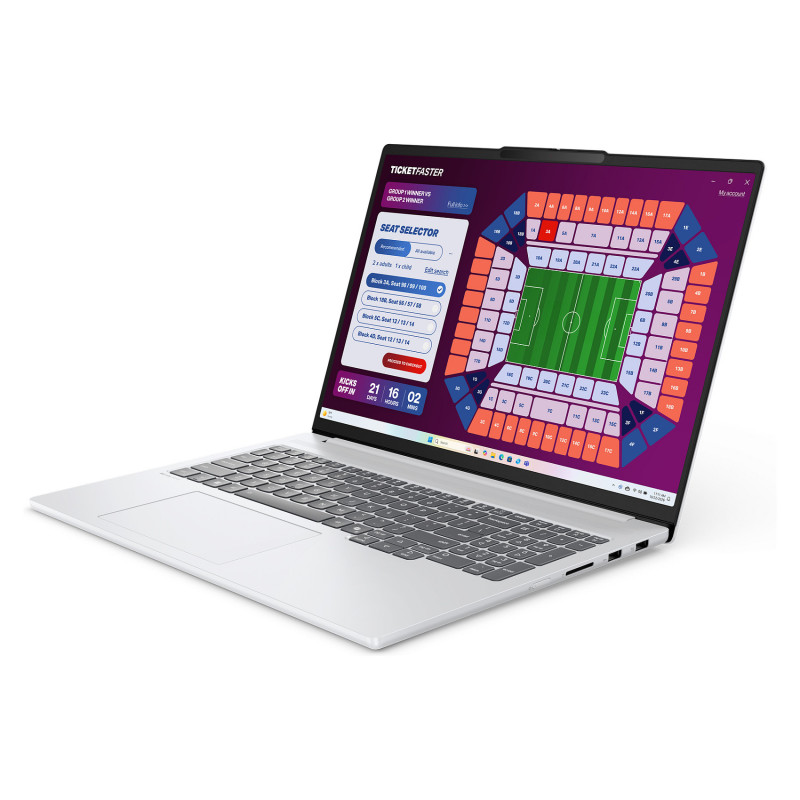

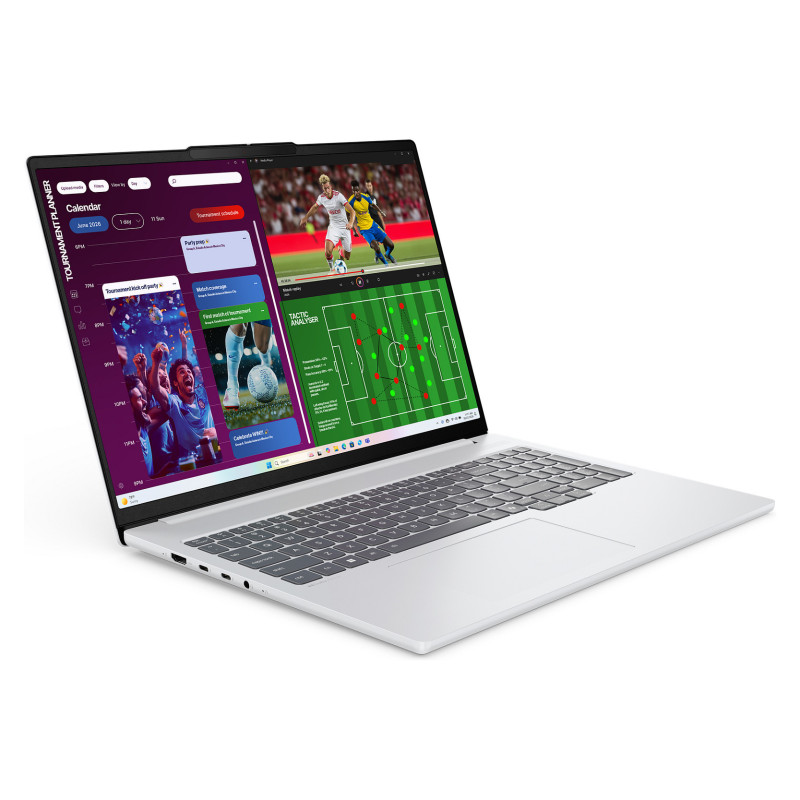

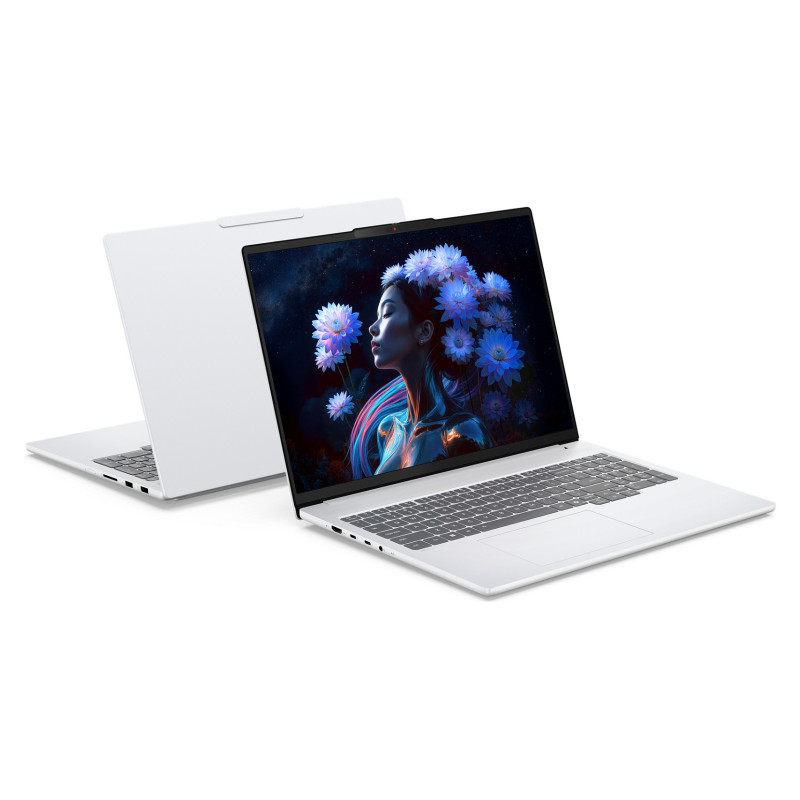

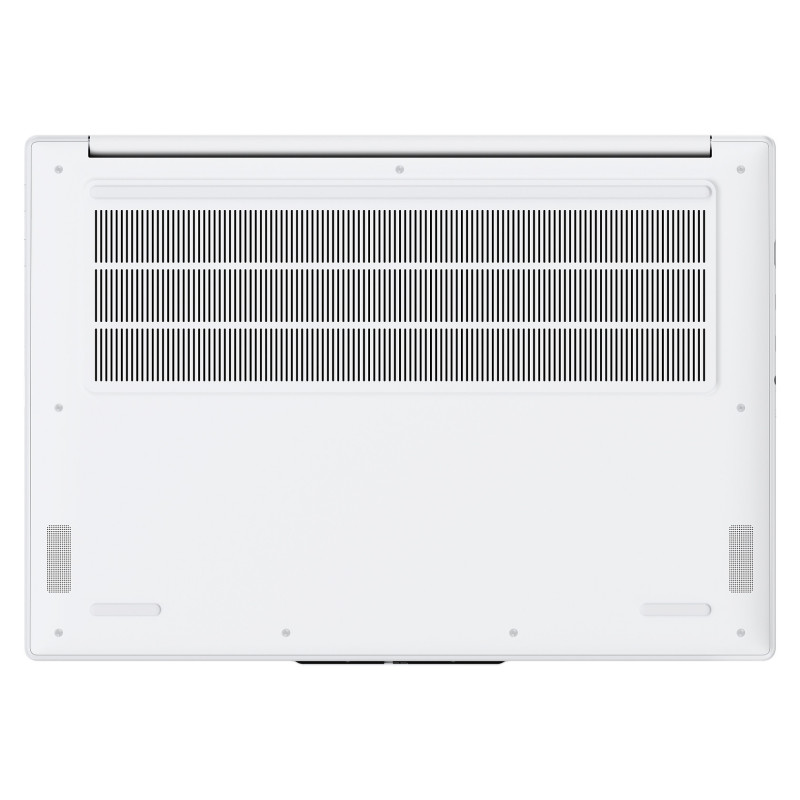

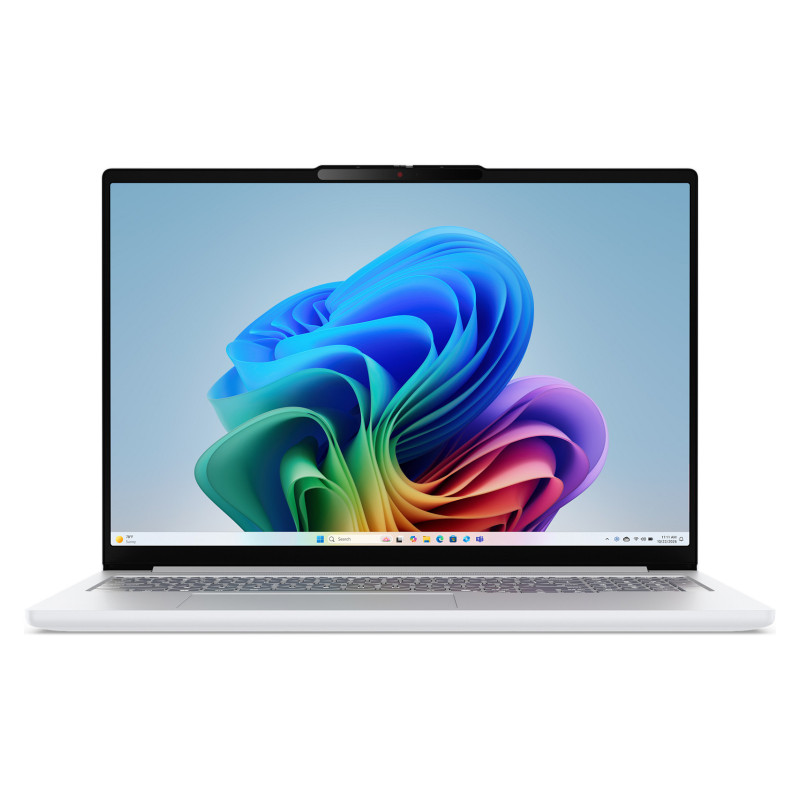

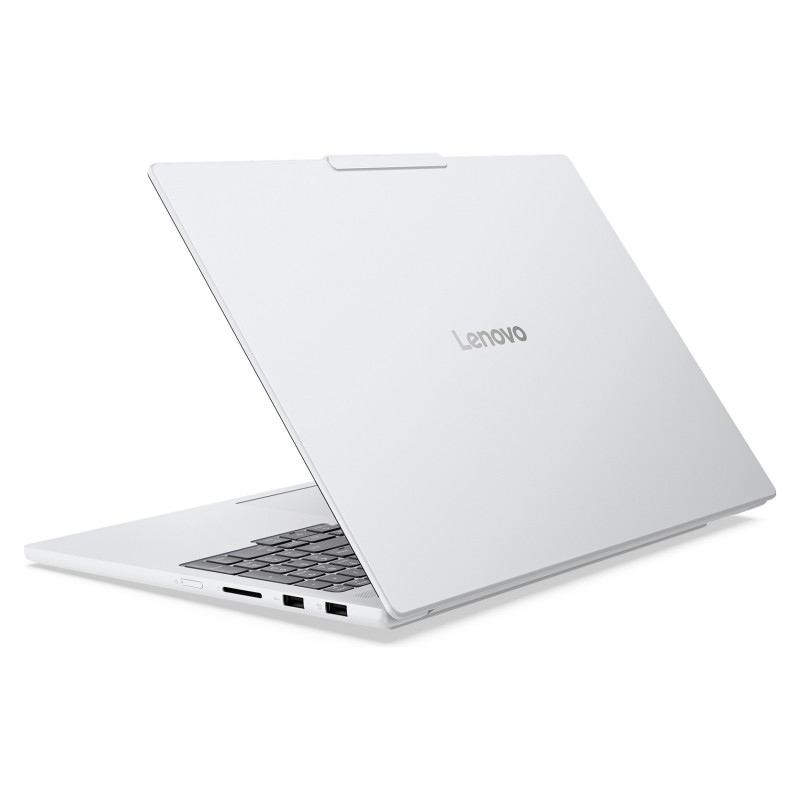

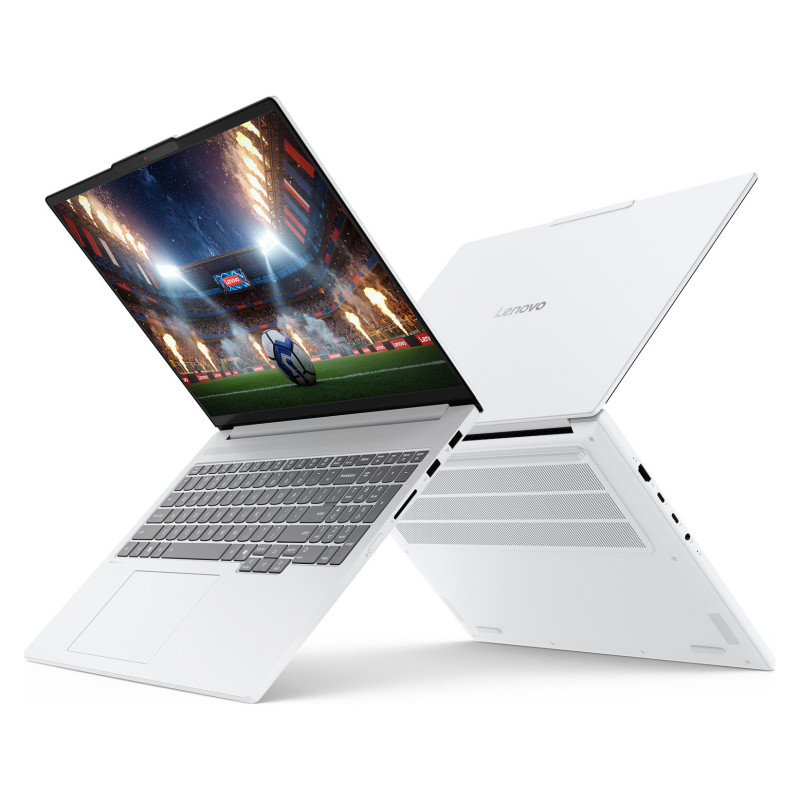

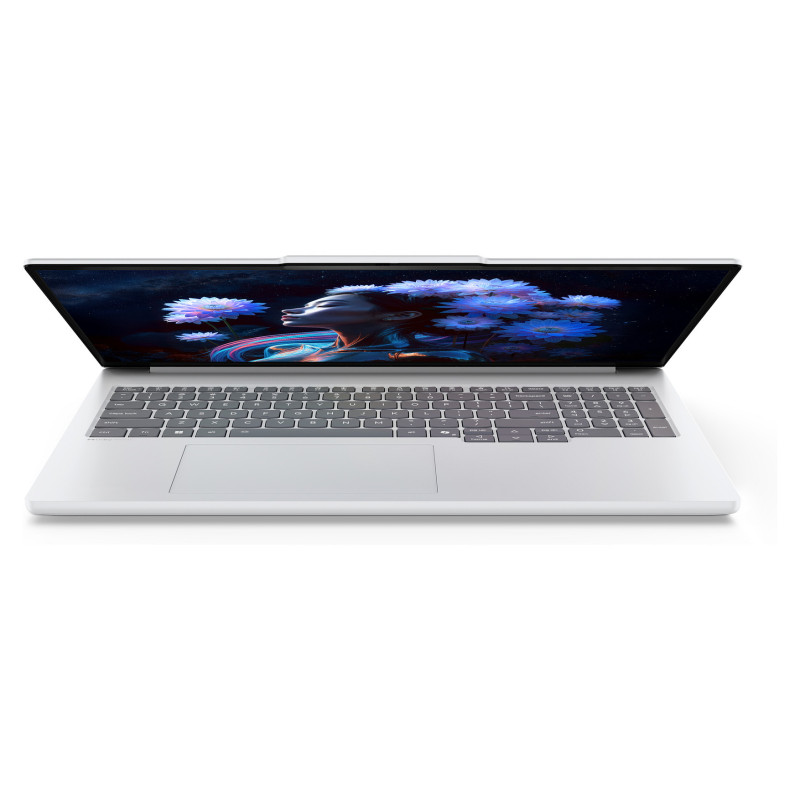

Lenovo IdeaPad Pro 5 16IPH11 Copilot+ PC

Lenovo IdeaPad Pro 5 16IPH11 Copilot+ PC. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 386H. Display diagonal: 40.6 cm (16"), HD type: 2.8K, Display resolution: 2880 x 1800 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5060. Operating system installed: Windows 11 Pro. Product colour: White

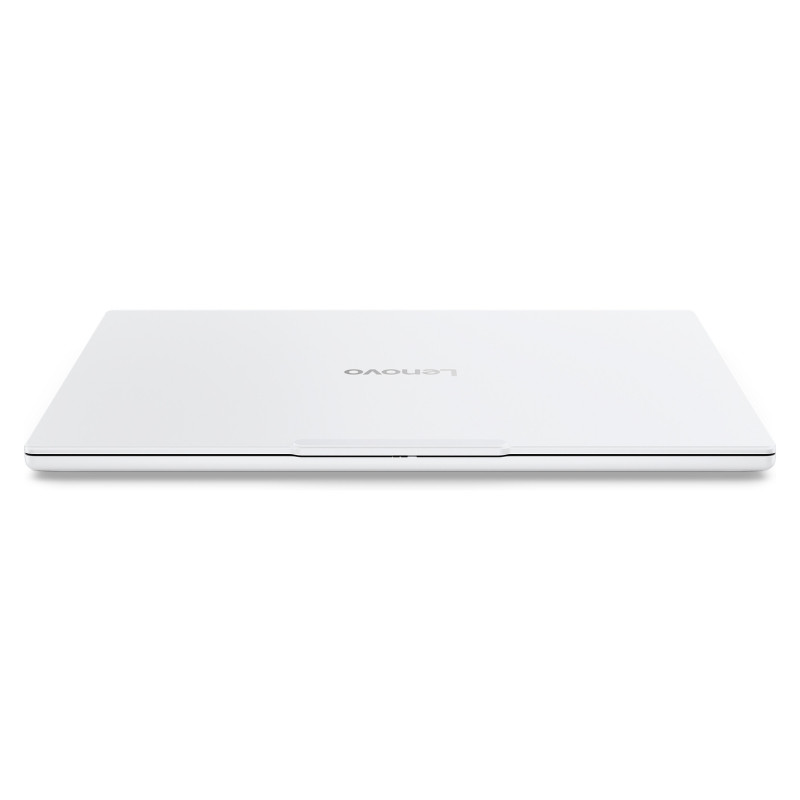

Design

Colour name: Glacier White
Product type: Laptop
Product colour: White
Form factor: Clamshell
Housing material: Aluminium

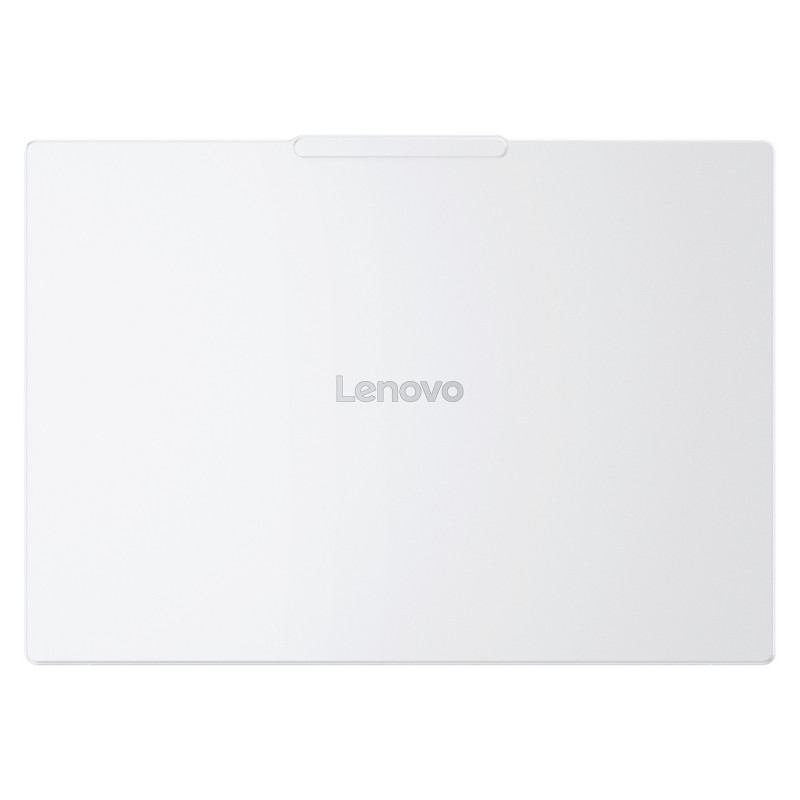

Display back cover material: Aluminium

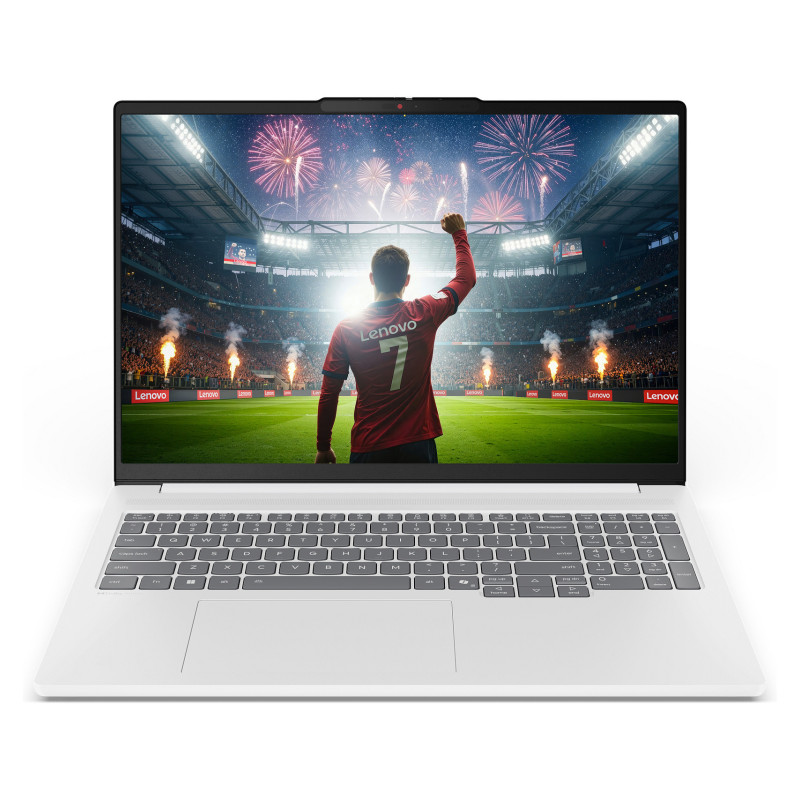

Display

Display diagonal: 40.6 cm (16")
Display resolution: 2880 x 1800 pixels
HD type: 2.8K
Panel type: OLED
Feature: LED backlight
Native aspect ratio: 16:10
Display surface: Gloss
Display brightness: 500 cd/m²
Maximum display brightness (HDR): 1100 cd/m²
Standard Dynamic Range (SDR) brightness: 500 cd/m²
RGB colour space: DCI-P3
Colour gamut: 100%
Maximum refresh rate: 120 Hz
Contrast ratio (typical): 1000000:1
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: DisplayHDR True Black 1000

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 9
Processor generation: Intel® Core™ Ultra (Series 3)
Processor model: 386H
Processor cores: 16
Processor threads: 16
Processor boost frequency: 4.9 GHz
Performance cores: 4
Efficient cores: 8
Low Power Efficient-cores: 4
Performance-core Max Turbo Frequency: 4.9 GHz
Efficient-core Max Turbo Frequency: 3.7 GHz
Low Power Efficient-core Max Turbo Frequency: 3.5 GHz
Performance-core base frequency: 2.1 GHz
Efficient-core base frequency: 1.6 GHz
Low Power Efficient-core Base Frequency: 1600 MHz
Processor cache: 18 MB
Processor cache type: Smart Cache
Processor socket: FCBGA2540
Processor base power: 25 W
Maximum turbo power: 80 W

Neural processor unit (NPU)

Feature: Copilot+ PC
Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to: 50 TOPs
GPU performance up to: 40 TOPs

Memory

Internal memory: 32 GB
Internal memory type: LPDDR5x-SDRAM
Memory clock speed: 8533 MHz
Memory form factor: On-board
Maximum internal memory: 32 GB
Memory channels: Dual-channel

Storage

Total storage capacity: 1 TB
Storage media: SSD
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2242 (22 x 42 mm)
Optical drive type: No
Feature: Card reader integrated
Compatible memory cards: SD

Graphics

Discrete GPU manufacturer: NVIDIA
Discrete graphics card model: NVIDIA GeForce RTX 5060
Discrete graphics card memory: 8 GB
Discrete graphics memory type: GDDR7
Feature: On-board graphics card
On-board GPU manufacturer: Intel
Feature: Discrete graphics card
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel® Graphics
Feature: Ray tracing acceleration

Audio

Audio system: Dolby Atmos
Number of built-in speakers: 2
Speaker power: 2 W
Feature: Built-in microphone
Number of microphones: 2

Camera

Feature: Front camera
Front camera resolution: 1920 x 1080 pixels
Front camera HD type: Full HD
Feature: Infrared (IR) camera
Feature: Privacy camera
Privacy type: Privacy shutter

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Antenna type: 2x2
Feature: Bluetooth
Bluetooth version: 5.4
WWAN: Not installed

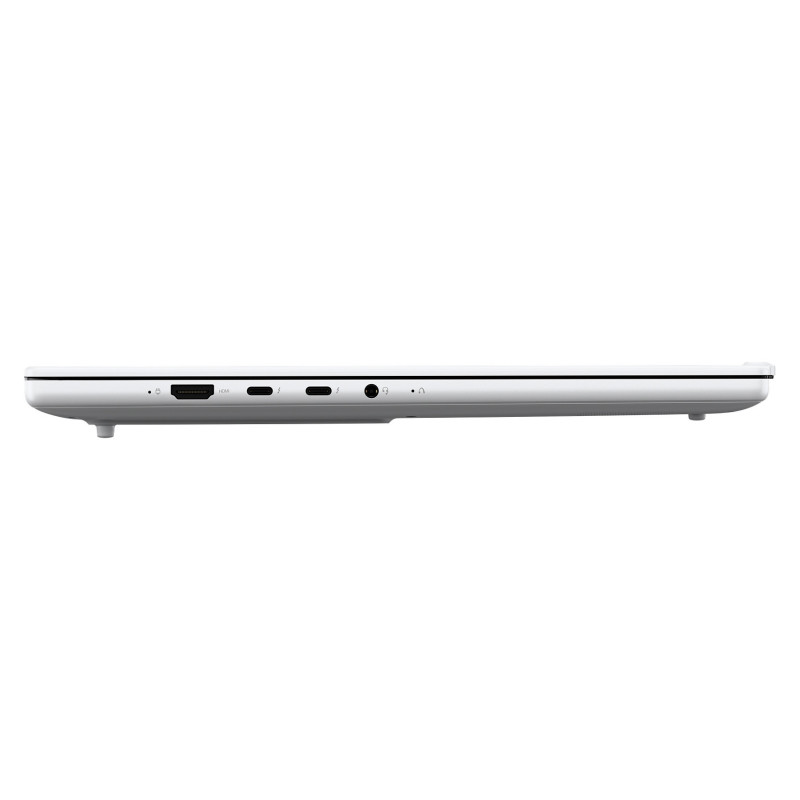

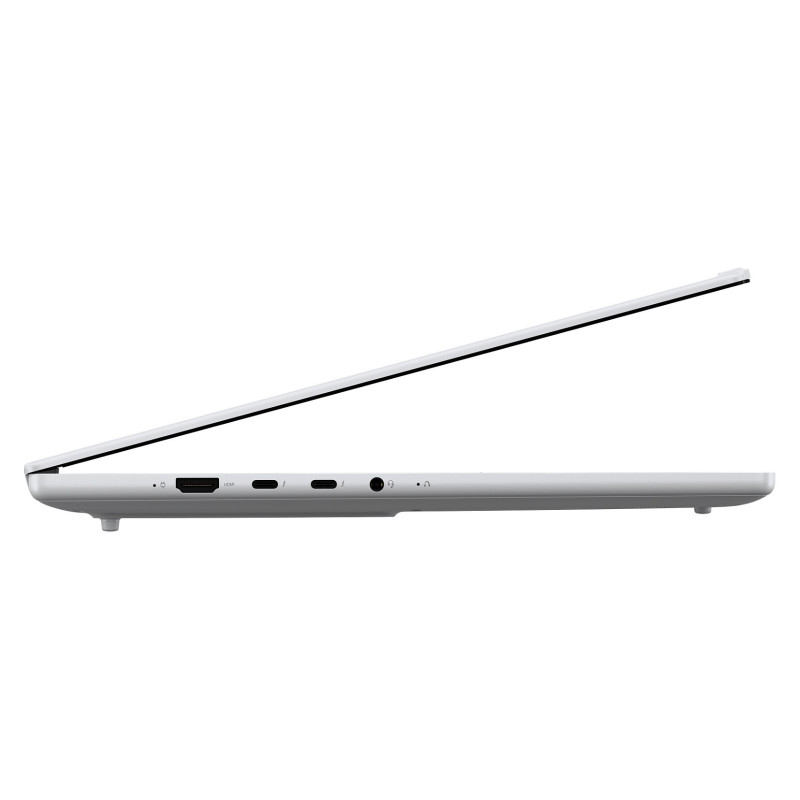

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Feature: Intel® Thunderbolt 4
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Sleep-and-Charge
USB Sleep-and-Charge ports: 1

Performance

Motherboard chipset: Intel SoC

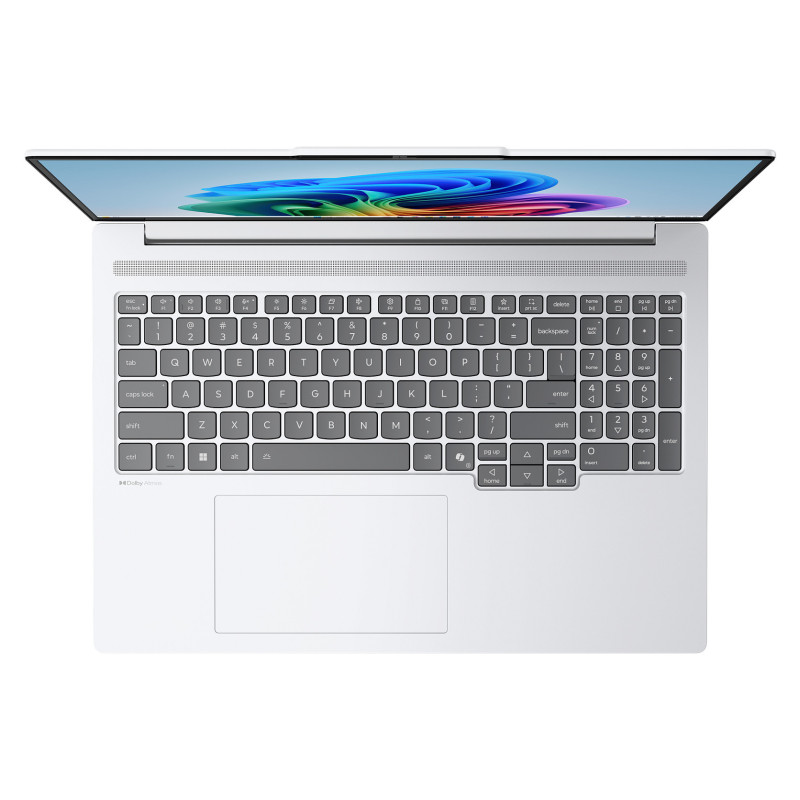

Keyboard

Pointing device: Touchpad
Feature: Numeric keypad
Feature: Keyboard backlit
Keyboard language: German
Feature: Copilot key

Software

Operating system language: German
Feature: Microsoft Copilot
Trial software: Office
Operating system installed: Windows 11 Pro
Bundled software: Office Trial

Battery

Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 99.9 Wh
Battery life (max): 11.5 h
Continuous video playback time (max): 29.4 h
Feature: Fast charging

Power

AC adapter power: 170 W
AC adapter frequency: 50/60 Hz
AC adapter input voltage: 100 - 240 V
Feature: USB Type-C charging port
USB Type-C required charging power (min): 65 W
USB Type-C required charging power (max): 100 W
Feature: USB Power Delivery (USB PD)

Security

Feature: Windows Hello
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Feature: Password protection
Password protection type: Power on, HDD, User

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): 5 - 43 °C
Operating relative humidity (H-H): 8 - 95%
Storage relative humidity (H-H): 5 - 95%
Maximum shipping altitude: 3048 m

Certificates

Compliance certificates: RoHS
Certification: ErP Lot 6/26MIL-STD-810H military test passed (21 test items)

Sustainability

Sustainability certificates: ENERGY STAR, EPEAT Gold

Weight & dimensions

Width: 356 mm
Depth: 250 mm
Height: 15.6 mm
Weight: 1.82 kg

Packaging content

Feature: AC adapter included
