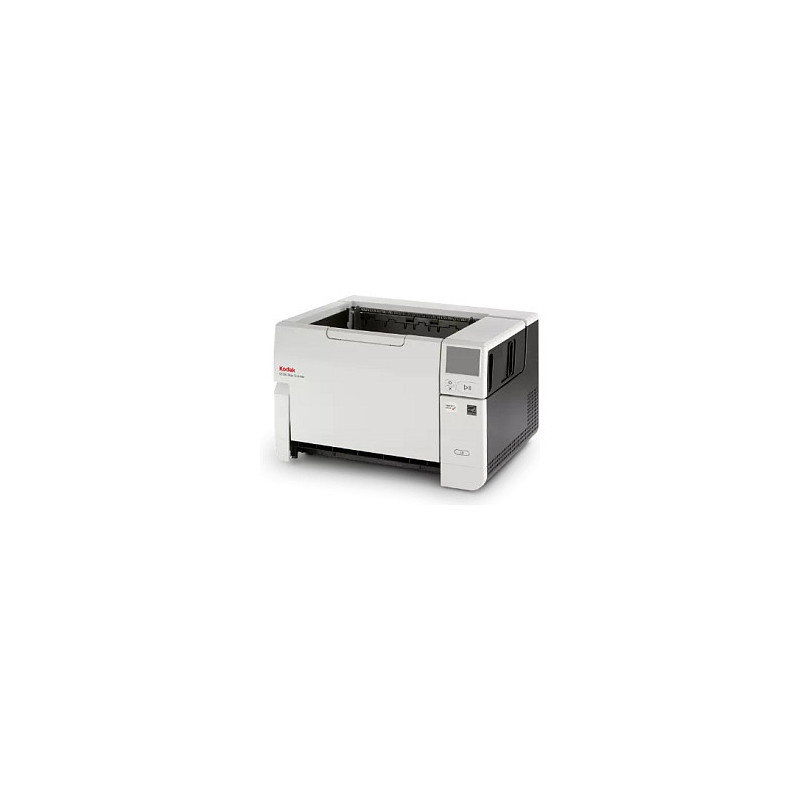

Kodak S3120 Max

Kodak S3120 Max. Maximum scan size: 305 x 4060 mm, Optical scanning resolution: 600 x 600 DPI, Input colour depth: 48 bit. Scanner type: ADF scanner, Product colour: Grey, White, Display: LCD. Sensor type: CMOS CIS, Daily duty cycle (max): 100000 pages, Light source: RGB LED. Auto document feeder (ADF) input capacity: 500 sheets. Maximum ISO A-series paper size: A3

A connected scanner built for high performance and maximum throughput

Best in class. Built to last.
The KODAK S3120 Max and S3140 Max Scanners are powerful connected solutions with robust media handling capabilities. Built for high performance and maximum throughput, these compact production scanners include robust security features, advanced image processing, and unique feeding technologies that create an exceptional user experience.

Key Advantages
Do you have a need for speed? The KODAK S3120 Max Scanner is the answer, with 120 ppm / 240 ipm and a large 500-sheet document feeder. Other key advantages of the Max Series include:

On-board image processing
"System on a chip" technology reduces demands on your PCs to speed up your scanning workflows and boost productivity.

Simplified scanning
Our Smart Touch software is included to help get your business-critical data where it needs to be with the simple push of a button. The intuitive color touchscreen and personalized workflows make it easy to automate complicated tasks.

Scan directly to apps
Import information directly into applications with TWAIN, ISIS, or RESTful API based scanning.

Enhanced security
Secure-boot solution, encryption over wire for network traffic, and USB 3.2 Gen 1x1-compatible.

Ultra-rugged, to endure no matter what
Our engineers design every feature to withstand the rigors of nonstop operation. They have separated the process of managing the document stack from getting pages into the scanner, creating a smooth feeding experience that can handle the wide variety of documents you need to scan.

- The auto-adjusting 500-sheet feed tray constantly lifts the paper up to the feeding mechanism, enabling you to handle a wider range of media.
- Twin rollers initiate the scanning process - feeding an impressive 120 pages per minute through a series of passive and dynamic document separation technologies to ensure that every page is scanned.
- Secure Boot prevents unauthorized software from being loaded on the scanner, helping to protect your infrastructure from security risk.

UX that's eas y on your operators
We design our control panels with your workflows and users in mind. Large, colorful menus make operations simple, fast, and intuitive.

- RESTful API enabled for single-touch, PC-free scanning directly into business applications and workflows.
- With local administration, Smart Touch technology can turn manual scanning tasks into a controlled workflow with the simple touch of a button.
- Built-in Gigabit Ethernet allows multiple users to share the scanner within a department.
- Protect workflows with PIN code access and unlock user-specific tasks.

Exceptional image quality delivers seamless workflow automation
With over 30 years of pioneering R&D, our imaging technology ensures we deliver a Perfect Page every time, so you can easily extract the information you need, when and where you need it. Get clear, accurate, and searchable PDF files or data extraction results for 126 different languages.

- Your eyes will never see a better scanned image. No blurring, no spots, just a clean, well-cropped image that's better than the original.
- Our text enhancement technology makes every letter crisp and sharp, so they stand off the page to help you make sense of your data.
- Our unique dual-light illumination technology produces brighter, sharper images, eliminating shadows caused by folds or wrinkles.

Scanning your way
Our scanners operate in multiple imaging modes to support your specific needs, accelerating throughputs for all your document processing. The KODAK S3120 Max Scanner is ready to meet important compliance standards, right out of the box.

- In shared environments, network connectivity and onboard image processing make it easy to deliver high-quality images to folder structures within your organization, right from the scanner.
- For organizations that need to submit FADGI-compliant digital records to the federal government, The KODAK S3120 Max features a simple FADGI switch that makes it easy to toggle between FADGI output mode and normal document scanning.
- Automatically create images that are compliant with Modern Textual Records (MTR) standard.

Authentic sustainability
It's important to choose document scanners and other products from companies that make environmentally conscious decisions. For all of our document scanners and services, we use sustainable and/or recycled materials, and our products are Electronic Product Environmental Assessment Tool (EPEAT®) certified and Energy Star® certified. By choosing Kodak Alaris for your document scanning, you'll always know you're making an environmentally responsible decision.

Scanning

Maximum scan size: 305 x 4060 mm
Optical scanning resolution: 600 x 600 DPI
Feature: Colour scanning
Input colour depth: 48 bit
Output colour depth: 24 bit
Output greyscale depth: 8 bit
Greyscale levels: 256
ADF scan speed (b/w, A3): 120 ppm

Design

Scanner type: ADF scanner
Product colour: Grey, White
Display: LCD
Display diagonal: 8.89 cm (3.5")
Feature: Touchscreen
Feature: Colour display
Control type: Touch, Buttons
Feature: Built-in display

Performance

Sensor type: CMOS CIS
Light source: RGB LED
Scan file formats: BMP, JPEG, XLSX, DOCX, TIFF, PDF, PNG, RTF
Daily duty cycle (max): 100000 pages
Scan drivers: ISIS, Kofax VRS, TWAIN, SANE, WIA
Feature: Barcode reader
Scanning noise level: 60 dB
Scanner smart software features: Correction & auto-cropping

Input capacity

Auto document feeder (ADF) input capacity: 500 sheets

Paper handling

Maximum ISO A-series paper size: A3

Ports & interfaces

Feature: USB port
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)

Network

Feature: Ethernet LAN
Supported network protocols: DHCP, TCP/IP

Power

Power supply type: AC
Power consumption (typical): 50 W
Power consumption (standby): 0.3 W
AC input frequency: 50 - 60 Hz
Input voltage: 100 - 240 V
Power consumption (sleep): 4 W

Weight & dimensions

Width: 457.2 mm
Depth: 370.8 mm
Height: 295 mm
Weight: 16.8 kg

Packaging content

Bundled software: Capture Pro Limited EditionSmart Touch

Sustainability

Sustainability certificates: EPEAT Gold, ENERGY STAR

System requirements

Minimum RAM: 3430 MB
Minimum processor: Intel Core i3 3.5 GHz
Linux operating systems supported: Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04
Server operating systems supported: Windows Server 2016, Windows Server 2019, Windows Server 2022

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 15 - 80%

Other features

Scan media weight: 27 - 433 g/m²

Technical details

Linear (1D) barcodes supported: Codabar, Code 128, Code 3 of 9, EAN-13, EAN-8, Interleaved 2 of 5, PDF417, UPC-A, UPC-E
