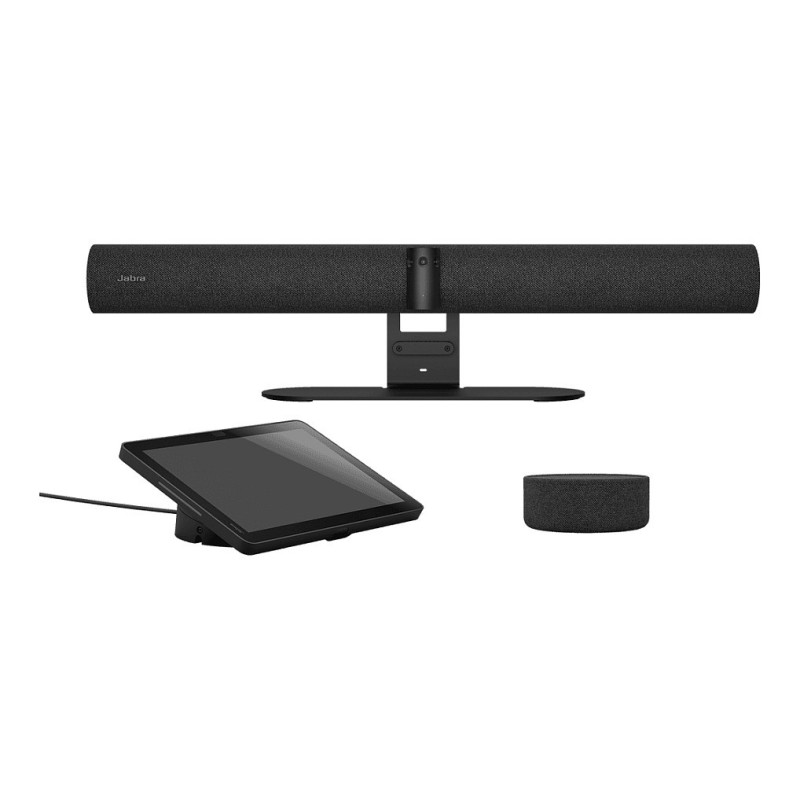

Jabra PanaCast 55 VBS video conferencing system

Jabra PanaCast 55 VBS. Product type: Group video conferencing system. HD type: 4K Ultra HD. Digital zoom: 6x. Ethernet LAN, Wi-Fi. Bluetooth. Display diagonal: 25.6 cm (10.1"), Display resolution: 1920 x 1200 pixels. Product colour: Black

All-in-one video conferencing solution with optional expansion audio

Why you'll love Jabra PanaCast 55 VBS

Maximize your meeting space
A 180° field of view and 4K panoramic video ensure everyone is seen, even close to the screen or against the wall.

Outstanding audio quality
An array of 8 beamforming, noise‑cancelling microphones and 4 powerful speakers delivers clear, room‑filling sound.

Audio flexes with your needs
Add the PanaCast SpeakerMic to extend audio to the back of the room, with seamless sound mixing and flexible mounting options.

Natural, AI-powered meeting experiences
Dynamic Composition, Virtual Director, Intelligent Zoom, and Intelligent Meeting Space keep participants in frame and focused.

Quick, scalable installation
From box to meeting in minutes with in‑box provisioning, multiple mounting options, and support for permanent BYOD mode.

Secure and easy to manage
Built on MDEP for secure, future‑ready performance, and designed to work seamlessly with Microsoft Teams and Zoom.

Performance

Number of cameras: 3
Feature: Bluetooth
Bluetooth version: 5.1
Product colour: Black
Feature: Proximity sensor
Feature: Temperature sensor
Feature: Humidity sensor
Feature: AirPlay
Product type: Group video conferencing system
Feature: Wall mountable
Feature: PTZ control

Video

HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels

Audio

Feature: Built-in speaker(s)
Number of speakers: 4
Feature: Tweeter
Number of tweeter drivers: 2
Tweeter diameter: 2 cm
Feature: Woofer
Number of woofer drivers: 2
Woofer diameter: 5 cm
Frequency range: 80 - 20000 Hz
Feature: Audio beamforming
Feature: Noise reduction
Feature: Echo cancellation
RMS rated power: 20 W

Ports & interfaces

HDMI ports quantity: 2
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
Power over Ethernet (PoE) ports quantity: 1
Feature: AUX out

Network

Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Networking standards: IEEE 802.3af
Supported network protocols: IPv4, IPv6
Feature: Auto MDIX IEEE
Feature: DHCP client
Feature: Static IP
Feature: Web-based management

Camera

Digital zoom: 6x
Camera resolution: 3840 x 1080 pixels
Horizontal field of view: 180°
Vertical field of view: 54°
Feature: Camera privacy shutter

Display

Feature: Built-in display
Display diagonal: 25.6 cm (10.1")
Display resolution: 1920 x 1200 pixels
Feature: Touchscreen

Microphone

Microphone sensitivity: -37 dB
Microphone frequency: 100 - 16000 Hz
Number of microphones: 8

Features

Feature: People counting
Feature: Cable lock slot
Feature: Cable management

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 15 - 80%
Storage temperature (T-T): -20 - 60 °C
Maximum operating altitude: 4876.8 m

Power

AC input voltage: 100 - 240 V
DC output voltage: 12 V
DC output current: 5 A

Weight & dimensions

Monitor dimensions (WxDxH): 248 x 156 x 85 mm
Monitor weight: 958 g
Width: 730 mm
Depth: 146 mm
Height: 77 mm
Weight: 2.26 kg

Packaging data

Package width: 1065 mm
Package depth: 210 mm
Package height: 175 mm
Package weight: 5.76 kg

Packaging content

Cables included: HDMI, AC
Feature: Wall mounting kit
Feature: AC adapter included
