Inateck BCST-75S

Inateck BCST-75S. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired & Wireless, Standard interfaces: USB. Product colour: Black, Yellow, Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Thermoplastic urethane (TPU), International Protection (IP) code: IP67. Power source type: Battery, USB, Battery capacity: 2600 mAh, Input voltage: 5 V. Weight: 614 g, Width: 150.3 mm, Depth: 100.4 mm

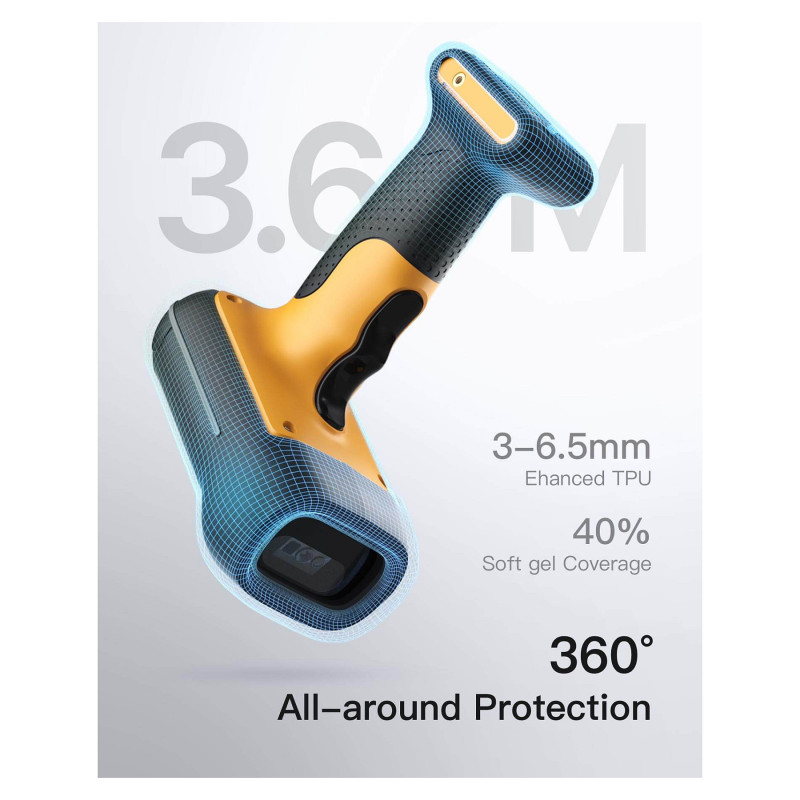

IP67 Waterproof & 3.6M Drop-resistant: Crafted from sturdy ABS and thickened soft TPU material covering more than 50%, the Inateck industrial-grade 2D barcode scanner can withstand falls from heights of up to 11.8 feet (3.6 meters). This scanner has passed the IP67 waterproof and dustproof test, maintaining excellent scanning performance in dusty warehouses and damp rainy work environments

Innovative AI Features: Easily interact with Inateck AI for quick barcode scanner configuration and data processing. Solve complex data tasks in seconds with more customization options, faster and simpler than ever

Superior Decoding Capability: It can accurately scan almost all 1D, 2D, and QR codes on paper and screens, including QR-code, DataMatrix, and PDF-417. It can also read and transmit blurry, damaged, and dirty barcodes. Its superior decoding capability makes it suitable for any purpose

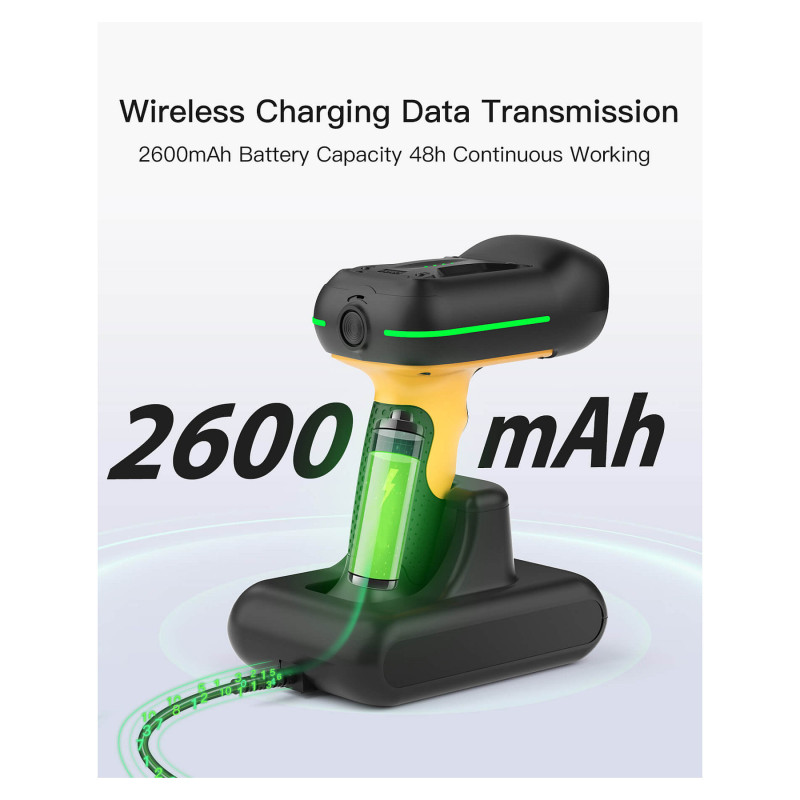

Built to Last: The barcode scanner is equipped with a 2600mAh high-capacity battery, along with intuitive power indicators on the scanner head, allowing you to monitor battery levels in real time. The BCST-75S also comes with a dedicated charging dock for convenient charging during downtime, helping you say goodbye to battery anxiety and stay focused on efficient work

Advanced Smart Technology: With Inateck low-power battery algorithm for exceptional endurance, a full charge allows 180 days standby and up to 180,000 scans. The Inateck APP is equipped with AI functions, allowing effortless setup and rapid data processing within seconds. Enjoy more customization options, faster operations, and greater simplicity. The SDK supports seamless integration with your system, greatly enhancing convenience

Wide Compatibility & Extended Transmission Range: Supports three connection modes—2.4G wireless, Bluetooth, and wired. Compatible with Windows, Mac, iOS, Android, iPad OS, and Linux, catering to various scanning needs. In open environments, the transmission distance reaches up to 100 meters, while in indoor settings, it extends to 60 meters

Scanning

Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
2D (matrix & stacked) barcodes supported: Aztec Code, Data Matrix, PDF417, QR Code
Trigger mode: Auto-induction, Manual
Optical sensor resolution (W x H): 640 x 480 pixels
Tilt reading angle: 55 - 55°
Maximum scan width: 40 cm
Depth of field range: 30 cm

Ports & interfaces

Connectivity technology: Wired & Wireless
Standard interfaces: USB
Feature: Bluetooth

Performance

Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Thermoplastic urethane (TPU)
International Protection (IP) code: IP67
Protection features: Drop proof, Dustproof, Waterproof
LED indicators: Yes
Feature: Buzzer
Product colour: Black, Yellow
Feature: Vibration function

Power

Power source type: Battery, USB
Battery capacity: 2600 mAh
Input voltage: 5 V

Weight & dimensions

Width: 150.3 mm
Depth: 100.4 mm
Height: 185.3 mm
Weight: 614 g

Packaging data

Feature: Charging base

Operational conditions

Operating temperature (T-T): 0 - 50 °C
