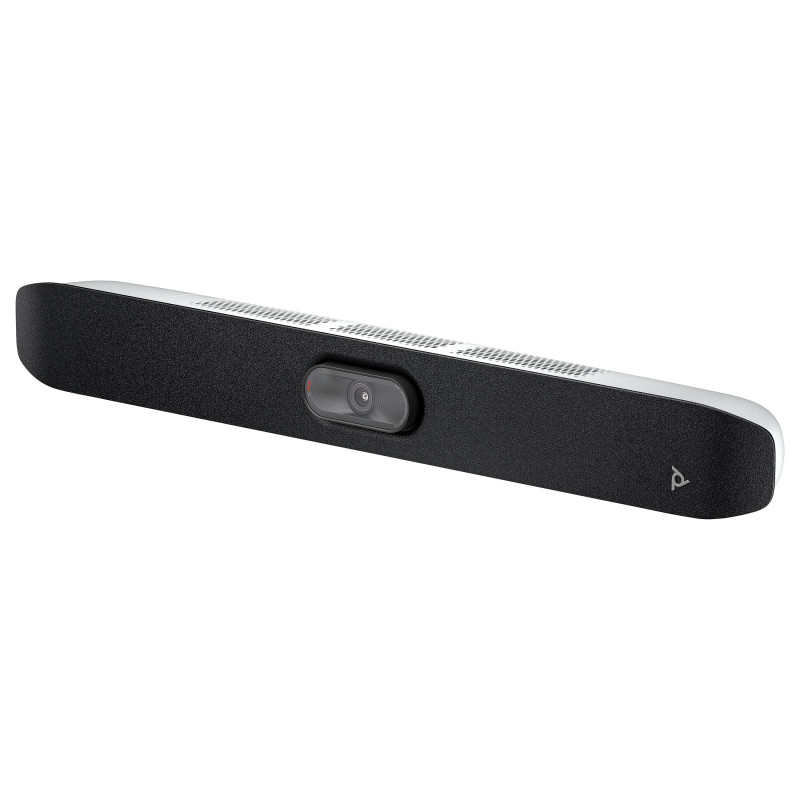

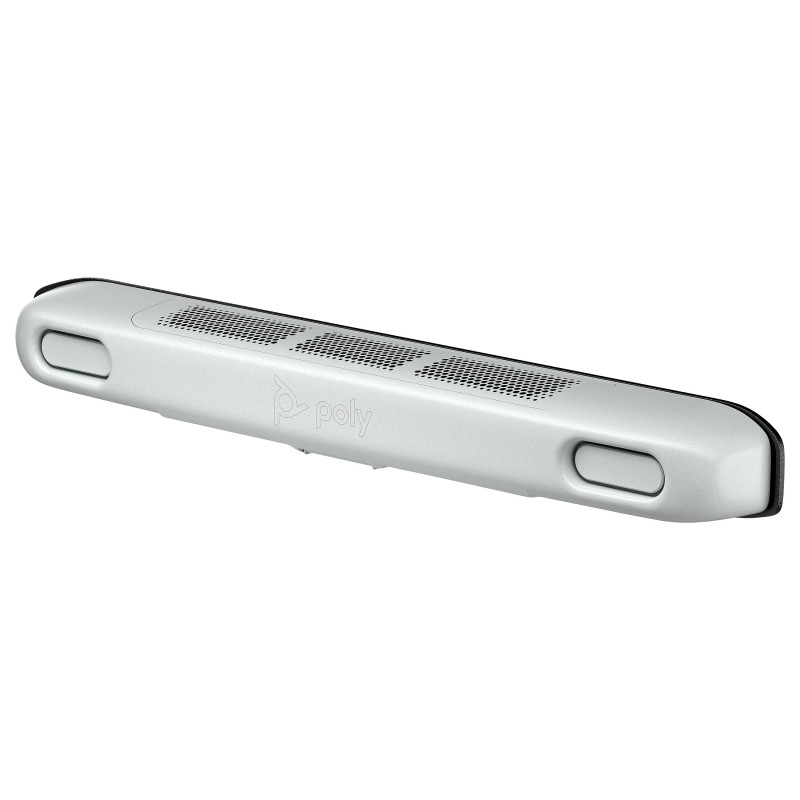

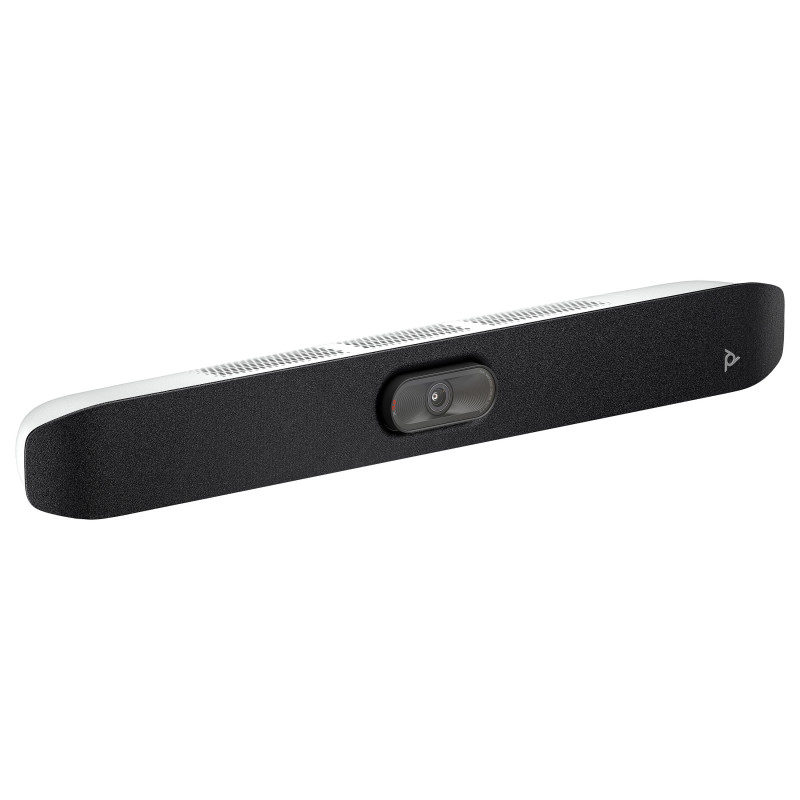

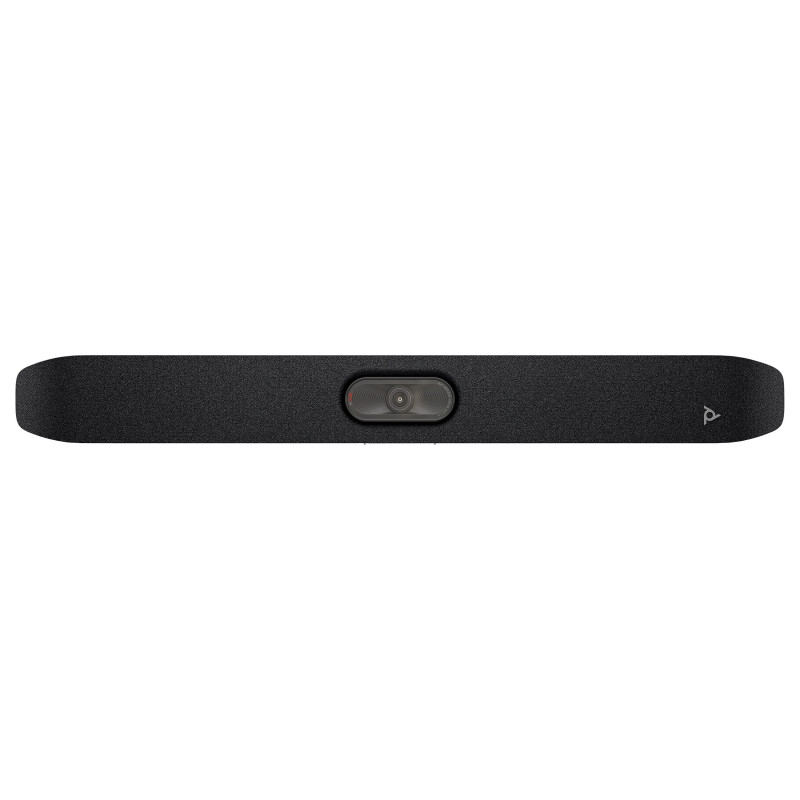

HP Poly Studio X32 video conferencing system

HP Poly Studio X32 All-In-One Video Bar No Power Supply. Product type: Video collaboration bar. Total megapixels: 20 MP, HD type: 4K Ultra HD, Supported video modes: 720p, 1080p, Maximum frame rate: 30 fps. Digital zoom: 5x. Ethernet LAN, Wi-Fi. Bluetooth, Product colour: Black

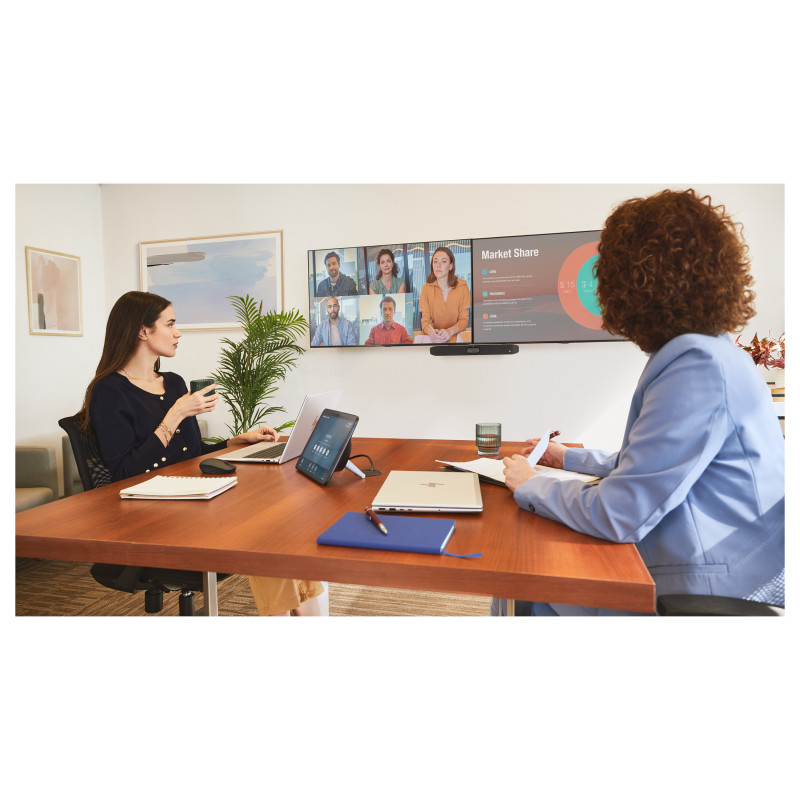

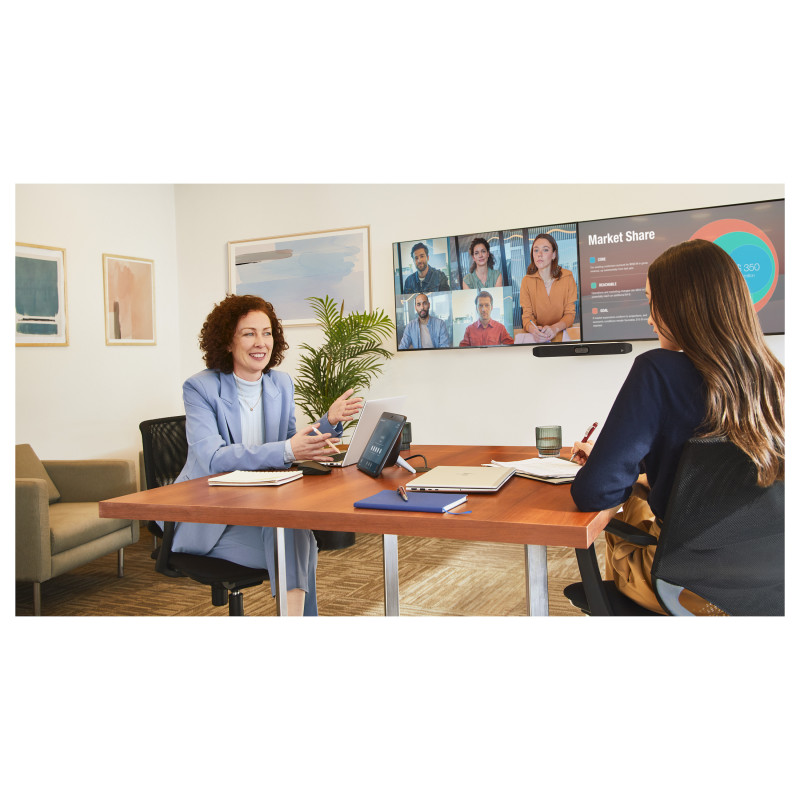

Unleash big connections in small spaces

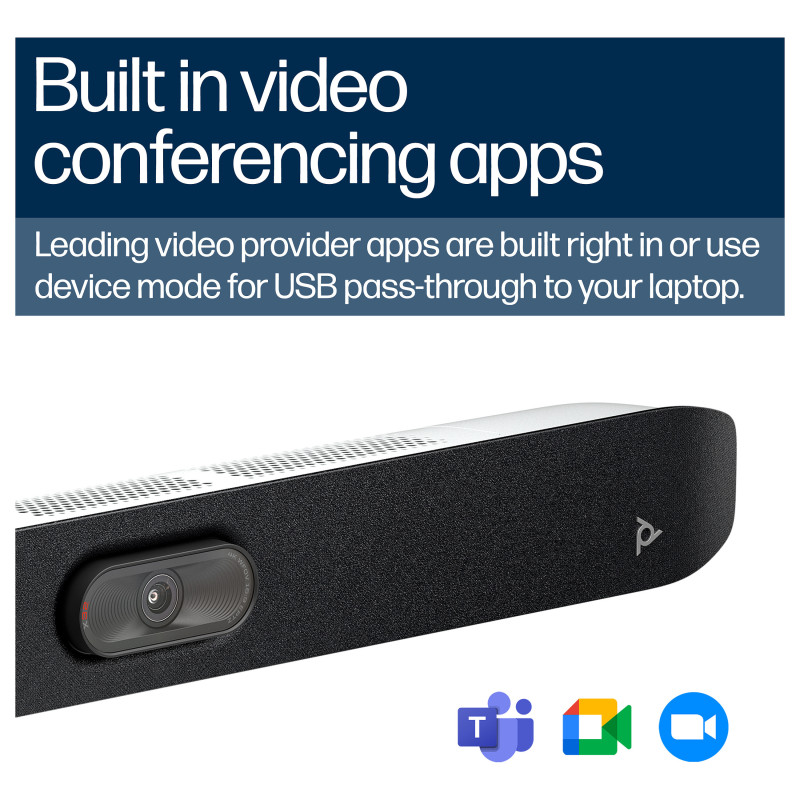

Small rooms, big conversations. Simplify the moment with the all-in-one Poly Studio X32 video bar. Deliver an immersive and inclusive experience with advanced audio and video AI technology and connect instantly with built-in video conferencing apps.

Performance

Number of cameras: 1
Feature: Bluetooth
Bluetooth version: 5.0
Product colour: Black
Product type: Video collaboration bar
Signal-to-Noise Ratio (SNR): 63 dB

Video

HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels
Total megapixels: 20 MP
Supported video modes: 720p, 1080p
Maximum frame rate: 30 fps
Video formats supported: AVC, H.264, H.265

Audio

Feature: Built-in speaker(s)
Number of speakers: 2
Voice codecs: G.711, G.719, G.722, G.722.1, G.728, G.729A
Feature: Automatic gain control
RMS rated power: 10 W

Ports & interfaces

HDMI ports quantity: 3
HDMI output ports quantity: 2
HDMI input ports quantity: 1
HDMI version: 1.4/2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Networking standards: IEEE 802.3bt
Security algorithms: 128-bit AES, 256-bit AES, TLS

Camera

Megapixel (approx.): 20 MP
Feature: Zoom capability
Digital zoom: 5x
Horizontal field of view: 120°
Diagonal field of view: 132°

Microphone

Microphone sensitivity: -26 dB
Number of microphones: 4

Technical details

Total carbon footprint (kg of CO2e): 50
General Product Safety Regulation (GPSR) URL: https://kaas.hpcloud.hp.com/pdf-public/pdf_11006260_en-US-1.pdf

Features

Feature: Cable lock slot
Cable lock slot type: Kensington

Logistics data

UNSPSC-code: 45111902
Country of origin: Mexico
Pallet gross weight: 370 kg

Sustainability

Feature: Sustainability compliance
Sustainable technologies and materials: Contains at least 50% recycled plastic content; Fabric contains 100% recycled PET; Paper-based packaging derived from at least 70% recycled materials

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 15 - 80%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 55 BTU/h

Power

Power source type: PoE
DC input voltage: 42.5 - 57 V

Weight & dimensions

Width: 576.8 mm
Depth: 66.1 mm
Height: 74.8 mm
Weight: 1.14 kg

Packaging data

Package width: 118 mm
Package depth: 194 mm
Package height: 667 mm
Package weight: 3 kg

Packaging content

Cables included: HDMI, LAN (RJ-45)
Feature: Mounting kit
