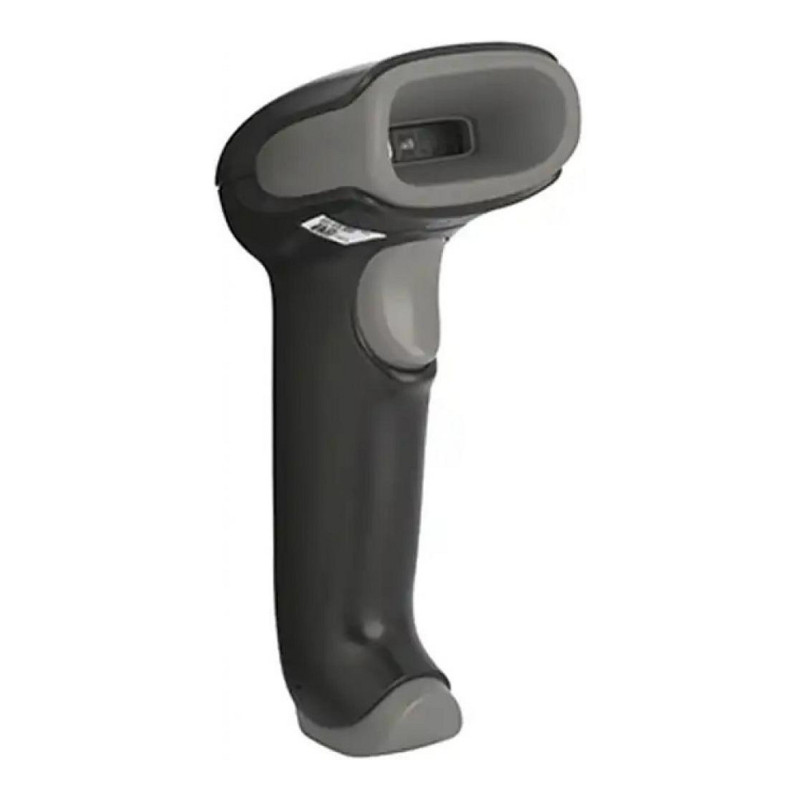

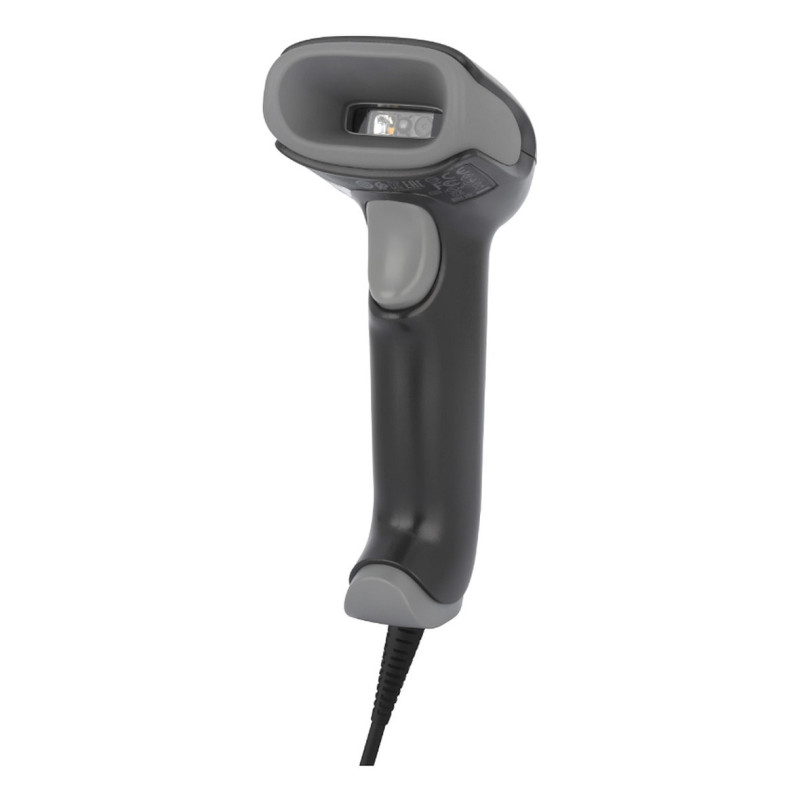

Honeywell Voyager 1470G2D-2USB-R barcode reader

Honeywell Voyager 1470G2D-2USB-R. Type: Handheld bar code reader, Scanner type: 1D/2D, Optical sensor resolution (W x H): 1040 x 720 pixels. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, Grey, International Protection (IP) code: IP40. Power source type: USB, Power consumption (typical): 2 W, Power consumption (standby): 0.45 W. Weight: 130 g, Width: 62 mm, Depth: 82 mm

Durable, Highly Accurate 2D Scanner

Designed for in-store retail environments requiring a highly accurate 2D scanning solution in a durable form factor, the Voyager™ Extreme Performance (XP) 1470g scanner delivers industry-leading scanning capability on traditional barcodes and digital screens - even on damaged and difficult-to-read codes.

With better durability and a more powerful scan capability than previous models - or any competitive scanner in its class - the Voyager XP 1470g scanner is the perfect option for workflows that include 1D and 2D barcode reading and require a more robust and reliable solution. The Voyager XP 1470g scanner combines added durability and better scan capability at the same competitive price point as its predecessor. The scanner's extended scan distance will reach right to the bottom of the cart without bending and wasted time at the checkout. Built on the platform of Honeywell's iconic Voyager series handheld scanners, the Voyager XP 1470g scanner is fully backward-compatible with existing Voyager accessories, reducing total cost of ownership. Engineered to 30 drops at 1.8 m (6 ft) and 1,000 tumbles at 0.5 m (1.6
ft), the Voyager XP 1470g scanner is built to withstand busy point-of sale scanning with much better accuracy than comparable solutions.

DISINFECTANT-READY HOUSINGS - NEW!
Select models now available with disinfectant-ready housings. These models can be cleaned regularly with a wide variety of cleaning solutions without damaging your product.

Scanning

Type: Handheld bar code reader
Scanner type: 1D/2D
Optical sensor resolution (W x H): 1040 x 720 pixels
Working distance: 40 cm
Light levels (direct sunlight): 0 - 100000 lx
Tilt reading angle: -180 - 180°
Pitch reading angle: -65 - 65°
Yaw reading angle: -70 - 70°

Ports & interfaces

Connectivity technology: Wired
Standard interfaces: USB

Performance

International Protection (IP) code: IP40
Product colour: Black, Grey

Power

Power source type: USB
Power consumption (typical): 2 W
Power consumption (standby): 0.45 W
Input voltage: 4 - 5.5 V

Weight & dimensions

Width: 62 mm
Depth: 82 mm
Height: 169 mm
Weight: 130 g

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Logistics data

Harmonized System (HS) code: 84716070
