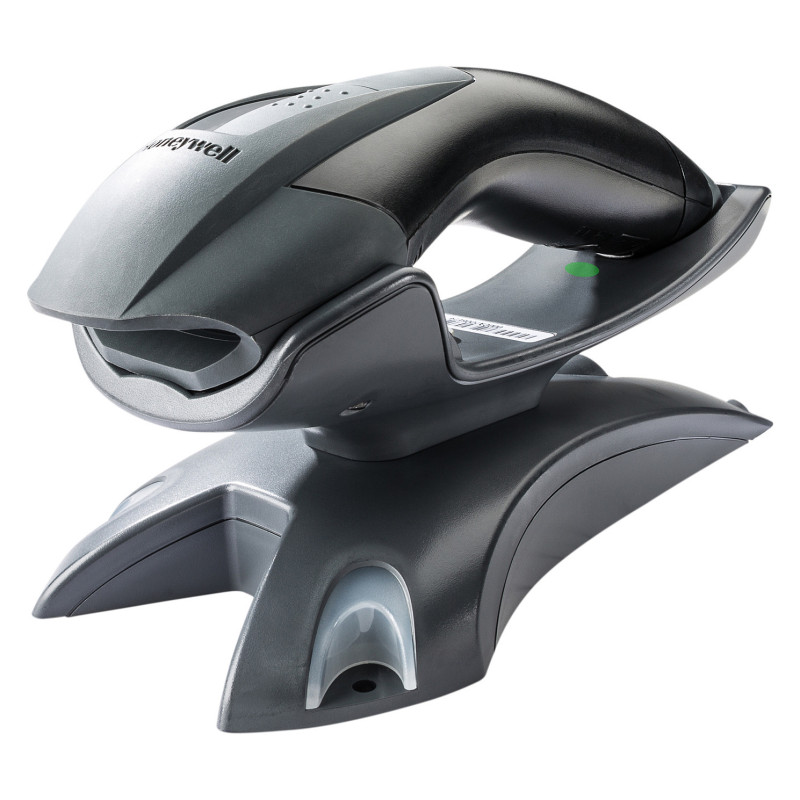

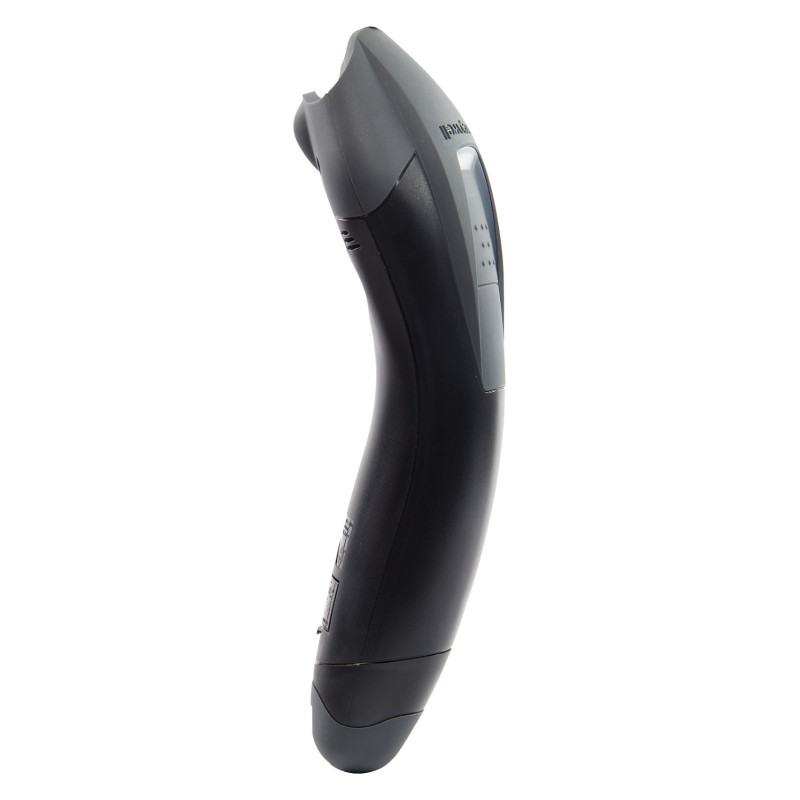

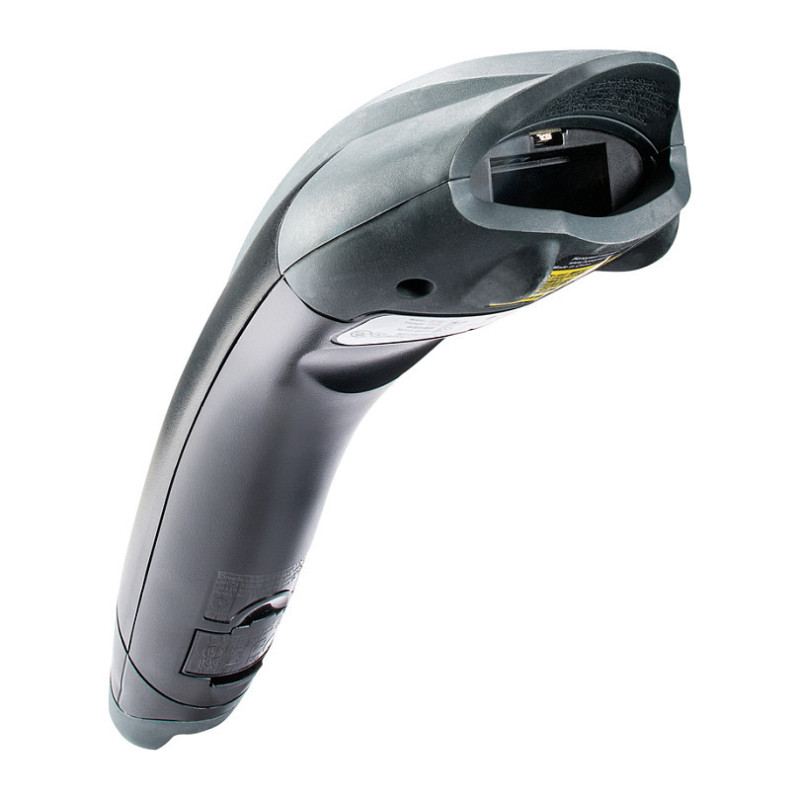

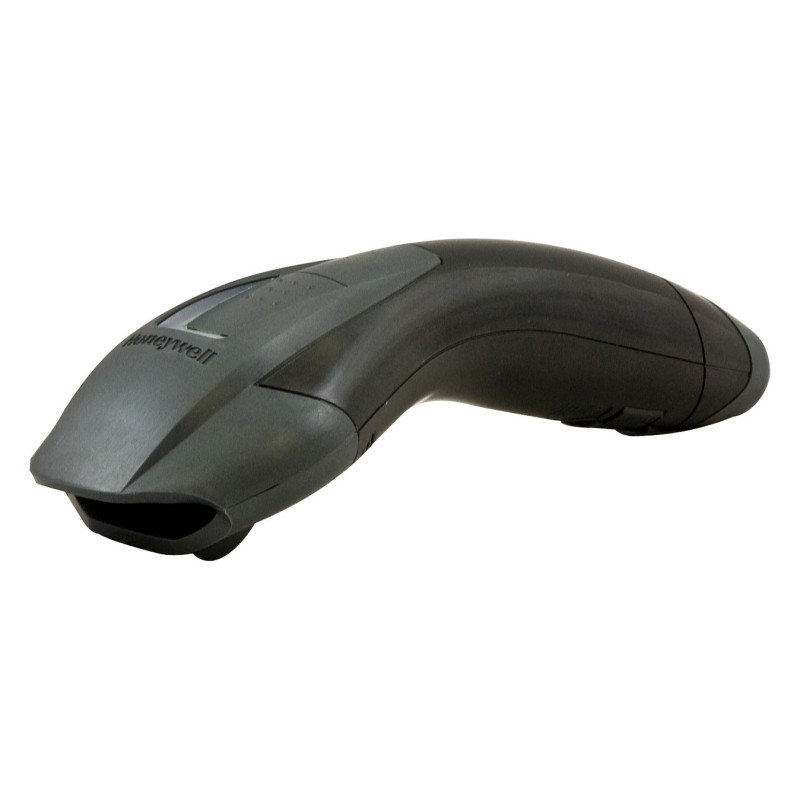

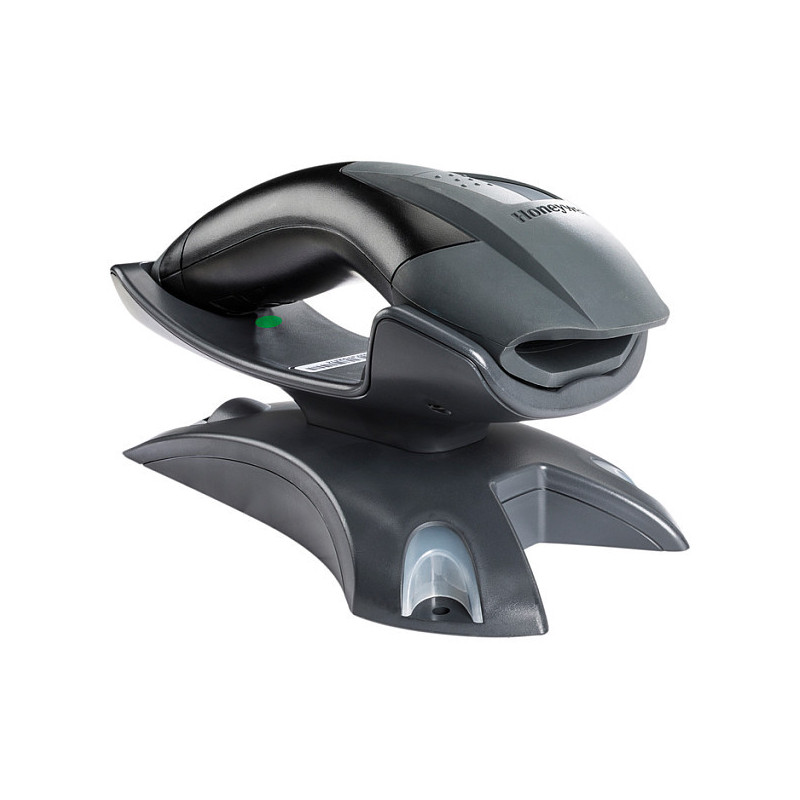

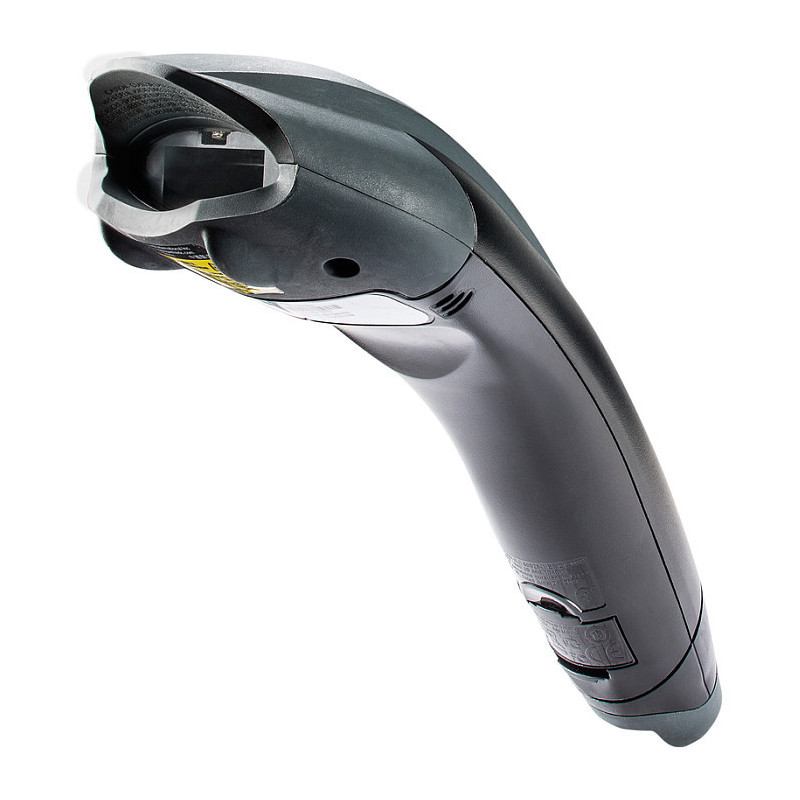

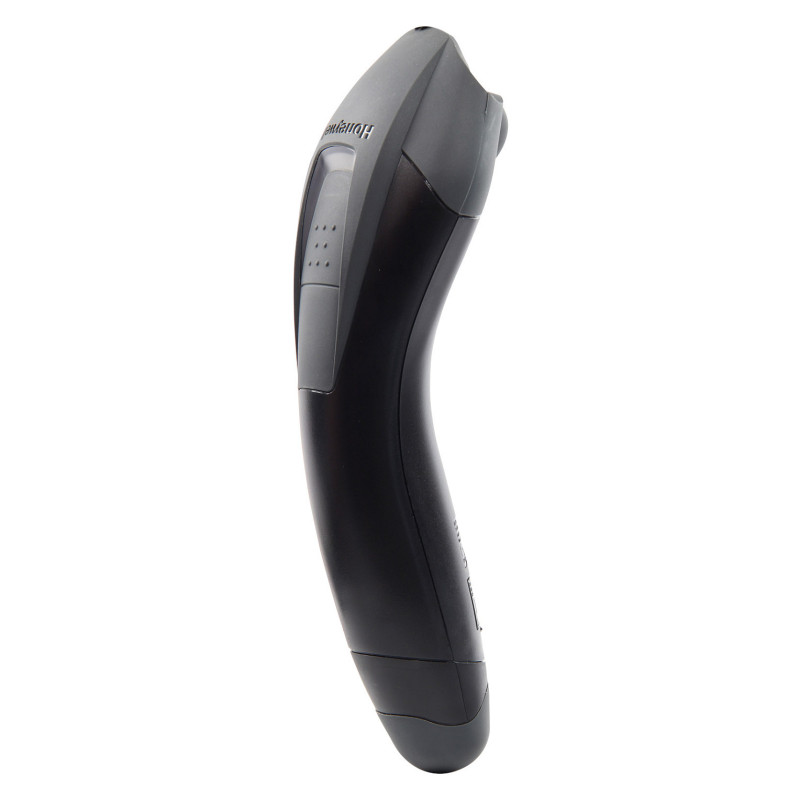

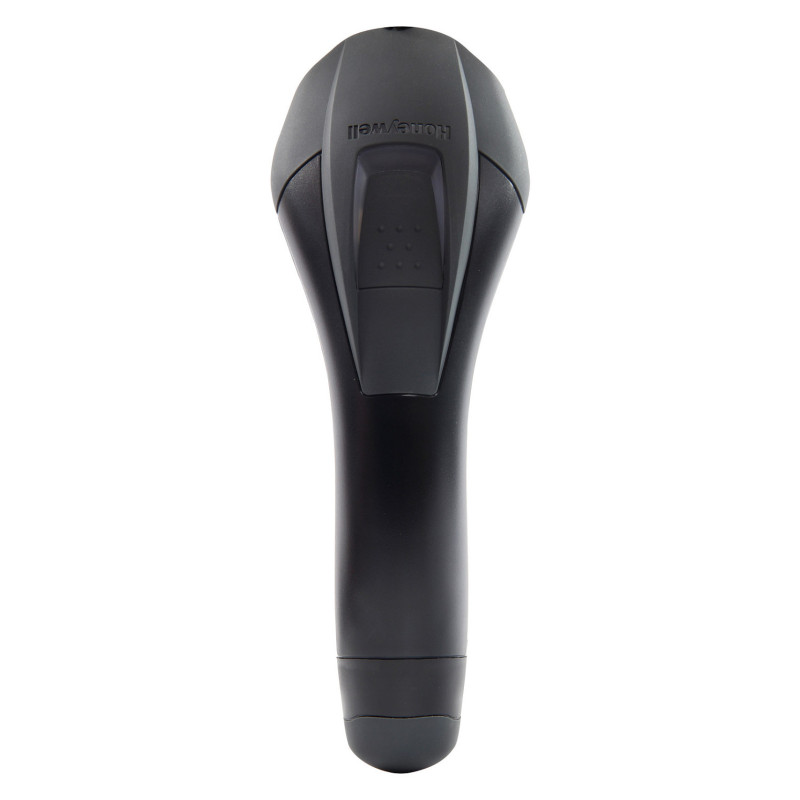

Honeywell Voyager 1202G

Honeywell Voyager 1202G. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: Laser. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Data transfer rate: 3 Mbit/s. Product colour: Black, International Protection (IP) code: IP42. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 1800 mAh. Weight: 180 g, Width: 66 mm, Depth: 180 mm

Voyager 1202g Features and Benefits

Bluetooth® Wireless Technology:
Facilitates scanning of all standard 1D bar codes 10 meters (33 feet) or more away from the base, depending on the user's environment

Long Battery Life and Tool-Free Battery Removal:
The user-preferred Lithium ion battery provides 12 hours or more of use, depending on scanning volume, and the field-replaceable battery can be exchanged quickly and easily, without the use of tools

Automatic Interface Configuration:
Supports all popular interfaces in one device, replacing the time consuming process of scanning programming bar codes with automatic interface detection and configuration

Excellent Poor Quality Code Reading:
Increases throughput and reduces the potential for hand-keyed errors by quickly scanning a variety of 1D bar codes, including those that are damaged or smudged

Paging Functionality:
Simply press the button on the base to locate your lost scanner; Voyager 1202g responds with a series of beeps and blinking lights on its indicator panel

Remote MasterMind™ Ready:
Reduces total cost of ownership by providing a turnkey remote device management solution that easily manages and tracks usage of installed devices.

Scanning

Type: Handheld bar code reader
Scanner type: 1D
Sensor type: Laser
Pitch reading angle: 60 - 60°

Ports & interfaces

Connectivity technology: Wireless
Standard interfaces: Bluetooth
Data transfer rate: 3 Mbit/s
Wireless range: 10 m
Bluetooth version: 2.1+EDR
Operating frequency: 2.4 - 2.5 MHz

Performance

International Protection (IP) code: IP42
Product colour: Black

Power

Power source type: Battery
Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 1800 mAh
Number of reads per charge: 45000
Battery life: 12 h
Charging time: 4 h
Input voltage: 5 V

Weight & dimensions

Width: 66 mm
Depth: 180 mm
Height: 92 mm
Weight: 180 g
Base weight: 185 g
Base dimensions (WxDxH): 200 x 67 x 97 mm

Packaging data

Feature: Charging base

Operational conditions

Operating temperature (T-T): 5 - 40 °C
Storage temperature (T-T): -5 - 35 °C
Operating relative humidity (H-H): 0 - 95%

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 84716070
