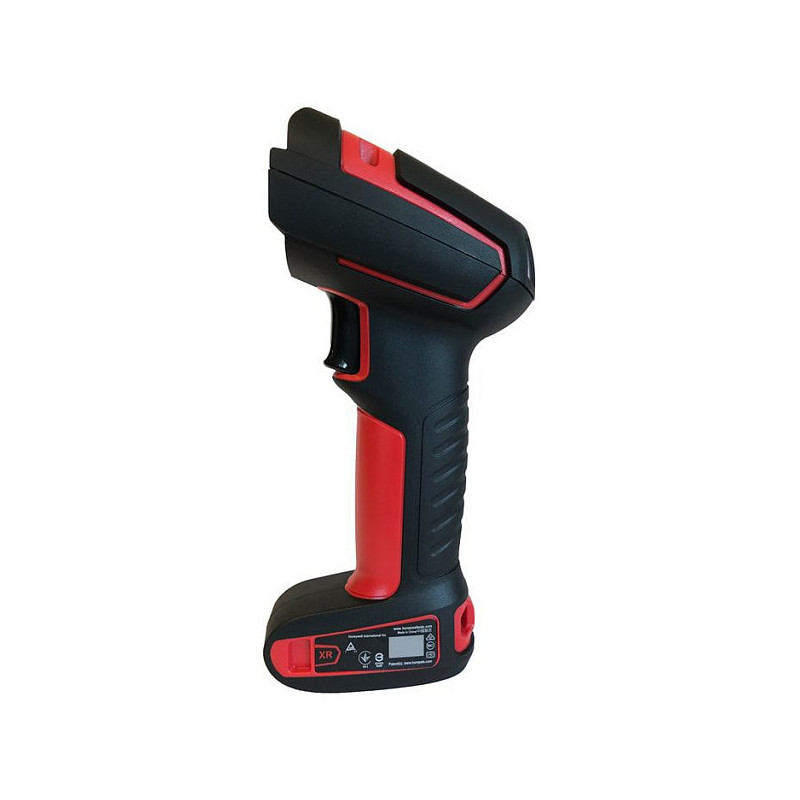

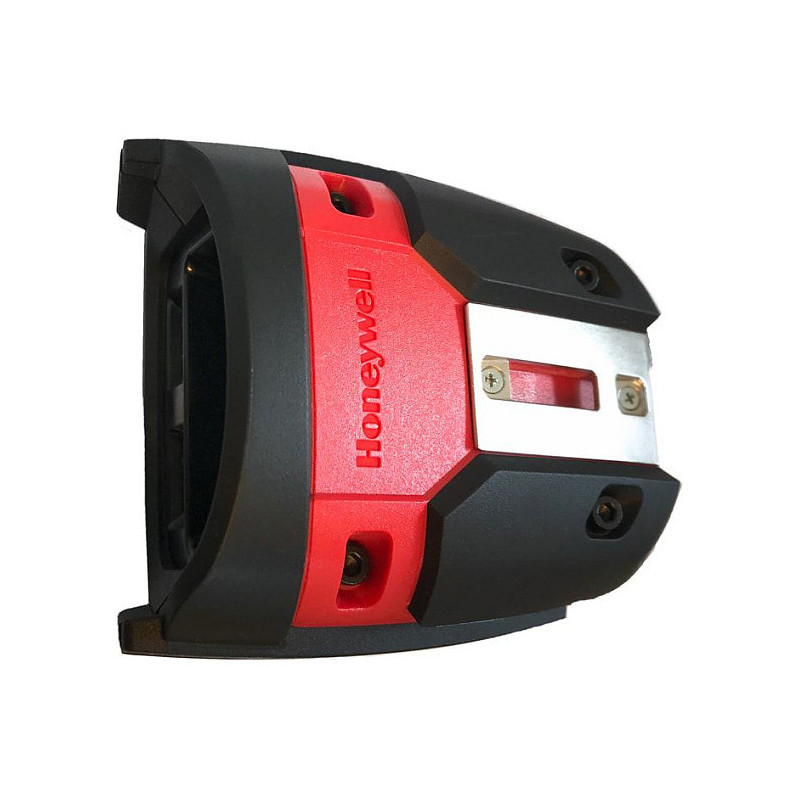

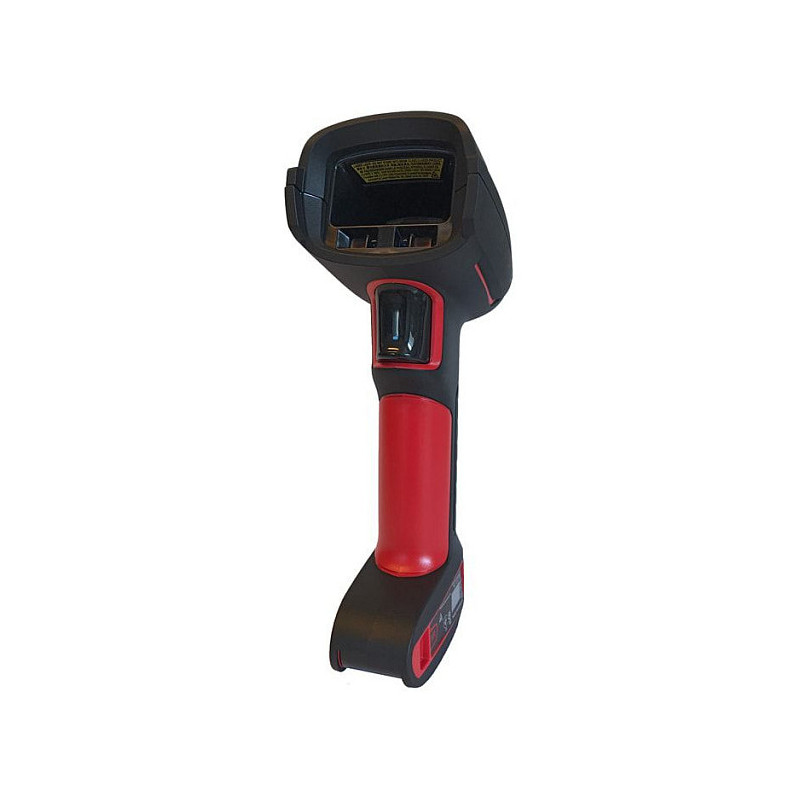

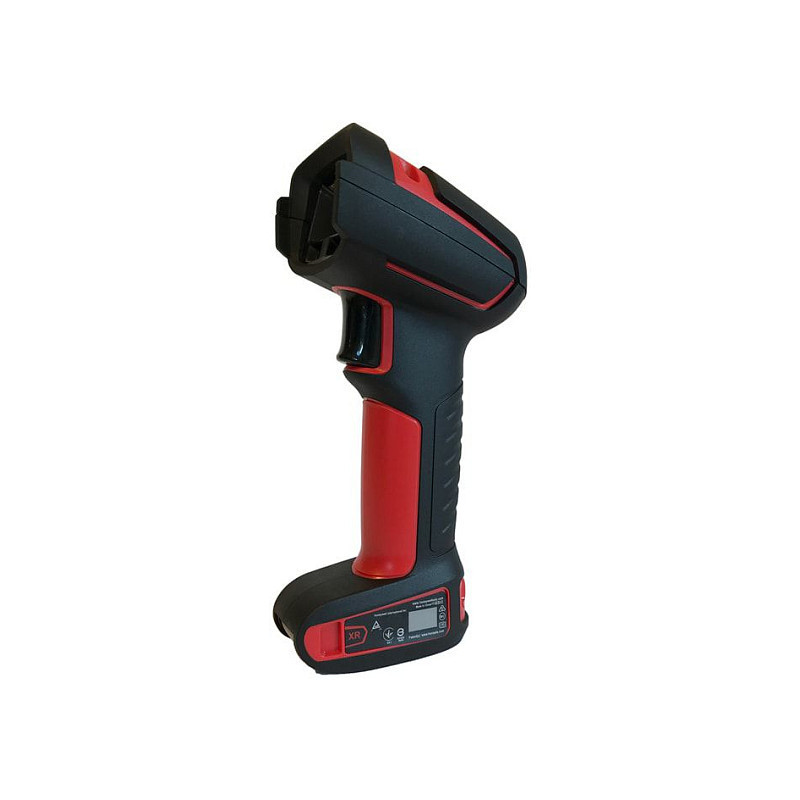

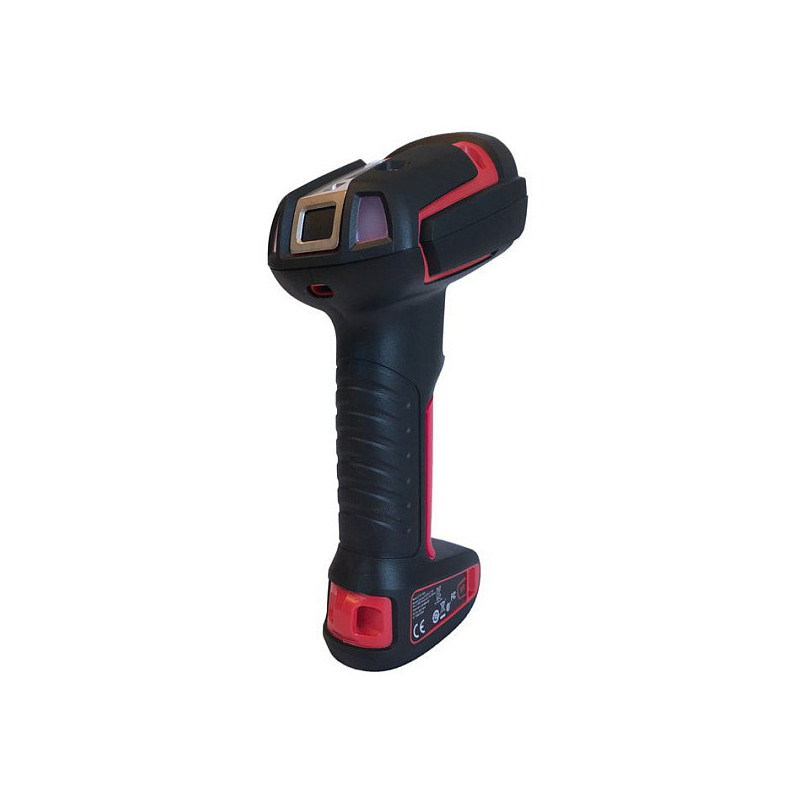

Honeywell Granit 1990iSR

Honeywell Granit 1990iSR. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: Keyboard wedge, RS-232, USB. Product colour: Black, Red, International Protection (IP) code: IP67. Power source type: DC, Power consumption (typical): 2.35 W, Power consumption (standby): 0.5 W. Weight: 320 g, Width: 100 mm, Depth: 76 mm
Ensure maximum productivity and uptime with Granit™ 1990iSR standard range ultra-rugged barcode scanner. Best-in-class durability ensures low TCO. Premium scanning performance ensures even damaged or low quality codes scan quickly. Granit XP expands capabilities and redefines ultra-rugged scanning.
Following a legacy of successful deployments, the next generation Granit™ XP scanners expand capabilities and redefine ultra-rugged scanning. With a best-in-class 10' drop spec, Granit™ XP is engineered to keep on working after the impact of drops from loading docks, fork trucks, and picking trucks. The 1 meter (3.3 foot) tumble test indicates long term durability with daily knocks and drops from workstation or waist height. A best-in-class 7,000 tumble specification ensures Granit™ scanners will be ready to work for the long term. And IP67 dust and moisture sealing protect scanning performance under harsh treatment.
Barcodes make data entry faster and more accurate, maximizing productivity in your operations. However, damaged and low quality barcodes can make transactions slow and painful. Bad labels commonly occur in the warehouse/DC and industrial space due to low quality printing or damage during handling. Granit XP, built on Honeywell's next-generation imaging platform, ensures that otherwise challenging labels do not create a bottleneck in your process. The Granit™ XP 1990iSR model offers high-durability, extreme performance scanning for standard range operations. Created for applications where high speed scanning is needed to maximize productivity, and where durability is non-negotiable for low total cost of ownership, the Granit™ XP 1990iSR scanner offers the optimal solution.
Find out more about what you can accomplish with Granit XP

Scanning

Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: LED
Linear (1D) barcodes supported: PDF417, UPC-A, UPC-E
2D (matrix stacked) barcodes supported: Code 39, Data Matrix, PDF417, QR Code
Optical sensor resolution (W x H): 1280 x 800 pixels
Light levels (direct sunlight): 0 - 100 lx
Pitch reading angle: -45 - 45°
Yaw reading angle: -65 - 65°

Ports interfaces

Connectivity technology: Wired
Standard interfaces: Keyboard wedge, RS-232, USB

Performance

International Protection (IP) code: IP67
Product colour: Black, Red

Power

Power source type: DC
Power consumption (typical): 2.35 W
Power consumption (standby): 0.5 W
Input voltage: 4 - 5.5 V

Weight dimensions

Width: 100 mm
Depth: 76 mm
Height: 192 mm
Weight: 320 g

Operational conditions

Operating temperature (T-T): -30 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 95%

Logistics data

Harmonized System (HS) code: 84716070
