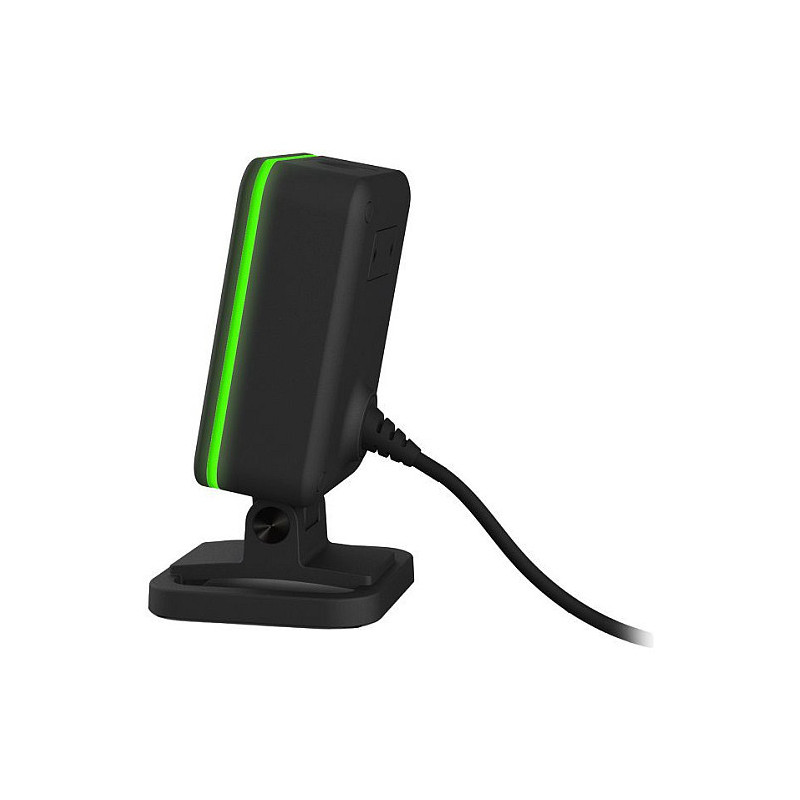

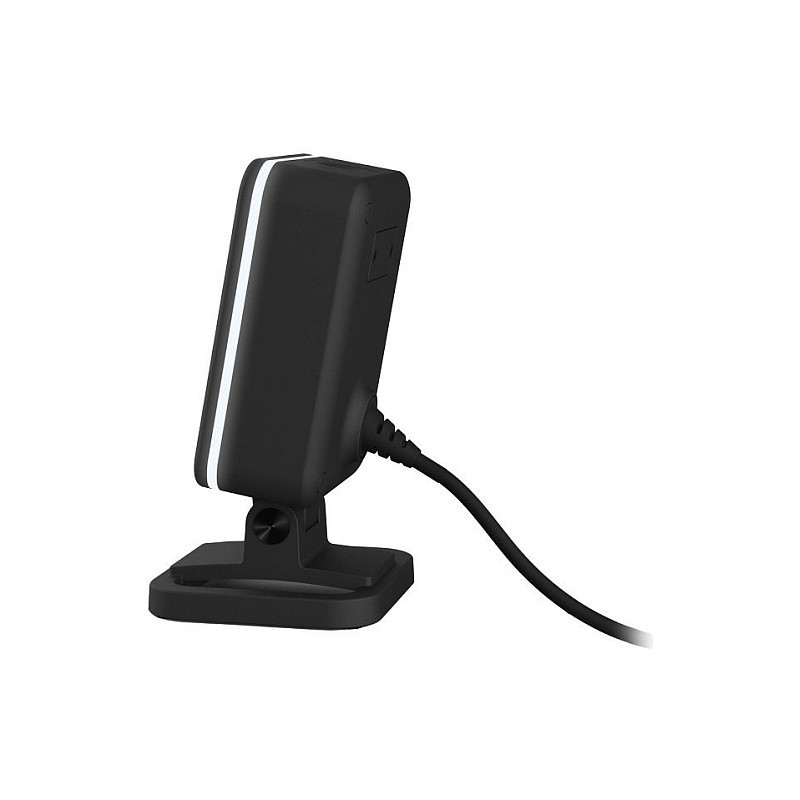

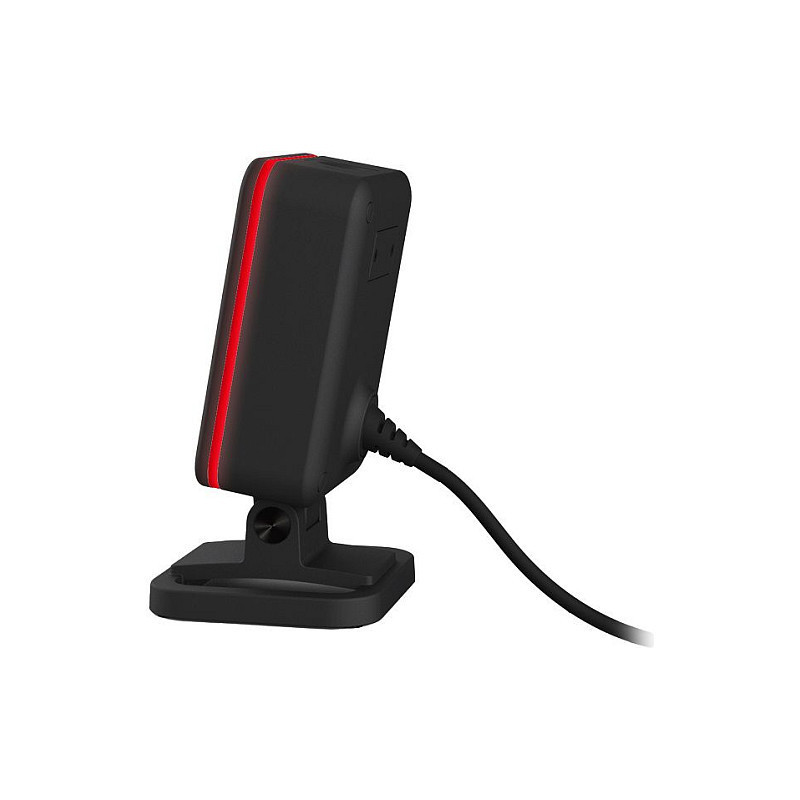

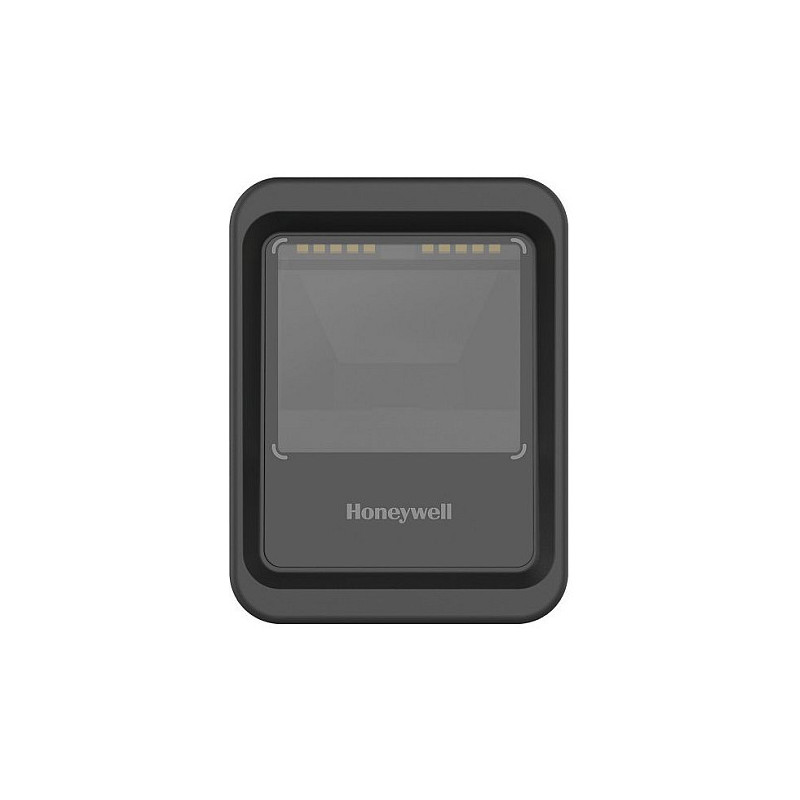

Honeywell Genesis XP 7680g

Honeywell Genesis XP 7680g. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB. Product colour: Black, International Protection (IP) code: IP52, Protection features: Shock resistant. Power source type: DC, Power consumption (typical): 2.5 W, Input voltage: 5 V. Weight: 340 g, Width: 40 mm, Depth: 80 mm
Genesis XP 7680g
The Honeywell Genesis XP 7680g is a hands-free presentation scanner that delivers an impactful customer experience while increasing business productivity. Featuring extreme performance "XP" scanning technology in a flexible design that fits multiple workflows. The compact, modern design features clean lines and warm, white illumination and the small footprint is ideal for contemporary retail environments.
BIG VALUE IN A SMALL PACKAGE
- INCREASED PRODUCTIVITY. The Genesis XP features 20% faster scanning speed and a larger scanning area than previous products. Honeywell's field proven XP technology handles poorly printed and damaged barcodes with ease. Featuring a full 1 mega-pixel imager and fast processor, the Genesis XP reads barcodes fast and handles a high level of motion tolerance resulting in fewer repeat scans, keeping employees productive and efficient.
- FANTASTIC USER EXPERIENCE. The compact and modern design offers a contemporary experience with minimal counter space required. The 360 color LED ring highlights the scanning target area and provides clear feedback, offering an intuitive experience for both employees and customers. The scanning user experience is a key element for a delightful customer engagement. The warm, white light illumination is more pleasing to the eye, and automatic object detections turns the illumination completely off between scans, so the scanner is not a distraction.
- FLEXIBILITY AND ADAPTABILITY. The Genesis XP was designed with flexibility in mind allowing it to easily adapt to the workflows of today and tomorrow. In addition to the standard adjustable compact stand, smart placement accessories are now available for the Genesis XP. These new mounting accessories support wall mount, point-of-sale mount, and downward facing installations, allowing the product to be placed almost anywhere. A top mounted button is ideally placed for triggered, handheld scanning applications. A built-in auxiliary expansion port will support future smart accessories, adapting to future needs and requirements.

Scanning

Type: Fixed bar code reader
Scanner type: 1D/2D
Sensor type: LED
Linear (1D) barcodes supported: Code 39
2D (matrix stacked) barcodes supported: QR Code
Optical sensor resolution (W x H): 1280 x 800 pixels
Tilt reading angle: 0 - 65°
Pitch reading angle: 0 - 65°

Ports interfaces

Connectivity technology: Wired
Standard interfaces: USB

Performance

International Protection (IP) code: IP52
Protection features: Shock resistant
Product colour: Black

Power

Power source type: DC
Power consumption (typical): 2.5 W
Input voltage: 5 V
Power consumption: 500 mA

Weight dimensions

Width: 40 mm
Depth: 80 mm
Height: 105 mm
Weight: 340 g

Packaging data

Cables included: USB

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 95%

Logistics data

Harmonized System (HS) code: 84716070
