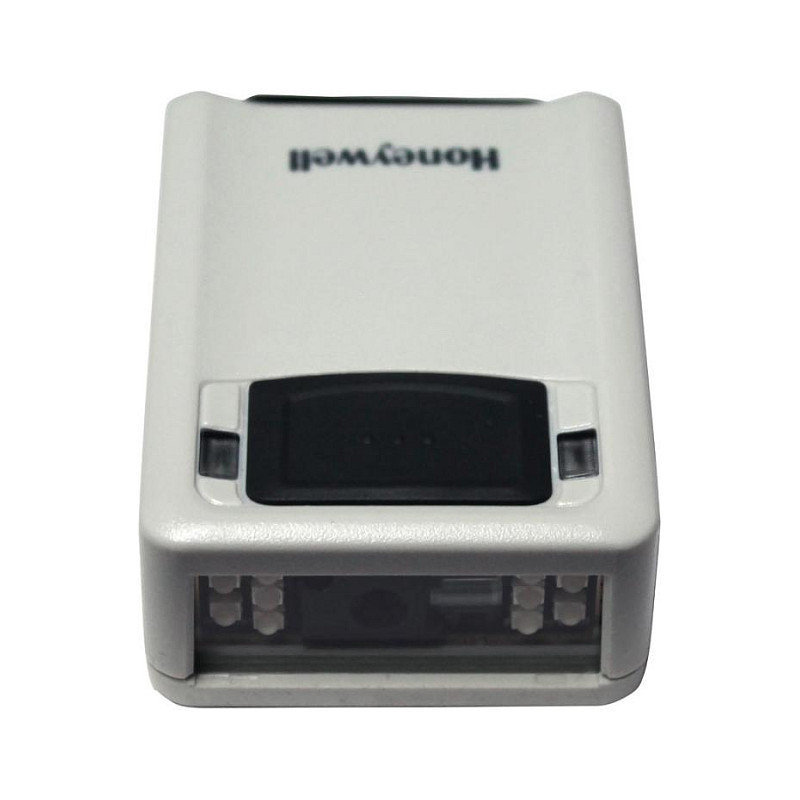

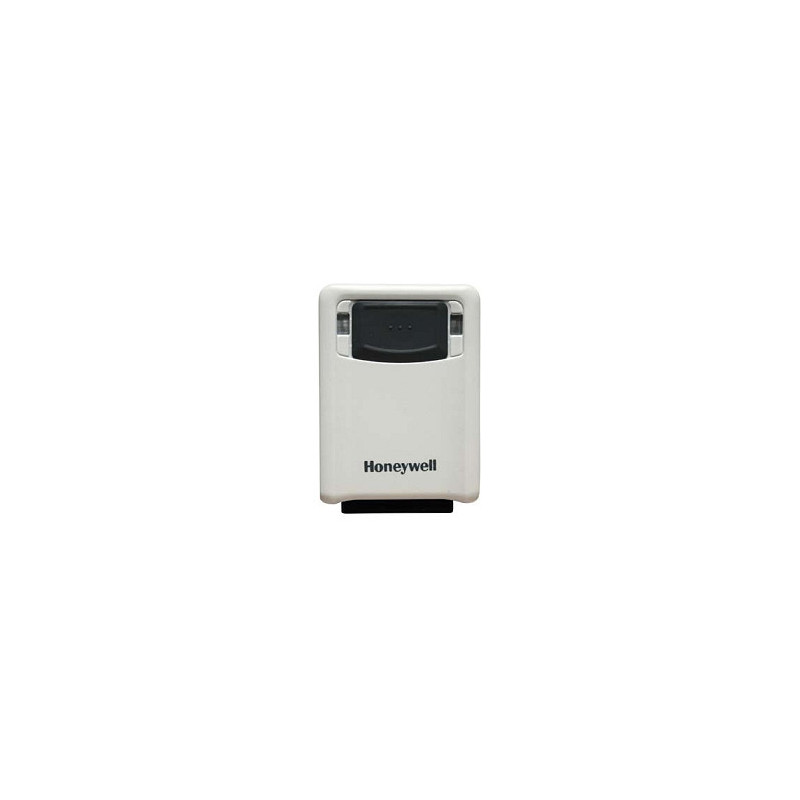

Honeywell 3320G-4USB-0 barcode reader

Honeywell 3320G-4USB-0. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: Photo diode. Connectivity technology: Wired, Standard interfaces: RS-232, USB, Keyboard wedge. Product colour: Ivory, International Protection (IP) code: IP53. Power source type: DC, Power consumption (typical): 2.3 W, Power consumption (standby): 0.45 W. Weight: 77 g, Width: 51 mm, Depth: 73 mm
The Honeywell Vuquest3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner's sleek and elegant design also blends seamlessly in retail environments.
Designed with the customer in mind, the unobtrusive illumination contained within the Vuquest 3320g scanner reduces the annoying after-effects commonly associated with the illumination used in imaging-based scanners.

Scanning

Type: Fixed bar code reader
Optical sensor resolution: 838 pixels
Scanner type: 1D/2D
Sensor type: Photo diode
Linear (1D) barcodes supported: PDF417
Light levels (direct sunlight): 0 - 100000 lx
Pitch reading angle: -45 - 45°
Yaw reading angle: -65 - 65°

Ports interfaces

Connectivity technology: Wired
Standard interfaces: RS-232, USB, Keyboard wedge

Performance

International Protection (IP) code: IP53
LED indicators: Yes
Product colour: Ivory

Power

Power source type: DC
Power consumption (typical): 2.3 W
Power consumption (standby): 0.45 W
Input voltage: 5 V
Power consumption: 450 mA

Weight dimensions

Width: 51 mm
Depth: 73 mm
Height: 26 mm
Weight: 77 g

Packaging data

Cables included: USB

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 5 - 95%

Logistics data

Harmonized System (HS) code: 84716070
