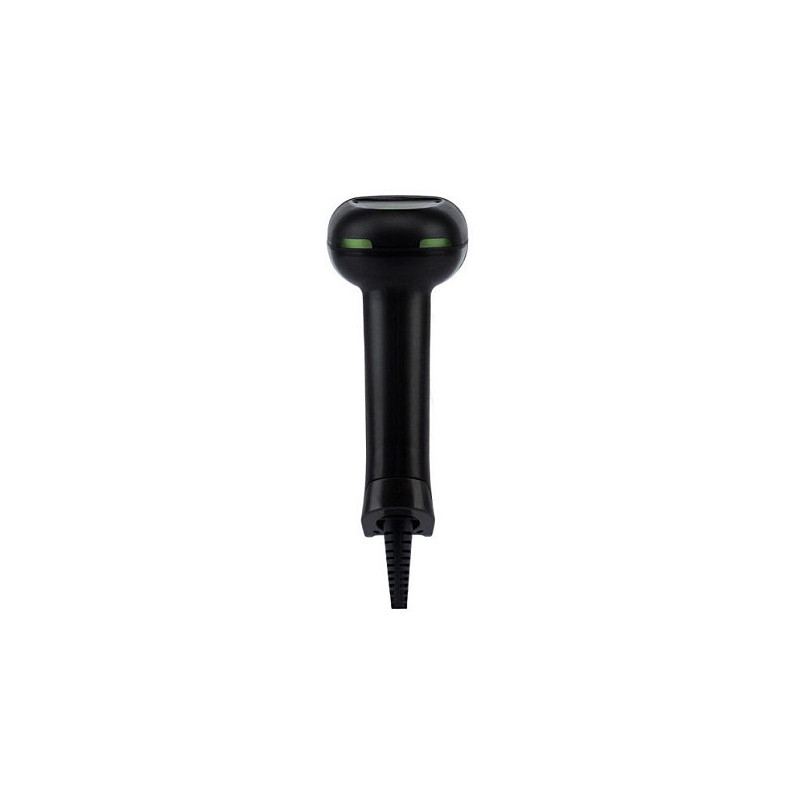

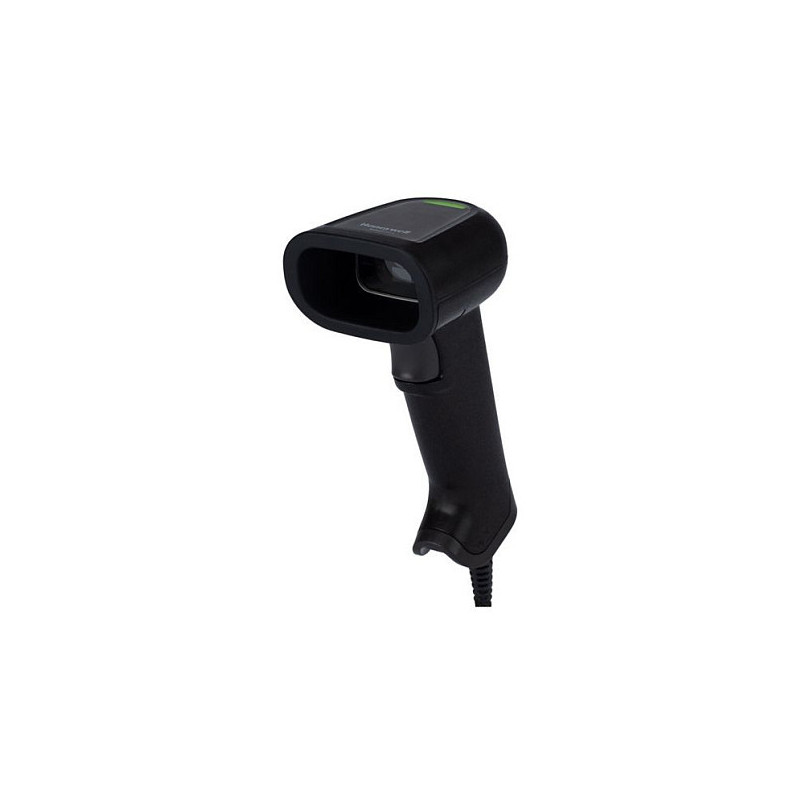

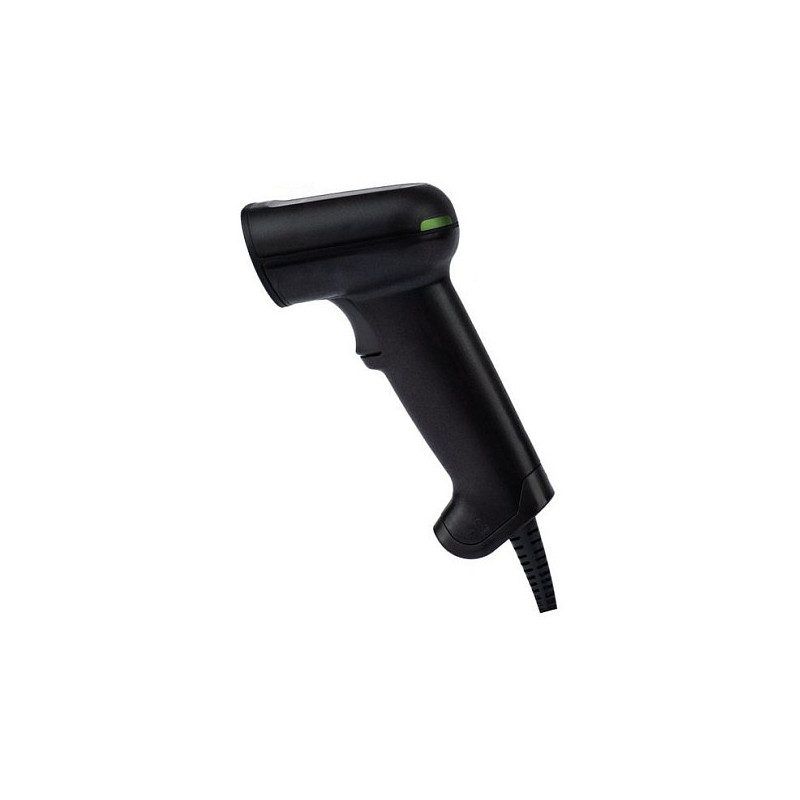

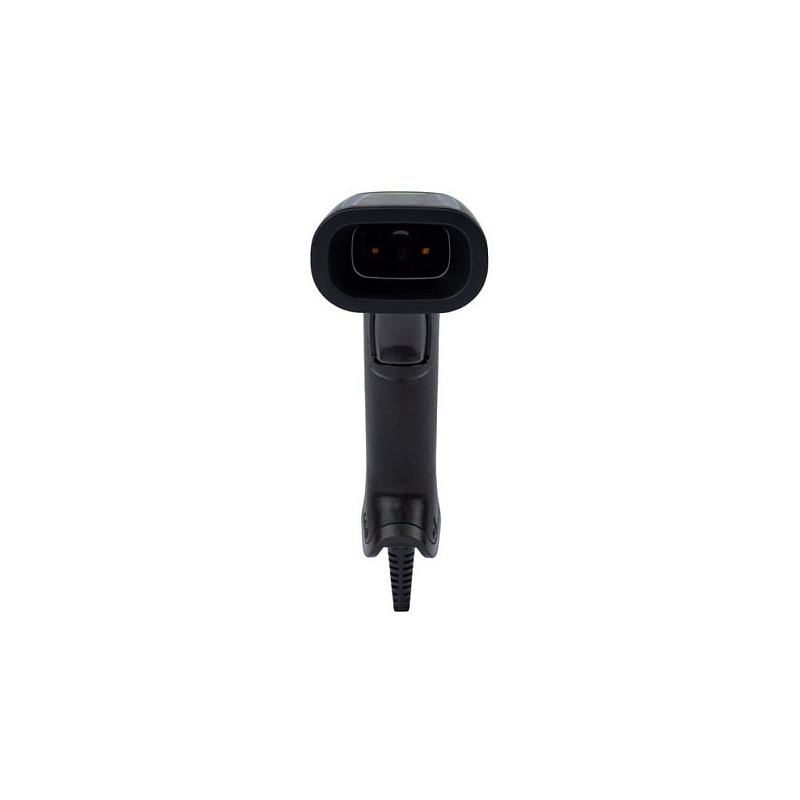

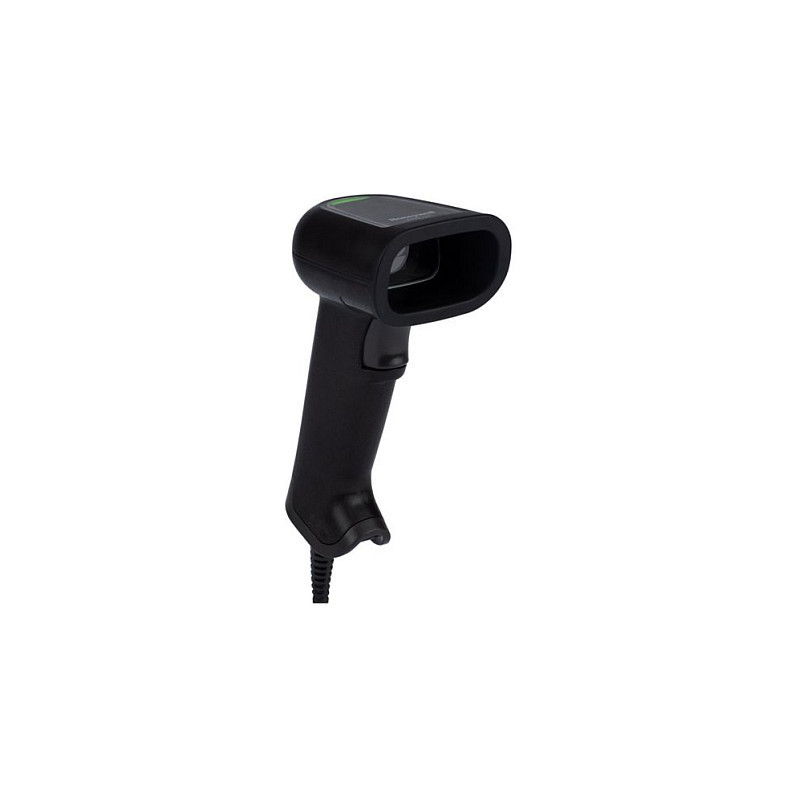

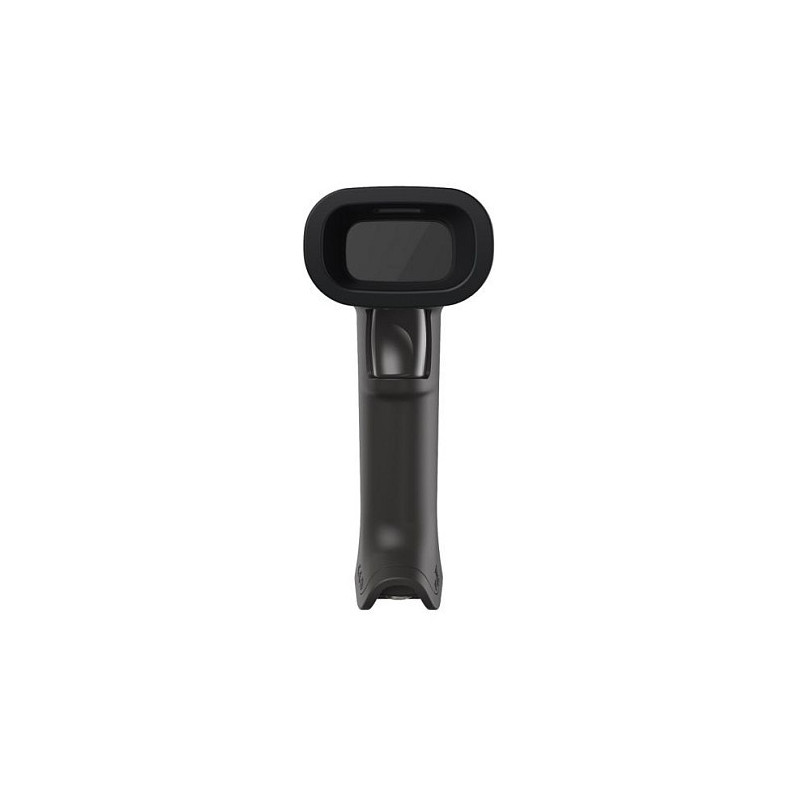

Honeywell 1960GSR-2USB-R barcode reader

Honeywell 1960GSR-2USB-R. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: Keyboard wedge, RS-232, USB. Product colour: Black, International Protection (IP) code: IP52, Protection features: Drop proof. Power source type: RS-232, USB, Power consumption (typical): 2.5 W, Input voltage: 4.4 - 5.5 V. Weight: 147.2 g, Width: 108.2 mm, Depth: 70.4 mm
The Xenon Ultra family of handheld scanners is a premium evolution of the widely known legacy Xenon and Xenon XP general purpose scanners, taking our industry-leading scan performance and reliability one step further.
- The Xenon Ultra 1960 corded scanner is designed with green-dot LED aimers, helping users ensure accurate scans with each use.
- Warm-white illumination and print contrast down to 15% enables users to capture ultra high-density barcodes, even down to 2 mils.
- The green-dot LED aimer and white illumination aids in easier targeting and enhances scan accuracy on high-density and low-quality codes in high-throughput environments.
- With added IR capabilities, reduce annoying false activations, enabling illumination only when needed. IR even helps to reduce the gap between point-and-shoot and hands-free modes of operations.

Scanning

Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: LED
Linear (1D) barcodes supported: Code 128, Code 39, PDF417, U.P.C.
2D (matrix stacked) barcodes supported: Code 39, Data Matrix, PDF417, QR Code
Optical sensor resolution (W x H): 1280 x 800 pixels
Light levels (direct sunlight): 0 - 100000 lx
Wavelength: 525 nm

Ports interfaces

Connectivity technology: Wired
Standard interfaces: Keyboard wedge, RS-232, USB

Performance

International Protection (IP) code: IP52
Protection features: Drop proof
Product colour: Black

Power

Power source type: RS-232, USB
Power consumption (typical): 2.5 W
Input voltage: 4.4 - 5.5 V

Weight dimensions

Width: 108.2 mm
Depth: 70.4 mm
Height: 160.2 mm
Weight: 147.2 g

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
