HDMI Extender Set DS-55342

Description

The DIGITUS HDMI Extender Kit enables HDMI signal transmission up to 40m (4K/120 Hz, 4:4:4) using CAT 6 or higher cables. Its functionality also includes bi-directional infrared (IR) signal transmission, allowing flexible control of the signal source. It is also suitable for wall mounting, offering flexible installation options. HDMI signal transmission (point-to-point) up to 40 m in UHD resolution (4K/120 Hz, 4:4:4)

• Bidirectional infrared signal transmission
• Supports CAT 6, CAT 6A, and CAT 7 network cables
• Max. resolution: 4K/120 Hz (4:4:4)
• Video bandwidth: 32 Gbps
• Suitable for wall mounting

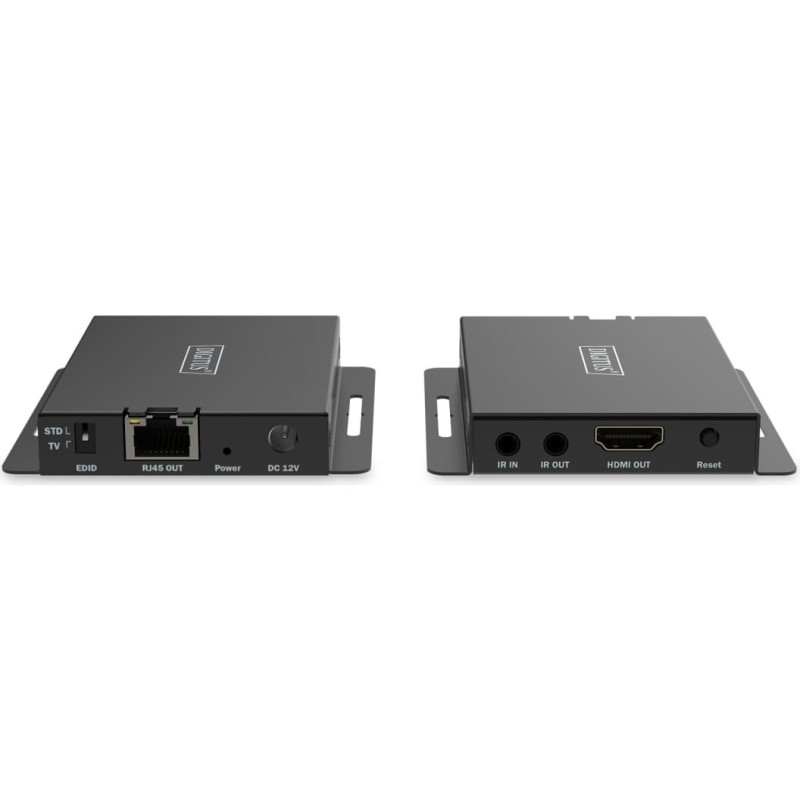

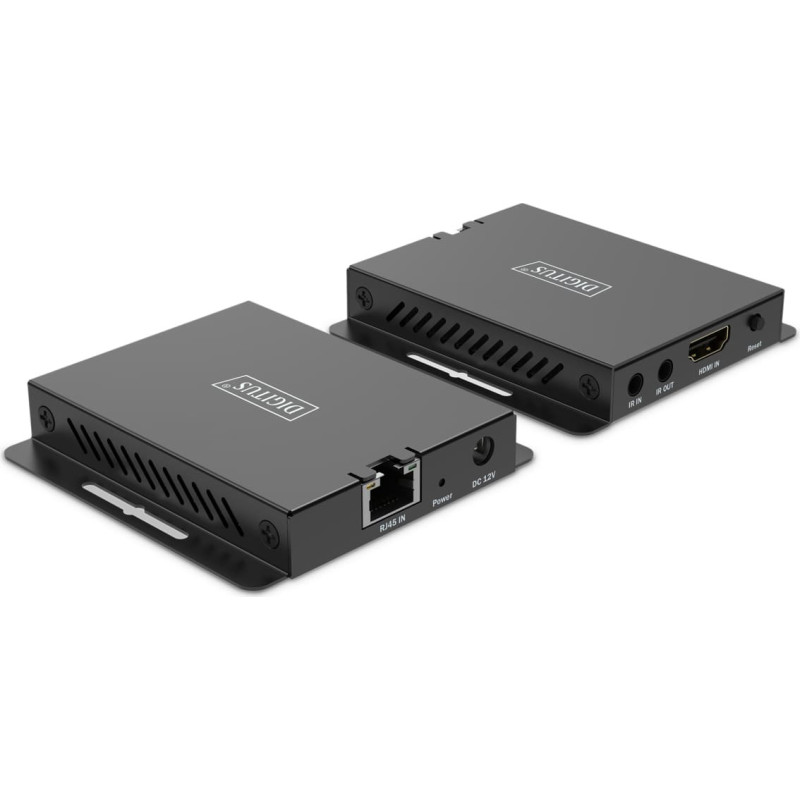

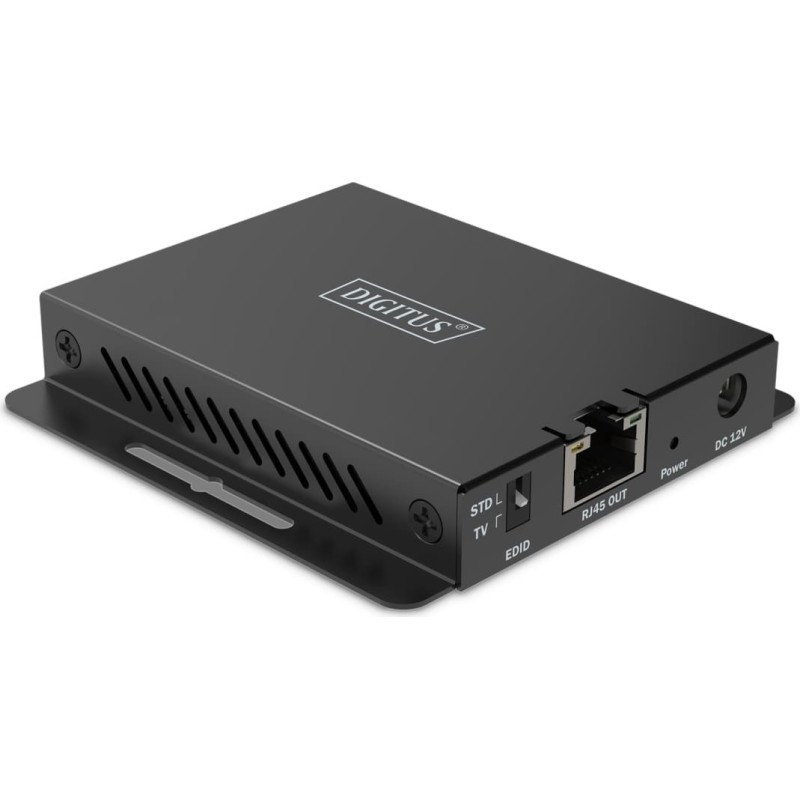

• Transmitter module connectors:
• 1 x HDMI input (4K/120 Hz) - for connecting a signal source
• 1 x RJ45 output for connecting a CAT cable for transmission
• 1 x IR output for connecting an IR transmitter
• 1 x IR input - for connecting an IR receiver
• 1 x power supply input (DC 12 V/1 A) - for connecting an external power supply
• 1 x resolution switch (4K/120 Hz, EDID pass-through)
• 1 x reset button
• 1 x status LED

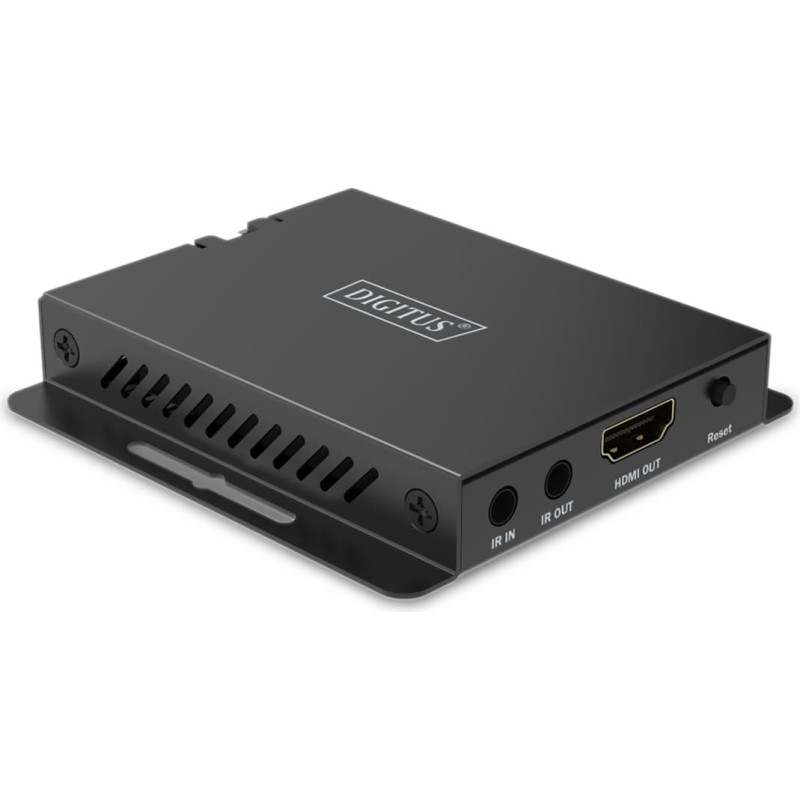

• Receiver module connectors:
• 1 x HDMI output (4K/120Hz) - for connecting a display
• 1 x RJ45 input - for connecting a CAT cable
• 1 x infrared output - for connecting an infrared transmitter
• 1 x infrared input - for connecting an infrared receiver
• 1 x power supply input (DC 12V/1A) - for connecting an external power supply
• 1 x reset button
• 1 x status LED
