Extender KVM HDMI+USB DS-55328

Description

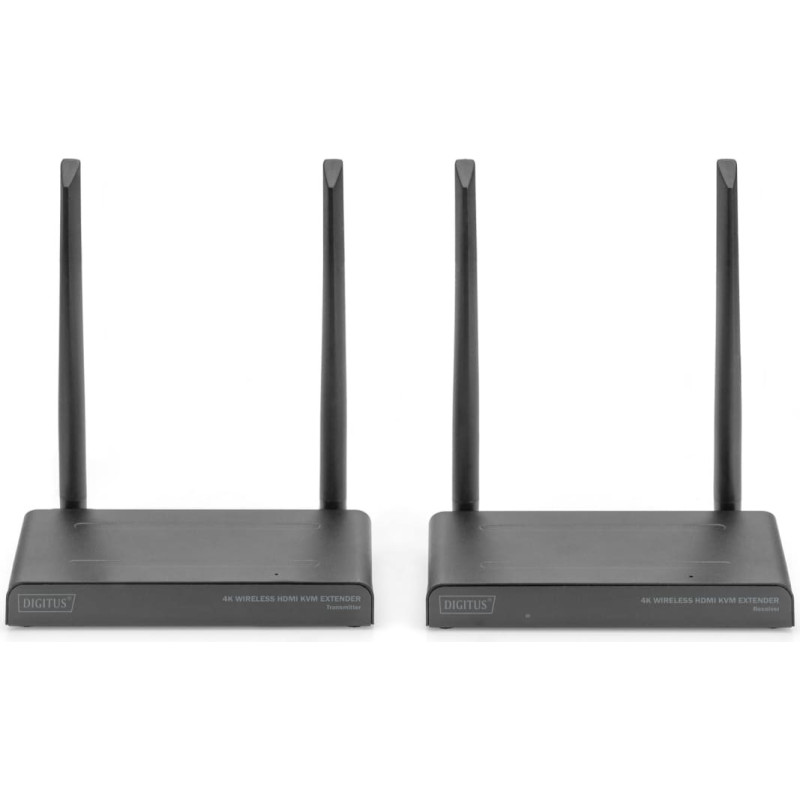

The 4K Wireless HDMI KVM Extender set wirelessly transmits HDMI video and audio signals in UHD 4K / 30Hz resolution over a distance of up to 150 m (with no obstacles in a direct line of sight). It includes a transmitter and receiver module. Thanks to the KVM functionality, a mouse/keyboard can be connected to the receiver unit, allowing the signal source to be controlled directly on the output device. Using the HDMI Loop-Out on the transmitter unit, a local monitor can be connected to monitor the output signal on the receiver. The extender set can be expanded to a maximum of 4 receivers (output devices). Additional receivers are available separately: DS-55329.

• Wireless transmission of the HDMI signal over a distance of up to 150 m (with no physical obstacles)
• Point-to-multipoint connection - 1 x transmitter (source) and up to 4 x receivers (output devices)
• Additional receiver modules are available separately: DS-55329
• Supports wireless transmission of audio/video signals in resolutions up to 4K UHD (2160p / 30 Hz)
• Easy operation and use thanks to Plug & Play - simply connect and use, no drivers required
• KVM function enabling the connection of a mouse and keyboard
• Touch Screen Back Control - supports touch screens (via USB connection on the receiver)

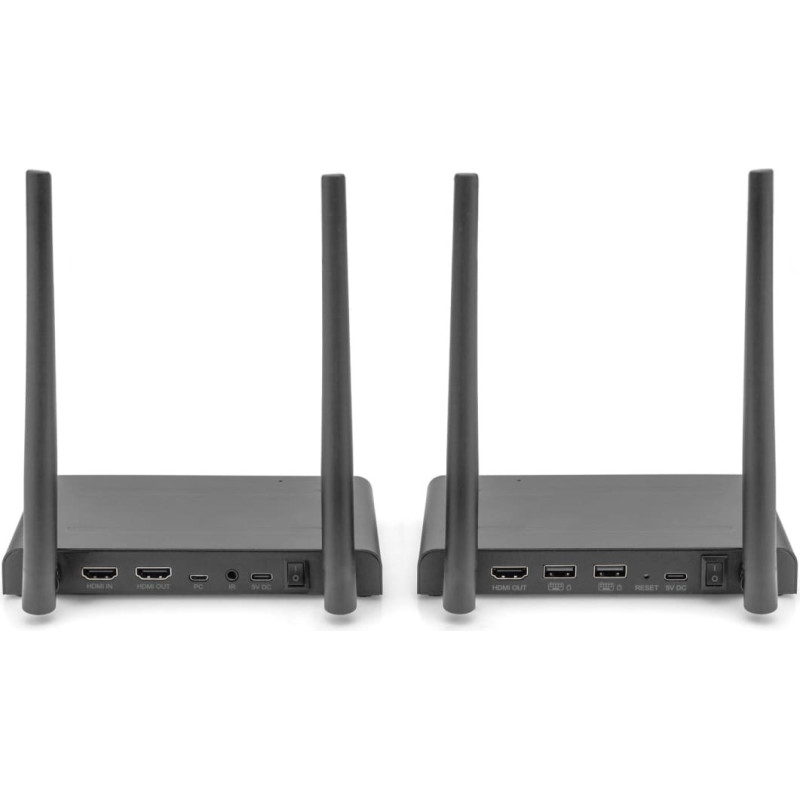

• Transmitter module connections:
• 1 x HDMI input (signal source, max. 4K / 60 Hz)
• 1 x HDMI Loop-Out / output (output device, 4K / 60 Hz max.)
• 1 x micro USB input - connection for data transmission to use the KVM function
• 1 x infrared signal output - for connecting an infrared transmitter to control the signal source
• 1 x USB-C input - connector for connecting the power supply (5 V / 2 A)
• 1 x on/off switch
• Receiver module connections:
• 1 x HDMI output (output device, max. 4K / 60 Hz)
• 2 x USB-A input ports (connector for connecting a mouse / keyboard / touch panel)
• 1 x USB-C input - connector for connecting the power supply (5 V / 2 A)
• 1 x reset button
• 1 x on/off switch
• Power supply via USB-C port and power adapter (included)
• AES 128-bit encryption
