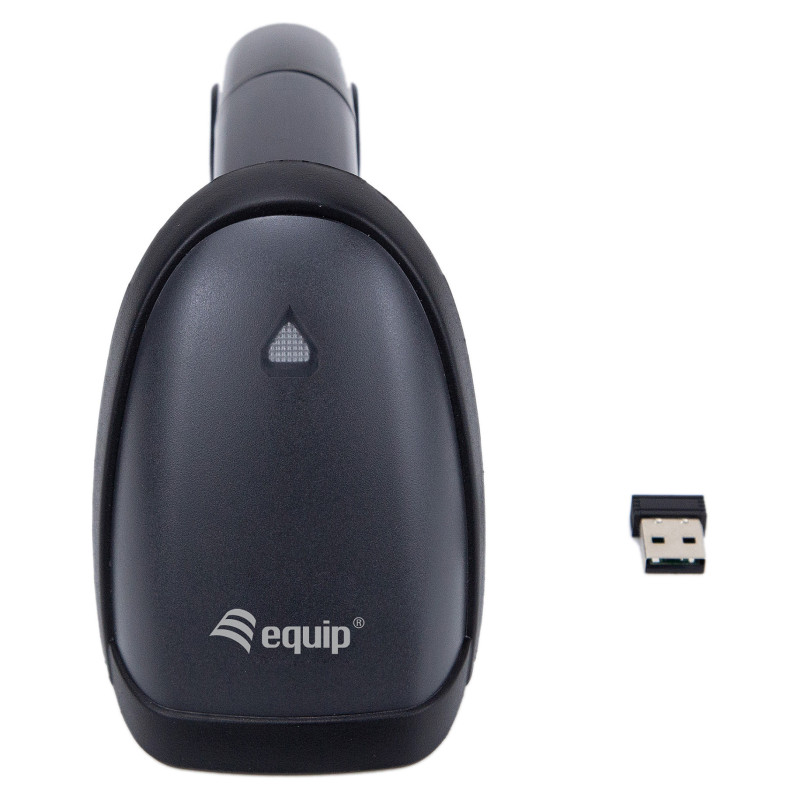

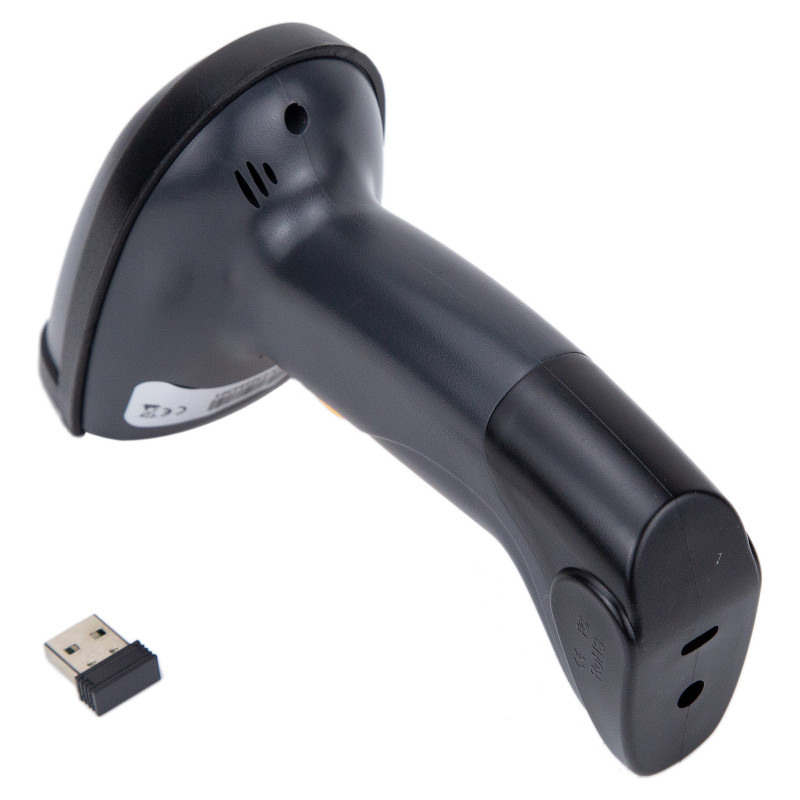

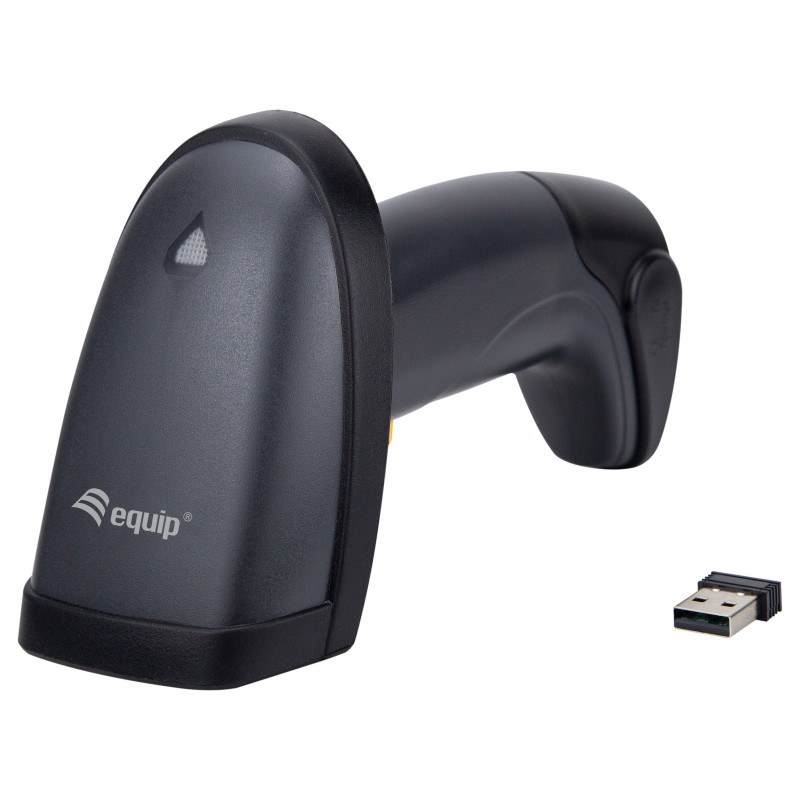

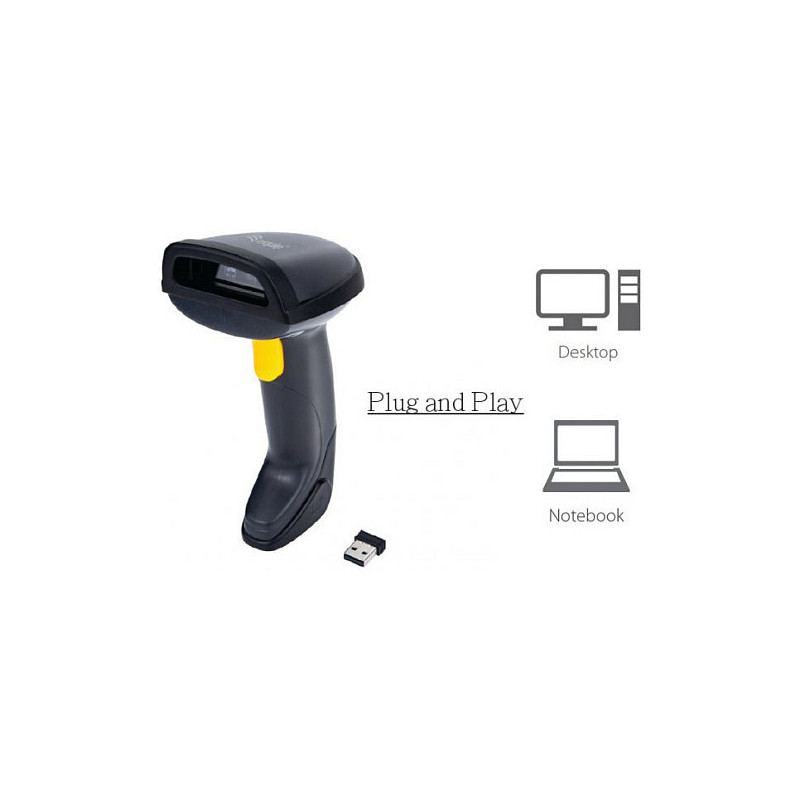

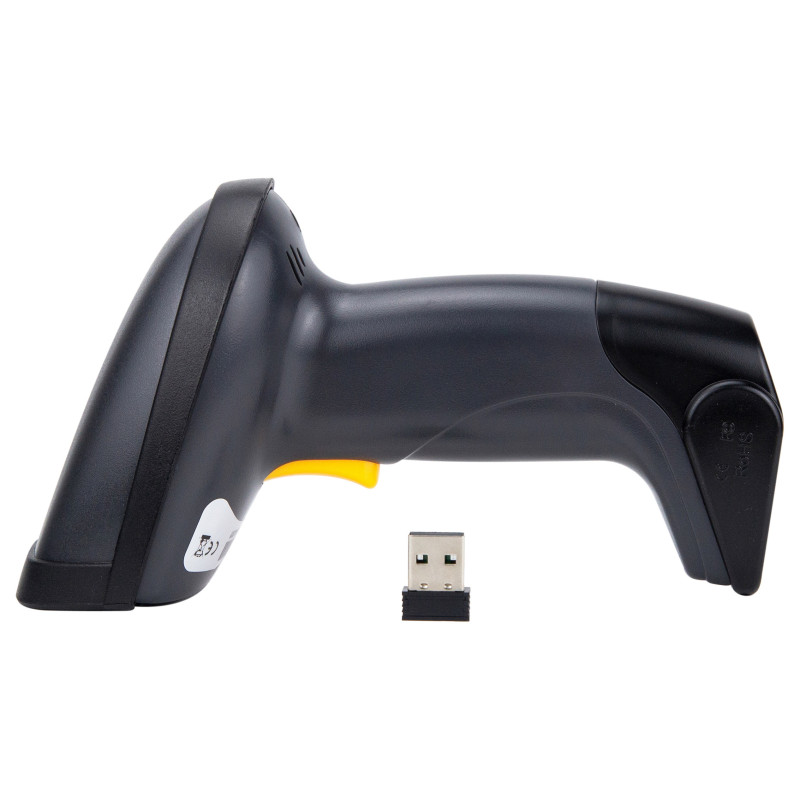

Equip 351029 barcode reader

Equip Wireless 2D Dual Mode 2.4GHz + Bluetooth Barcode Scanner, with Stand. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wireless, Standard interfaces: Bluetooth, RF Wireless, Operating frequency: 2400 MHz. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), International Protection (IP) code: IP54. Power source type: Battery, Battery type: Built-in battery, Battery voltage: 3.7 V. Weight: 187 g, Width: 72 mm, Depth: 101 mm

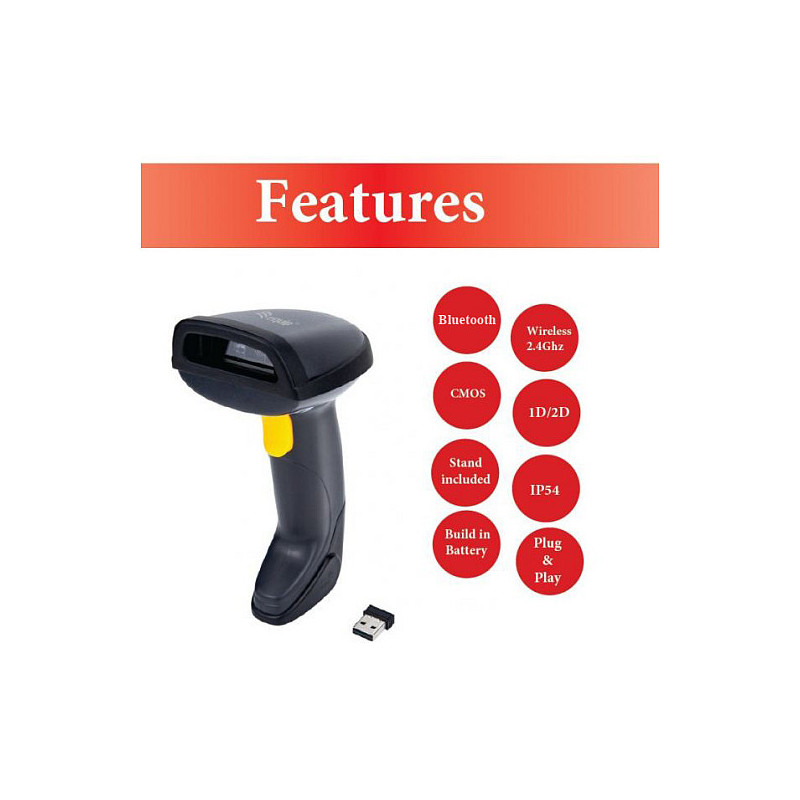

The Equip Wireless 2.4Ghz + Bluetooth Dual Mode 2D Barcode Scanner with Stand is a versatile and efficient scanning solution suitable for various industries. With its wireless functionality, it provides freedom of movement, making it ideal for applications in retail, warehousing, and inventory management. The included stand enables hands-free operation, enhancing productivity and reducing user fatigue.

This scanner offers exceptional performance and connectivity options, ensuring seamless integration into your existing systems. Its 2D scanning capability allows it to read a wide range of barcodes, including QR codes and Datamatrix, ensuring efficient data capture. Whether you need to scan barcodes on products, shelves, or packages, this scanner simplifies the process, streamlining operations and improving accuracy.

Scanning

Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: CMOS

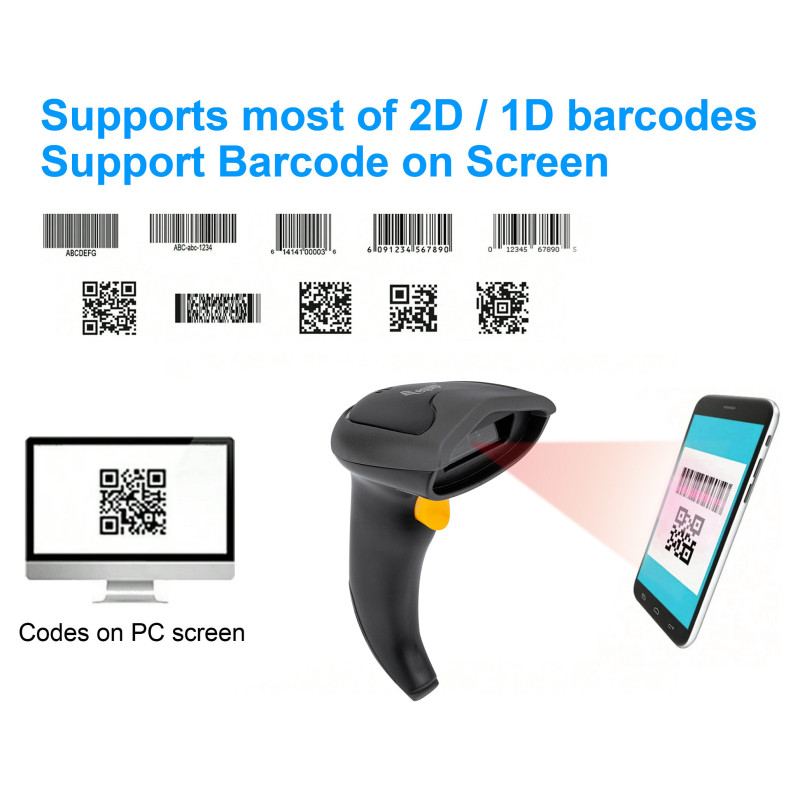

2D (matrix & stacked) barcodes supported: Data Matrix, PDF417, QR Code
Trigger mode: Auto-induction, Continuous, Manual
Scanner resolution: 4 mm
Working distance: 150 cm
Read rate (max): 220 reads/s
Tilt reading angle: 0 - 360°
Pitch reading angle: -30 - 30°
Yaw reading angle: -35 - 35°
Depth of field range: 60 cm

Ports & interfaces

Connectivity technology: Wireless
Standard interfaces: Bluetooth, RF Wireless
Operating frequency: 2400 MHz

Performance

Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP54
Protection features: Water resistant
Product colour: Black
Country of origin: China

Power

Power source type: Battery
Battery type: Built-in battery
Battery voltage: 3.7 V
Battery life: 20 h

Weight & dimensions

Width: 72 mm
Depth: 101 mm
Height: 175 mm
Weight: 187 g

Packaging data

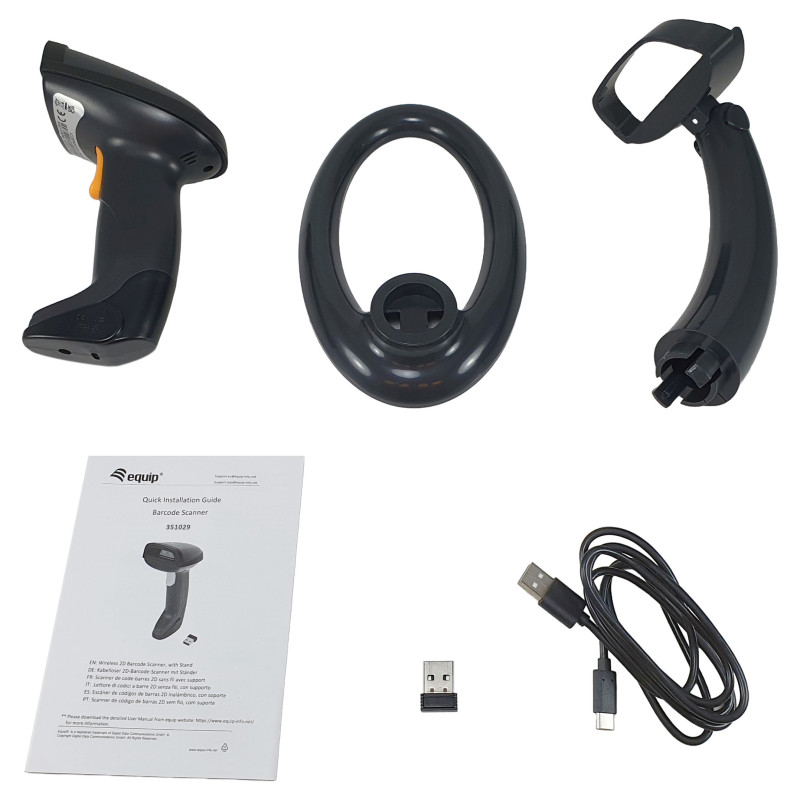

Cables included: USB Type-A to USB Type-C
Feature: Receiver included

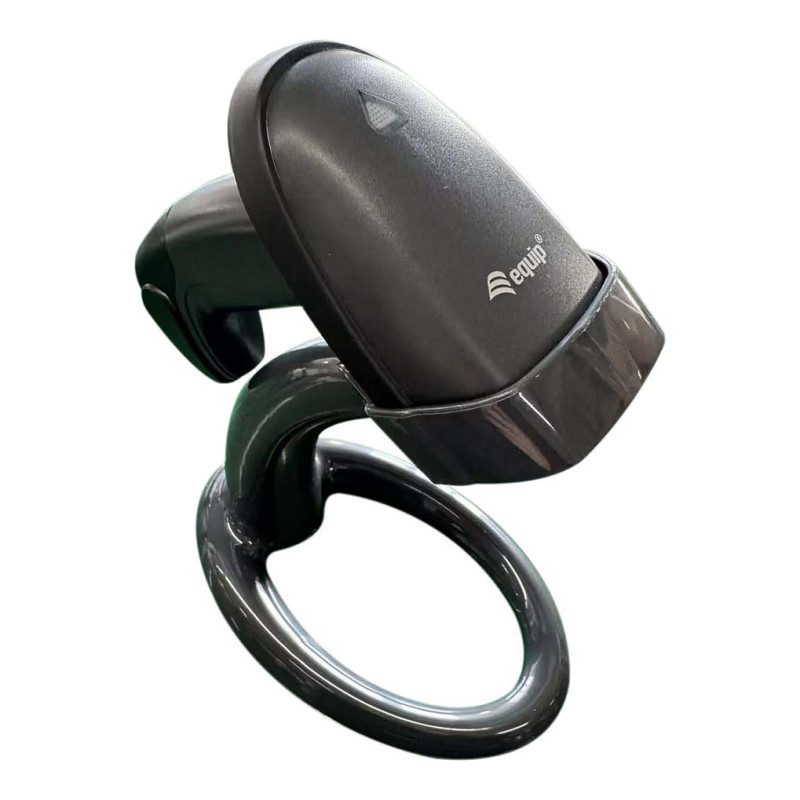

Feature: Stand included
Package width: 150 mm
Package depth: 207 mm
Package height: 100 mm
Package weight: 465 g

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -40 - 90 °C
Operating relative humidity (H-H): 5 - 95%

Battery

Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 1500 mAh
Battery capacity: 5.55 Wh
Standby time: 3 month(s)

Technical details

Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 30 pc(s)
Master (outer) case gross weight: 15.5 kg
Master (outer) case length: 485 mm
Master (outer) case width: 440 mm
Master (outer) case height: 525 mm
Harmonized System (HS) code: 8471900000

Other features

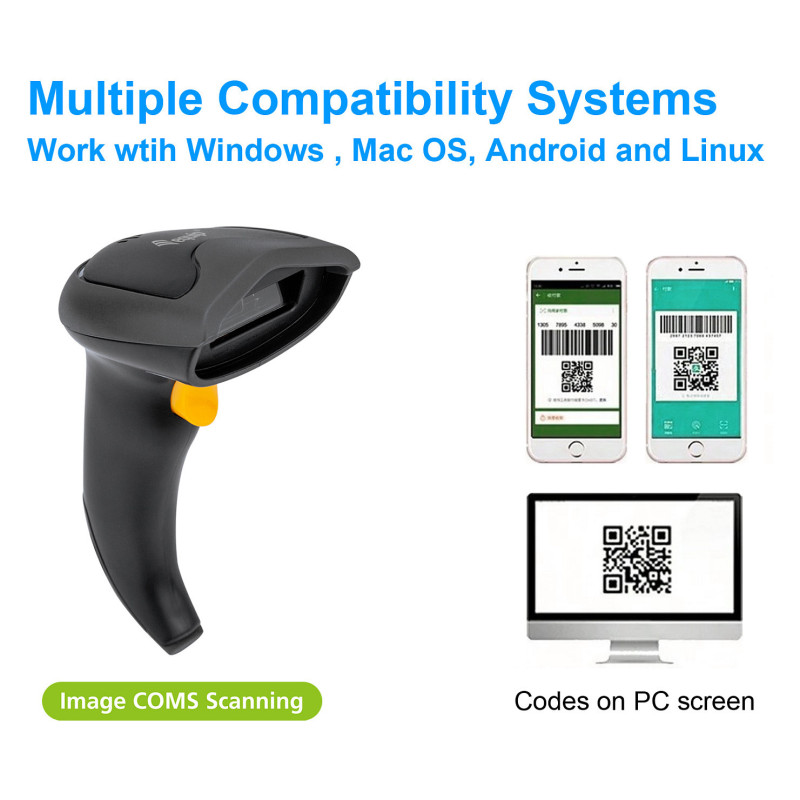

Mobile operating systems supported: Android, iOS
Linux operating systems supported: Yes
Feature: Quick start guide
