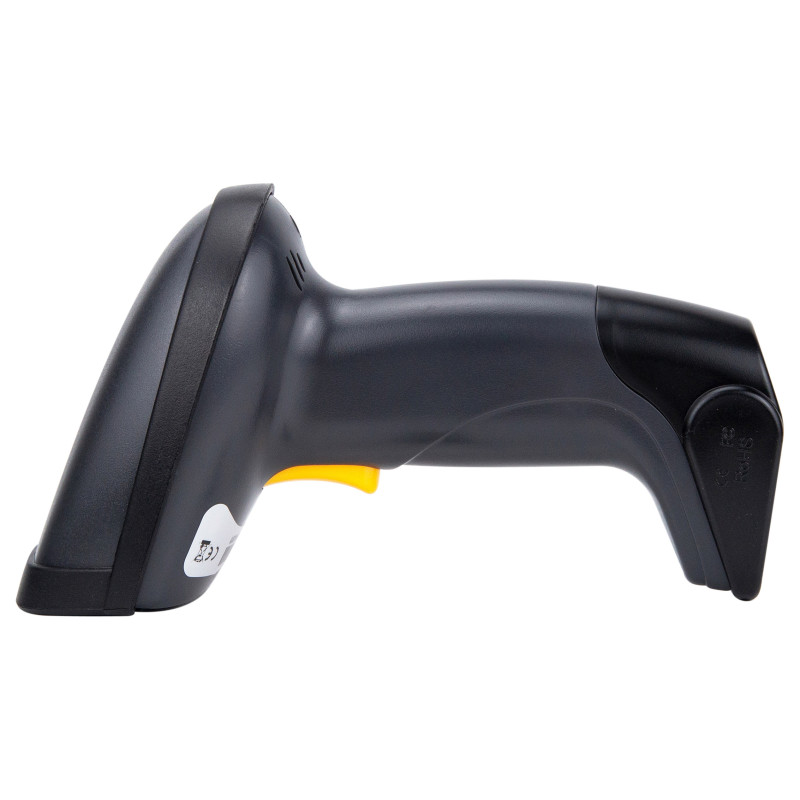

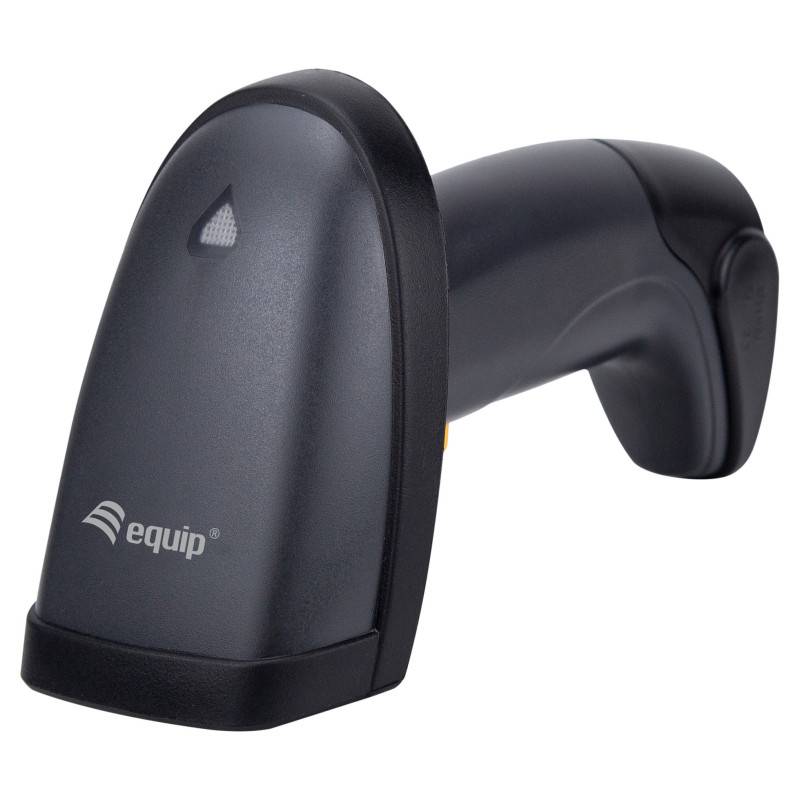

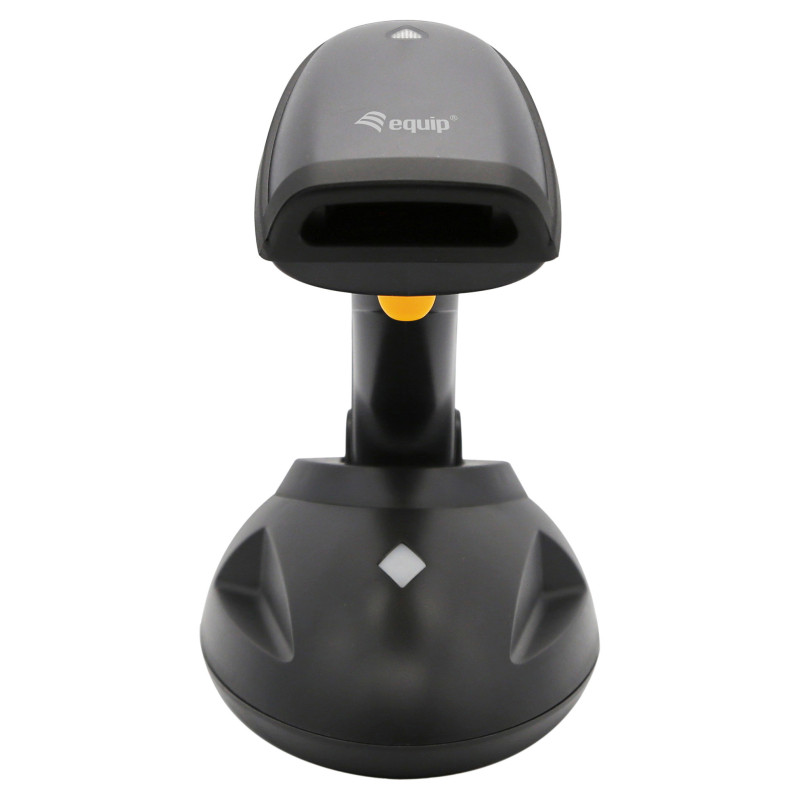

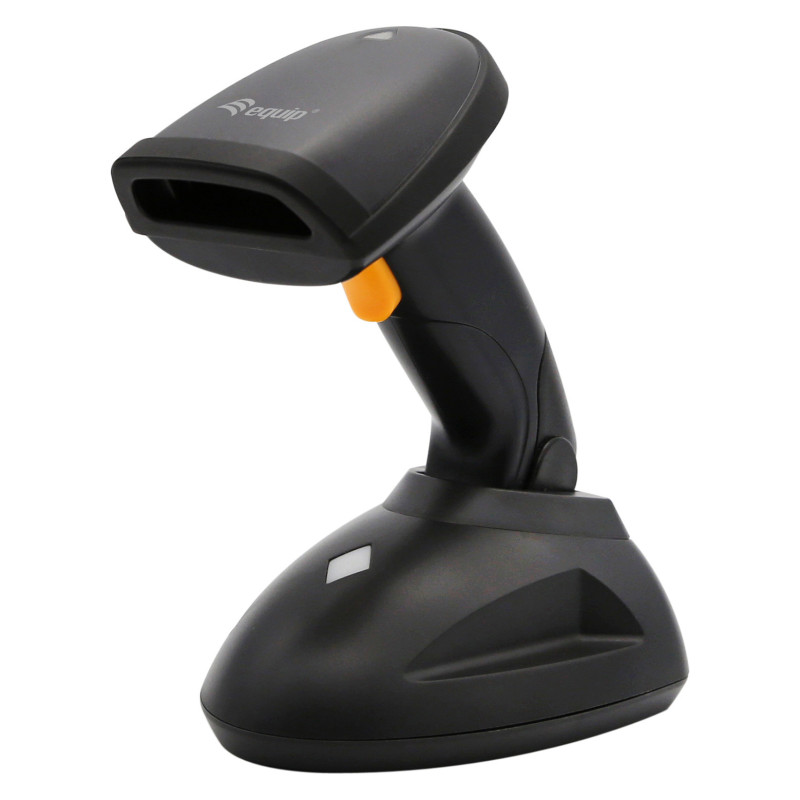

Equip 351026 barcode reader

Equip Wireless 2D Barcode Scanner, Long Distance, with Stand. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wireless, Standard interfaces: Wireless LAN, Wireless range: 200 m. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), International Protection (IP) code: IP54. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery type: Built-in battery. Weight: 445 g, Width: 111 mm, Depth: 175 mm

The Equip Wireless 2D Barcode Scanner with Long-Distance Capability and Stand is a versatile and efficient scanning solution for various industries. This device allows you to effortlessly capture 2D barcodes from a distance, making it ideal for retail, warehousing, and inventory management applications. With the included stand, it can be used hands-free, enhancing productivity and reducing user fatigue. This scanner offers exceptional performance and connectivity options, ensuring seamless integration into your existing systems. Its wireless capabilities provide flexibility, while its long-distance scanning capability ensures reliable data capture, even from a distance. Whether you need to scan barcodes on products, shelves, or packages, this scanner simplifies the process, streamlining operations and improving accuracy.

Scanning

Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: LED
2D (matrix & stacked) barcodes supported: Data Matrix, PDF417, QR Code
Trigger mode: Auto-induction, Continuous, Manual
Scanner resolution: 5 mm
Working distance: 150 cm
Read rate (max): 220 reads/s
Tilt reading angle: 0 - 360°
Pitch reading angle: -30 - 30°
Yaw reading angle: -35 - 35°

Ports & interfaces

Connectivity technology: Wireless
Standard interfaces: Wireless LAN
Wireless range: 200 m
Operating frequency: 433 MHz
Cable length: 1.8 m

Performance

Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP54
Protection features: Drop proof, Water resistant
Product colour: Black
Country of origin: China

Power

Power source type: Battery
Battery technology: Lithium-Ion (Li-Ion)
Battery type: Built-in battery
Number of batteries supported: 1
Battery capacity: 1500 mAh
Battery voltage: 3.7 V
Battery life: 20 h

Weight & dimensions

Width: 111 mm
Depth: 175 mm
Height: 180 mm
Weight: 445 g

Packaging data

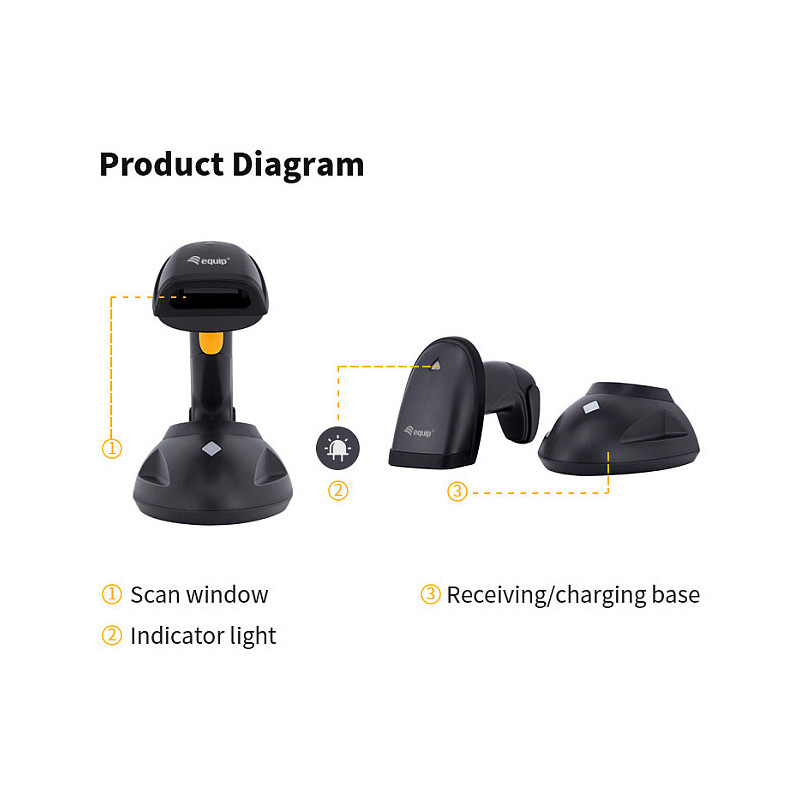

Feature: Charging base
Package width: 231 mm
Package depth: 262 mm
Package height: 80 mm
Package weight: 685 g

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Battery

Battery capacity: 5.55 Wh
Standby time: 3 month(s)

Technical details

Feature: Sustainability compliance
Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 20 pc(s)
Master (outer) case gross weight: 15 kg
Master (outer) case length: 550 mm
Master (outer) case width: 485 mm
Master (outer) case height: 420 mm
Harmonized System (HS) code: 8471900090

Other features

Mobile operating systems supported: Android, iOS
Linux operating systems supported: Yes
Feature: Quick start guide
