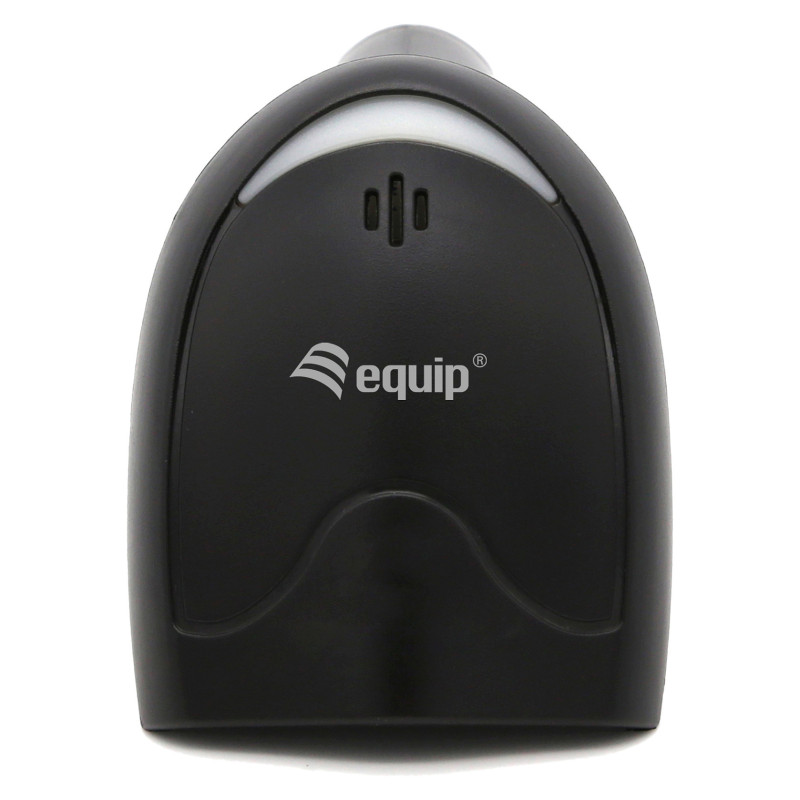

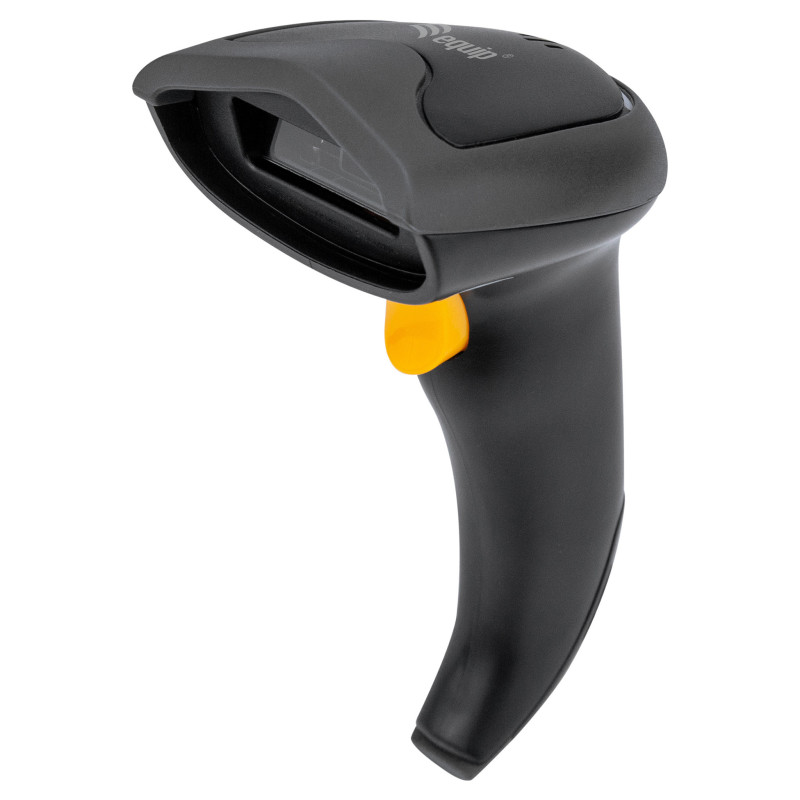

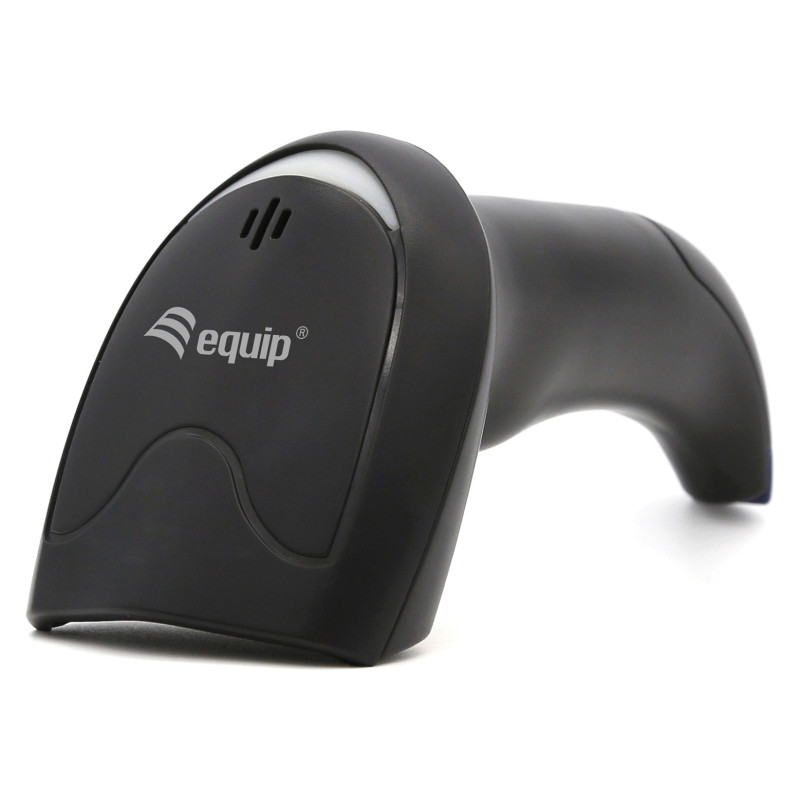

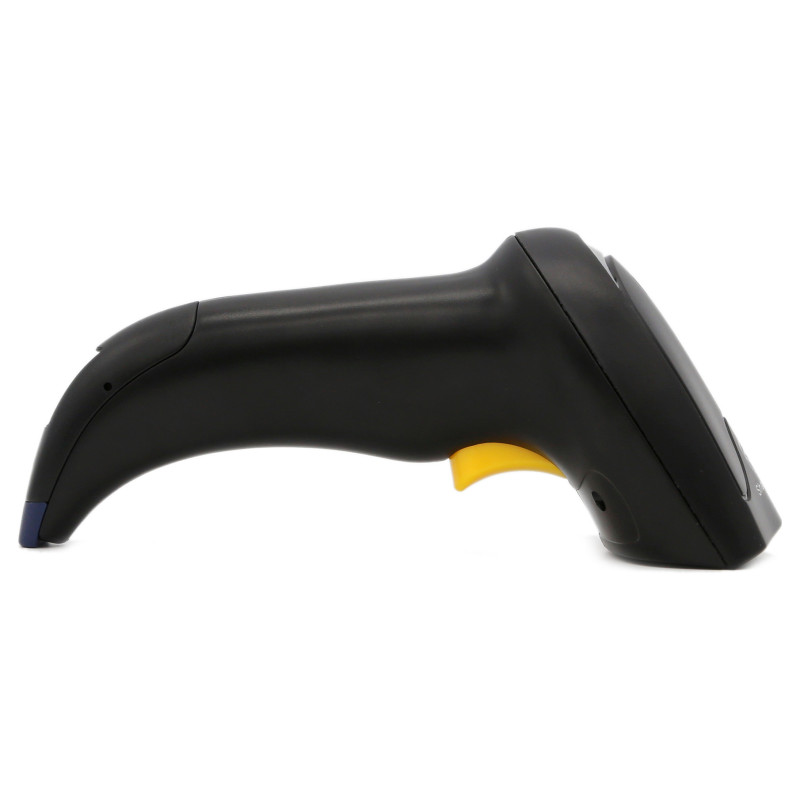

Equip 351022 barcode reader

Equip USB 1D Laser Barcode Scanner, with Stand. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: USB, Cable length: 1.8 m. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), International Protection (IP) code: IP54. Power source type: USB, Input voltage: 5 V. Weight: 106 g, Width: 70 mm, Depth: 79 mm

The Equip USB 1D Laser Barcode Scanner with Stand is a versatile and efficient scanning solution for businesses. This device, designed for various applications such as retail and inventory management, comes with a convenient stand for hands-free operation, improving productivity.

With USB connectivity, it seamlessly integrates with your computer or point-of-sale system, offering a straightforward setup process. Equipped with a laser scanner, it can quickly and accurately read one-dimensional barcodes, simplifying data capture and reducing errors.

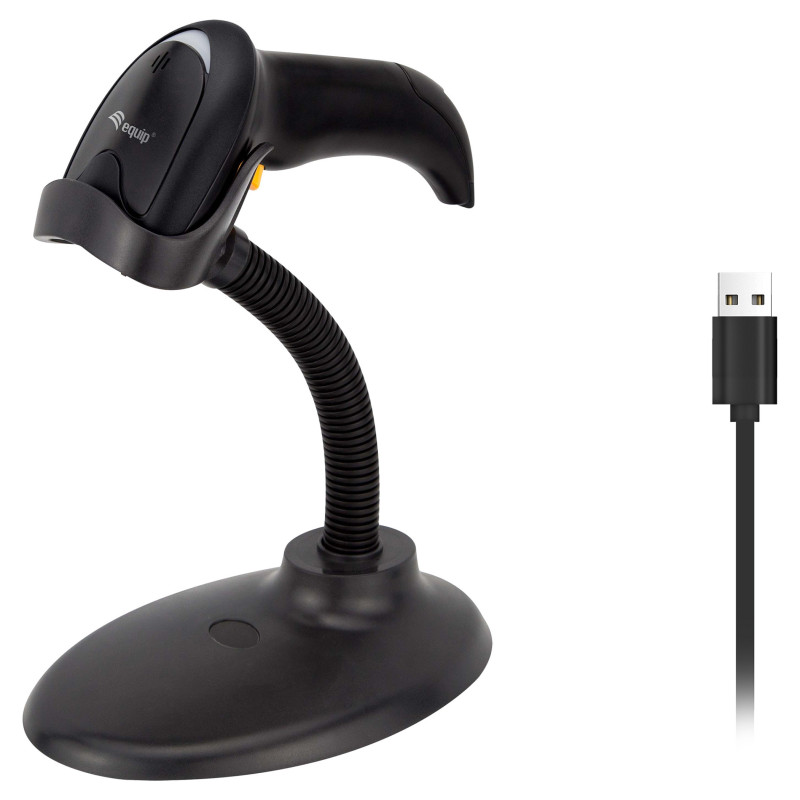

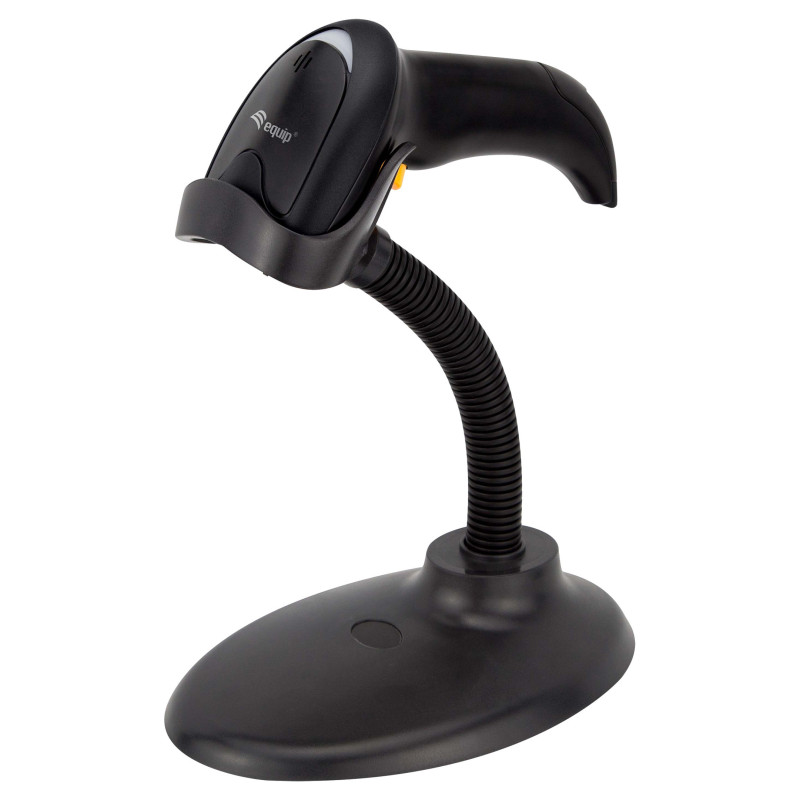

The included stand enables presentation-style scanning, making it ideal for busy retail checkout counters and warehouses where multiple scans are required. This scanner is a cost-effective tool for businesses looking to streamline operations, enhance inventory accuracy, and provide excellent customer service. It's a reliable solution for organizations seeking an efficient way to manage 1D barcoded information.

Scanning

Type: Handheld bar code reader
Scanner type: 1D
Sensor type: Laser
Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, Interleaved 2 of 5, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported: Not supported
Trigger mode: Auto-induction, Continuous, Manual
Scanner resolution: 4 mm
Working distance: 70 cm
Read rate (max): 200 reads/s
Wavelength: 650 nm
Maximum scan width: 30 cm
Depth of field range: 7.5 cm

Ports & interfaces

Connectivity technology: Wired
Standard interfaces: USB
Cable length: 1.8 m

Performance

Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP54
Protection features: Drop proof, Water resistant
Product colour: Black
Country of origin: China

Power

Power source type: USB
Input voltage: 5 V

Weight & dimensions

Width: 70 mm
Depth: 79 mm
Height: 173 mm
Weight: 106 g

Packaging data

Feature: Stand included
Package width: 150 mm
Package depth: 207 mm
Package height: 100 mm
Package weight: 465 g

Operational conditions

Storage temperature (T-T): -30 - 70 °C
Operating relative humidity (H-H): 5 - 95%

Technical details

Feature: Sustainability compliance
Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 30 pc(s)
Master (outer) case gross weight: 15.5 kg
Master (outer) case length: 485 mm
Master (outer) case width: 440 mm
Master (outer) case height: 525 mm
Harmonized System (HS) code: 8471900090

Other features

Mobile operating systems supported: Android, iOS
Linux operating systems supported: Yes
Feature: Quick start guide
