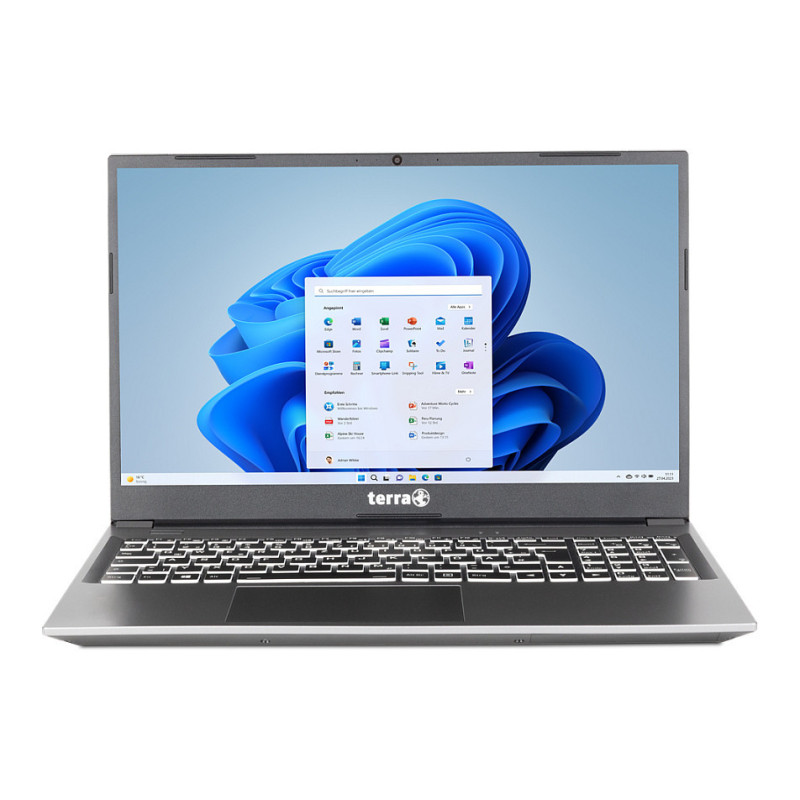

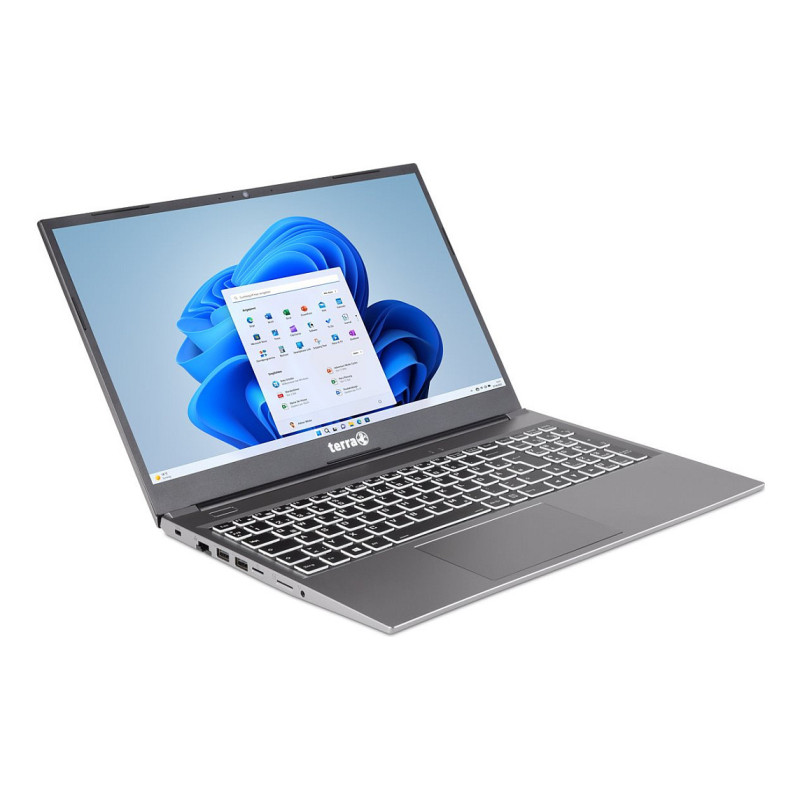

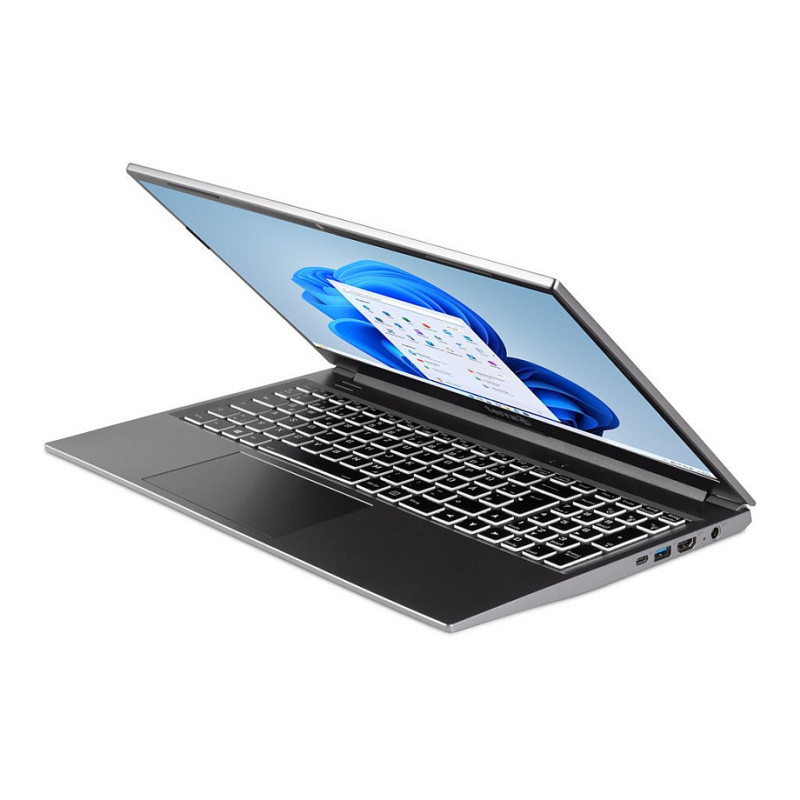

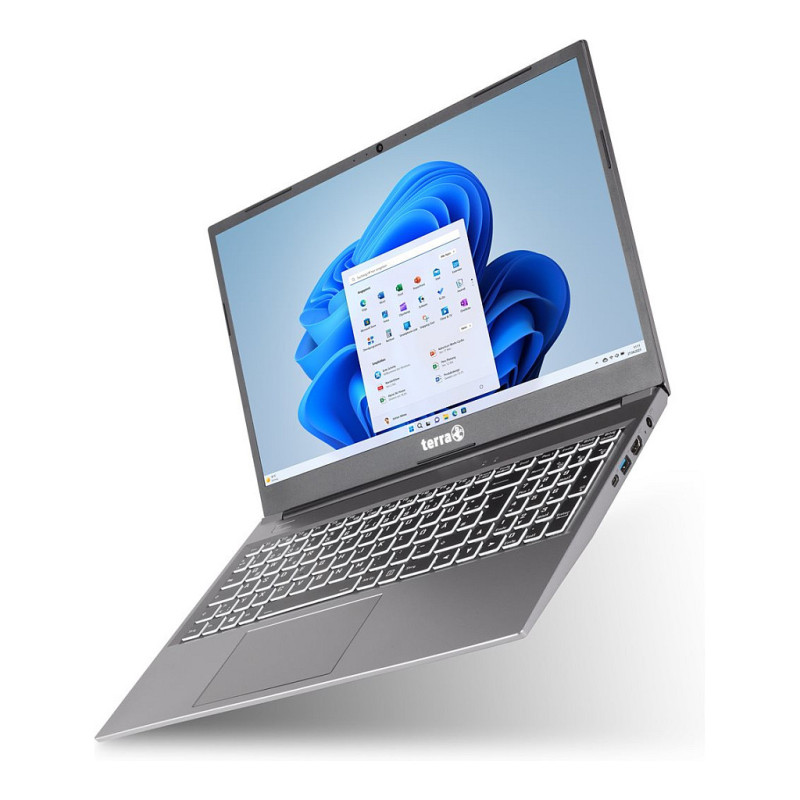

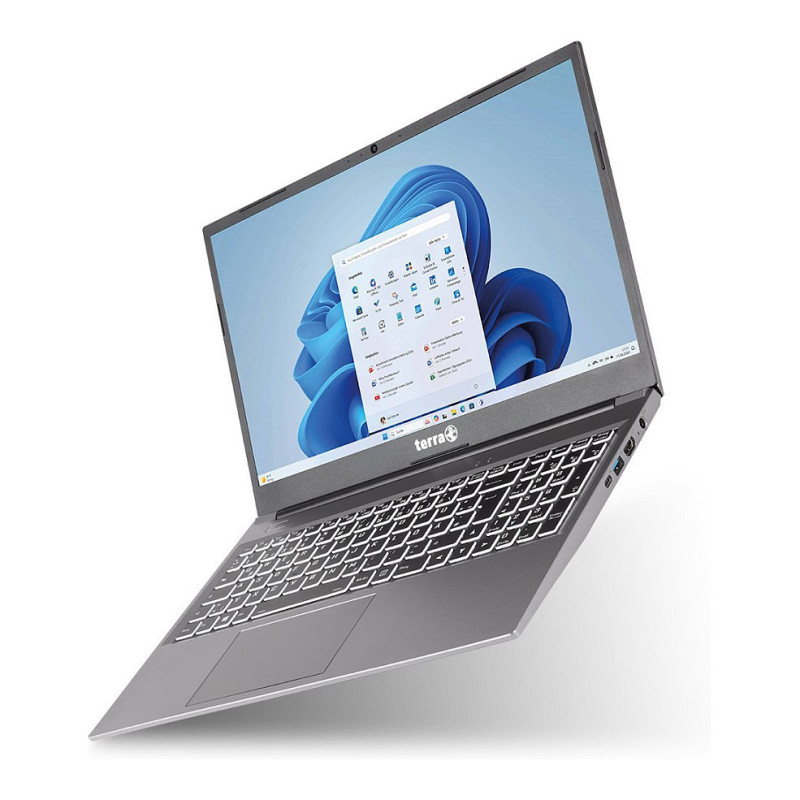

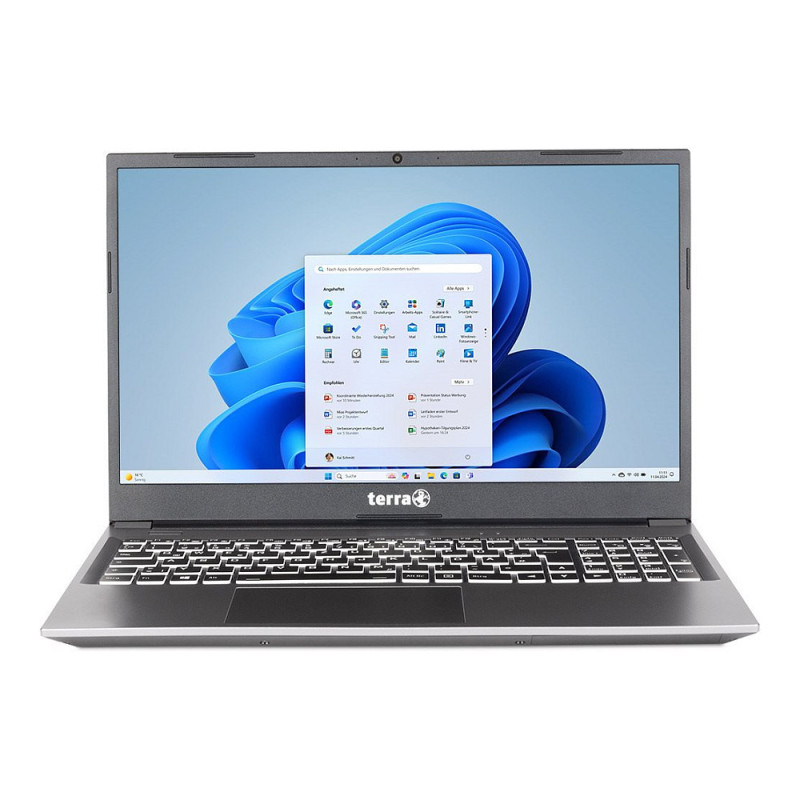

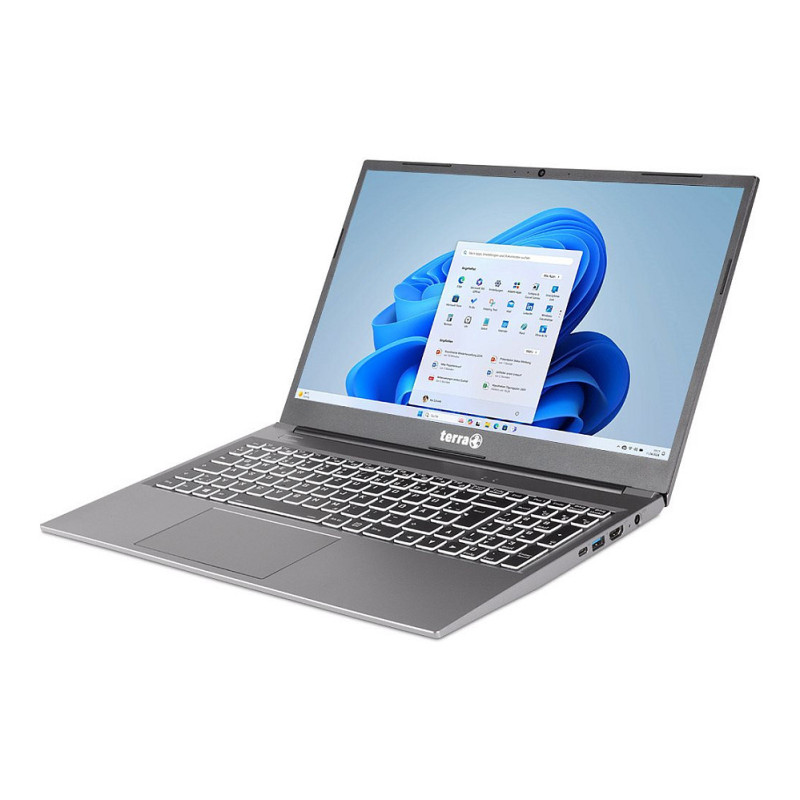

EARTH 1517R

TERRA 1517R. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i3, Processor model: i3-1315U. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 500 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Operating system installed: Windows 11 Home. Product colour: Grey. Weight: 1.75 kg

Design

Colour name: Dark Grey
Product type: Laptop
Product colour: Grey
Form factor: Clamshell
Housing material: Aluminium

Display

Display diagonal: 39.6 cm (15.6")
Display resolution: 1920 x 1080 pixels
Touchscreen: No
HD type: Full HD
LED backlight: Yes
Native aspect ratio: 16:9
Anti-glare screen: Yes
Display diagonal (metric): 39.6 cm

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i3
Processor generation: Intel Core i3-13xxx
Processor model: i3-1315U
Processor cores: 6
Processor threads: 8
Processor boost frequency: 4.5 GHz
Performance cores: 2
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.5 GHz
Efficient-core Max Turbo Frequency: 3.3 GHz
Processor cache: 10 MB
Processor cache type: Smart Cache
Processor base power: 15 W
Maximum turbo power: 55 W

Memory

Internal memory: 8 GB
Internal memory type: DDR4-SDRAM
Memory slots: 2x SO-DIMM
Maximum internal memory: 64 GB

Storage

Total storage capacity: 500 GB
Storage media: SSD
Total SSDs capacity: 500 GB
Number of SSDs installed: 1
SSD capacity: 500 GB
SSD interface: PCI Express
NVMe: Yes
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Optical drive type: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)

Graphics

Discrete graphics card model: Not available
On-board graphics card: Yes
On-board GPU manufacturer: Intel
Discrete graphics card: No
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel® UHD Graphics
On-board graphics card 4K support: Yes
On-board graphics card 6K support: Yes
On-board graphics card 8K support: Yes

Camera

Front camera: Yes
Front camera resolution (numeric): 1 MP

Network

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Mobile network connection: Yes
Ethernet LAN: Yes
Ethernet LAN data rates: 1000 Mbit/s
Bluetooth: Yes
Bluetooth version: 5.2
WWAN: Upgradable

Ports interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 1.4
Combo headphone/mic port: Yes
USB Type-C DisplayPort Alternate Mode: Yes

Keyboard

Pointing device: Touchpad
Numeric keypad: Yes
Keyboard backlit: Yes
Keyboard language: German

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Home

Battery

Battery technology: Lithium-Ion (Li-Ion)
Battery life (max): 10 h

Power

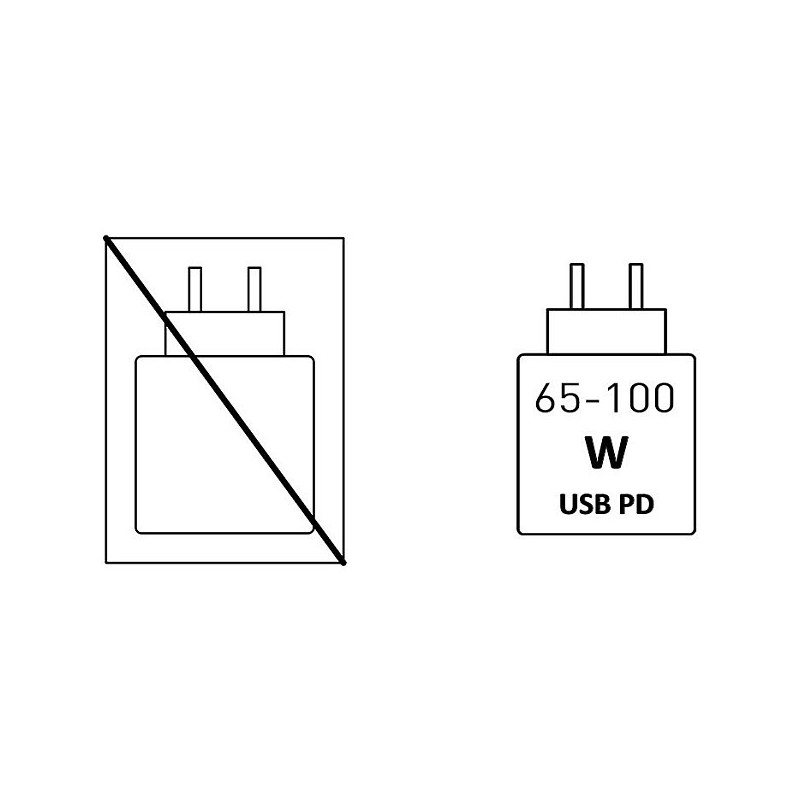

USB Type-C charging port: Yes
USB Power Delivery (USB PD): Yes

Security

Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0

Weight dimensions

Width: 360 mm
Depth: 239 mm
Height: 19.7 mm
Weight: 1.75 kg

Packaging content

AC adapter included: Yes

Other features

Slot type: 1 x M.2 2280 SSD, PCIe Gen4x4 Interface
Locale: German
