EARTH 1517R

TERRA 1517R. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i3, Processor model: i3-1315U. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 500 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Operating system installed: Windows 11 Pro. Product colour: Grey. Weight: 1.75 kg

Design

Colour name: Dark Grey
Product type: Laptop
Product colour: Grey
Form factor: Clamshell
Housing material: Aluminium

Display

Display diagonal: 39.6 cm (15.6")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Feature: LED backlight
Native aspect ratio: 16:9
Feature: Anti-glare screen
Display diagonal (metric): 39.6 cm

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i3
Processor generation: Intel Core i3-13xxx
Processor model: i3-1315U
Processor cores: 6
Processor threads: 8
Processor boost frequency: 4.5 GHz
Performance cores: 2
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.5 GHz
Efficient-core Max Turbo Frequency: 3.3 GHz
Processor cache: 10 MB
Processor cache type: Smart Cache
Processor base power: 15 W
Maximum turbo power: 55 W

Memory

Internal memory: 8 GB
Internal memory type: DDR4-SDRAM
Memory slots: 2x SO-DIMM
Maximum internal memory: 64 GB

Storage

Total storage capacity: 500 GB
Storage media: SSD
Total SSDs capacity: 500 GB
Number of SSDs installed: 1
SSD capacity: 500 GB
SSD interface: PCI Express
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Optical drive type: No
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel® UHD Graphics
Feature: On-board graphics card 4K support
Feature: On-board graphics card 6K support
Feature: On-board graphics card 8K support

Camera

Feature: Front camera
Front camera resolution (numeric): 1 MP

Network

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.2
WWAN: Upgradable

Ports & interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 1.4
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode

Keyboard

Pointing device: Touchpad
Feature: Numeric keypad
Feature: Keyboard backlit
Keyboard language: German

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro

Battery

Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 49 Wh
Battery life (max): 10 h

Power

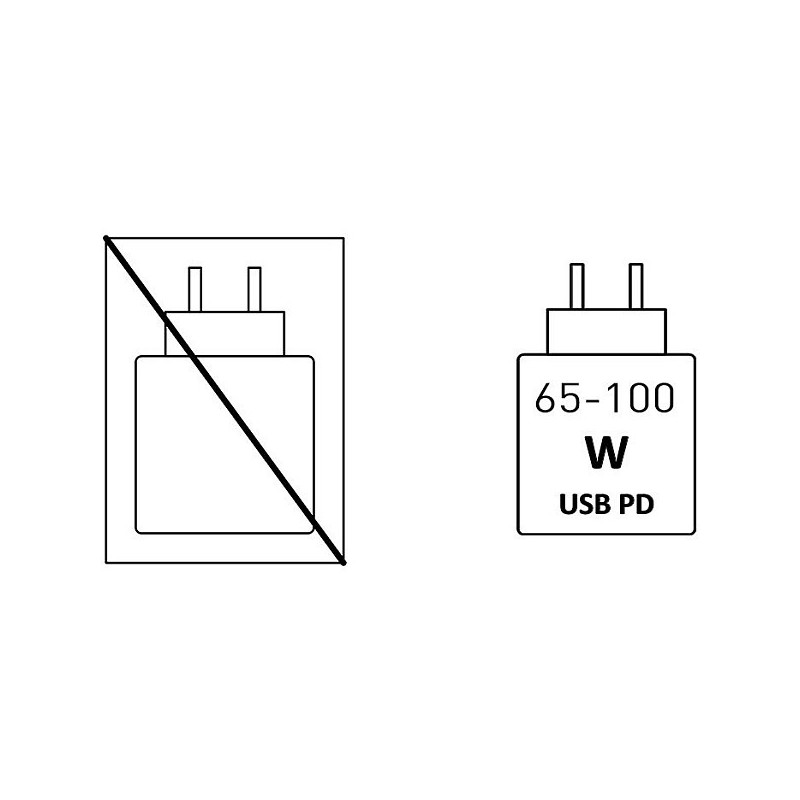

Feature: USB Type-C charging port
Feature: USB Power Delivery (USB PD)

Security

Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0

Weight & dimensions

Width: 360 mm
Depth: 239 mm
Height: 19.7 mm
Weight: 1.75 kg

Packaging content

Feature: AC adapter included

Other features

Slot type: 1 x M.2 2280 SSD, PCIe Gen4x4 Interface
Locale: German
