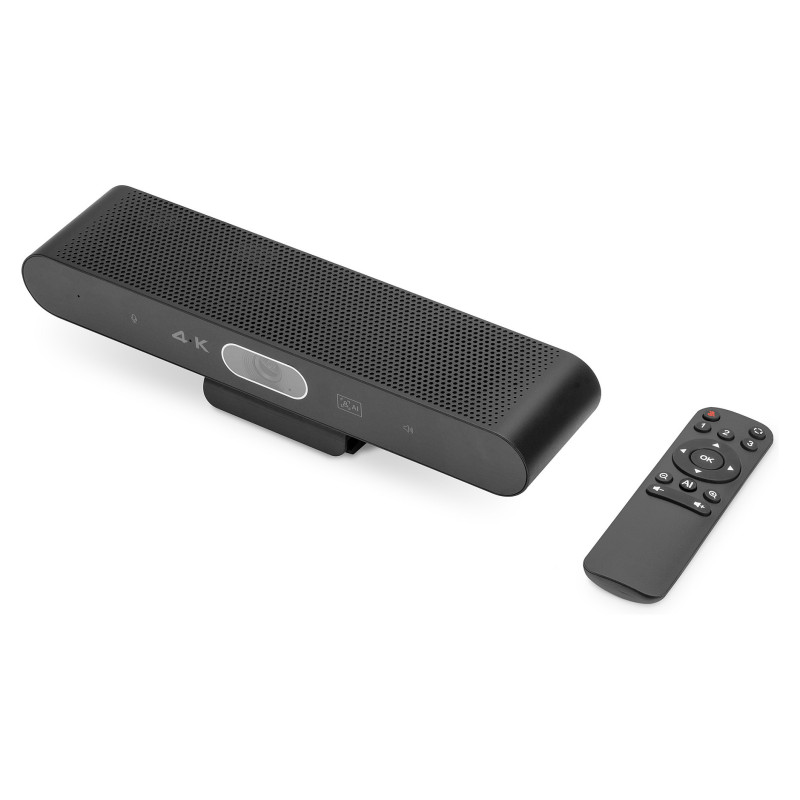

Digitus DS-55581 video conferencing system

Digitus 4K All-In-One Video Bar Mini - Video conferencing system. Product type: Video collaboration bar. Sensor type: CMOS. HD type: 4K Ultra HD. Digital zoom: 4x. Ethernet LAN. Product colour: Black
The video conferencing system from DIGITUS® combines camera, microphone and loudspeaker in one device and is suitable for small rooms
- 4K Ultra-HD ePTZ (electronic Pan-Tilt-Zoom) camera
- Wide-angle lens - 94° diagonal, 90° horizontal, 55° vertical
- 4K Ultra HD video calls (up to 3840 x 2160 pixels / 30 frames per second)
- 3.0" sensor (GC4663), 8 MP
- Auto-framing, smart zoom (4x digital zoom) AI face/speaker tracking - thanks to AI (artificial intelligence), the video bar automatically adjusts the camera position, focus and zoom to capture the participants in the best possible way
- Beamforming microphones - 2 integrated beamforming microphones for voice pick-up and 7 m audio range (voice pick-up)
- Digital Noise Reduction Acoustic Echo Cancellation - suppresses unwanted background noise and eliminates echoes
- Hi-fi loudspeaker with 2W max.
- Remote control included for convenient control of the functions
- Compatible with all common meeting software such as Teams, Zoom, etc.
The 4K video conferencing system from DIGITUS® combines a camera, microphone and speakers in one device and is suitable for small to medium-sized rooms. The video bar is simply connected to a laptop or computer via USB, and power is also supplied via the same USB cable. Thanks to plug-and-play, installation is child's play and no additional software or similar is required. A remote control is included for convenient control of the range of functions.

Performance

Number of cameras: 1
Product colour: Black
Auto framing: Yes
Auto-tracking: Yes
Product type: Video collaboration bar
PTZ control: Yes

Video

HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels

Audio

Built-in speaker(s): Yes
Number of speakers: 1
Frequency range: 20 - 24000 Hz
Line-out impedance: 4 Ω
Noise reduction: Yes
Echo cancellation: Yes
RMS rated power: 2 W

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Network

Ethernet LAN: Yes

Camera

Megapixel (approx.): 8 MP
Camera type: Single camera
Zoom capability: Yes
Digital zoom: 4x
Sensor type: CMOS
Image sensor size: 1/3"
Horizontal field of view: 90°
Vertical field of view: 55°
Diagonal field of view: 94°

Microphone

Microphone colour: Black
Microphone sensitivity: -26 dB
Microphone frequency: 20 - 8000 Hz
Microphone direction type: Omnidirectional
Sound pressure level (max): 120 dB
Number of microphones: 2
Number of microphone arrays: 1

Logistics data

UK Trade Tariff code: 85258100
Country of origin: China
Package volume: 2240 cm³

Computer system

Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Mobile operating systems supported: Android 10, Android 10.0, Android 11.0, Android 12.0, Android 13.0, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 8.1, Android 9.0
Other operating systems supported: ChromeOS

Power

Power source type: USB
Current: 1 A
USB Power Delivery (USB PD): Yes

Weight dimensions

Width: 260 mm
Depth: 56 mm
Height: 60 mm
Weight: 400 g

Packaging data

Package width: 280 mm
Package depth: 80 mm
Package height: 100 mm
Package weight: 600 g

Packaging content

Cables included: LAN (RJ-45), USB
Number of microphones included: 1
AC adapter included: Yes
Remote control included: Yes
Microphone included: Yes
Manual: Yes
