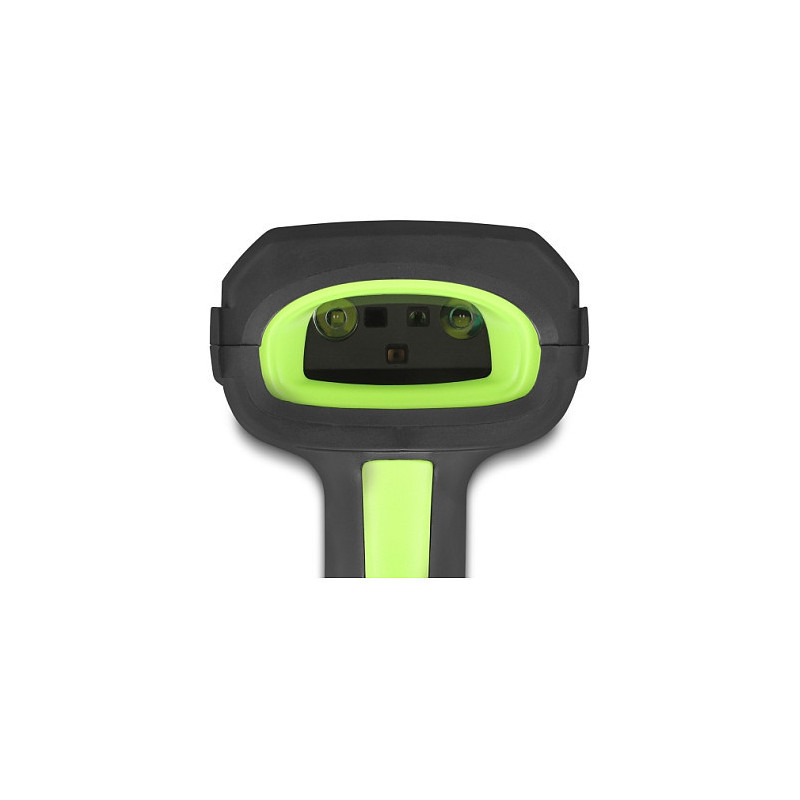

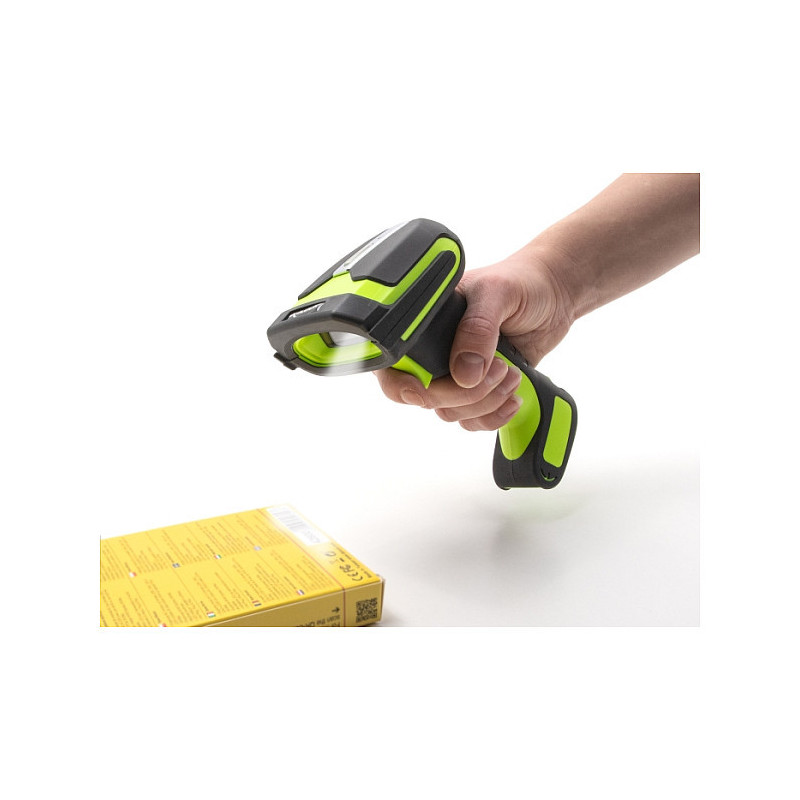

DeLOCK 90588 barcode reader

DeLOCK 90588. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wireless, Standard interfaces: Bluetooth, RF Wireless, Wireless range: 100 m. Product colour: Black, Green, Internal memory: 16 MB, Country of origin: China. Power source type: Battery, Battery technology: Lithium Polymer (LiPo), Battery type: Built-in battery. Weight: 321 g, Width: 100 mm, Depth: 185 mm

This barcode scanner by Delock can be wirelessly connected to a PC, laptop or directly to a mobile phone or tablet. All common 1D and 2D barcode types, such as the QR Code, can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.

Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 120 scans per second under optimal lighting conditions.
In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.

Sturdy processing
Due to its sturdy design, the scanner can easily absorb falls of up to 1.80 m and is therefore ideally suited for use in industrial environments.

Long distance reading
Thanks to a particularly high-quality module, the scanner can read barcodes up to a distance of 6.5 metres.

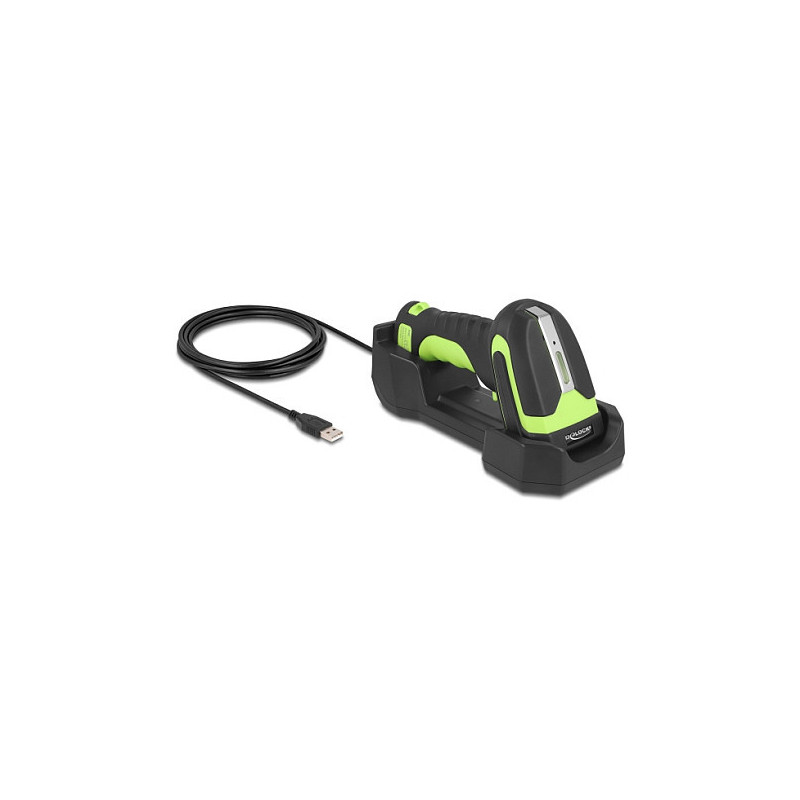

Charging station acts as interface
The data transfer of the scanned barcodes is done either via Bluetooth or via the 433 MHz frequency band. In addition to charging the hand scanner, the scanner's inductive charging station also functions as a 433 MHz interface and is connected to the system via a USB cable.

Scanning

Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
Linear (1D) barcodes supported: Code 128, Code 39, EAN-13, EAN-8, ISBN, Interleaved 2 of 5
2D (matrix & stacked) barcodes supported: Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code
Optical sensor resolution (W x H): 1280 x 1024 pixels
Working distance range: 120 - 6500 mm

Ports & interfaces

Connectivity technology: Wireless
Standard interfaces: Bluetooth, RF Wireless
Wireless range: 100 m
Bluetooth version: 4.1
Operating frequency: 433 MHz

Performance

Internal memory: 16 MB
Feature: Built-in processor
Product colour: Black, Green
Country of origin: China

Power

Power source type: Battery
Battery technology: Lithium Polymer (LiPo)
Battery type: Built-in battery
Battery capacity: 2600 mAh
Battery life: 24 h
Charging time: 4 h

Weight & dimensions

Width: 100 mm
Depth: 185 mm
Height: 80 mm
Weight: 321 g
Base weight: 216 g
Base dimensions (WxDxH): 95 x 210 x 75 mm

Packaging data

Feature: Charging base

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%

Other features

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11
Mobile operating systems supported: Android 14.0
