DeLOCK 90586 barcode reader

DeLOCK Industrial Barcode Scanner 1D and 2D for 433 MHz or Bluetooth with inductive charging station. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wireless, Standard interfaces: Bluetooth, RF Wireless, Wireless range: 10 m. Product colour: Black, Yellow, Internal memory: 16 MB, Country of origin: China. Power source type: Battery, Battery technology: Lithium Polymer (LiPo), Battery capacity: 1800 mAh. Weight: 321 g, Width: 100 mm, Depth: 185 mm

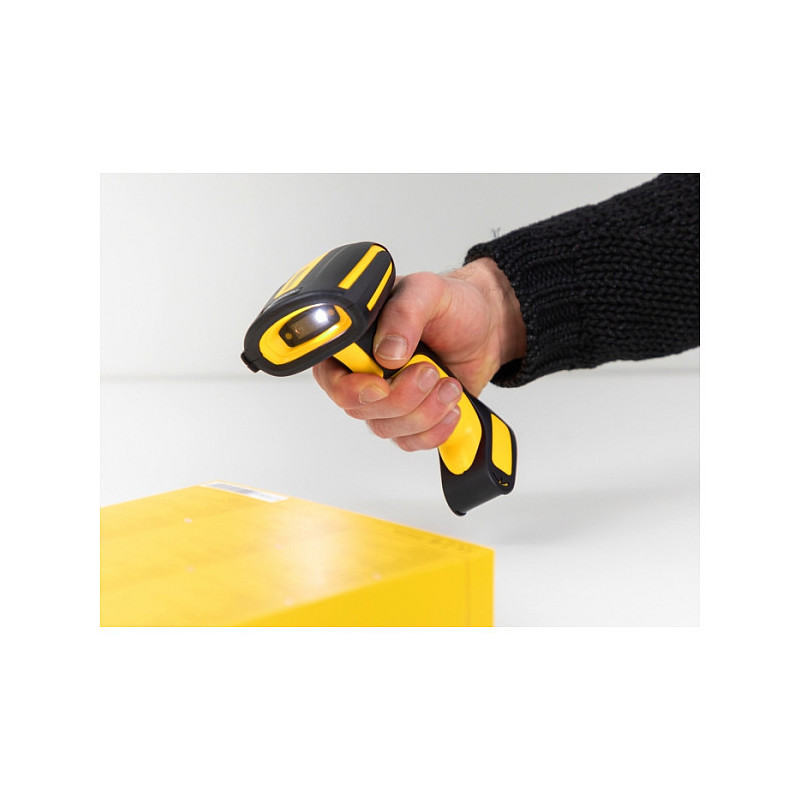

This barcode scanner by Delock can be wirelessly connected to a PC, laptop or directly to a mobile phone or tablet. All common 1D and 2D barcode types can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.

Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 120 scans per second under optimal lighting conditions.

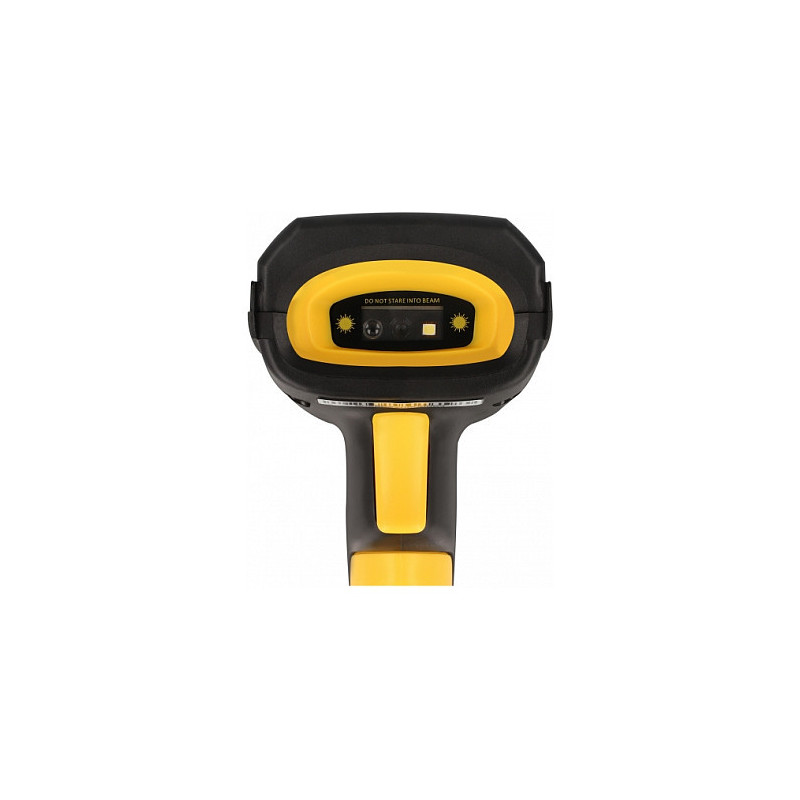

In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.

Sturdy processing
Due to its sturdy design, the scanner can easily absorb falls up to 1.80 m and is therefore ideally suited for use in industrial environments.

Charging station acts as interface

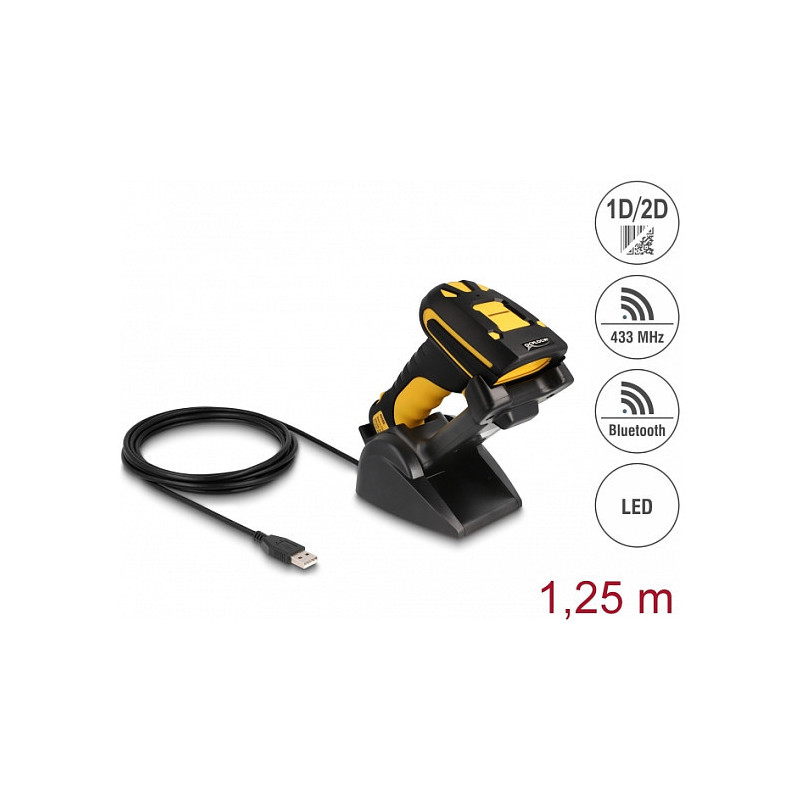

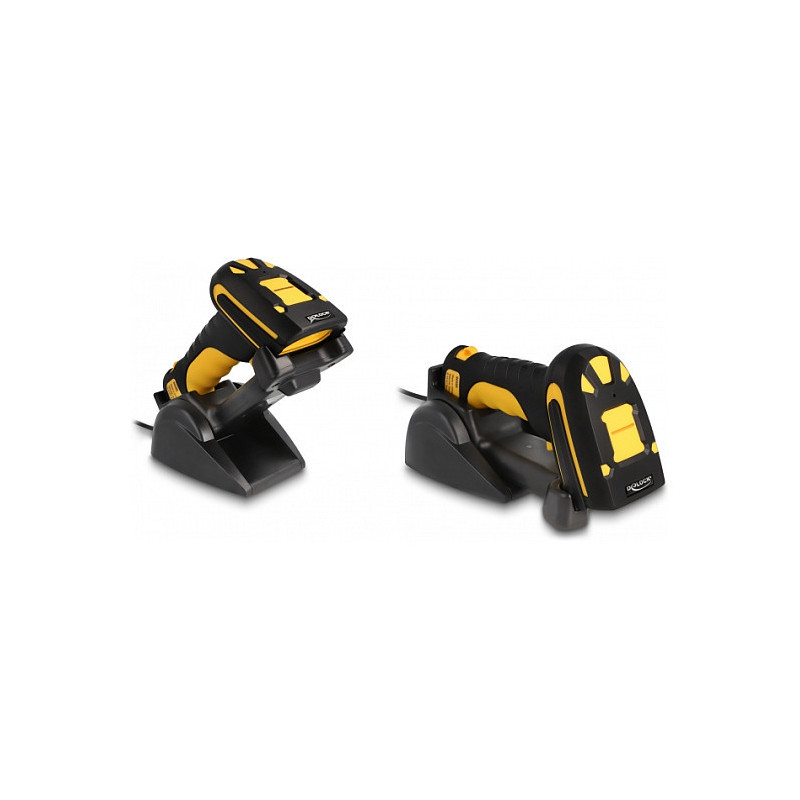

The data transfer of the scanned barcodes is done either via Bluetooth or via the 433 MHz frequency band. In addition to charging the hand scanner, the scanner's inductive charging station also functions as both a Bluetooth and a 433 MHz interface and is connected to the system via a USB cable.

Scanning

Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
Linear (1D) barcodes supported: Code 128, EAN-13, EAN-8, ISBN, Interleaved 2 of 5
2D (matrix & stacked) barcodes supported: Data Matrix, Micro QR Code, MicroPDF417, QR Code
Optical sensor resolution (W x H): 1280 x 800 pixels
Read rate (max): 120 reads/s

Ports & interfaces

Connectivity technology: Wireless
Standard interfaces: Bluetooth, RF Wireless
Wireless range: 10 m
Bluetooth version: 4.1
Operating frequency: 433 MHz
Cable length: 1.25 m

Performance

Internal memory: 16 MB
Feature: Built-in processor
Product colour: Black, Yellow
Country of origin: China

Power

Power source type: Battery
Battery technology: Lithium Polymer (LiPo)
Battery capacity: 1800 mAh
Input voltage: 5 V

Weight & dimensions

Width: 100 mm
Depth: 185 mm
Height: 80 mm
Weight: 321 g
Base weight: 295 g
Base dimensions (WxDxH): 180 x 100 x 75 mm

Packaging data

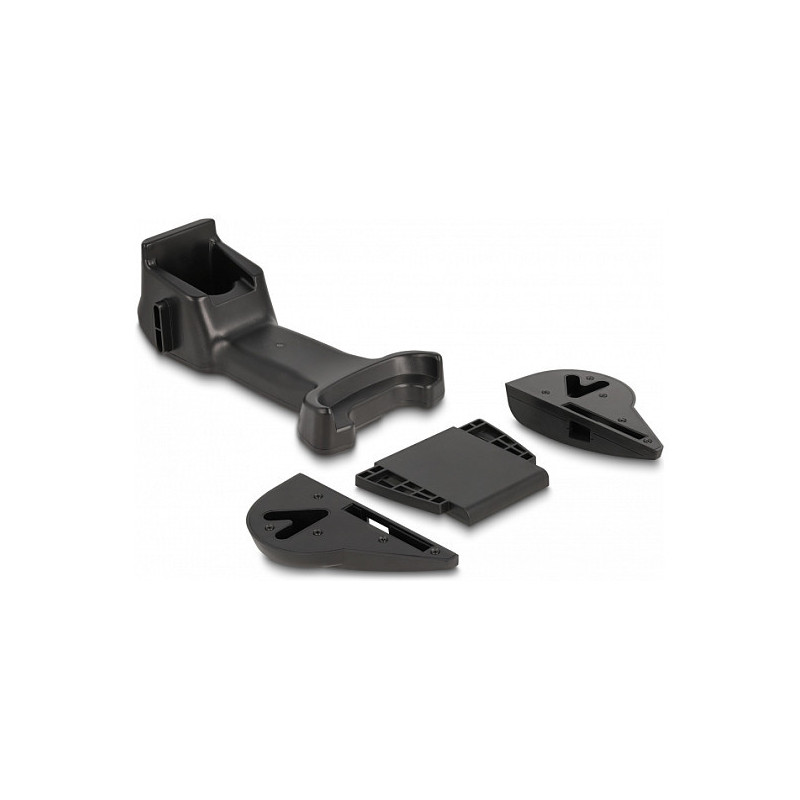

Feature: Charging base

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%
