DeLOCK 90564 barcode reader

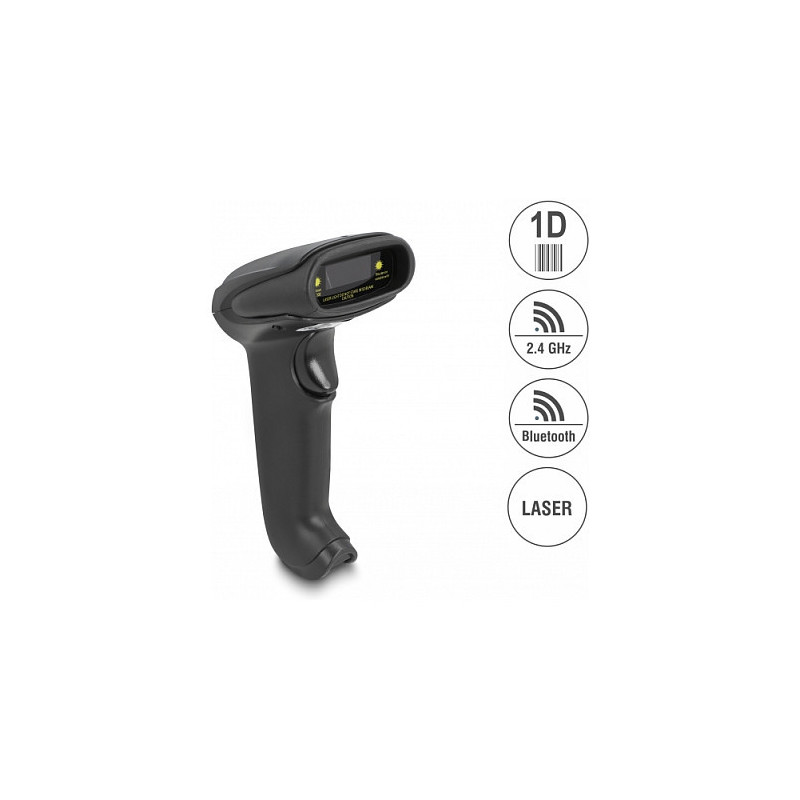

DeLOCK Barcode Scanner 1D Laser for 2.4 GHz, Bluetooth or USB. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: Laser. Connectivity technology: Wired Wireless, Standard interfaces: Bluetooth, USB, Operating frequency: 2400 MHz. Product colour: Black. Power source type: USB, Battery technology: Lithium Polymer (LiPo), Battery capacity: 180 mAh. Weight: 190 g, Width: 90 mm, Depth: 170 mm

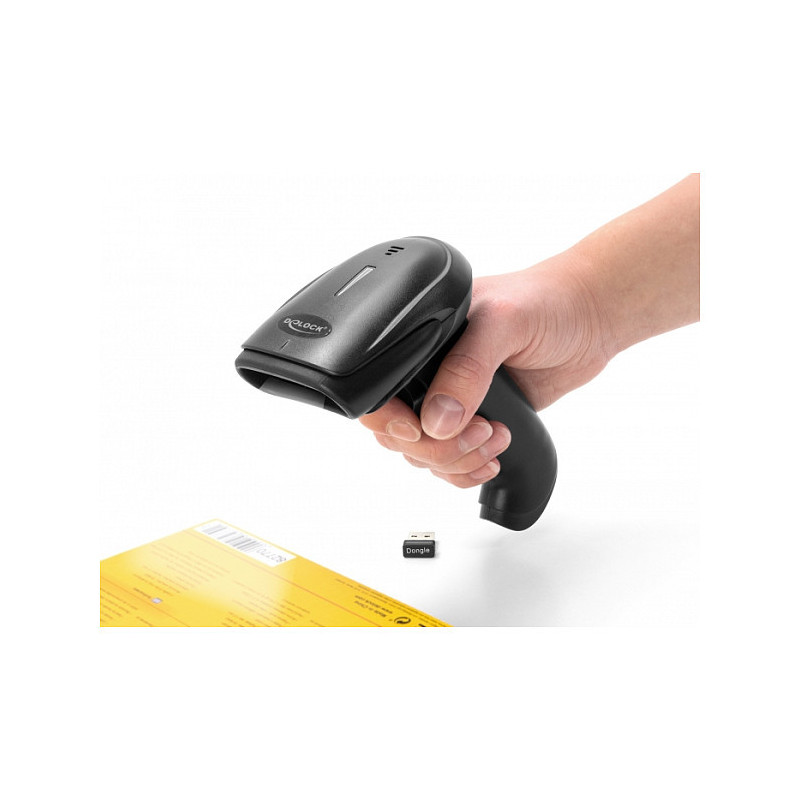

This barcode laser scanner by Delock can be connected directly to a PC or laptop. Alternatively, an adapter can be used to connect the scanner to a mobile phone or tablet. Up to 100 scans per second of all common 1D barcode types can be precisely captured, even at long distances.
Transmission via Bluetooth, USB or 2.4 GHz

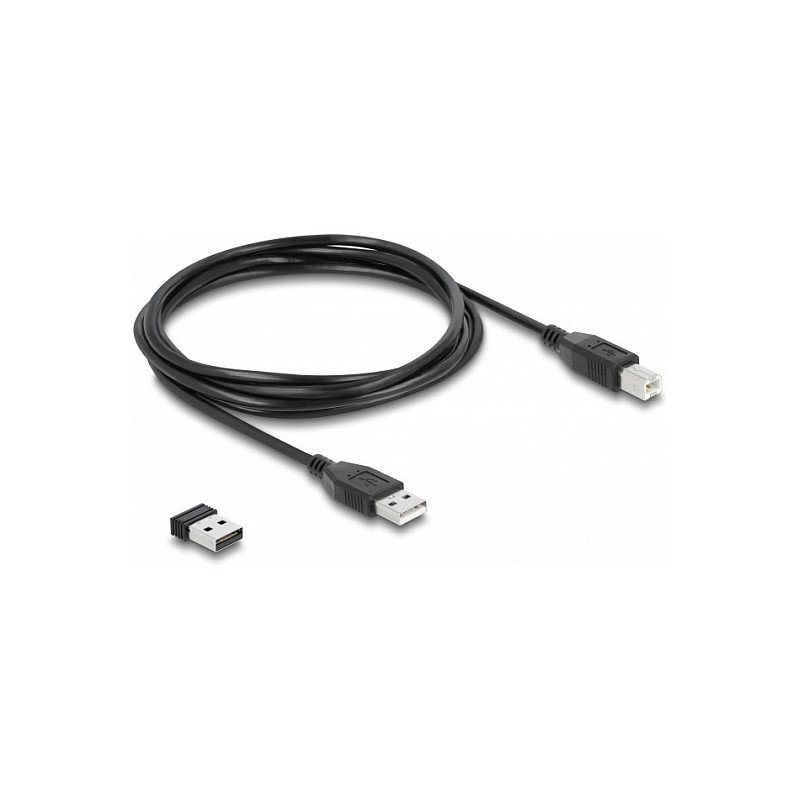

The data transfer of the scanned barcodes is done either via Bluetooth directly with the Bluetooth capable output device or via the 2.4 GHz frequency band using the included USB dongle. Alternatively, the scanner can be connected to the computer with the included USB cable.

Scanning

Type: Handheld bar code reader
Scanner type: 1D
Sensor type: Laser
Linear (1D) barcodes supported: Code 128, Code 39, Discrete 2 of 5, EAN-13, EAN-8, ISBN
Optical sensor resolution (W x H): 752 x 480 pixels
Working distance: 30 cm
Read rate (max): 100 reads/s
Wavelength: 570 nm
Tilt reading angle: 0 - 50°

Ports interfaces

Connectivity technology: Wired Wireless
Standard interfaces: Bluetooth, USB
USB version: 2.0
USB 2.0 ports quantity: 1
Operating frequency: 2400 MHz
Cable length: 1.5 m

Performance

Product colour: Black

Power

Power source type: USB
Battery technology: Lithium Polymer (LiPo)
Battery capacity: 180 mAh
Input voltage: 5 V

Weight dimensions

Width: 90 mm
Depth: 170 mm
Height: 70 mm
Weight: 190 g

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 5 - 95%
