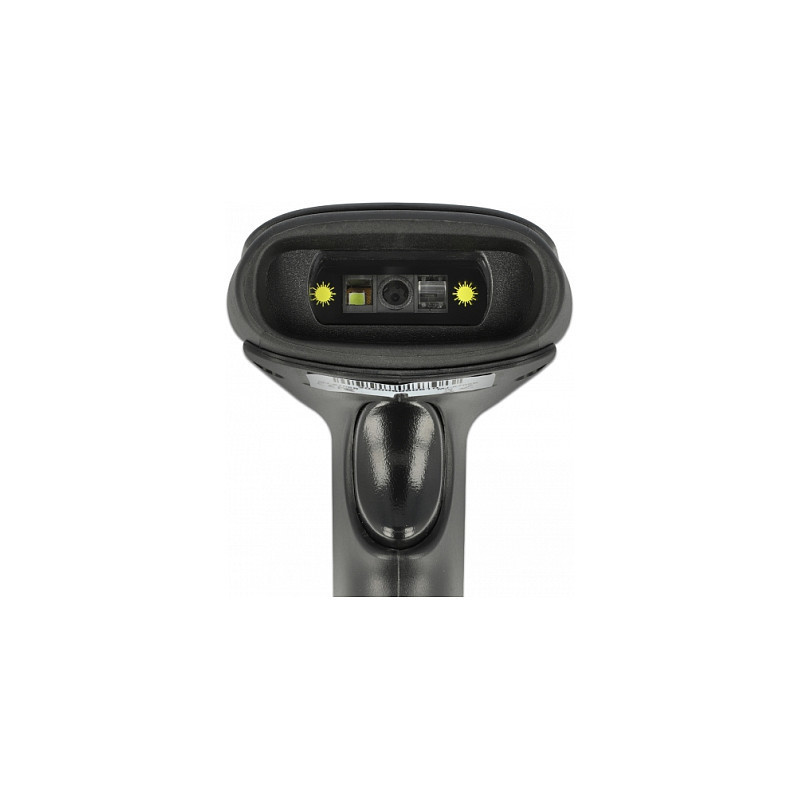

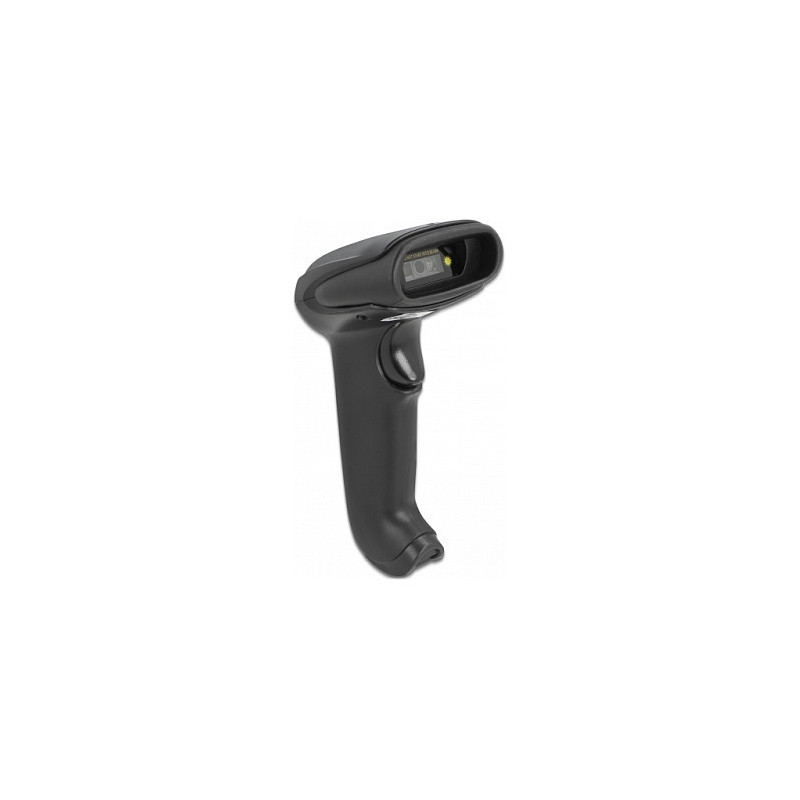

DeLOCK 90562 barcode reader

DeLOCK Barcode Scanner 1D and 2D for 2.4 GHz, Bluetooth or USB. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired Wireless, Standard interfaces: Bluetooth, USB, Wireless range: 10 m. Product colour: Black, Internal memory: 16 MB. Power source type: Battery, Battery technology: Lithium Polymer (LiPo), Battery capacity: 1800 mAh. Weight: 190 g, Width: 90 mm, Depth: 170 mm
This barcode scanner by Delock can be wirelessly connected to a PC, laptop or directly to a mobile phone or tablet. All common 1D and 2D barcode types can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.
Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 30 scans per second under optimal lighting conditions.
In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.
Transmission via Bluetooth, USB or 2.4 GHz

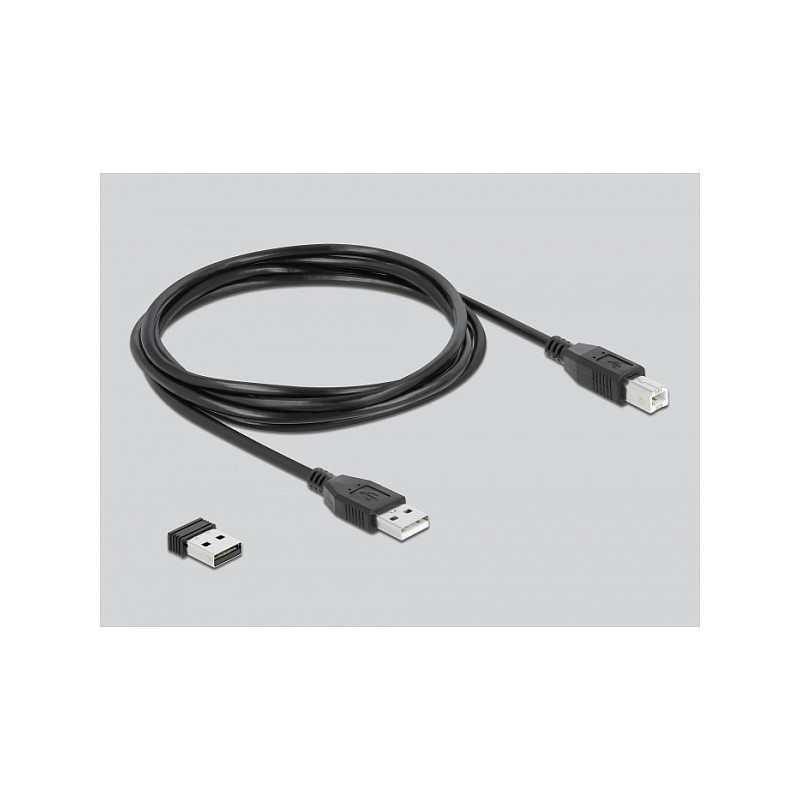

The data transfer of the scanned barcodes is done either via Bluetooth directly with the Bluetooth capable output device or via the 2.4 GHz frequency band using the included USB dongle. Alternatively, the scanner can be connected to the computer with the included USB cable.

Scanning

Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
Linear (1D) barcodes supported: Codabar, Code 128, Code 39, EAN-13, EAN-8, ISBN, Interleaved 2 of 5, PDF417
2D (matrix stacked) barcodes supported: Code 39, Data Matrix, Micro QR Code, PDF417, QR Code
Optical sensor resolution (W x H): 752 x 480 pixels
Working distance: 30 cm
Read rate (max): 30 reads/s

Ports interfaces

Connectivity technology: Wired Wireless
Standard interfaces: Bluetooth, USB
USB version: 2.0
Wireless range: 10 m
Bluetooth version: 4.0
Cable length: 1.5 m

Performance

Internal memory: 16 MB
Product colour: Black

Power

Power source type: Battery
Battery technology: Lithium Polymer (LiPo)
Battery capacity: 1800 mAh

Weight dimensions

Width: 90 mm
Depth: 170 mm
Height: 70 mm
Weight: 190 g

Operational conditions

Operating temperature (T-T): 5 - 50 °C
Storage temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 20 - 85%
