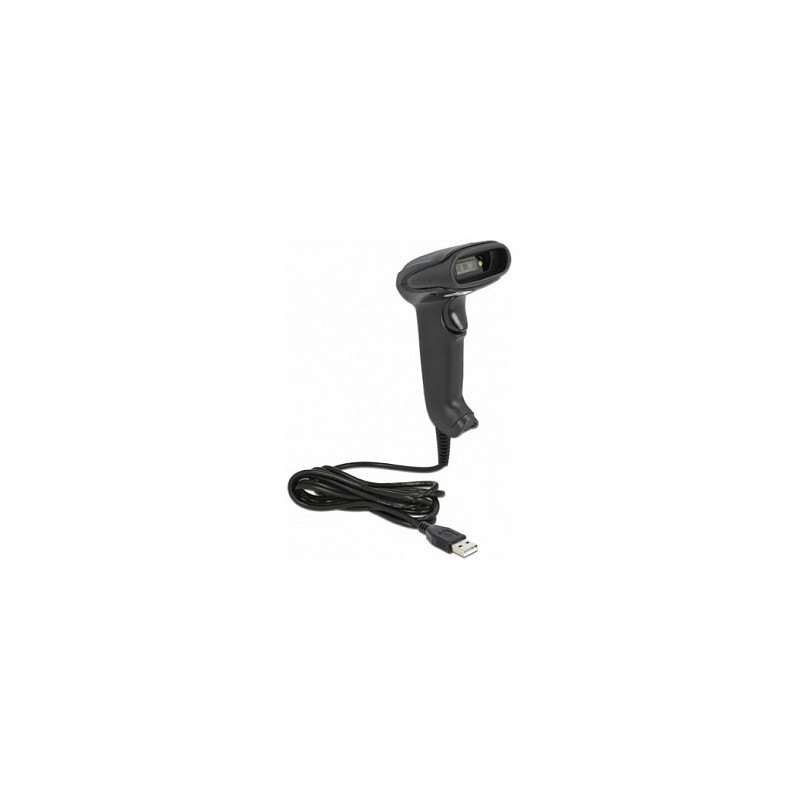

DeLOCK 90557 barcode reader

DeLOCK USB Barcode Scanner 1D and 2D with connection cable - German Version. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB, Cable length: 1.5 m. Product colour: Black. Power source type: USB, Battery capacity: 262 mAh, Input voltage: 5 V. Weight: 150 g, Width: 90 mm, Depth: 160 mm
Description
This barcode scanner by Delock can be connected directly to a PC or laptop. Alternatively, an adapter can be used to connect the scanner to a mobile phone or tablet. All common 1D and 2D barcode types can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.
Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 30 scans per second under optimal lighting conditions.
In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.
Transmission via USB
The data transfer of the scanned barcodes is done via the included USB cable.
Fixed connection
The USB cable will be connected to the scanner via RJ50 plug. The connection is flush, so that the cable can only be removed using with the included ejection tool. Thus there is always a firm connection between the scanner and the system.

Scanning

Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: LED
Linear (1D) barcodes supported: Code 128, Code 39, EAN-13, EAN-8, ISBN, PDF417
2D (matrix stacked) barcodes supported: Data Matrix, Micro QR Code, QR Code
Optical sensor resolution (W x H): 640 x 480 pixels
Working distance: 35 cm

Ports interfaces

Connectivity technology: Wired
Standard interfaces: USB
Cable length: 1.5 m

Performance

Product colour: Black

Power

Power source type: USB
Battery capacity: 262 mAh
Input voltage: 5 V
Power consumption: 75 mA

Weight dimensions

Width: 90 mm
Depth: 160 mm
Height: 65 mm
Weight: 150 g

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -30 - 70 °C
Operating relative humidity (H-H): 5 - 95%
