DeLOCK 90556 barcode reader

DeLOCK Industrial Barcode Scanner 1D and 2D for 2.4 GHz or Bluetooth with inductive charging station. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: Bluetooth, RF Wireless, Operating frequency: 2400 MHz. Product colour: Black, Orange, Internal memory: 16 MB. Power source type: Battery, Battery technology: Lithium Polymer (LiPo), Battery type: Built-in battery. Weight: 321 g, Width: 80 mm, Depth: 185 mm

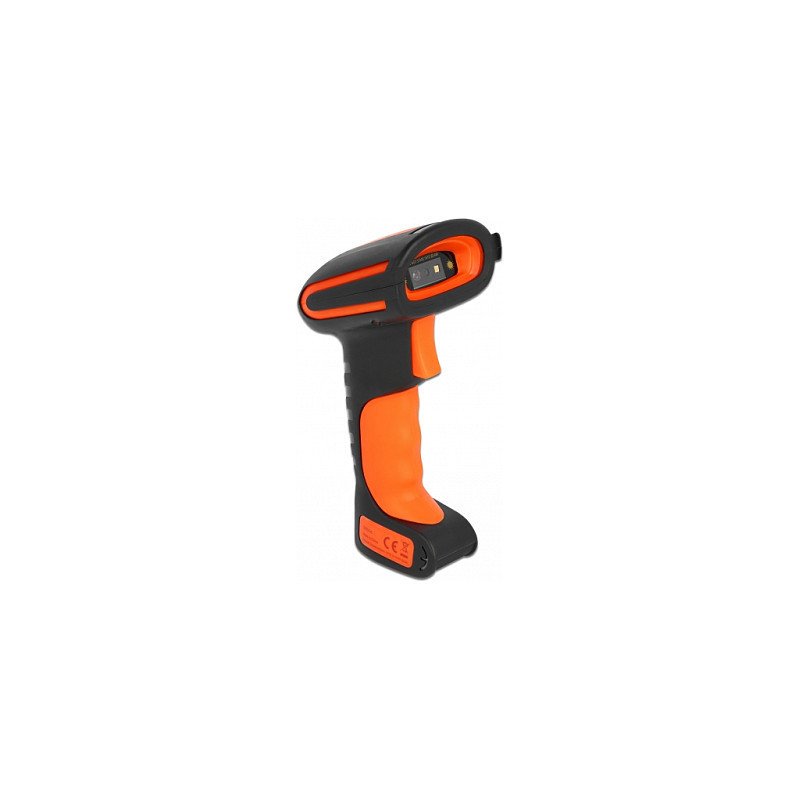

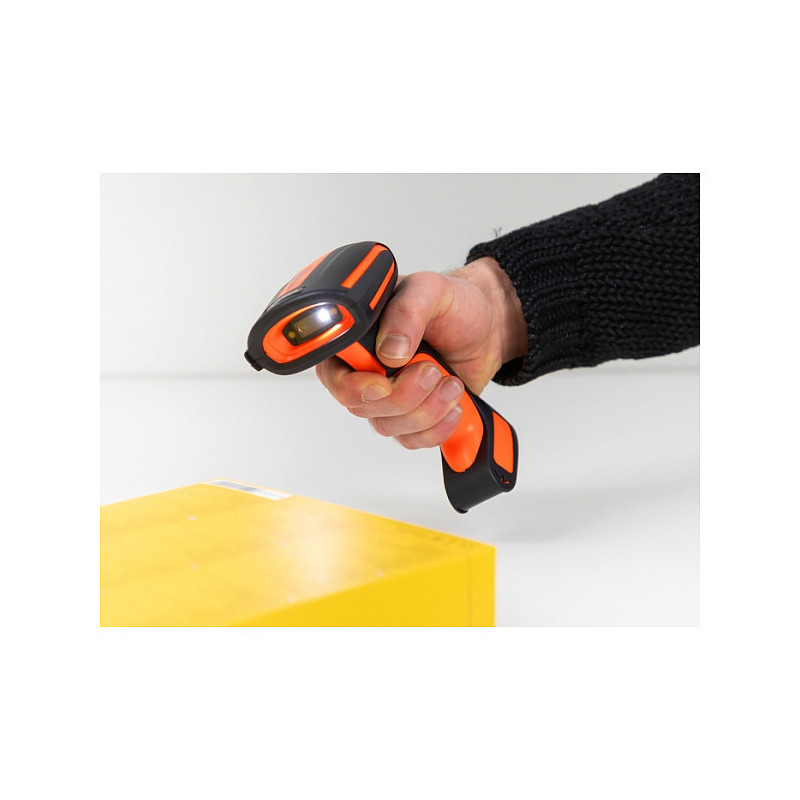

This barcode scanner by Delock can be wirelessly connected to a PC, laptop or directly to a mobile phone or tablet. All common 1D and 2D barcode types can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.
Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 120 scans per second under optimal lighting conditions.

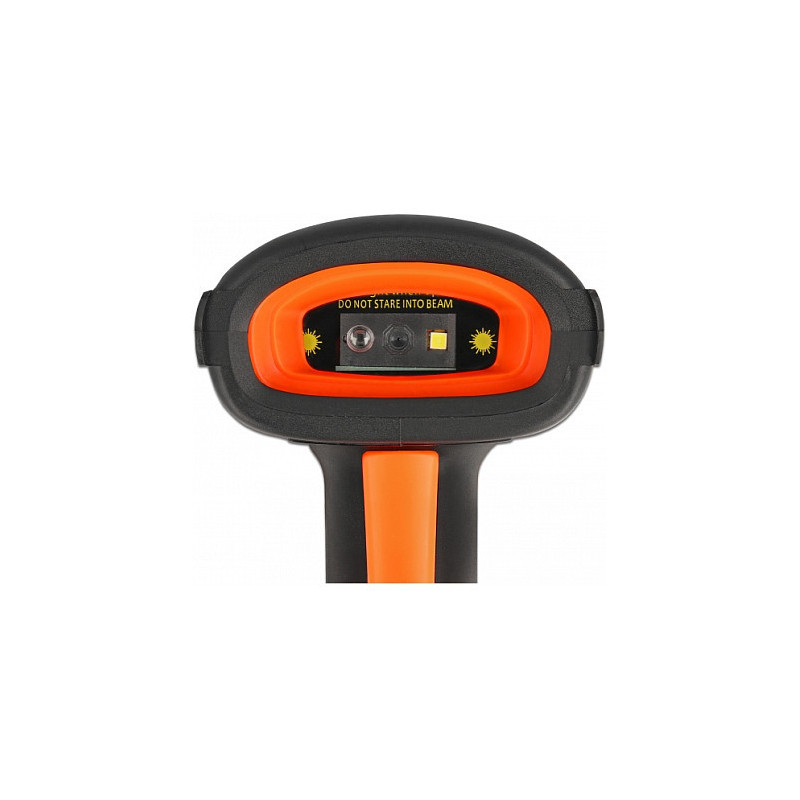

In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.
Sturdy processing
Due to its sturdy design, the scanner can easily absorb falls of up to 1.80 m and is therefore ideally suited for use in industrial environments.
Charging station acts as interface

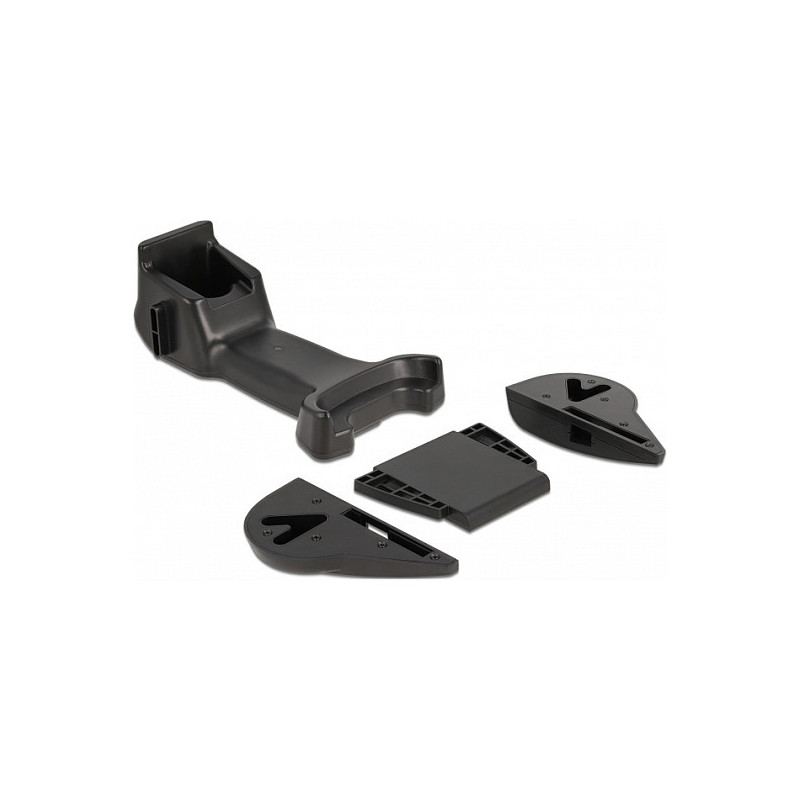

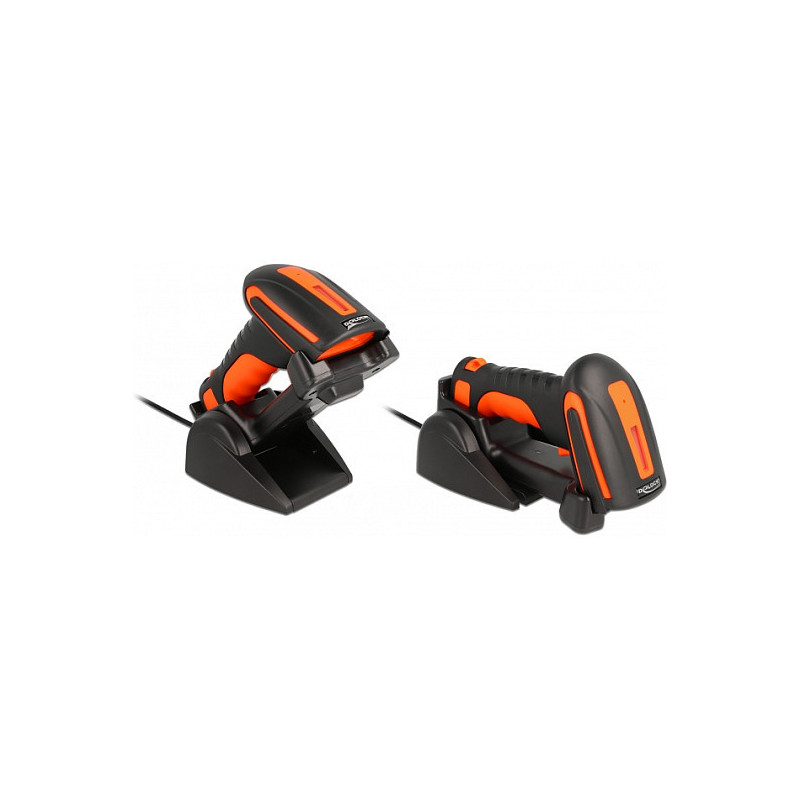

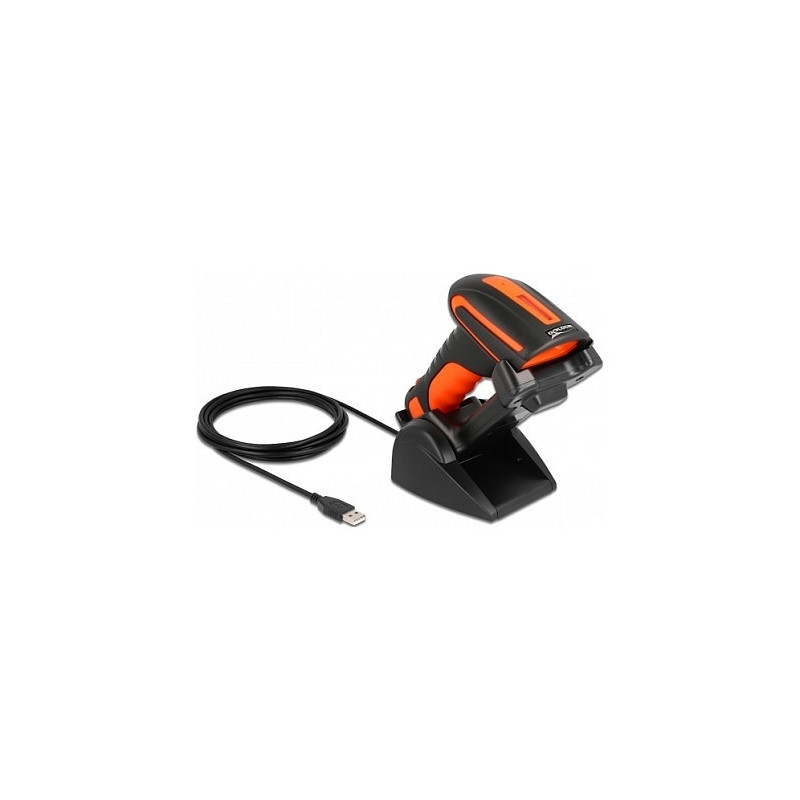

The data transfer of the scanned barcodes is done either via Bluetooth or via the 2.4 GHz frequency band. In addition to charging the hand scanner, the scanner's inductive charging station also functions as both a Bluetooth and a 2.4 GHz interface and is connected to the system via a USB cable.

Scanning

Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
Linear (1D) barcodes supported: Codabar, Code 128, Code 39, EAN-13, EAN-8, ISBN, Interleaved 2 of 5, MSI, PDF417
2D (matrix stacked) barcodes supported: Code 39, Data Matrix, Micro QR Code, PDF417, QR Code
Optical sensor resolution (W x H): 1280 x 800 pixels
Working distance: 50 cm

Ports interfaces

Connectivity technology: Wired
Standard interfaces: Bluetooth, RF Wireless
Bluetooth version: 4.1
Operating frequency: 2400 MHz

Performance

Internal memory: 16 MB
Product colour: Black, Orange

Power

Power source type: Battery
Battery technology: Lithium Polymer (LiPo)
Battery type: Built-in battery
Battery capacity: 1800 mAh

Weight dimensions

Width: 80 mm
Depth: 185 mm
Height: 100 mm
Weight: 321 g

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%
