DeLOCK 90507 barcode reader

DeLOCK Industrial Barcode Scanner 1D and 2D for 2.4 GHz, Bluetooth or USB. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired & Wireless, Standard interfaces: Bluetooth, USB, Wireless range: 150 m. Product colour: Black, Orange, Internal memory: 16 MB. Power source type: Battery, Battery technology: Lithium Polymer (LiPo), Battery type: Built-in battery. Weight: 321 g, Width: 100 mm, Depth: 185 mm

This barcode scanner by Delock can be wirelessly connected to a PC, laptop or directly to a mobile phone or tablet. All common 1D and 2D barcode types can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.

Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 120 scans per second under optimal lighting conditions.

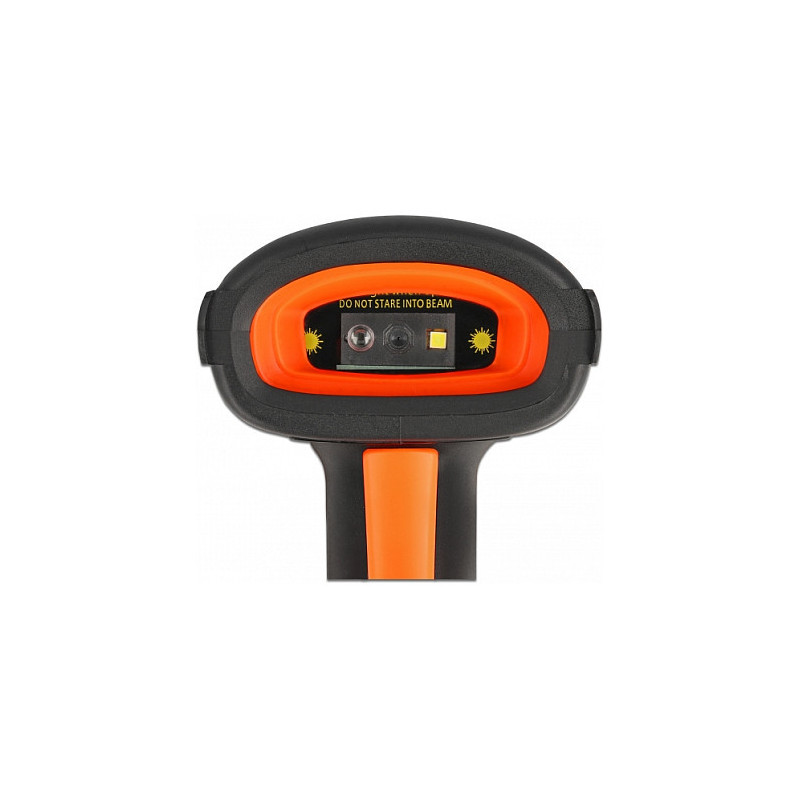

In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.

Sturdy processing
Due to its sturdy design, the scanner can easily absorb falls of up to 1.80 m and is therefore ideally suited for use in industrial environments.

Transmission via Bluetooth, USB or 2.4 GHz

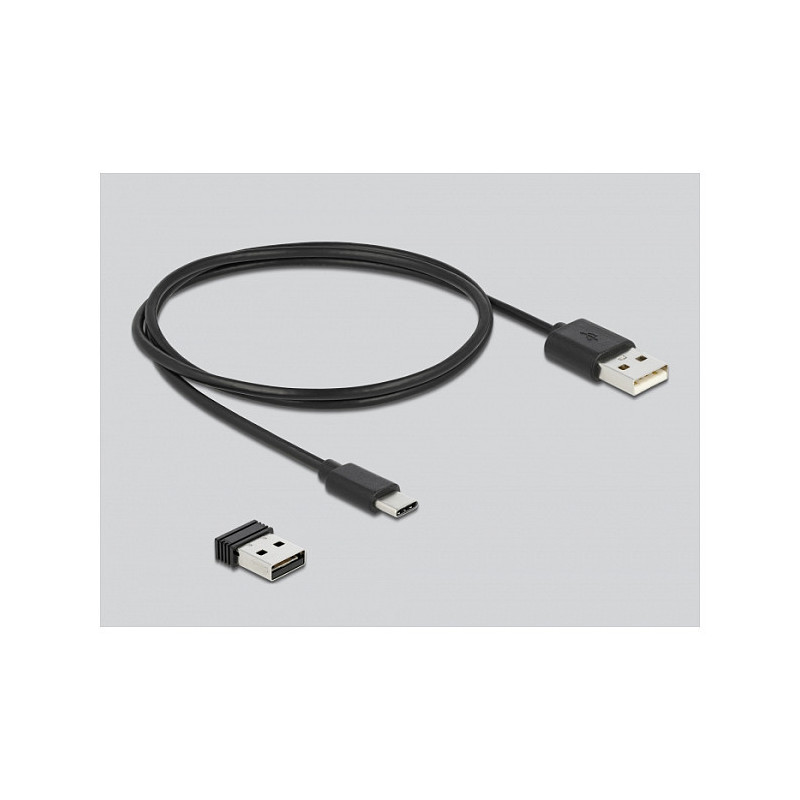

The data transfer of the scanned barcodes is done either via Bluetooth directly with the Bluetooth capable output device or via the 2.4 GHz frequency band using the included USB dongle. Alternatively, the scanner can be connected to the computer with the included USB cable.

Scanning

Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
Linear (1D) barcodes supported: Codabar, Code 128, Code 39, EAN-13, EAN-8, ISBN, Industrial 2 of 5
2D (matrix & stacked) barcodes supported: Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code
Optical sensor resolution (W x H): 1280 x 800 pixels
Working distance: 50 cm
Read rate (max): 120 reads/s

Ports & interfaces

Connectivity technology: Wired & Wireless
Standard interfaces: Bluetooth, USB
Wireless range: 150 m
Bluetooth version: 4.1
Operating frequency: 2400 MHz
Cable length: 2 m

Performance

Internal memory: 16 MB
Feature: Built-in processor
Product colour: Black, Orange

Power

Power source type: Battery
Battery technology: Lithium Polymer (LiPo)
Battery type: Built-in battery
Number of batteries supported: 1
Battery capacity: 1800 mAh
Input voltage: 5 V
Power consumption: 220 mA

Weight & dimensions

Width: 100 mm
Depth: 185 mm
Height: 80 mm
Weight: 321 g

Packaging data

Cables included: USB

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%

Logistics data

Harmonized System (HS) code: 84716070
