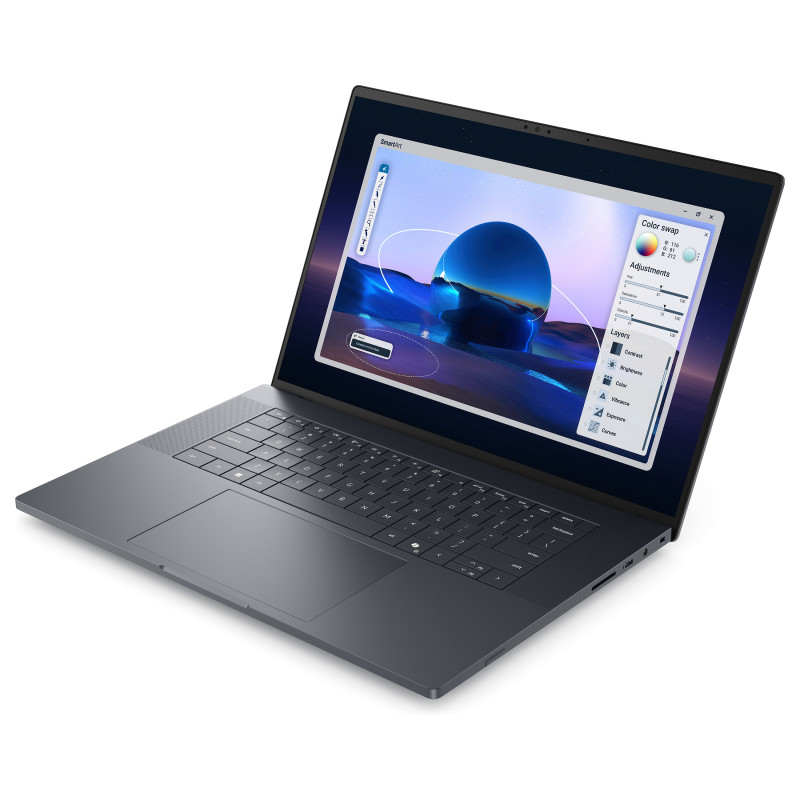

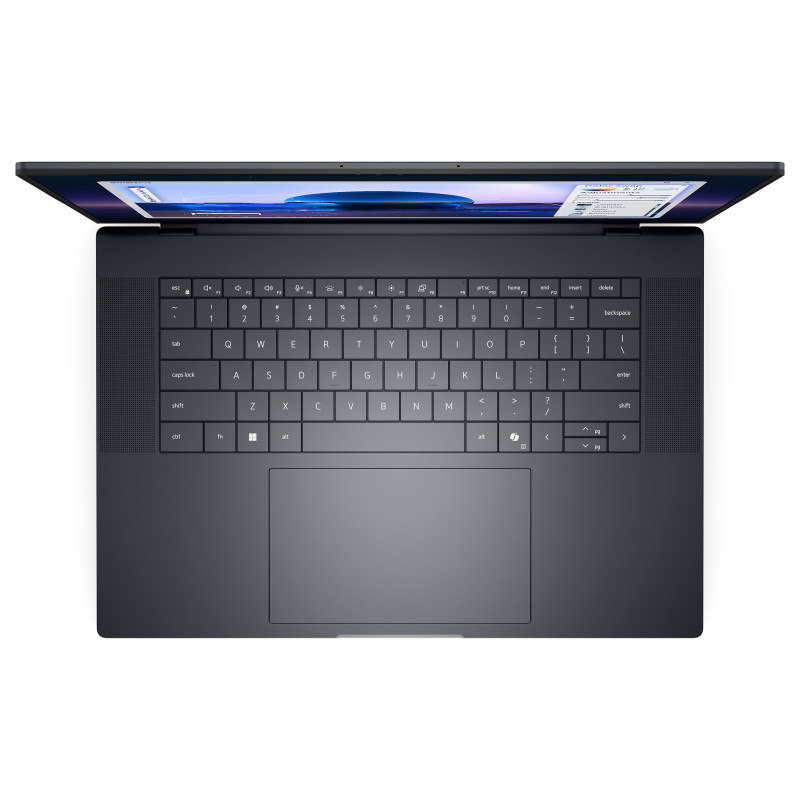

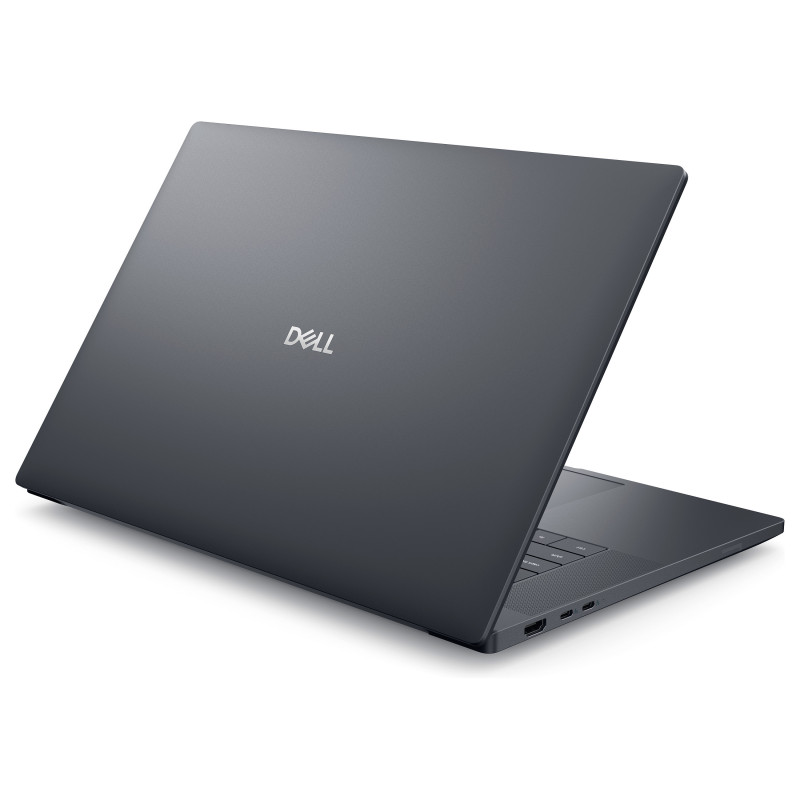

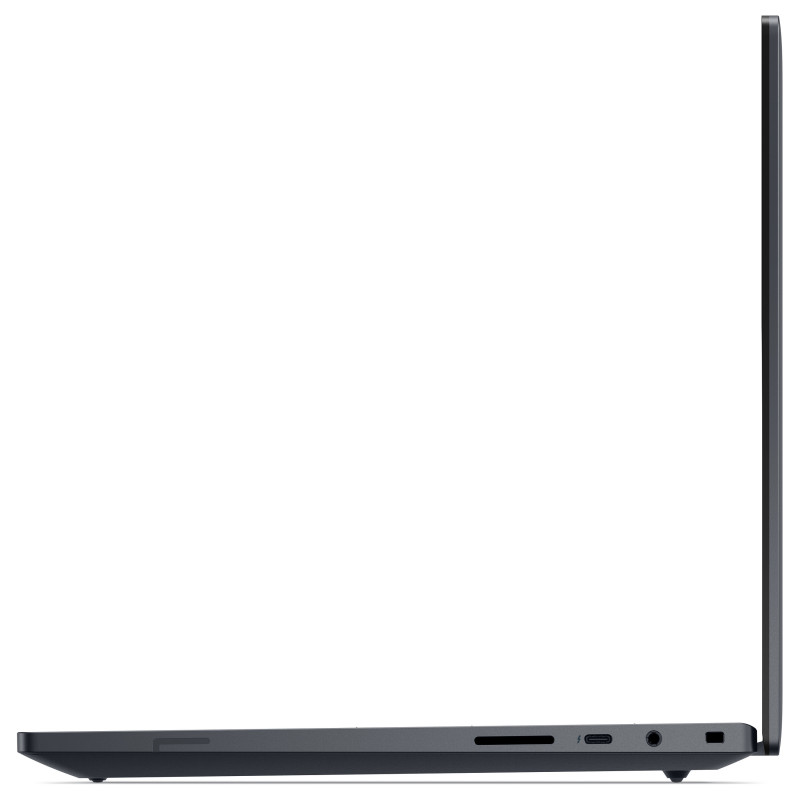

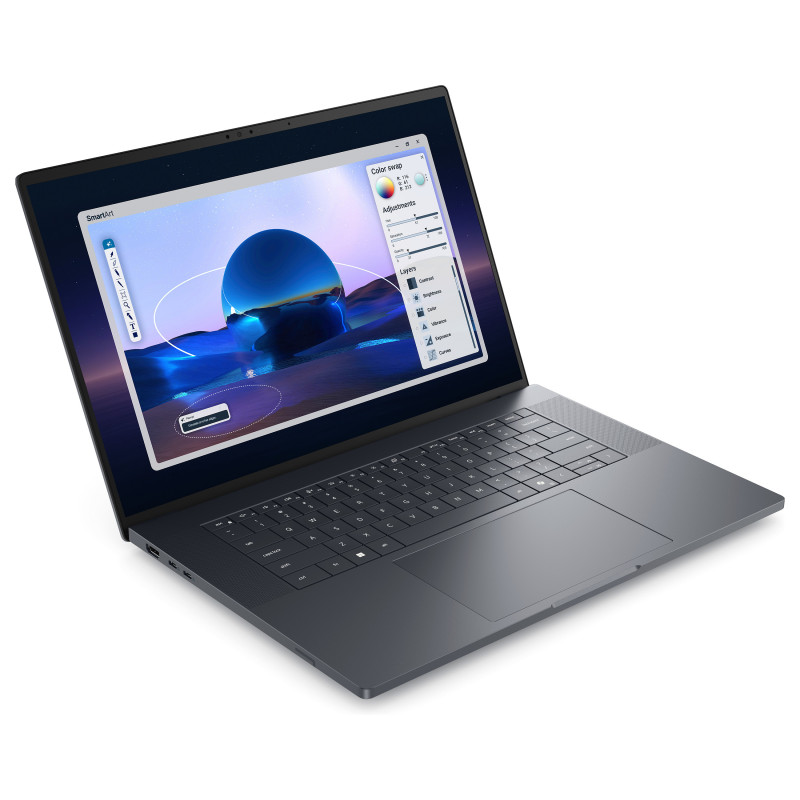

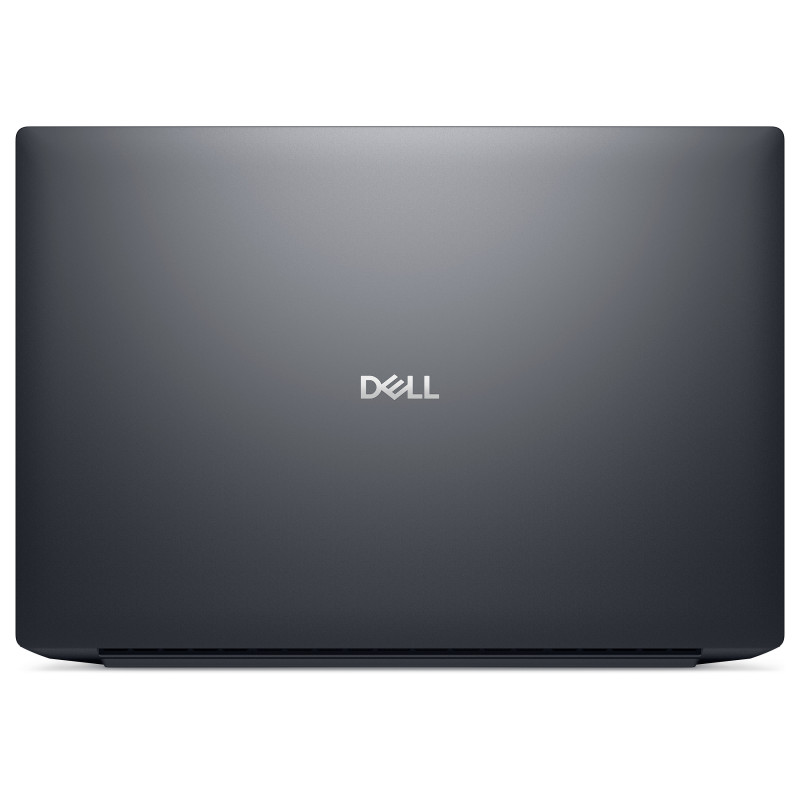

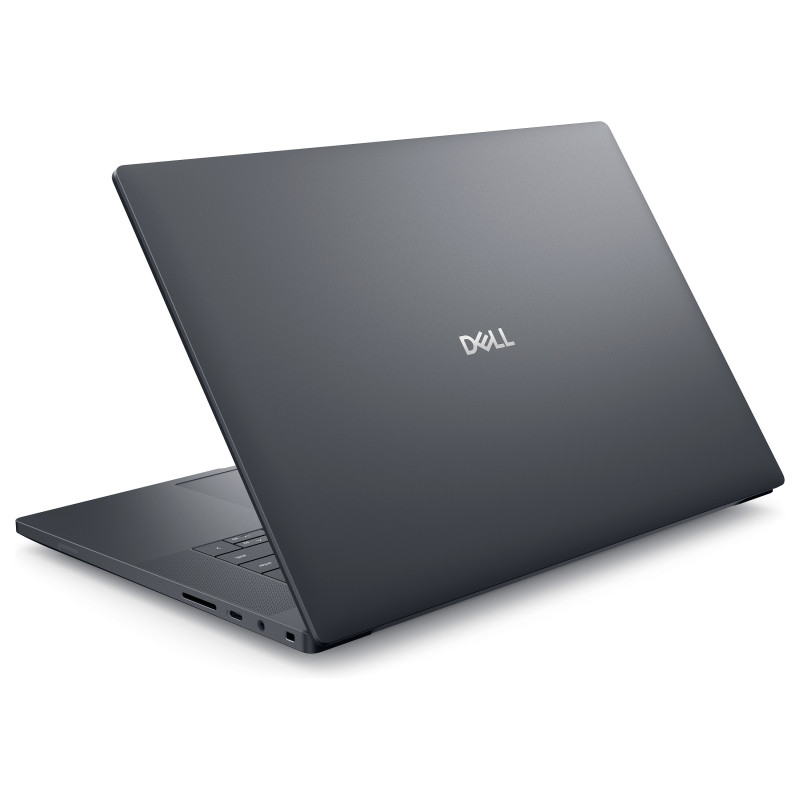

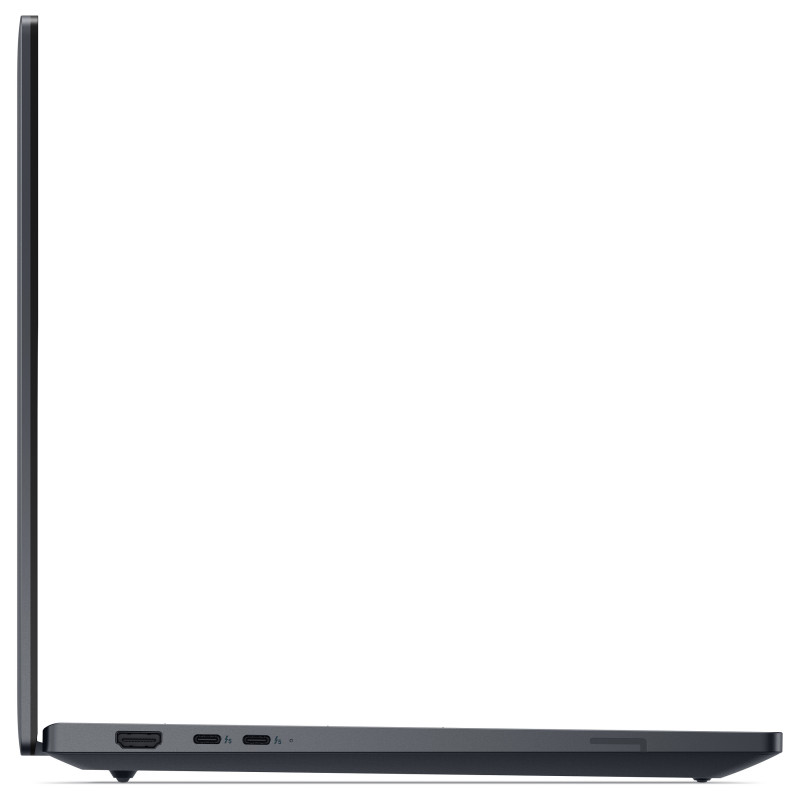

DELL Pro Max 16 Premium MA16250

DELL Pro Max 16 Premium MA16250. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 285H. Display diagonal: 40.6 cm (16"), HD type: Full HD+, Display resolution: 1920 x 1200 pixels. Internal memory: 64 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T, Discrete graphics card model: NVIDIA RTX PRO 2000 Blackwell. Operating system installed: Windows 11 Pro. Product colour: Black

Design

Colour name: Magnetite
Product type: Mobile workstation
Product colour: Black
Form factor: Clamshell
Feature: Intel® vPro™ Platform Eligibility

Display

Display diagonal: 40.6 cm (16")
Display resolution: 1920 x 1200 pixels
HD type: Full HD+
Panel type: WVA
Native aspect ratio: 16:10
Feature: Anti-glare screen
Display brightness: 500 cd/m²
Pixel density: 142 ppi
RGB colour space: DCI-P3
Colour gamut: 100%
Display response rise/fall: 35 ms
Maximum refresh rate: 120 Hz
Contrast ratio (typical): 1500:1

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 9
Processor generation: Intel Core Ultra (Series 2)
Processor model: 285H
Processor cores: 16
Processor threads: 16
Processor boost frequency: 5.4 GHz
Performance cores: 6
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 5.4 GHz
Efficient-core Max Turbo Frequency: 4.5 GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core base frequency: 2.9 GHz
Efficient-core base frequency: 2.7 GHz
Low Power Efficient-core Base Frequency: 1000 MHz
Processor cache: 24 MB
Processor base power: 45 W
Maximum turbo power: 115 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 99 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 77 TOPs

Memory

Internal memory: 64 GB
Internal memory type: LPDDR5x-SDRAM
Memory form factor: On-board
Maximum internal memory: 64 GB
Memory data transfer rate: 8400 MT/s

Storage

Total storage capacity: 1 TB
Storage media: SSD
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD memory type: TLC
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Feature: Self-Encrypting Drive (SED)
Optical drive type: No
Feature: Card reader integrated
Compatible memory cards: SD, SDHC, SDXC

Graphics

Discrete GPU manufacturer: NVIDIA
Discrete graphics card model: NVIDIA RTX PRO 2000 Blackwell
Discrete graphics card memory: 8 GB
Discrete graphics memory type: GDDR7
Feature: On-board graphics card
On-board GPU manufacturer: Intel
Feature: Discrete graphics card
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc 140T

Audio

Audio chip: Cirrus Logic CS42L43
Audio system: Dolby Atmos
Number of built-in speakers: 4
Feature: Built-in microphone

Camera

Feature: Front camera
Front camera resolution (numeric): 8 MP
Front camera resolution: 2560 x 1440 pixels
Video capturing speed: 30 fps
Feature: Infrared (IR) camera

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Antenna type: 2x2
WLAN controller model: Intel Wi-Fi 7 BE201
WLAN controller manufacturer: Intel
Feature: Bluetooth
Feature: MIMO
MIMO type: Multi User MIMO

Ports & interfaces

HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 1
Thunderbolt 5 ports quantity: 2
Feature: Intel® Thunderbolt 4
Feature: Intel® Thunderbolt 5
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode

Performance

Motherboard chipset: Intel SoC
Feature: Ambient light sensor
Feature: Accelerometer
Feature: Hall sensor

Keyboard

Pointing device: Touchpad
Feature: Keyboard backlit
Feature: Spill-resistant keyboard
Keyboard language: German
Feature: Copilot key

Software

Operating system architecture: 64-bit
Trial software: Activate Your Microsoft 365 For A 30 Day Trial
Operating system installed: Windows 11 Pro

Brand-specific features

Brand specific technologies: Battery-saving Mini-LED, Express Charge Boost capable, ExpressSign-In, Intelligent Privacy, TNR, Zero-lattice Keyboard

Battery

Battery technology: Lithium-Ion (Li-Ion)
Number of battery cells: 6
Battery capacity: 96 Wh
Battery voltage: 11.7 V
Battery recharge time: 3 h
Feature: Fast charging
Battery weight: 351 g

Power

Feature: USB Type-C charging port
USB Type-C required charging power (min): 45 W
USB Type-C required charging power (max): 128 W
Feature: USB Power Delivery (USB PD)

Security

Feature: Cable lock slot
Cable lock slot type: Wedge
Feature: Fingerprint reader
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: -15.2 - 3048 m
Non-operating altitude: -15.2 - 10668 m
Operating shock: 110 G
Non-operating shock: 160 G
Operating vibration: 0.66 G
Non-operating vibration: 1.3 G

Weight & dimensions

Width: 353.8 mm
Depth: 240.3 mm
Height: 22 mm
Height (front): 2.08 cm
Height (rear): 2.08 cm
Weight: 2.19 kg

Carbon footprint

Total carbon footprint (kg of CO2e): 175
Carbon emissions, manufacturing (kg of CO2e): 136.5
Carbon emissions, logistics (kg of CO2e): 6.48
Carbon emissions, energy usage (kg of CO2e): 30.1
Carbon emissions, end-of-life (kg of CO2e): 1.93
PAIA version: GaBi version 1, 2025
