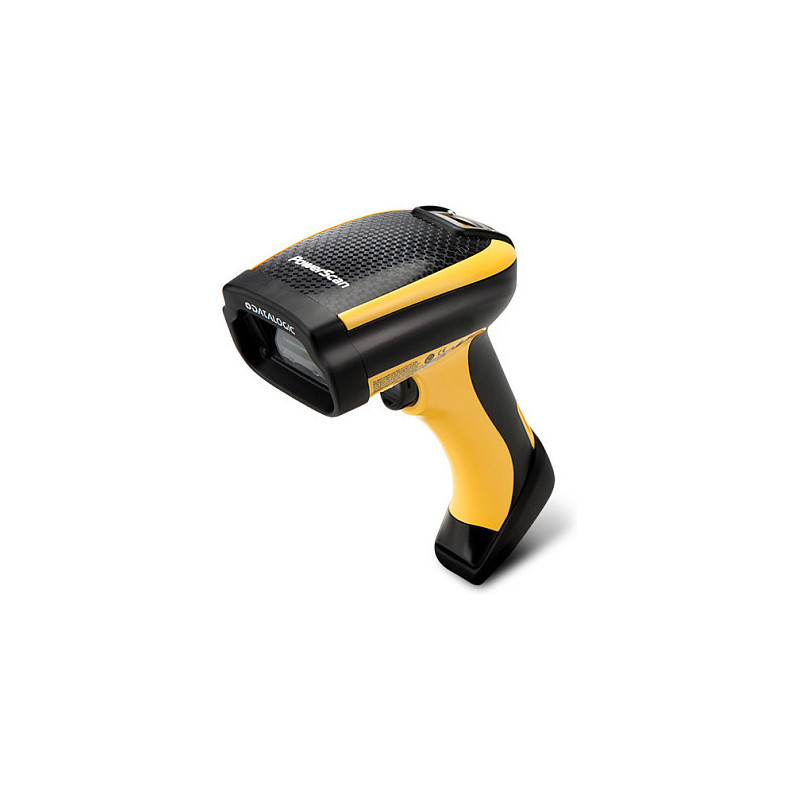

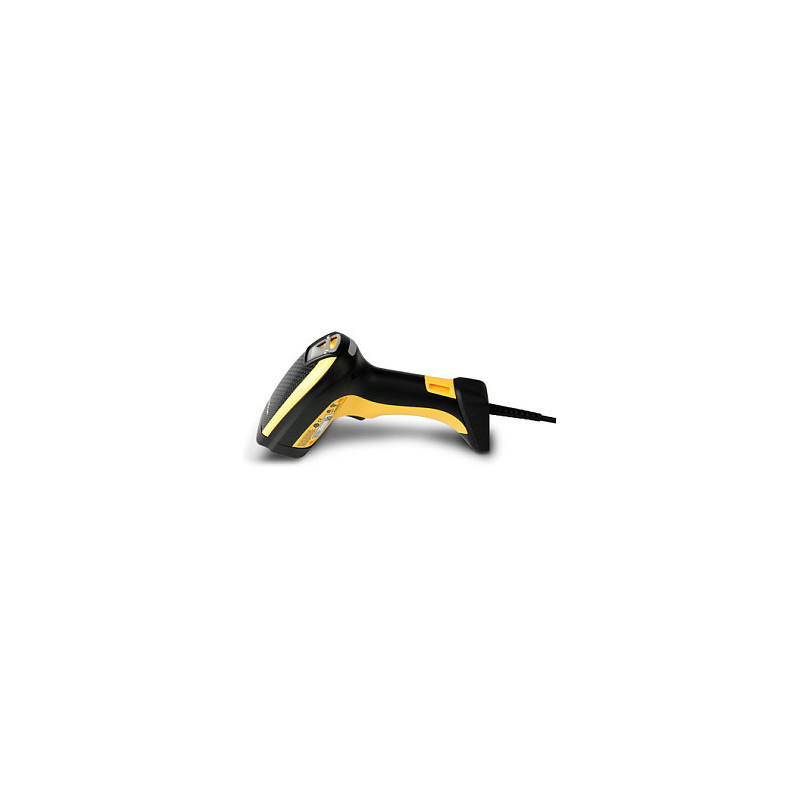

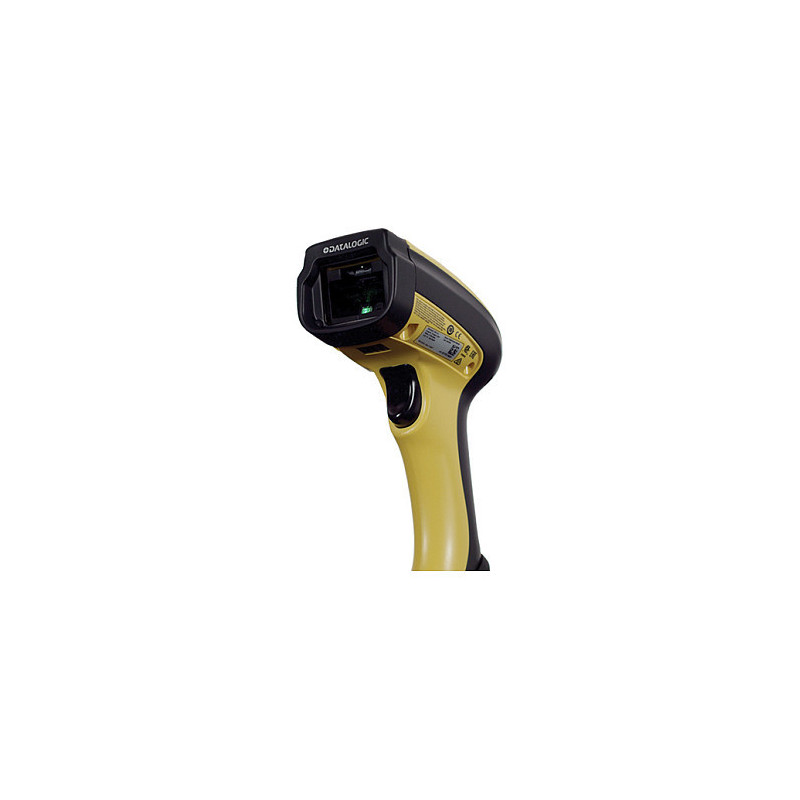

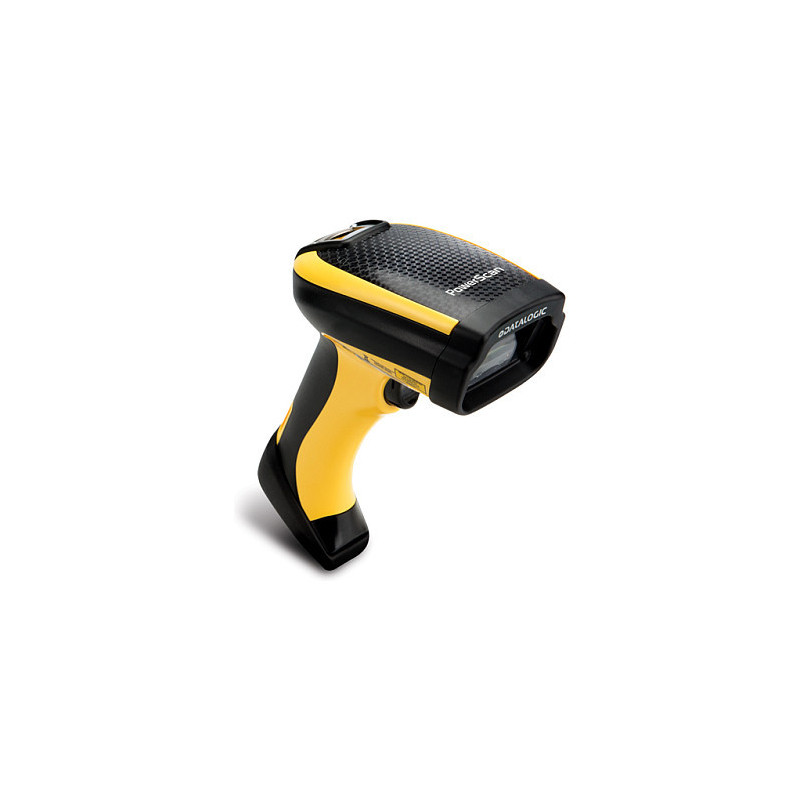

Datalogic POWERSCAN PD9100

Datalogic POWERSCAN PD9100. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: RS-232, USB, Keyboard wedge. Product colour: Black, Yellow, International Protection (IP) code: IP65, Certification: IEC 62471. Input voltage: 30 V. Weight: 340 g, Width: 110 mm, Depth: 74 mm
PowerScan PD9130
Overview

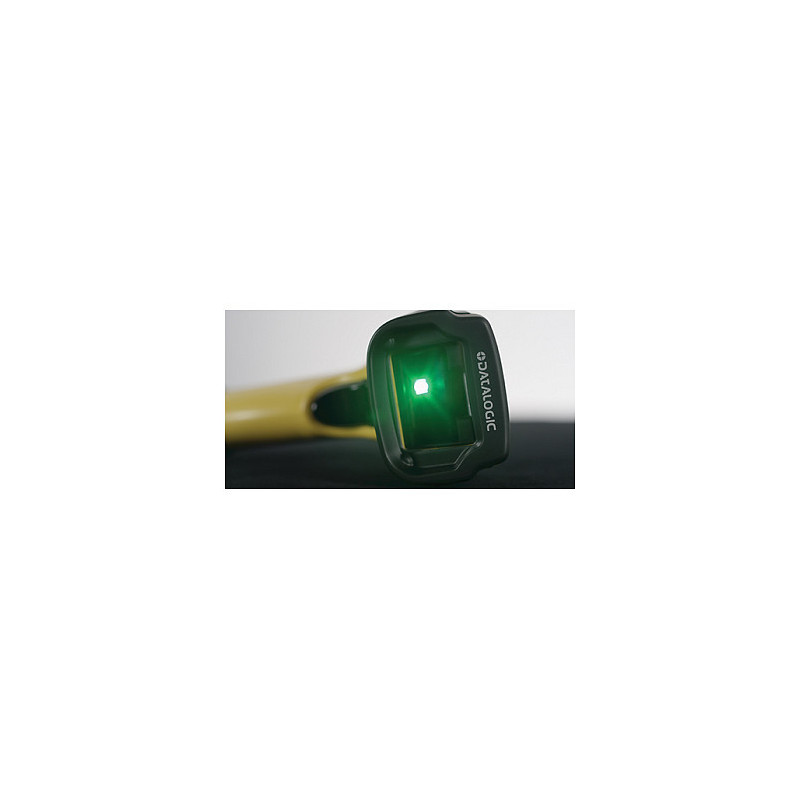

The PowerScan PD9130 linear imager is a corded device offering state-of-the-art performance in an industrial product. This linear imager introduces Datalogic's new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager. The PD9130 imager features Datalogic's exclusive 3 Green Lights (3GL) for superior good read feedback. The patented 'Green Spot' technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle. The PD9130 imager's mechanics have been developed and tested to withstand extreme environmental conditions, maintaining consistent reading performance without degrading performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan-intensive operations. All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.

Scanning

Type: Handheld bar code reader
Scanner type: 1D
Sensor type: LED
Linear (1D) barcodes supported: Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN 2, EAN 5, Plessey
Working distance: 6.1 m
Tilt reading angle: -45 - 45°
Pitch reading angle: -75 - 75°
Yaw reading angle: -70 - 70°

Ports interfaces

Connectivity technology: Wired
Standard interfaces: RS-232, USB, Keyboard wedge

Performance

International Protection (IP) code: IP65
Product colour: Black, Yellow
Certification: IEC 62471

Power

Input voltage: 30 V

Weight dimensions

Width: 110 mm
Depth: 74 mm
Height: 212 mm
Weight: 340 g

Packaging data

Cables included: No

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 95%

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 84716070
