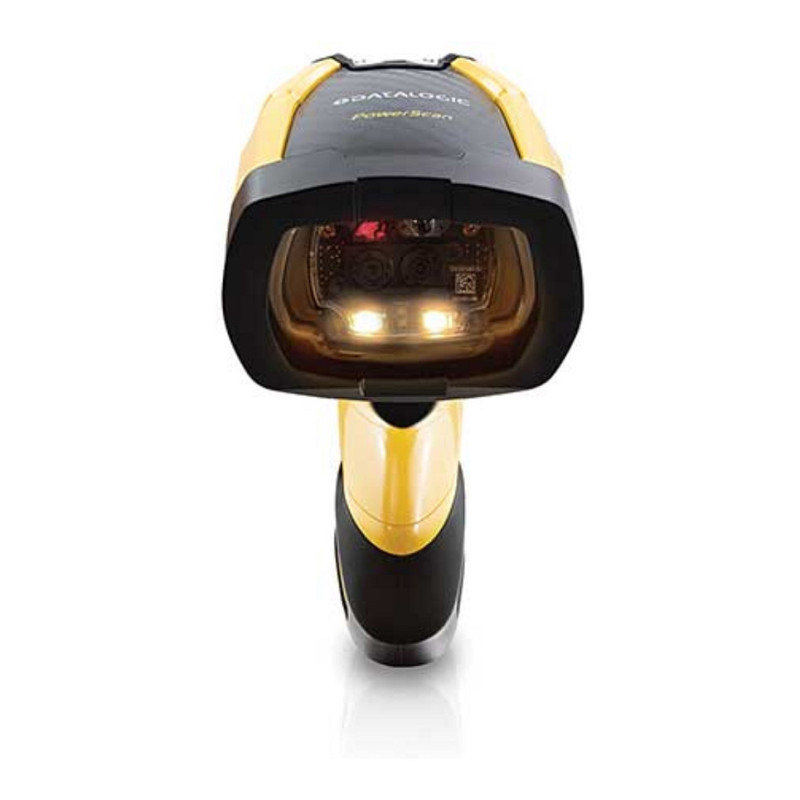

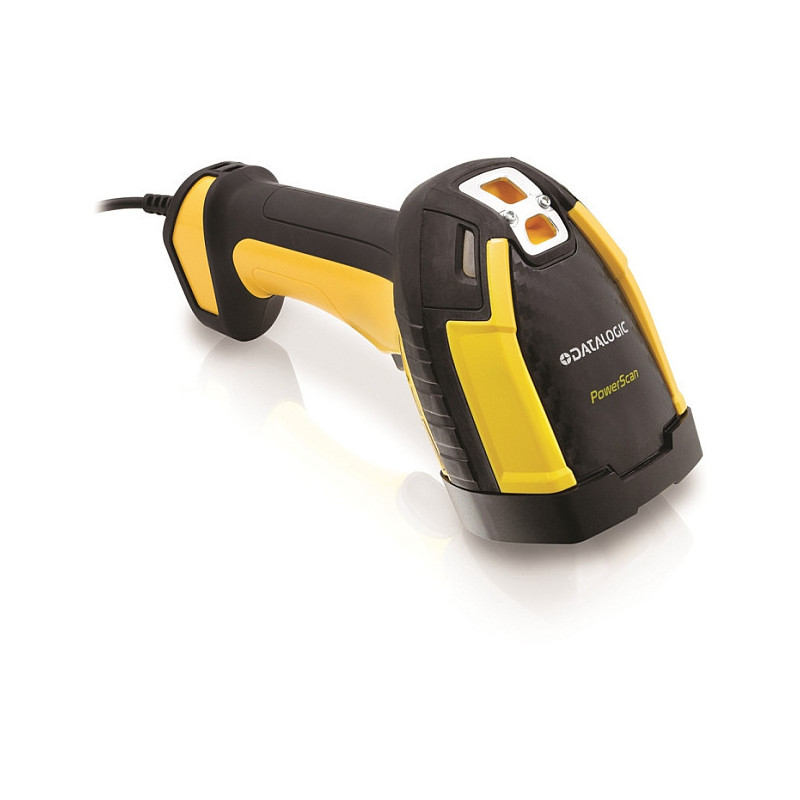

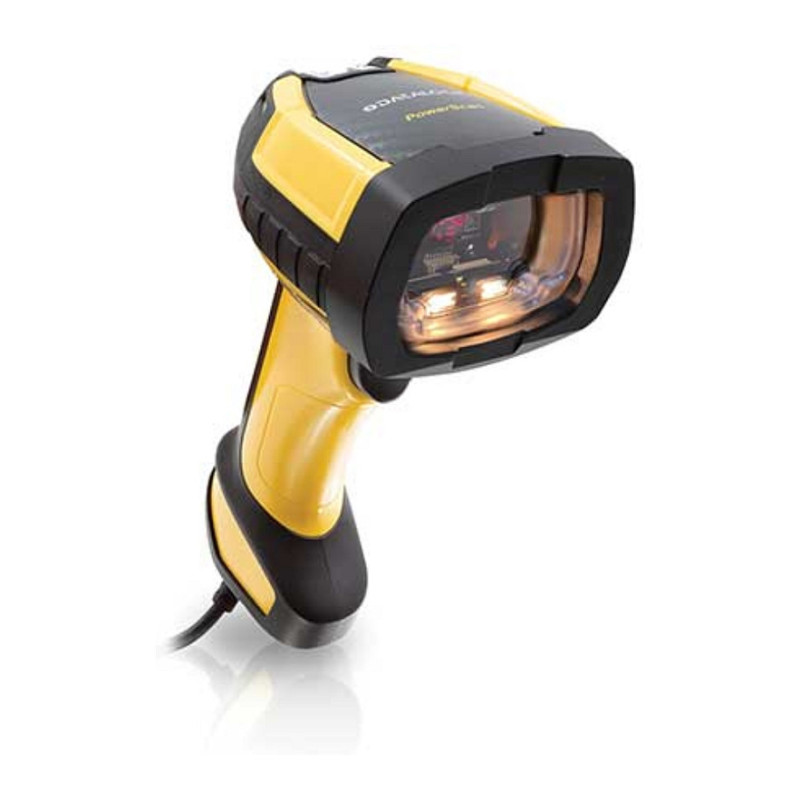

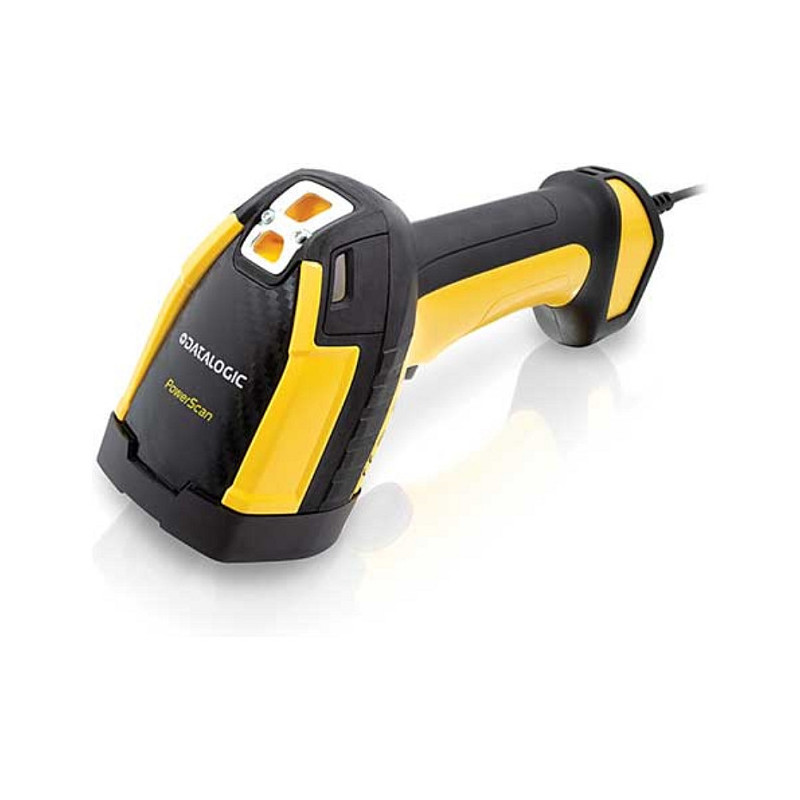

Datalogic PD9630-HP barcode reader

Datalogic PD9630-HP. Type: Handheld bar code reader, Scanner type: 1D/2D, Linear (1D) barcodes supported: Codabar, Code 128, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, UPC-A, UPC-E. Connectivity technology: Wired, Standard interfaces: RS-232, USB. Product colour: Black, Yellow, International Protection (IP) code: IP65, IP67, Protection features: Dirt resistant, Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water.... Power source type: RS-232, USB, Input voltage: 5 - 30 V, Power consumption: 280 mA. Weight: 318 g, Width: 79 mm, Depth: 140 mm

PowerScan PD9630-HP, High Performance, USB/RS-232 Multi-Interface

Ultra-rugged with new balanced ergonomics!
The PowerScan family of bar code readers are the ultimate industrial
handheld scanners designed and constructed to withstand the
toughest environmental conditions. The PowerScan PD9630 imagers
have an ultra-rugged design, an ergonomic shape with well-balanced
weight to reduce operator stress during daily activities and an intuitive
aiming system, allowing the highest first-pass reading rate while
reducing unnatural wrist movement.

Three optic options to fulfill any customer need
The PowerScan PD9630 area imagers are available in three different
optics, to satisfy any customer need. The Standard Range optic is
ideal for most of the applications requiring barcode reading at intuitive
distance; the High Performance optic adds the capability to decode
high density barcodes together with an increased depth of field on
standard 1D/2D codes; the Document Capture model is thought for
Wide Angle code reading and Document Capture applications.

The best feedback to the operator
The PD9630 area imagers also feature Datalogic's exclusive 3 Green
Lights (3GL™) for superior good-read feedback together with a loud
beeper and vibration. The 'Green Spot' technology directly on the
code and dual Good Read LEDs increase visibility at any angle. All
models have multi-interface capabilities featuring the most popular
interfaces: RS-232, USB and offer an optional Ethernet for standard or
industrial uses.

Datalogic's Motionix™ motion-sensing technology detects the natural
actions of the operator to automatically switch the scanner into the
desired scanning mode (handheld or presentation scanning).

Scanning

Type: Handheld bar code reader
Scanner type: 1D/2D
Linear (1D) barcodes supported: Codabar, Code 128, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported: Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Optical sensor resolution (W x H): 1280 x 800 pixels
Working distance: 20 cm
Light levels (direct sunlight): 0 - 100000 lx
Wavelength: 630 nm
Tilt reading angle: 0 - 360°
Pitch reading angle: -52 - 52°
Yaw reading angle: -52 - 52°

Ports & interfaces

Connectivity technology: Wired
Standard interfaces: RS-232, USB

Performance

International Protection (IP) code: IP65, IP67
Protection features: Dirt resistant, Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water resistant
LED indicators: Yes
Feature: Buzzer
Print contrast: 15%
Product colour: Black, Yellow
Feature: Vibration function

Power

Power source type: RS-232, USB
Input voltage: 5 - 30 V
Power consumption: 280 mA

Weight & dimensions

Width: 79 mm
Depth: 140 mm
Height: 198 mm
Weight: 318 g

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 95%

Technical details

Compliance certificates: REACH, RoHS

Logistics data

Harmonized System (HS) code: 84716070
