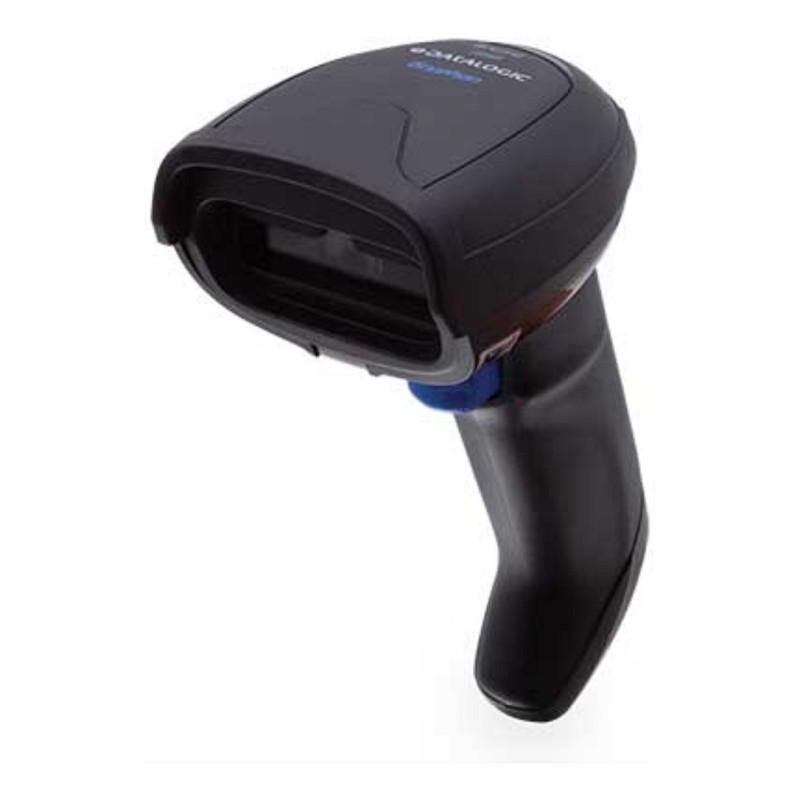

Datalogic Gryphon I GD4220

Datalogic Gryphon I GD4220. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: Linear. Connectivity technology: Wired, Standard interfaces: Keyboard wedge, RS-232, USB. Product colour: Black, International Protection (IP) code: IP52, Protection features: Electrostatic Discharge (ESD) protection. Power source type: DC, USB, Input voltage: 5 V. Weight: 163 g, Width: 166 mm, Depth: 68 mm

The Gryphon™ 4200 series represents the premium range of 1D hand held scanners from Datalogic for general purpose applications. Designed to provide the best-in-class reading performance, the Gryphon 4200 readers' ability to capture bar codes from near to far, to read both high-density and low resolution codes, to decode hard-to-read, poorly printed or damaged codes and to easily read bar codes from mobile devices simplifies all applications. Ideal for hand held reading, the Gryphon 4200 utilizes Datalogic's Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the 'ready-to-read' scanning mode. Datalogic's distinctive 'soft line viewfinder' helps the operator to easily target the code to be read, making it easier and faster to point, shoot and decode the proper label, reducing accidental reads in a multiple bar code situation. The Gryphon 4200 Series includes 3 models: a corded 'Desk' model (GD4200), a cordless model featuring Bluetooth® wireless technology (GBT4200) and a cordless model featuring Datalogic's STAR Cordless System™ narrow band radio (GM4200).

Scanning

Type: Handheld bar code reader
Scanner type: 1D
Sensor type: Linear
Linear (1D) barcodes supported: GS1 DataBar
2D (matrix & stacked) barcodes supported: Not supported
Read rate (max): 400 reads/s
Tilt reading angle: 0 - 45°
Pitch reading angle: 0 - 65°
Yaw reading angle: 0 - 65°

Ports & interfaces

Connectivity technology: Wired
Standard interfaces: Keyboard wedge, RS-232, USB

Performance

International Protection (IP) code: IP52
Protection features: Electrostatic Discharge (ESD) protection
LED indicators: Yes
Feature: Ambient lighting
Print contrast: 15%
Product colour: Black

Power

Power source type: DC, USB
Input voltage: 5 V

Weight & dimensions

Width: 166 mm
Depth: 68 mm
Height: 109 mm
Weight: 163 g

Packaging data

Cables included: USB Type-C

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 0 - 95%

Logistics data

Harmonized System (HS) code: 84716070
