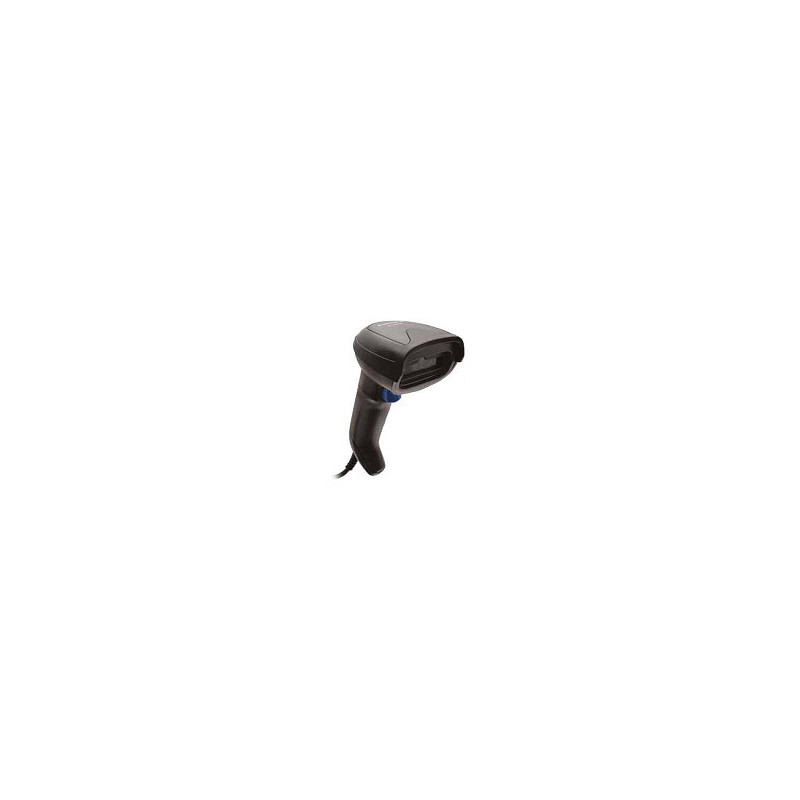

Datalogic Gryphon GBT4200

Datalogic Gryphon GBT4200. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: CCD. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Wireless range: 100 m. Product colour: Black, International Protection (IP) code: IP52, Protection features: Electrostatic Discharge (ESD) protection. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery type: Built-in battery. Weight: 235 g, Width: 166 mm, Depth: 68 mm

The Gryphon 4200 series represents the premium range of 1D hand held scanners from Datalogic for general purpose applications. Designed to provide the best-in-class reading performance, the Gryphon 4200 readers' ability to capture bar codes from near to far, to read both high-density and low resolution codes, to decode hard-to-read, poorly printed or damaged codes and to easily read bar codes from mobile devices simplifies all applications. Ideal for hand held reading, the Gryphon 4200 utilizes Datalogic's Motionix motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the 'ready-to-read' scanning mode. Datalogic's distinctive 'soft line viewfinder' helps the operator to easily target the code to be read, making it easier and faster to point, shoot and decode the proper label, reducing accidental reads in a multiple bar code situation. The Gryphon 4200 Series includes 3 models: a corded 'Desk' model (GD4200), a cordless model featuring Bluetooth wireless technology (GBT4200) and a cordless model featuring Datalogic's STAR Cordless System narrow band radio (GM4200).

Scanning

Type: Handheld bar code reader
Scanner type: 1D
Sensor type: CCD
Linear (1D) barcodes supported: GS1 DataBar
Scanner resolution: 0.077 mm
Read rate (max): 400 reads/s
Light levels (direct sunlight): 0 - 130000 lx
Tilt reading angle: -45 - 45°
Pitch reading angle: -65 - 65°
Yaw reading angle: -65 - 65°

Ports & interfaces

Connectivity technology: Wireless
Standard interfaces: Bluetooth
Wireless range: 100 m
Bluetooth version: 4.0
Operating frequency: 2400 MHz

Performance

International Protection (IP) code: IP52
Protection features: Electrostatic Discharge (ESD) protection
LED indicators: Yes
Product colour: Black

Power

Power source type: Battery
Battery technology: Lithium-Ion (Li-Ion)
Battery type: Built-in battery
Number of batteries supported: 1
Battery capacity: 2550 mAh
Battery voltage: 3.6 V
Number of reads per charge: 80000
Charging time: 4 h
Input voltage: 4.5 - 14 V

Weight & dimensions

Width: 166 mm
Depth: 68 mm
Height: 109 mm
Weight: 235 g

Packaging data

Cables included: USB
Feature: Charging base

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 84716070
