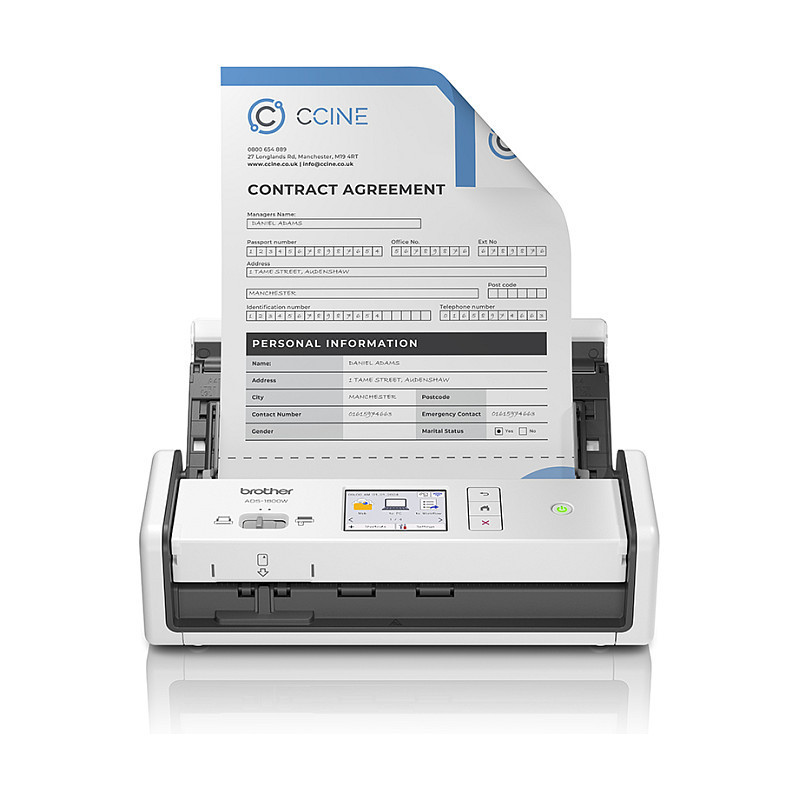

Brother ADS-1800W scanner

Brother ADS-1800W. Maximum scan size: 215.9 x 355.6 mm, Optical scanning resolution: 600 x 600 DPI, Enhanced scan resolution: 1200 x 1200 DPI. Scanner type: ADF scanner, Product colour: White, Display: LCD. Sensor type: Dual CIS, Scan to: FTP, PC, SMB, Scan drivers: SANE, TWAIN, WIA. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper, ISO A-series sizes (A0...A9): A4. USB connector type: USB Type-C

Powerful yet compact and portable, scanning from any location just got easier with the ADS-1800W. Compatible with external powerbanks, effortlessly scan your documents when and where it is most convenient for you. Together with wireless connectivity, you can easily connect and scan using your mobile phone or tablet and enjoy seamless workflows with powerful PDF editing and document management software. Create up to 25 preset scan to destinations No PC connection required Mobile App support OCR and PDF editing software included Compatible with Barcode Utility Optional paper output tray available Supports Brother Mobile Connect app *See datasheet for detailed technical information

Scanning

Maximum scan size: 215.9 x 355.6 mm
Optical scanning resolution: 600 x 600 DPI
Enhanced scan resolution: 1200 x 1200 DPI
Feature: Colour scanning
Feature: Duplex scanning
Greyscale levels: 256
ADF scan speed (b/w, A4): 30 ppm

Design

Scanner type: ADF scanner
Product colour: White
Display: LCD
Display diagonal: 7.11 cm (2.8")
Feature: Touchscreen
Feature: Colour display
Control type: Buttons, Touch
Feature: Built-in display

Performance

Sensor type: Dual CIS
Scan to: FTP, PC, SMB
Scan drivers: SANE, TWAIN, WIA
Scanning noise level: 62 dB

Paper handling

Scanning media types supported: Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Maximum ISO A-series paper size: A4
ISO A-series sizes (A0...A9): A4
Card thickness (max): 1.24 mm
Paper tray media weight: 51.8 - 128 g/m²

Ports & interfaces

Feature: USB port
USB connector type: USB Type-C

Network

Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms: 64-bit WEP, 128-bit WEP, EAP-TLS, EAP-TTLS, SMTP-AUTH, SNMPv3, SSH, SSL/TLS, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-TKIP, WPA3-PSK, WPA3-SAE
Feature: IPv6 support

Power

Power supply type: AC/USB
Power consumption (typical): 10 W
Power consumption (standby): 2 W
Power consumption (off): 0.1 W

Weight & dimensions

Width: 288 mm
Depth: 101 mm
Height: 85 mm
Weight: 1.42 kg

Packaging data

Package width: 288 mm
Package depth: 211 mm
Package height: 205 mm
Package weight: 2.41 kg

Packaging content

Cables included: USB

System requirements

Windows operating systems supported: Windows 10, Windows 11
Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T): 5 - 35 °C
