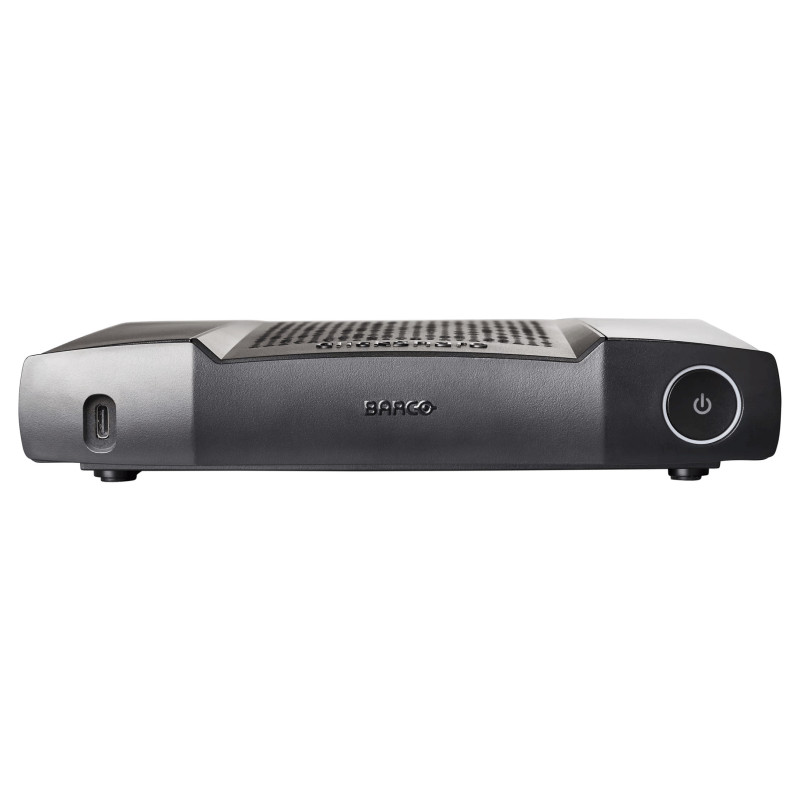

Barco CX‑50 G2 wireless presentation system

Barco CX‑50 G2. Form factor: Desktop, Product colour: Black, Cable lock slot type: Kensington. Maximum resolution (HDMI): 3840 x 2160 pixels, Supported graphics resolutions: 3840 x 2160, Concurrent users: 32 user(s). Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Frequency band: 2.4, 5 GHz. Interface: HDMI, HDMI version: 1.4b. Power source type: AC, Input voltage: 110 - 220 V, Power consumption (max): 74.5 W

Premium conferencing solution for high-impact rooms
ClickShare CX-50 2nd generation brings flexible wireless conferencing in high-impact meeting spaces and board rooms. When you walk into the meeting room, ClickShare automatically connects you to room devices like cameras, mics, speakers, sound bars and displays.

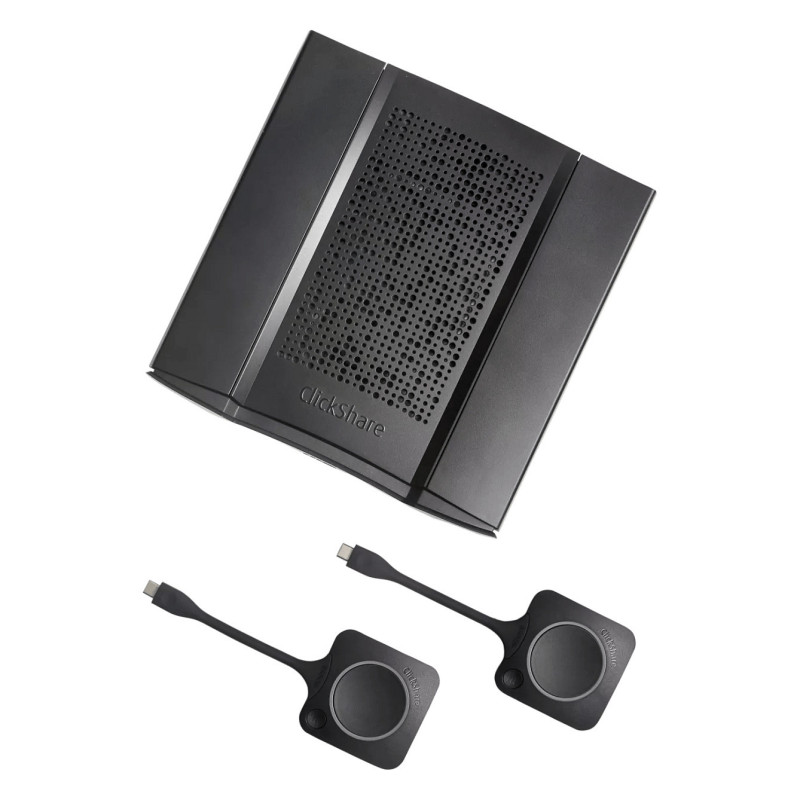

Start a meeting from your laptop within seconds, using your preferred video conferencing platform. Make hybrid meetings easy, with just one click on the ClickShare Button or the ClickShare App, both for employees and guests.

Design

Form factor: Desktop
Product colour: Black
Feature: Cable lock slot
Cable lock slot type: Kensington

Features

Maximum resolution (HDMI): 3840 x 2160 pixels
Supported graphics resolutions: 3840 x 2160
Feature: AirPlay mirroring
Feature: Miracast
Feature: Google Cast
Concurrent users: 32 user(s)

Network

Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Frequency band: 2.4, 5 GHz
Feature: Dual-band
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000,2000,2500 Mbit/s
Security algorithms: WPA2-PSK
Maximum operating distance: 30 m

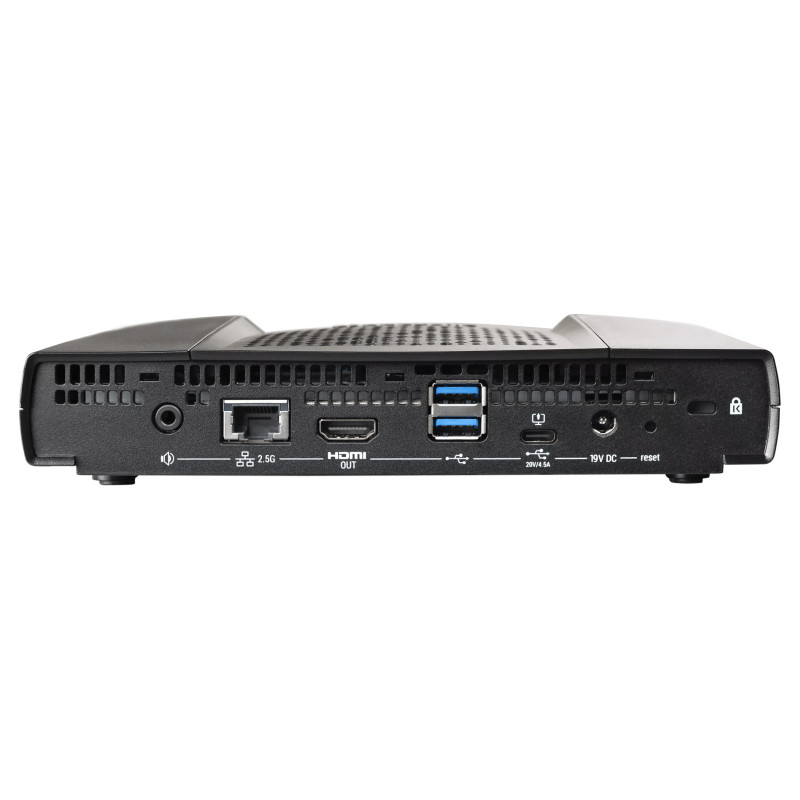

Ports & interfaces

Interface: HDMI
HDMI input ports quantity: 1
Number of HDMI outputs: 1
HDMI version: 1.4b
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Feature: S/PDIF out port
Feature: 3.5 mm (1/8-inch) out
Feature: DC-in jack

Power

Power source type: AC
Input voltage: 110 - 220 V
Power consumption (max): 74.5 W
Power consumption (standby): 0.27 W

System requirements

Feature: Mac compatibility
Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Mobile operating systems supported: Android 11.0, Android 12.0, Android 13.0, Android 14.0, iOS 14, iOS 14.5, iOS 15, iOS 16

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 85%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 200 mm
Depth: 202 mm
Height: 39 mm
Weight: 985 g

Packaging content

Feature: Remote control included

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC)
