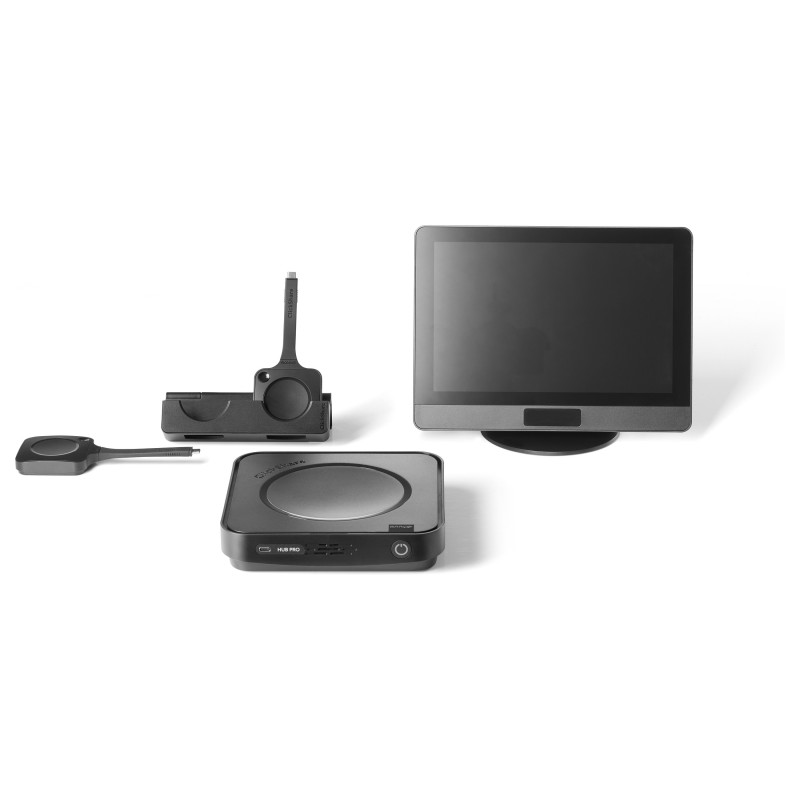

Barco ClickShare Hub Pro + Control Panel video conferencing system

Barco ClickShare Hub Pro + Control Panel. Product type: Video conferencing service management system. HD type: 5K Ultra HD. Ethernet LAN, Wi-Fi. Bluetooth. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels. Product colour: Black

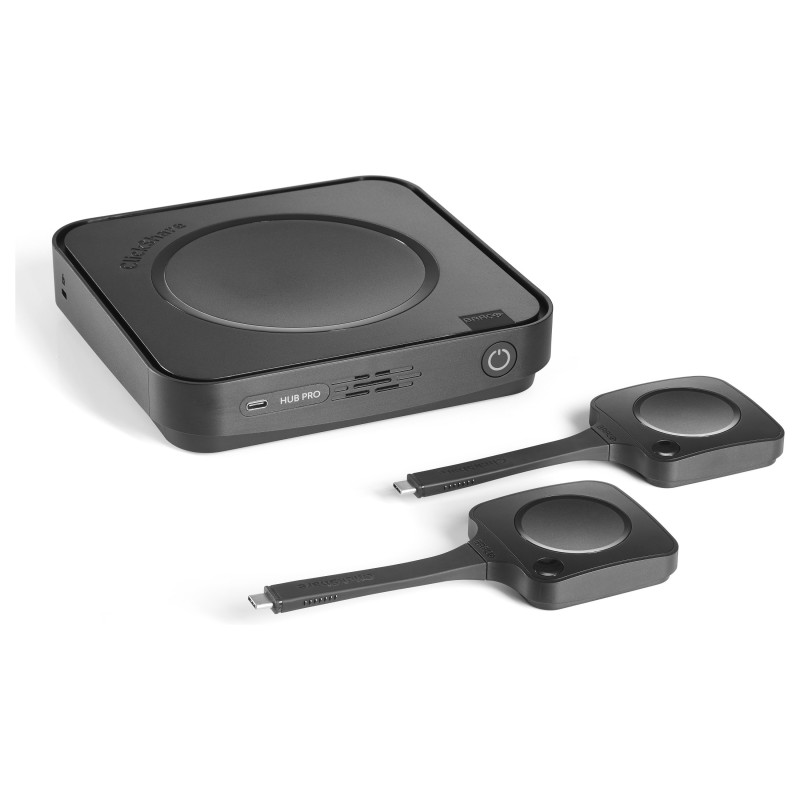

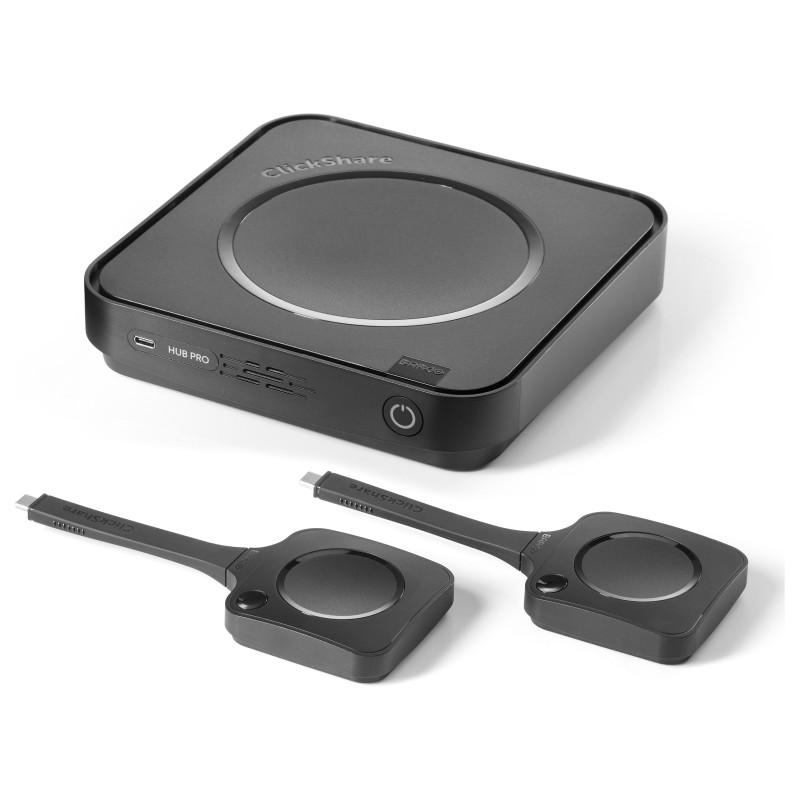

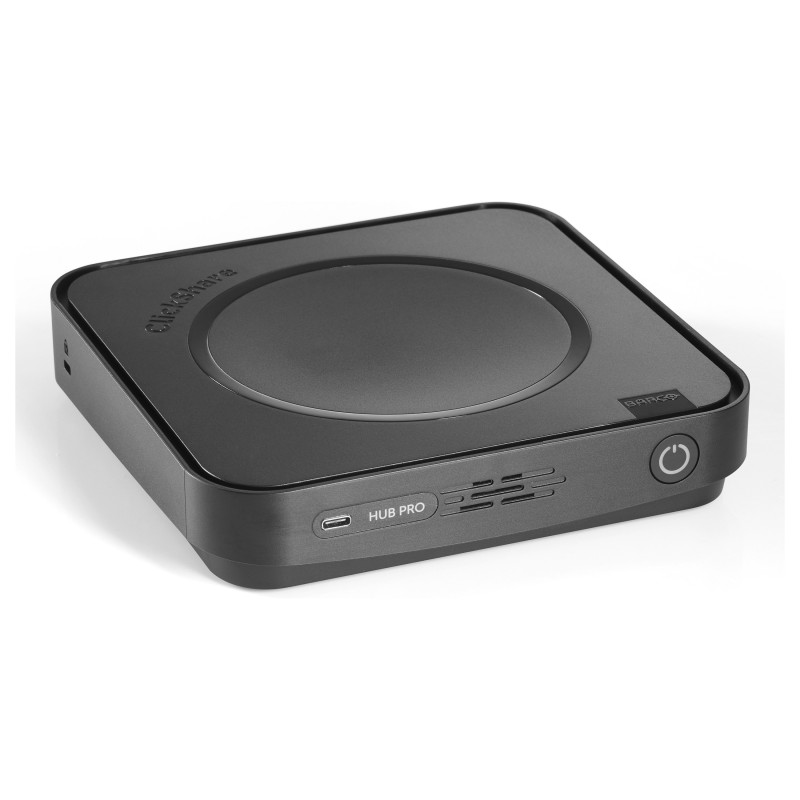

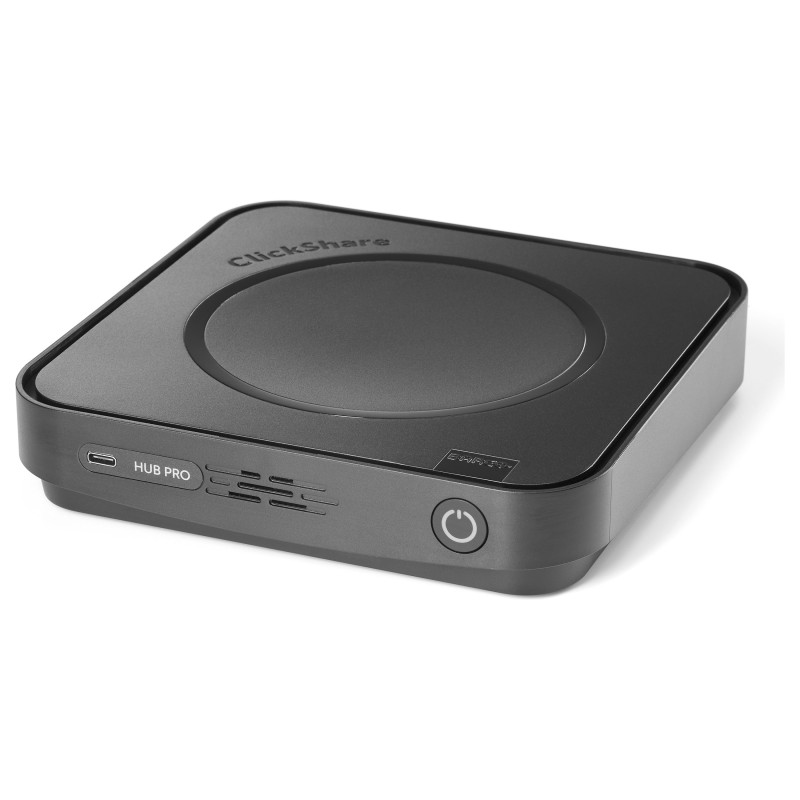

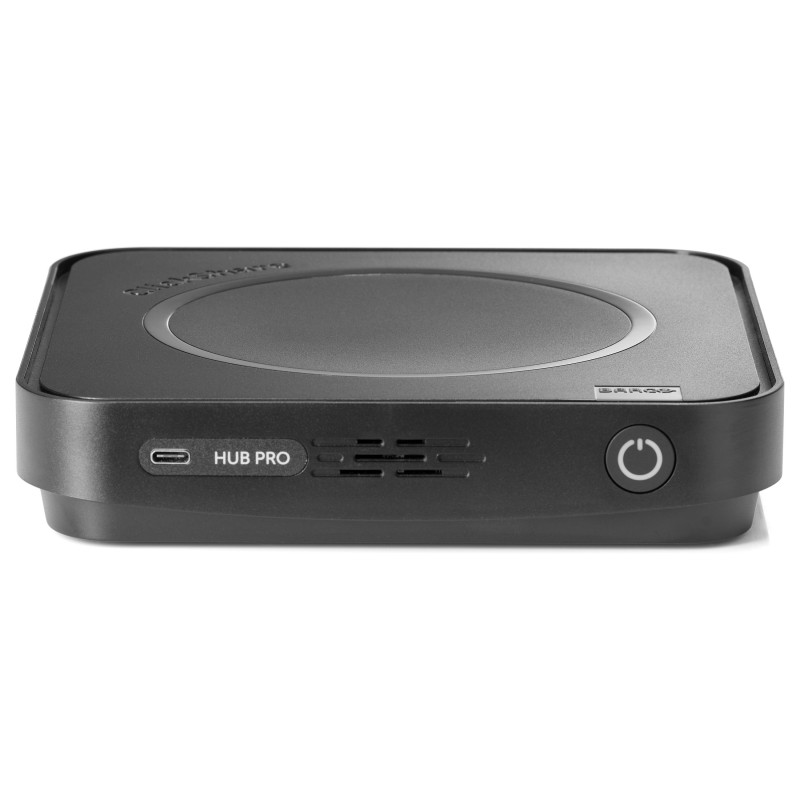

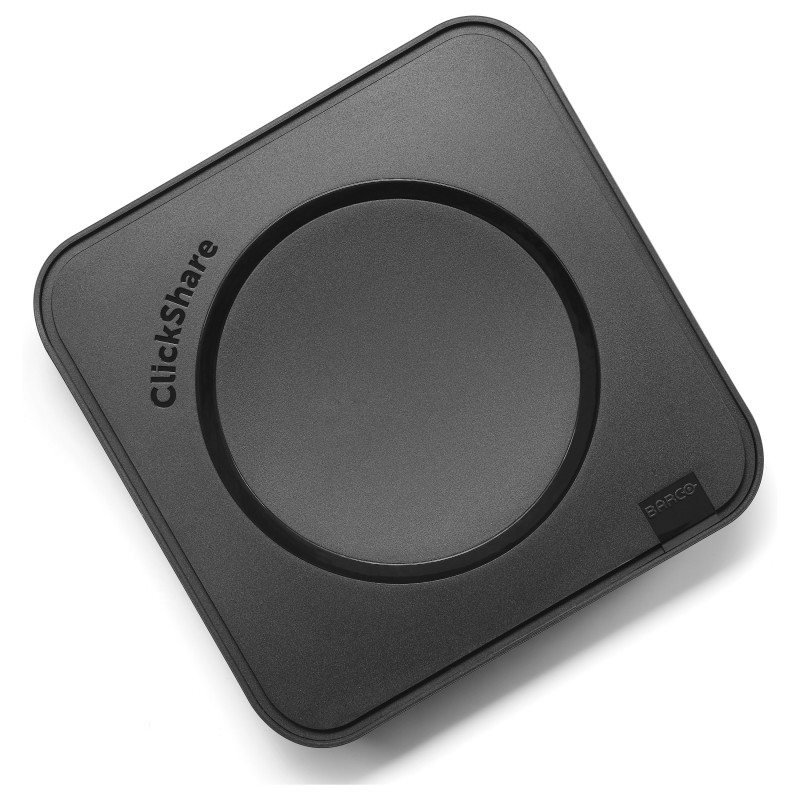

ClickShare Hub Pro is a premium modular, wireless video conferencing system for enhanced hybrid meetings. Featuring two next-gen ClickShare Buttons (with Wi-Fi 6E and USB-C DisplayPort™), it ensures meeting participants enjoy secure, 4K wireless content sharing. With dual display support, it guarantees highly visual and engaging meetings.

For IT managers and integrators, ClickShare Hub Pro offers a customizable solution for all room types, enterprise-grade security and compliance.

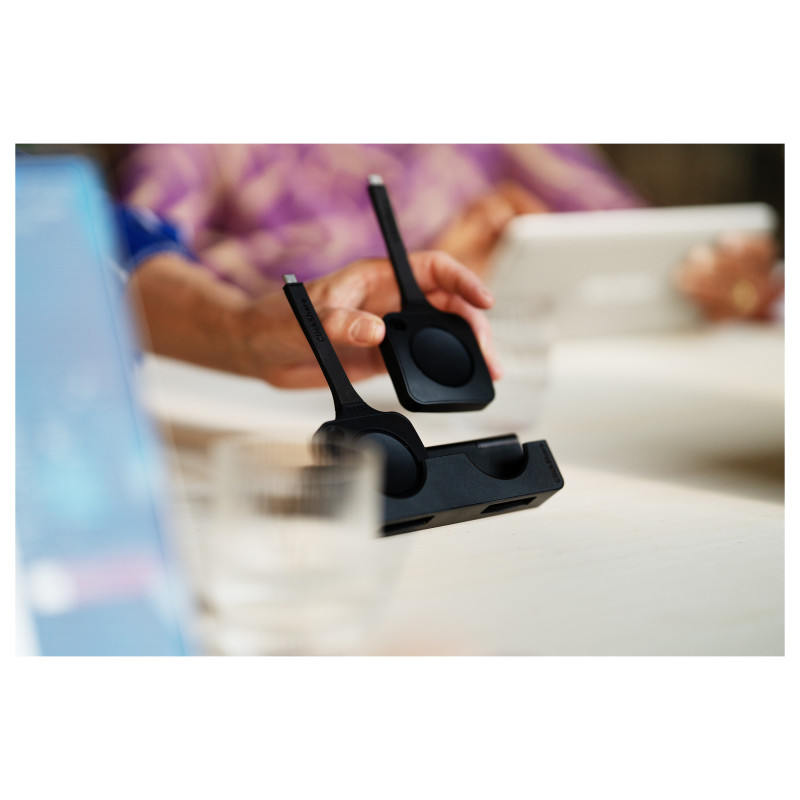

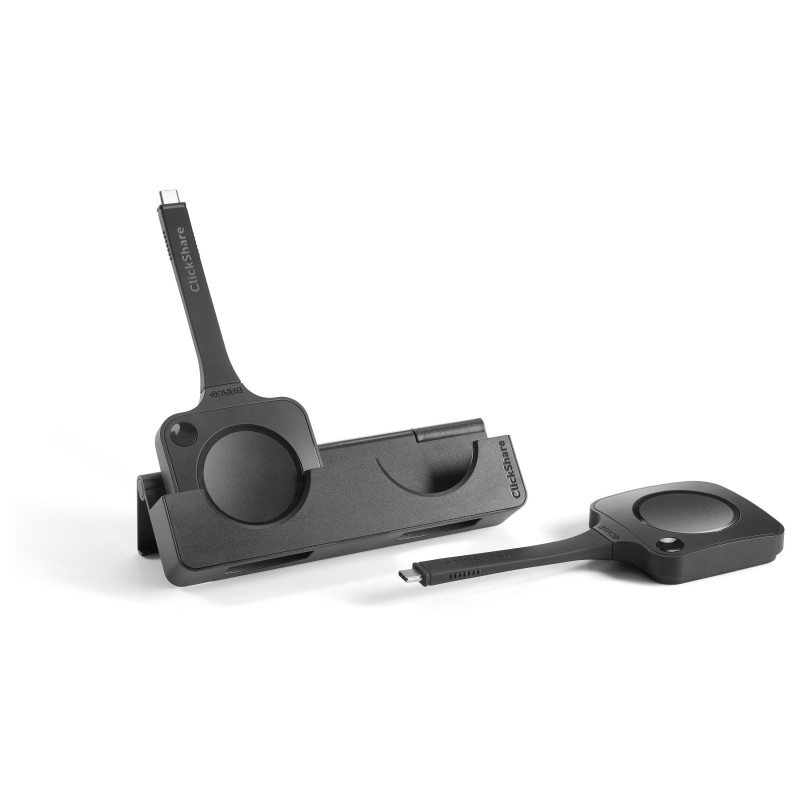

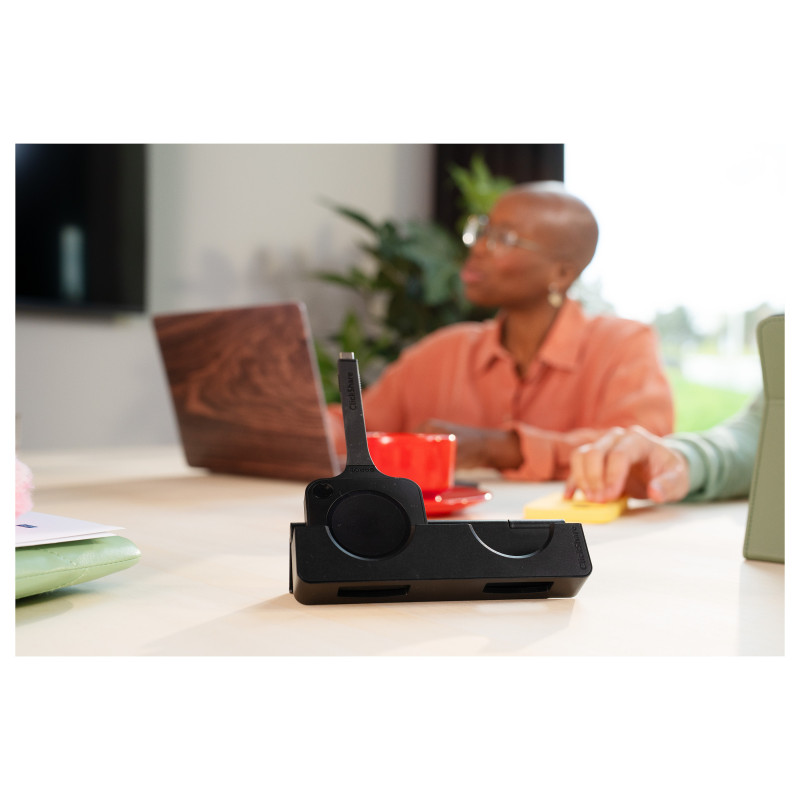

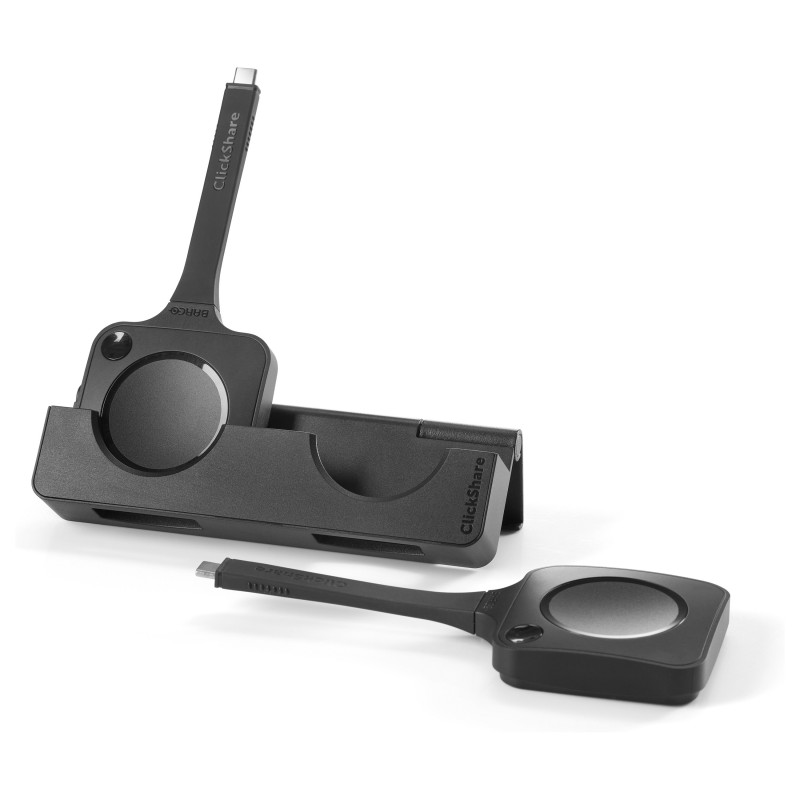

Next-gen ClickShare Button
The ClickShare Button 5th gen, featuring Wi-Fi 6E, offers faster speeds and more reliable connectivity for smooth, uninterrupted collaboration.

Featuring USB-C DisplayPort™, it enables guest-friendly, plug-and-play sharing — no software or drivers needed.

For added privacy and control, the ClickShare Button requires a deliberate press, preventing accidental sharing.
- Works seamlessly across all major OS in high-security environments
- Built-in security and user control

Performance

Feature: Bluetooth
Bluetooth version: 5.3
Product colour: Black
Product type: Video conferencing service management system
Noise level: 25 dB

Video

HD type: 5K Ultra HD
Maximum video resolution: 5120 x 2160 pixels

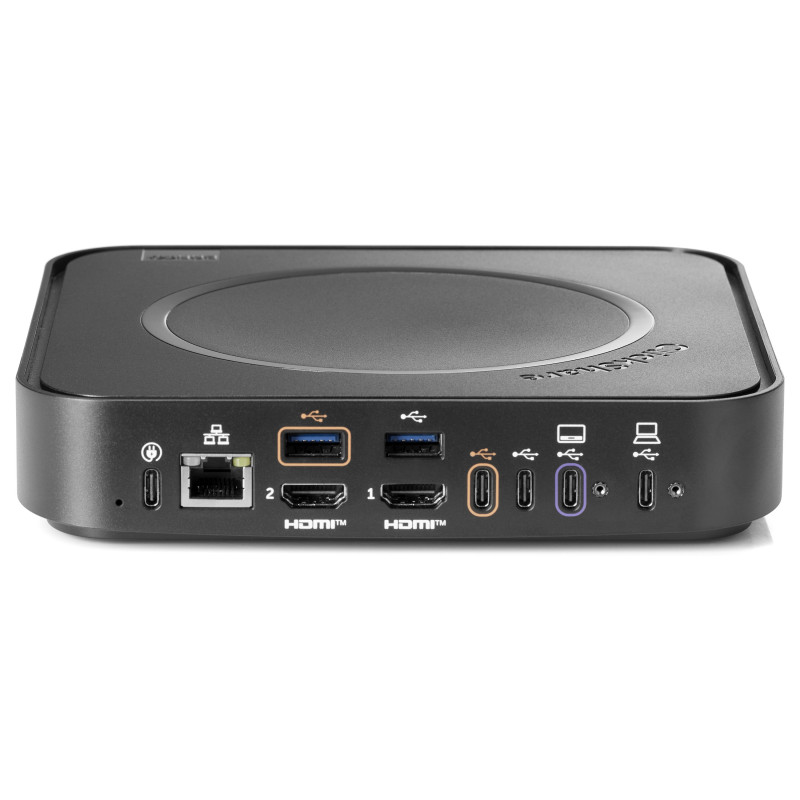

Ports & interfaces

HDMI output ports quantity: 2
HDMI version: 2.0
USB 2.0 Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 4
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4

Buttons

Feature: Presentation button included
Feature: Holder included

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Networking standards: IEEE 802.15.1

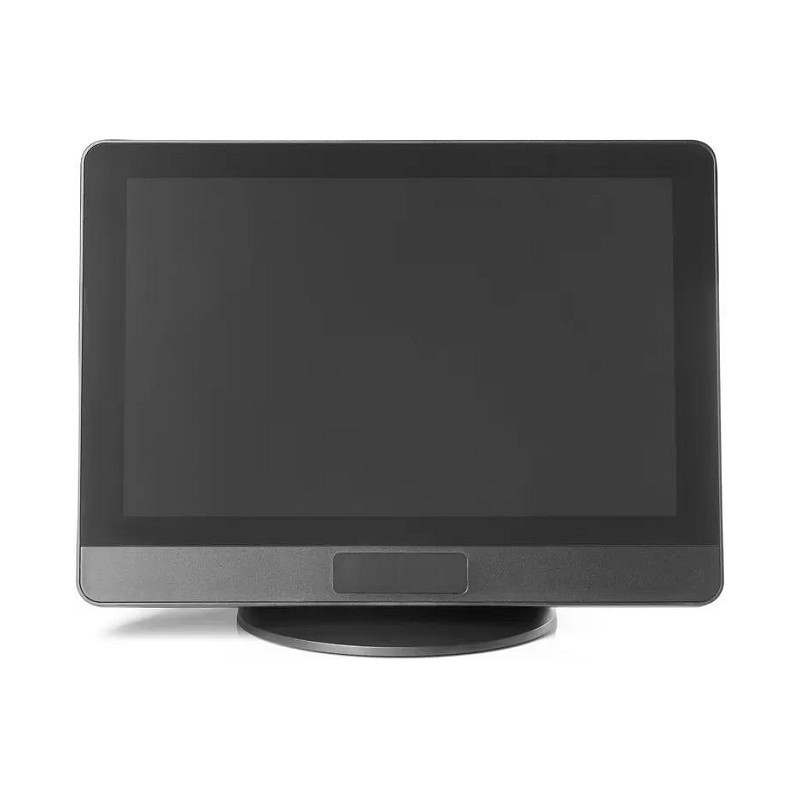

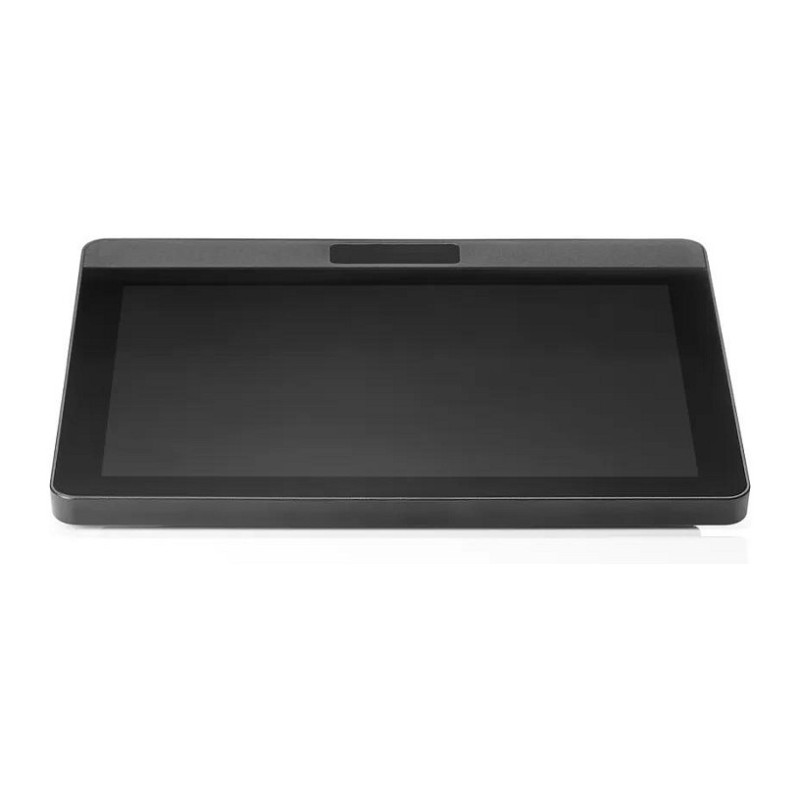

Display

Feature: Built-in display
Display diagonal: 25.6 cm (10.1")
Display resolution: 1280 x 800 pixels
Contrast ratio (typical): 1000:1
Feature: Touchscreen
Viewing angle, horizontal: 80°
Viewing angle, vertical: 80°
Display brightness: 300 cd/m²

Features

Feature: Cable lock slot
Cable lock slot type: Kensington
Maximum operating distance: 30 m

Logistics data

Country of origin: China

Computer system

Mac operating systems supported: Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 85%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 0 - 90%

Power

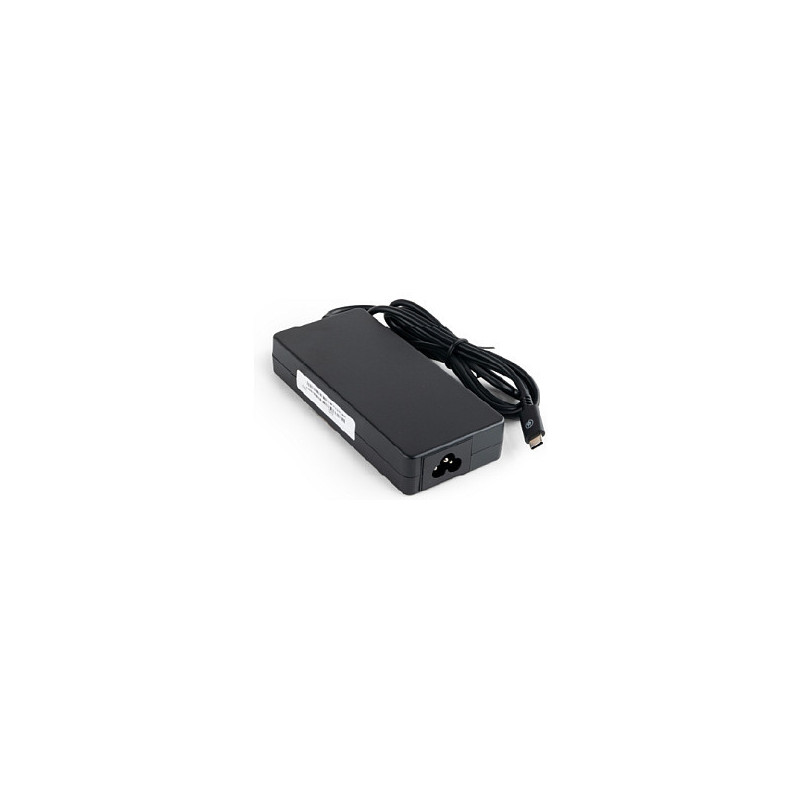

Power source type: USB
Power consumption (typical): 160 W
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 180 W

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC)

Weight & dimensions

Monitor dimensions (WxDxH): 187.9 x 76.9 x 254.5 mm
Monitor weight: 820 g
Width: 180 mm
Depth: 180 mm
Height: 37 mm
Weight: 720 g
Receiver dimensions (WxDxH): 63 x 161.3 x 16 mm
