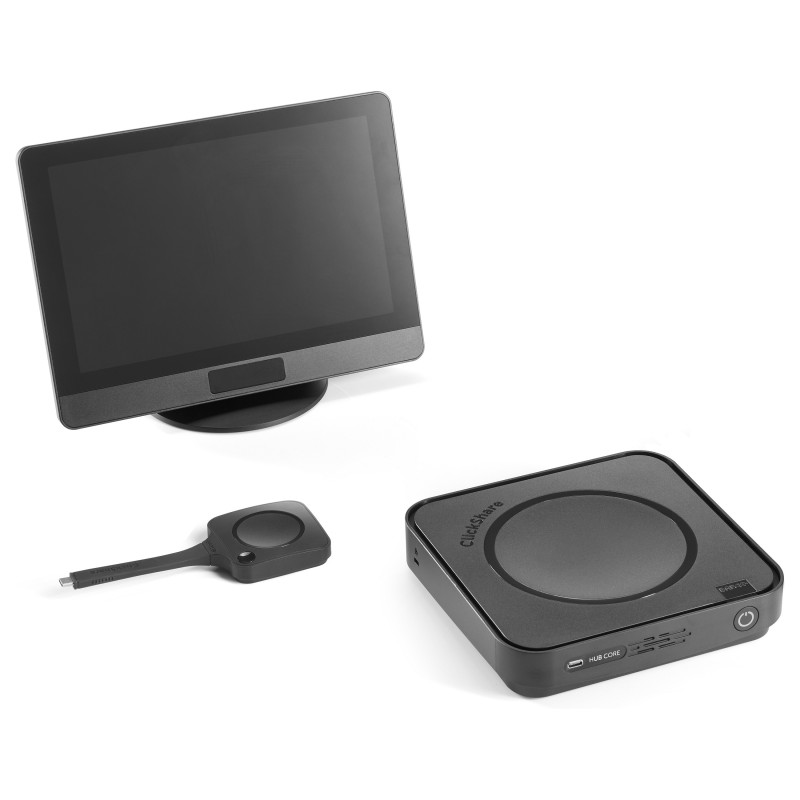

Barco ClickShare Hub Core video conferencing system

Barco ClickShare Hub Core. Product type: Video conferencing service management system. HD type: 5K Ultra HD. Ethernet LAN, Wi-Fi. Bluetooth. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels. Product colour: Black

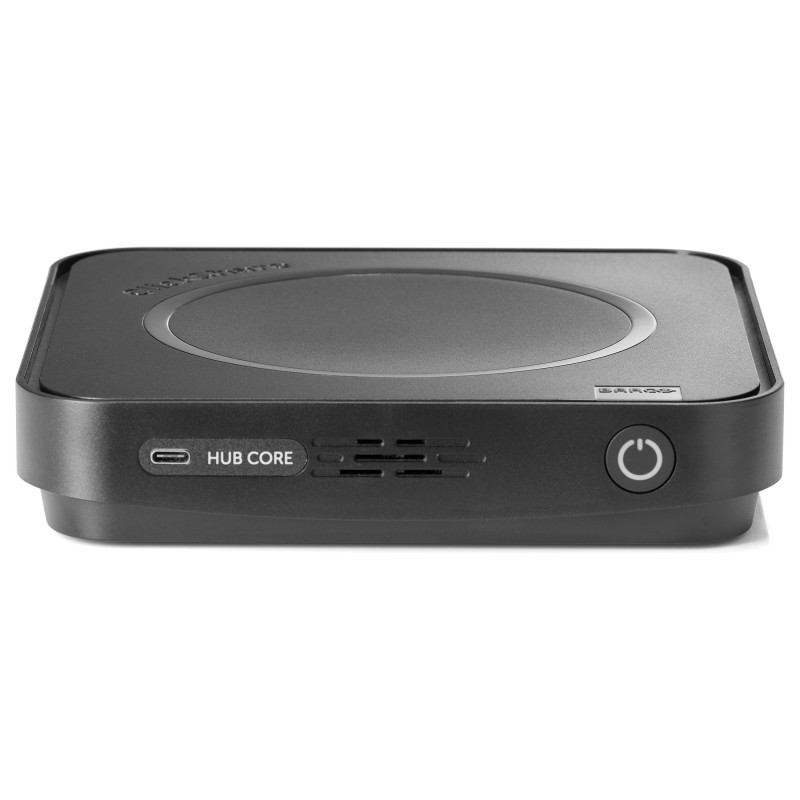

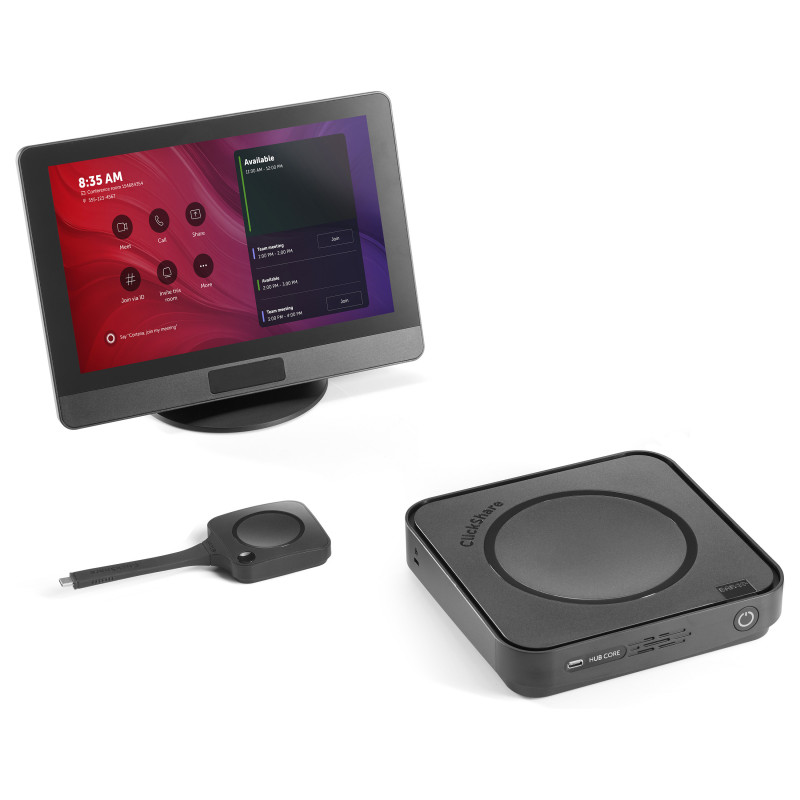

ClickShare Hub Core is a modular, wireless video conferencing system designed for effortless hybrid meetings.

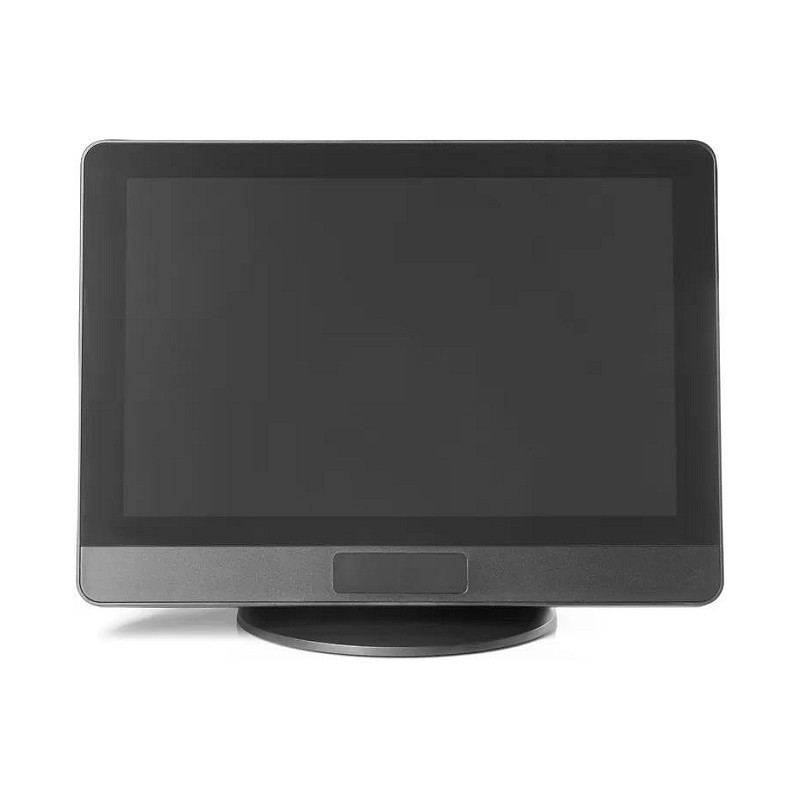

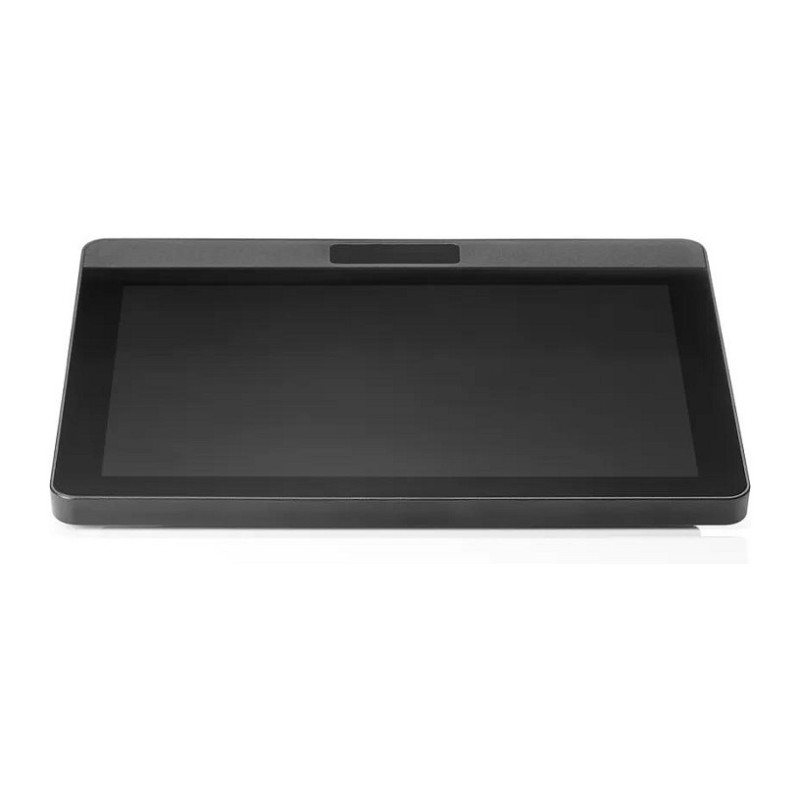

The Hub Core works with the ClickShare Control Panel* and enables participants to start their meeting with a simple tap. Sharing 4K content is just as easy thanks to the next-gen ClickShare Button.
For IT managers and integrators, ClickShare Hub Core offers a customizable solution for all room types, and both ad hoc and scheduled meetings. Built on the Microsoft Device Ecosystem Platform (MDEP), it guarantees enterprise-grade security and compliance.

Meeting room bundles for seamless hybrid collaboration
The ClickShare Hub Core and Sennheiser TeamConnect Bar S bundle is a certified Microsoft Teams Rooms solution designed for small meeting rooms. It combines secure 4K content sharing, high-quality audio and video, and cloud-managed performance - all in one easy-to-deploy package.
Certified for Microsoft Teams, ensuring seamless integration and a consistent user experience
Built on Microsoft Device Ecosystem Platform (MDEP) for secure, Android-based room system performance
One-click 4K content sharing with a next-gen ClickShare Button featuring Wi-Fi 6E and USB-C DisplayPort™

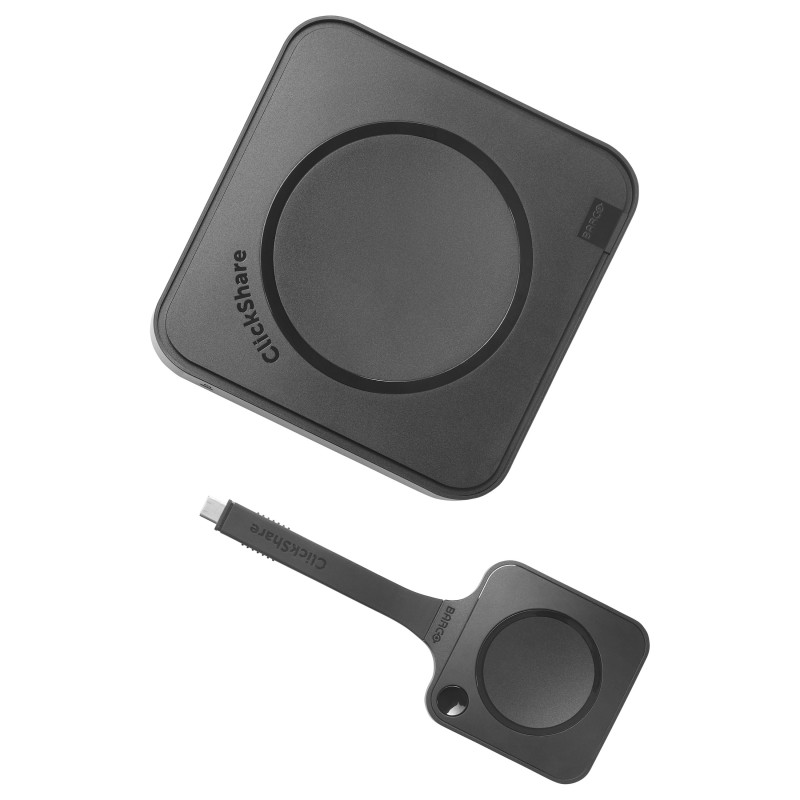

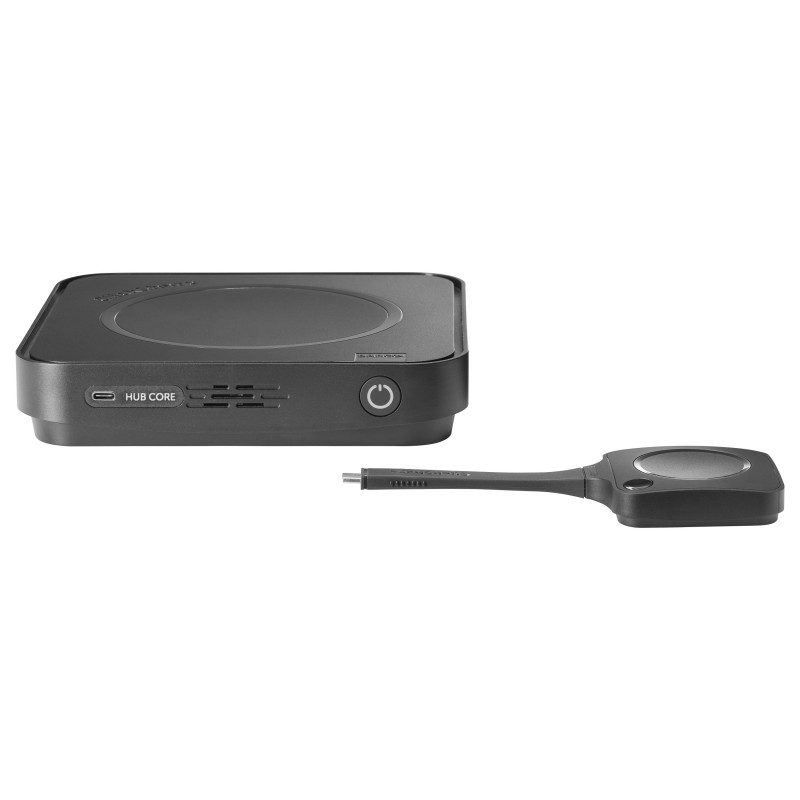

Next-gen ClickShare Button
The ClickShare Button 5th gen, featuring Wi-Fi 6E, offers faster speeds and more reliable connectivity for smooth, uninterrupted collaboration.
Featuring USB-C DisplayPort™, it enables guest-friendly, plug-and-play sharing — no software or drivers needed.
For added privacy and control, the ClickShare Button requires a deliberate press, preventing accidental sharing.
Works seamlessly across all major OS in high-security environments
Built-in security and user control

Performance

Feature: Bluetooth
Bluetooth version: 5.3
Product colour: Black
Product type: Video conferencing service management system
Noise level: 25 dB

Video

HD type: 5K Ultra HD
Maximum video resolution: 5120 x 2160 pixels
Supported graphics resolutions: 1280 x 800 (WXGA), 5120 x 2160

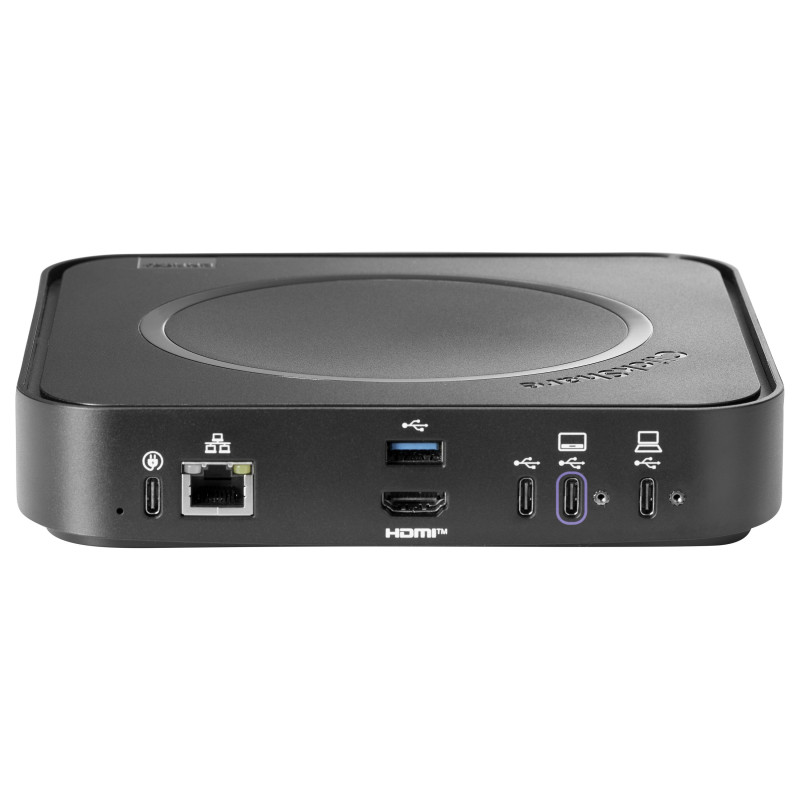

Ports & interfaces

HDMI output ports quantity: 1
HDMI version: 2.0
USB 2.0 Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 3
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4

Buttons

Feature: Presentation button included

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Networking standards: IEEE 802.15.1

Display

Feature: Built-in display
Display diagonal: 25.6 cm (10.1")
Display resolution: 1280 x 800 pixels
Contrast ratio (typical): 1000:1
Feature: Touchscreen
Viewing angle, horizontal: 80°
Viewing angle, vertical: 80°

Features

Feature: Cable lock slot
Cable lock slot type: Kensington
Maximum operating distance: 30 m

Logistics data

Country of origin: China

Computer system

Mac operating systems supported: Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 85%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 0 - 90%

Power

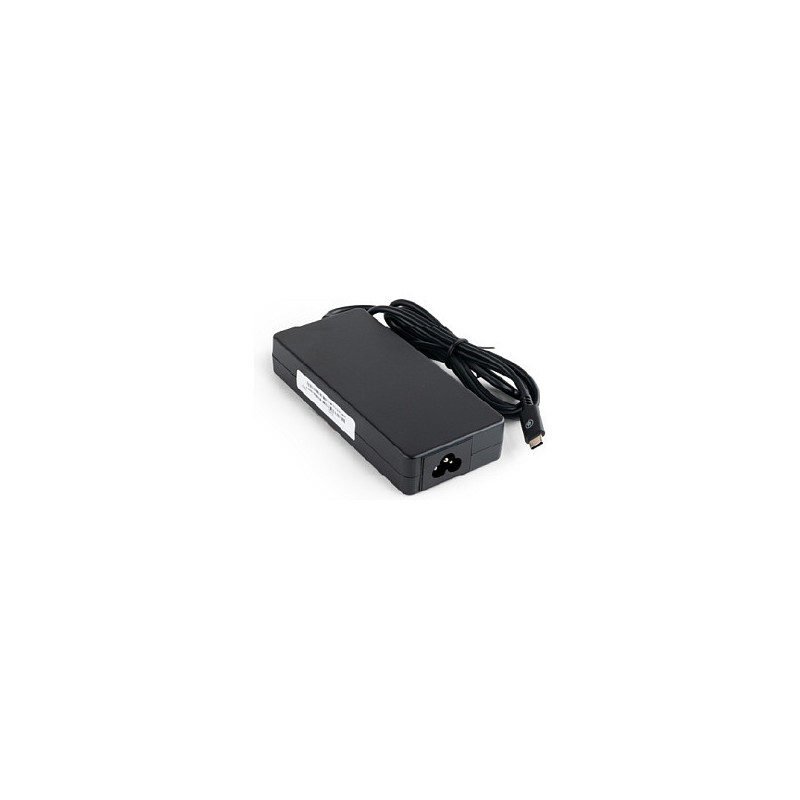

Power source type: USB
Power consumption (max): 140 W
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 180 W

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC)

Weight & dimensions

Monitor dimensions (WxDxH): 187.9 x 76.9 x 254.5 mm
Monitor weight: 820 g
Width: 180 mm
Depth: 180 mm
Height: 37 mm
Weight: 720 g
Receiver dimensions (WxDxH): 63 x 161.3 x 16 mm
