Barco ClickShare CX‑30 Gen 2 wireless presentation system

Barco ClickShare CX‑30 Gen 2. Form factor: Desktop, Product colour: Black, Cable lock slot type: Kensington. Maximum resolution (HDMI): 3840 x 2160 pixels, Supported graphics resolutions: 3840 x 2160. Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Frequency band: 2.4, 5 GHz. Interface: HDMI, HDMI version: 1.4b. Power source type: AC, Input voltage: 110 - 220 V, Power consumption (max): 24 W
Wireless conferencing system for small to medium-sized meeting rooms
ClickShare CX-30 enables wireless conferencing in medium-sized meeting spaces. When you walk into the meeting room, ClickShare automatically connects you to room devices like cameras, mics, speakers, sound bars and displays.
Start a meeting from your laptop within seconds, using your preferred video conferencing platform. Make hybrid meetings easy, with just one click on the ClickShare Button or the ClickShare App, both for employees and guests.

Design

Form factor: Desktop
Product colour: Black
Cable lock slot: Yes
Cable lock slot type: Kensington

Features

Maximum resolution (HDMI): 3840 x 2160 pixels
Supported graphics resolutions: 3840 x 2160
AirPlay mirroring: Yes
Miracast: Yes
Google Cast: Yes

Network

Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Frequency band: 2.4, 5 GHz
Dual-band: Yes
Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Security algorithms: WPA2-PSK
Maximum operating distance: 30 m

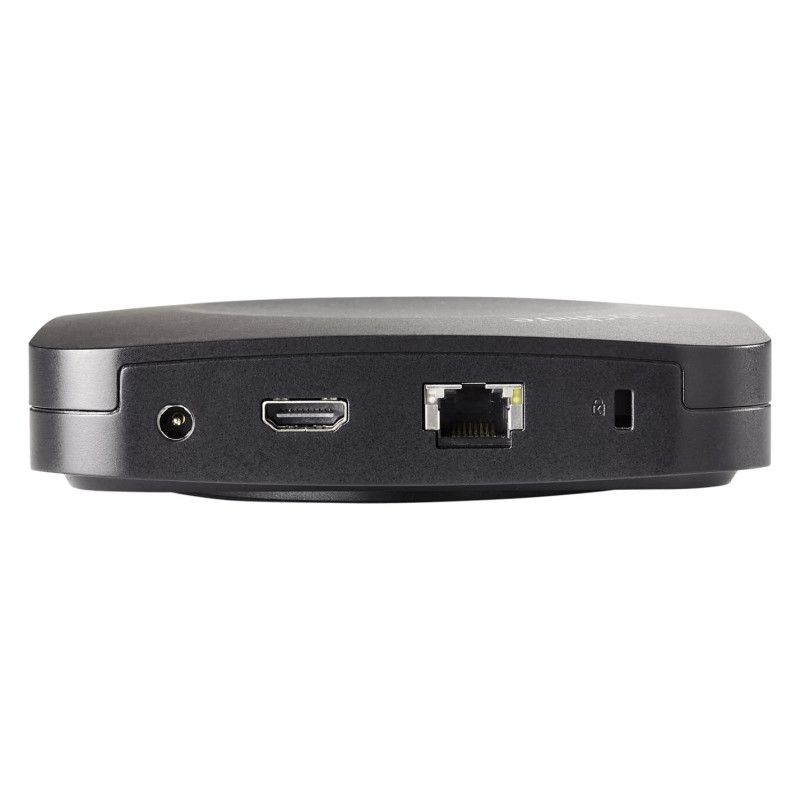

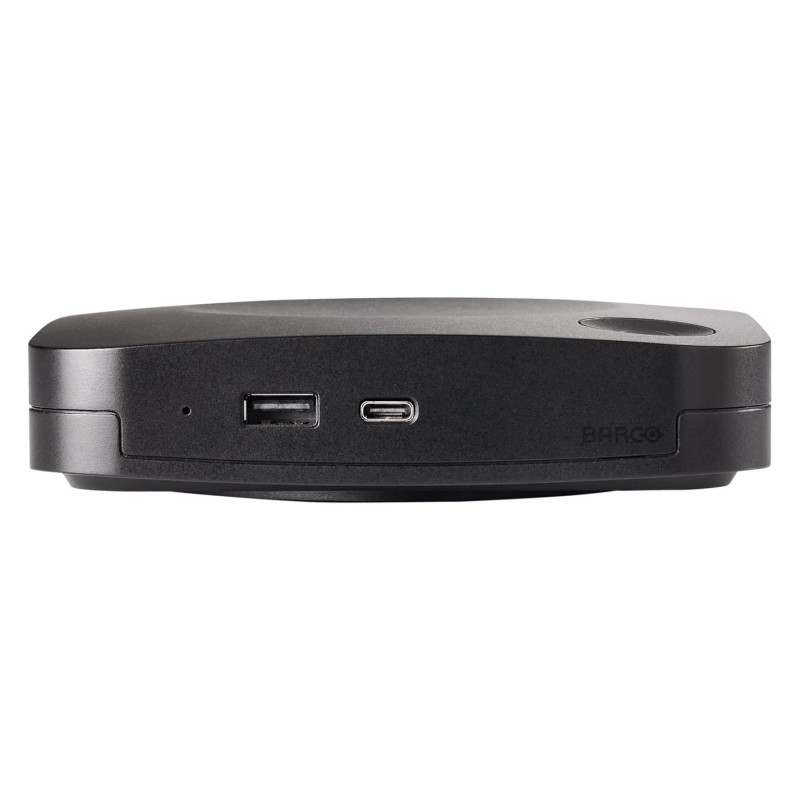

Ports interfaces

Interface: HDMI
Number of HDMI outputs: 1
HDMI version: 1.4b
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
DC-in jack: Yes

Power

Power source type: AC
Input voltage: 110 - 220 V
Power consumption (max): 24 W
Power consumption (typical): 10 W

System requirements

Mac compatibility: Yes
Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Mobile operating systems supported: Android 11.0, Android 12.0, Android 13.0, Android 14.0, iOS 14, iOS 14.5, iOS 15, iOS 16

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 85%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 0 - 90%

Weight dimensions

Width: 135 mm
Depth: 135 mm
Height: 34 mm
Weight: 900 g

Packaging content

Remote control included: Yes

Technical details

Warranty period: 1 year(s)
Compliance certificates: CE, Federal Communications Commission (FCC)
