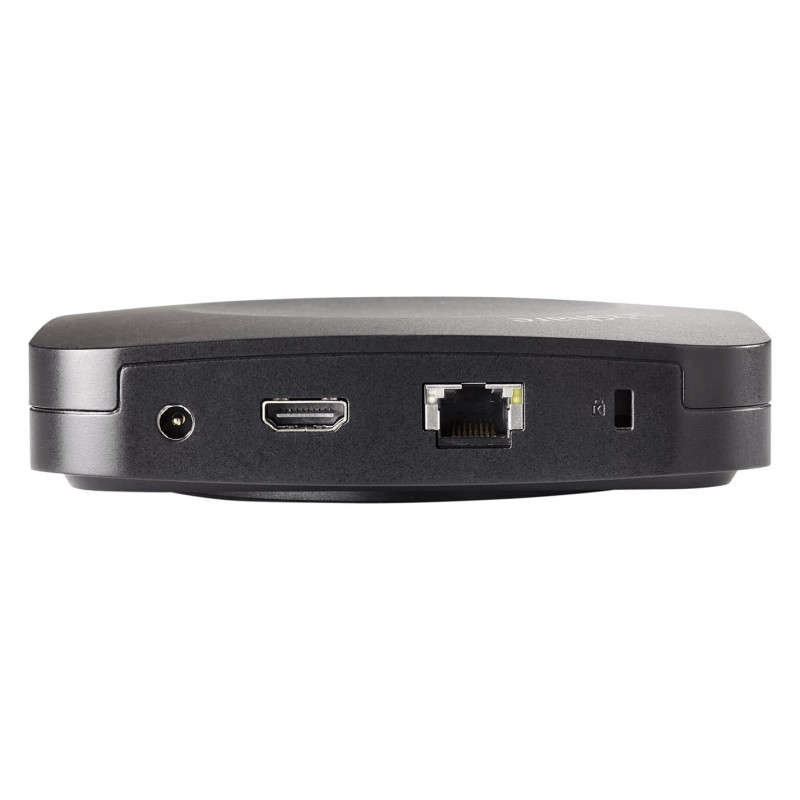

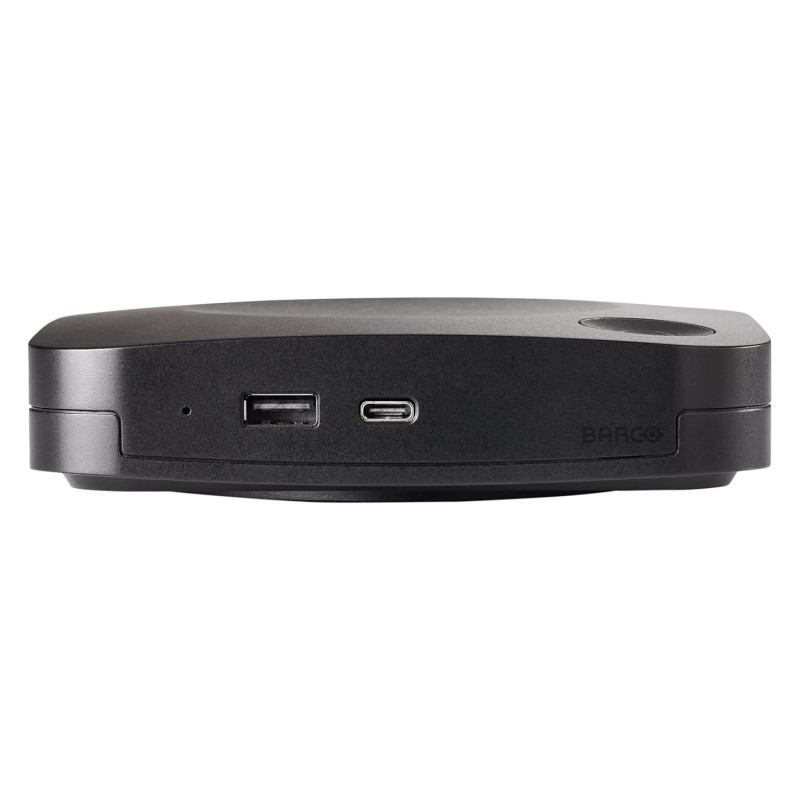

Barco ClickShare C-5 G2 wireless presentation system

Barco ClickShare C-5 G2. Form factor: Dongle, Product colour: Black, Cable lock slot type: Kensington. Maximum resolution (HDMI): 3840 x 2160 pixels, Supported video modes: 2160p, Maximum frame rate: 30 fps. Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Frequency band: 2.4, 5 GHz. Interface: HDMI, HDMI version: 1.4b. Power source type: AC, USB, Input voltage: 110 - 220 V, Power consumption (max): 24 W
Simple, one-click wireless presentation for huddle spaces
The ClickShare C-5 brings simple, wireless collaboration to small meeting rooms and huddle spaces. You and your guests can easily share content to the room display, with just one click in the ClickShare App, from any laptop or mobile device. It offers a full BYOD experience, including screen mirroring with Airplay, GoogleCast and Miracast.

Design

Form factor: Dongle
Product colour: Black
LED indicators: Yes
Cable lock slot: Yes
Cable lock slot type: Kensington

Features

Maximum resolution (HDMI): 3840 x 2160 pixels
Supported video modes: 2160p
AirPlay mirroring: Yes
Maximum frame rate: 30 fps
Miracast: Yes
Google Cast: Yes
Number of simultaneously connected devices (max): 32
Smartphone/tablet remote support: Yes

Management features

Web-based management: Yes
On/off switch: Yes

Network

Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Frequency band: 2.4, 5 GHz
Dual-band: Yes
Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.1
Security algorithms: 802.1x RADIUS, WPA2-PSK
Maximum operating distance: 30 m

Ports interfaces

Interface: HDMI
Number of HDMI outputs: 1
HDMI version: 1.4b
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
DC-in jack: Yes

Power

Power source type: AC, USB
Input voltage: 110 - 220 V
Power consumption (max): 24 W
Power consumption (typical): 10 W

System requirements

Mac compatibility: Yes
Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Mobile operating systems supported: Android 10.0, Android 11.0, Android 12.0, Android 13.0, Android 14.0, Android 9.0, iOS 12, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15, iOS 16

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 85%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 0 - 90%

Weight dimensions

Width: 135 mm
Depth: 135 mm
Height: 34 mm
Weight: 900 g

Packaging content

Quick start guide: Yes

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC)
