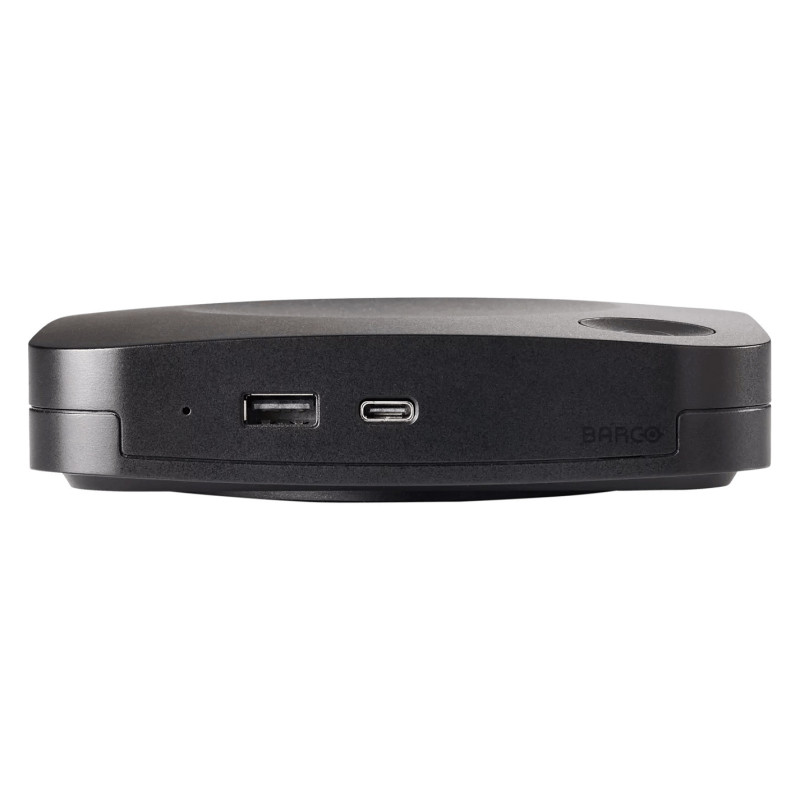

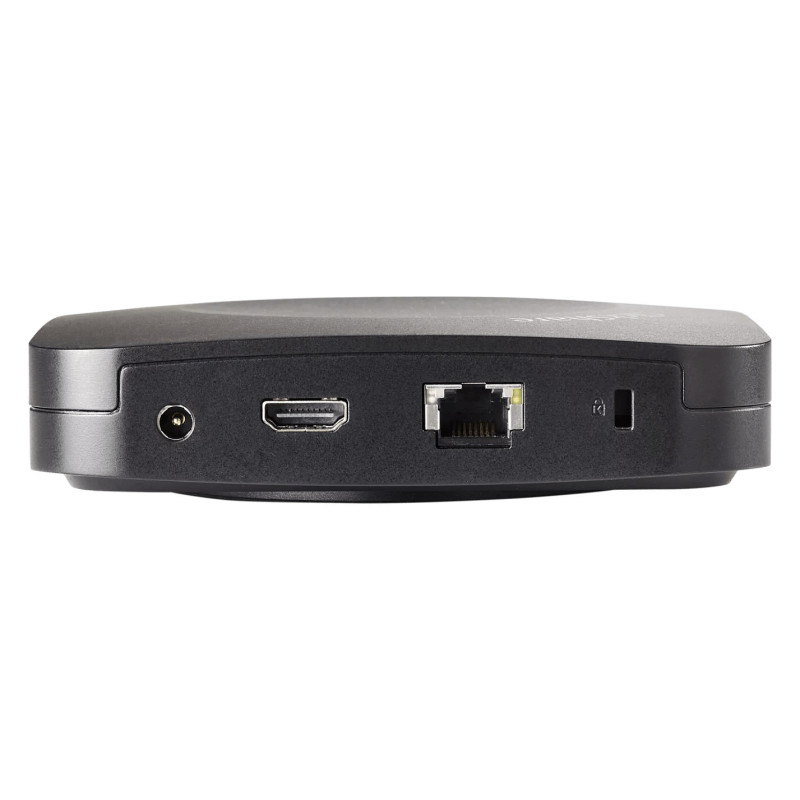

Barco ClickShare C-10 wireless presentation system

Barco ClickShare C-10. Form factor: Desktop, Product colour: Black, Cable lock slot type: Kensington. Supported graphics resolutions: 3840 x 2160, Supported video modes: 2160p, Maximum frame rate: 30 fps. Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Frequency band: 2.4, 5 GHz. Interface: HDMI, HDMI version: 1.4b. Power source type: DC, Input voltage: 110 - 220 V, Power consumption (max): 24 W

Interactive wireless presentation for any meeting space
ClickShare C-10 brings interactive wireless presentation to any meeting space. Content sharing is simple, with just one click on the ClickShare Button (Windows or Mac) or the ClickShare App (laptop, mobile or tablet). Start presenting within seconds: no cables, no software to download, no training needed.

Design

Form factor: Desktop
Product colour: Black
LED indicators: Yes
Feature: Cable lock slot
Cable lock slot type: Kensington

Features

Supported graphics resolutions: 3840 x 2160
Supported video modes: 2160p
Feature: AirPlay mirroring
Maximum frame rate: 30 fps
Feature: Miracast
Feature: Google Cast
Number of users: 32 user(s)
Feature: Smartphone/tablet remote support

Management features

Feature: Web-based management
Feature: On/off switch

Network

Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Frequency band: 2.4, 5 GHz
Feature: Dual-band
Feature: Ethernet LAN
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.1
Security algorithms: 802.1x RADIUS, WPA2-PSK
Maximum operating distance: 30 m

Ports & interfaces

Interface: HDMI
Number of HDMI outputs: 1
HDMI version: 1.4b
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: DC-in jack

Power

Power source type: DC
Input voltage: 110 - 220 V
Power consumption (max): 24 W

System requirements

Feature: Mac compatibility
Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Mobile operating systems supported: Android 10.0, Android 11.0, Android 12.0, Android 13.0, Android 14.0, Android 9.0, iOS 12, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15, iOS 16

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 85%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 135 mm
Depth: 135 mm
Height: 34 mm
Weight: 900 g

Packaging content

Feature: Remote control included

Technical details

Warranty period: 1 year(s)
