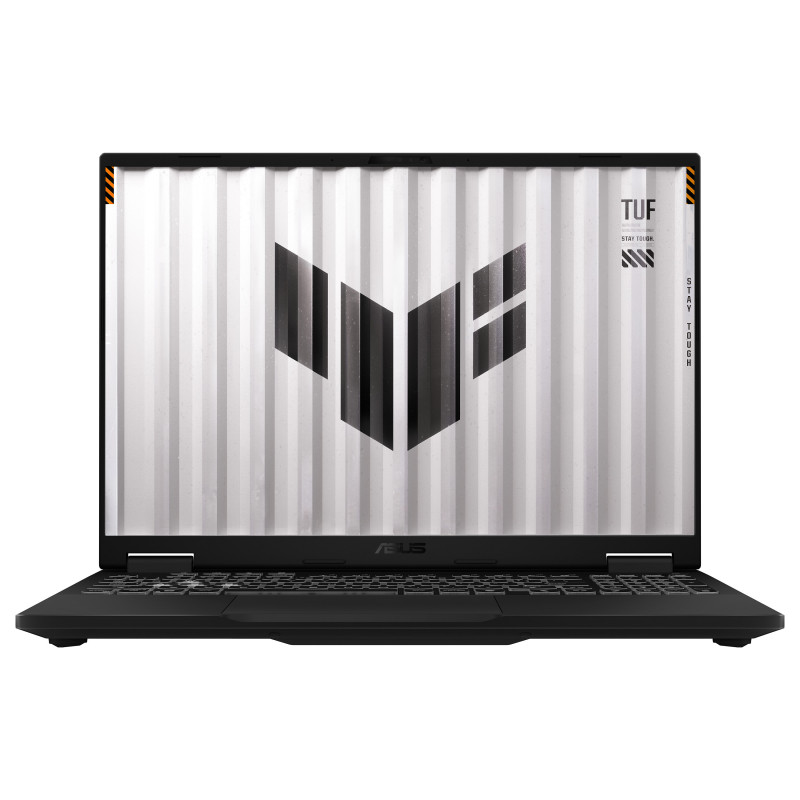

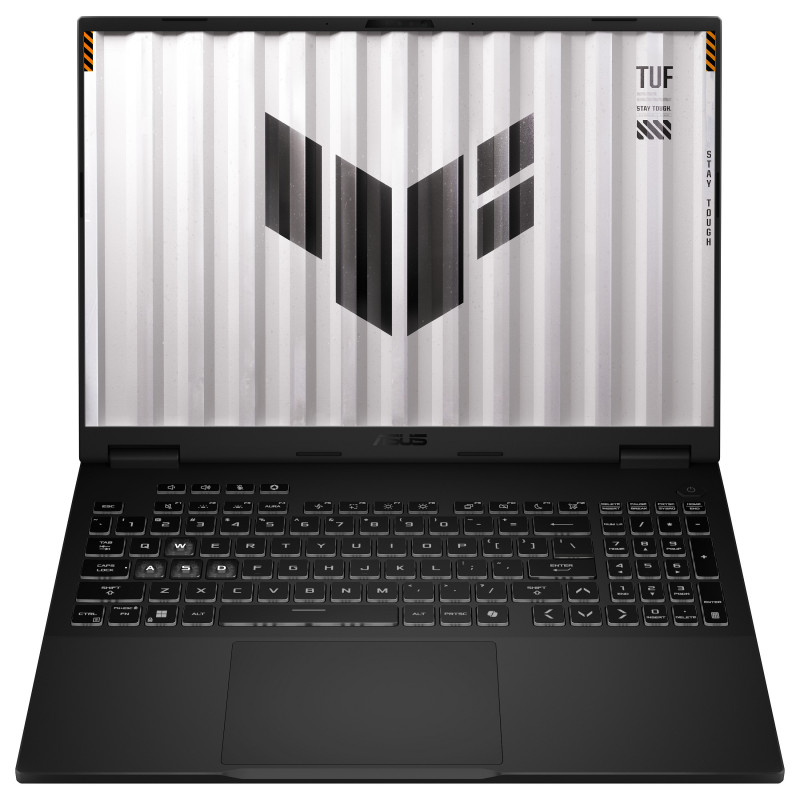

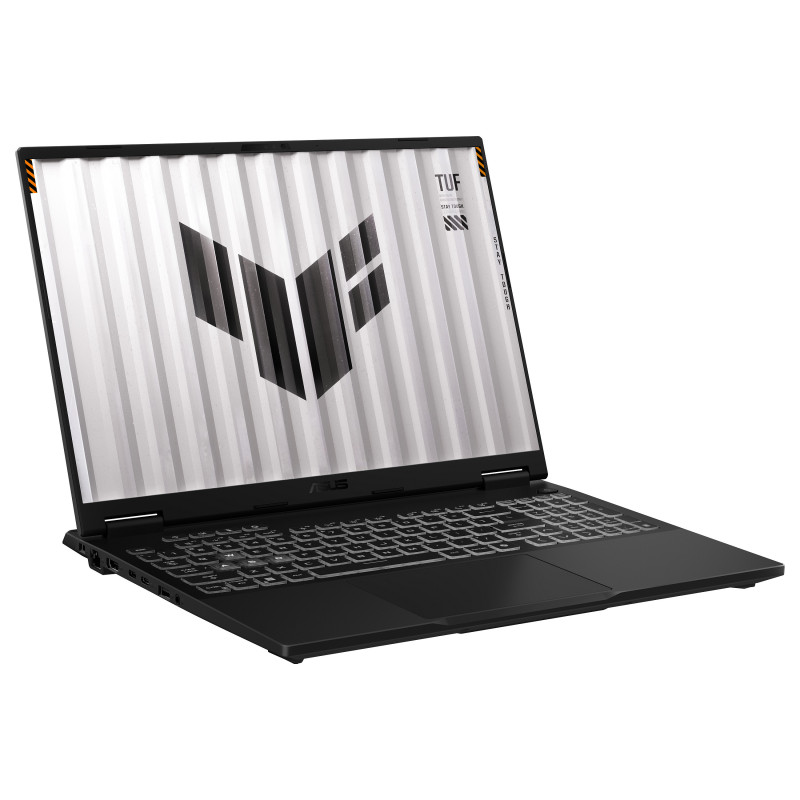

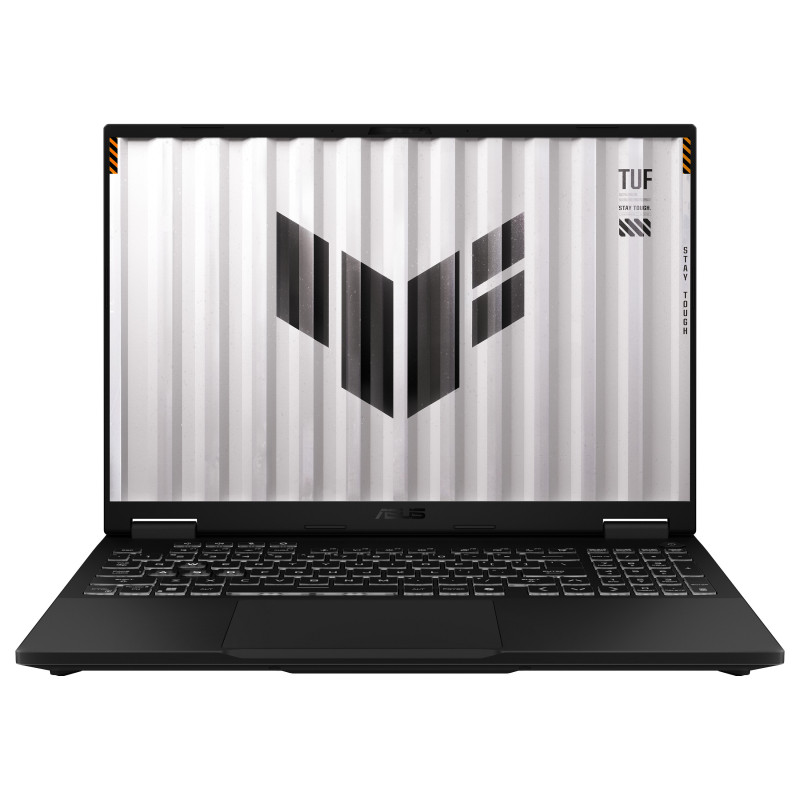

ASUS TUF Gaming F16 TUF608JMR-RV057W

ASUS TUF Gaming F16 TUF608JMR-RV057W. Product type: Laptop, Form factor: Clamshell. Processor family: Intel® Core™ i7, Processor model: i7-14650HX. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5060. Operating system installed: Windows 11 Home. Product colour: Grey

Serious gaming specs
As a member of the TUF Gaming family, the F16 boasts some seriously impressive specs, giving you access to the very best of gaming on Windows 11. Featuring up to an Intel® Core™ Ultra 9 processor 275HX and up to an NVIDIA® GeForce RTX™ 5070 Laptop GPU, the F16 can easily play the latest games or keep your workflow on schedule. Paired with up to 32GB of DDR5 5600MHz memory per slot and up to 4TB of expandable PCIe Gen 4 storage, this little machine is ready for anything, right out of the box.

Design

Colour name: Jaeger Gray
Product type: Laptop
Product colour: Grey
Form factor: Clamshell
Market positioning: Gaming
Introduction year: 2025

Display

Display diagonal: 40.6 cm (16")
Display resolution: 1920 x 1200 pixels
HD type: WUXGA
Panel type: IPS-Level
Native aspect ratio: 16:10
Feature: Anti-glare screen
Display brightness: 300 cd/m²
RGB colour space: sRGB
Colour gamut: 100%
Maximum refresh rate: 165 Hz

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i7
Processor generation: Intel® Core™ i7 (14th gen)
Processor model: i7-14650HX
Processor cores: 16
Processor threads: 24
Processor boost frequency: 5.2 GHz
Performance cores: 8
Efficient cores: 8
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 3.7 GHz
Performance-core base frequency: 2.2 GHz
Efficient-core base frequency: 1.6 GHz
Processor cache: 30 MB
Processor cache type: Smart Cache
Processor base power: 55 W
Maximum turbo power: 157 W

Memory

Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory clock speed: 5600 MHz
Memory form factor: SO-DIMM
Memory slots: 2x SO-DIMM
Maximum internal memory: 64 GB
Memory channels: Dual-channel

Storage

Total storage capacity: 512 GB
Storage media: SSD
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Optical drive type: No

Graphics

Discrete GPU manufacturer: NVIDIA
Discrete graphics card model: NVIDIA GeForce RTX 5060
Discrete graphics card memory: 8 GB
Discrete graphics memory type: GDDR7
Feature: On-board graphics card
On-board GPU manufacturer: Intel
Feature: Discrete graphics card
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel® UHD Graphics
Feature: NVIDIA G-SYNC

Audio

Audio system: Dolby Atmos
Number of built-in speakers: 2
Feature: Built-in microphone

Camera

Feature: Front camera
Front camera resolution: 1920 x 1080 pixels
Front camera HD type: Full HD
Feature: Infrared (IR) camera

Network

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Antenna type: 2x2
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.3

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 1
Feature: Intel® Thunderbolt 4
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode

Performance

Motherboard chipset: Intel HM770 Express
Repairability index: 9.7

Keyboard

Pointing device: Touchpad
Feature: Numeric keypad
Feature: Keyboard backlit
Keyboard backlit colour: RGB
Keyboard backlit zone: 1-zone RGB
Feature: Copilot key

Software

Operating system architecture: 64-bit
Feature: Microsoft Copilot
Trial software: 1-month trial for new Microsoft 365 customers
Operating system installed: Windows 11 Home

Battery

Battery technology: Lithium-Ion (Li-Ion)
Number of battery cells: 4
Battery capacity: 90 Wh

Power

AC adapter power: 280 W
AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V
AC adapter output current: 14 A
AC adapter output voltage: 20 V
Feature: USB Type-C charging port
Feature: USB Power Delivery (USB PD)

Security

Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Face recognition
Feature: Windows Hello
Feature: Password protection
Password protection type: BIOS, User

Weight & dimensions

Width: 354 mm
Depth: 269 mm
Height (front): 1.79 cm
Height (rear): 2.73 cm
Weight: 2.2 kg

Packaging content

Feature: AC adapter included
