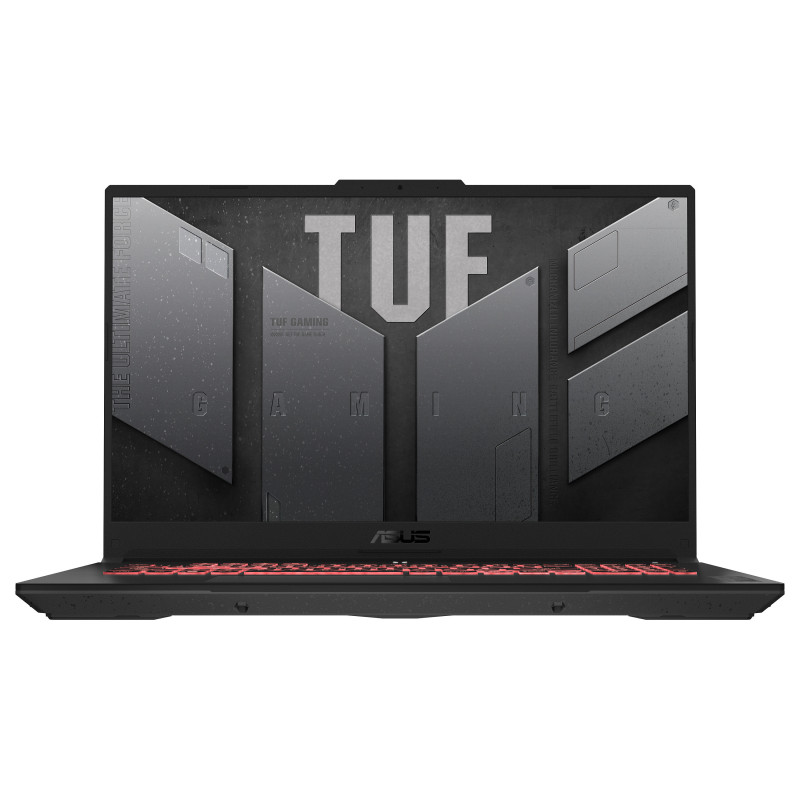

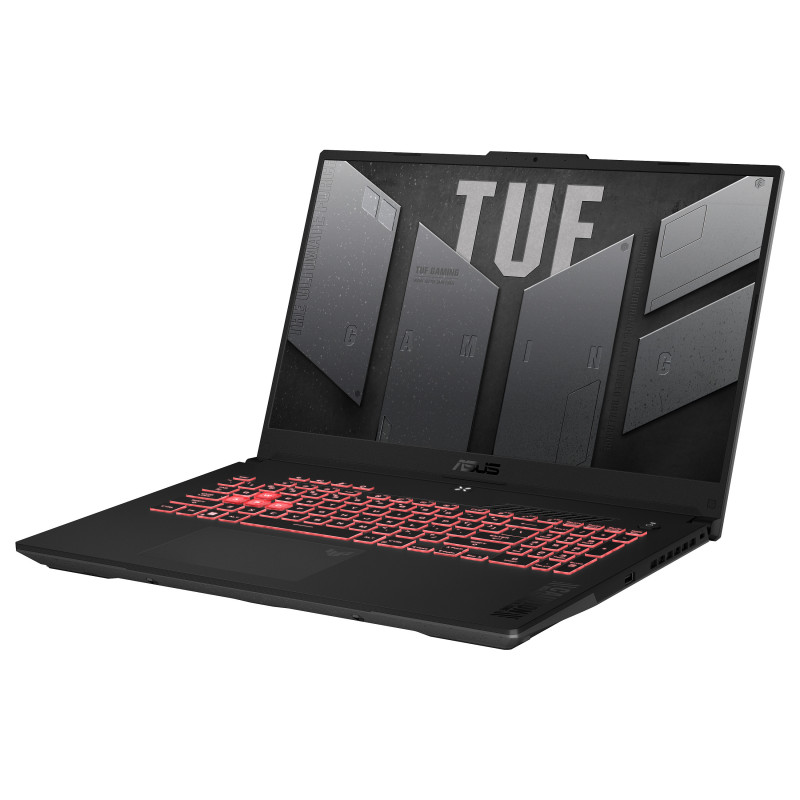

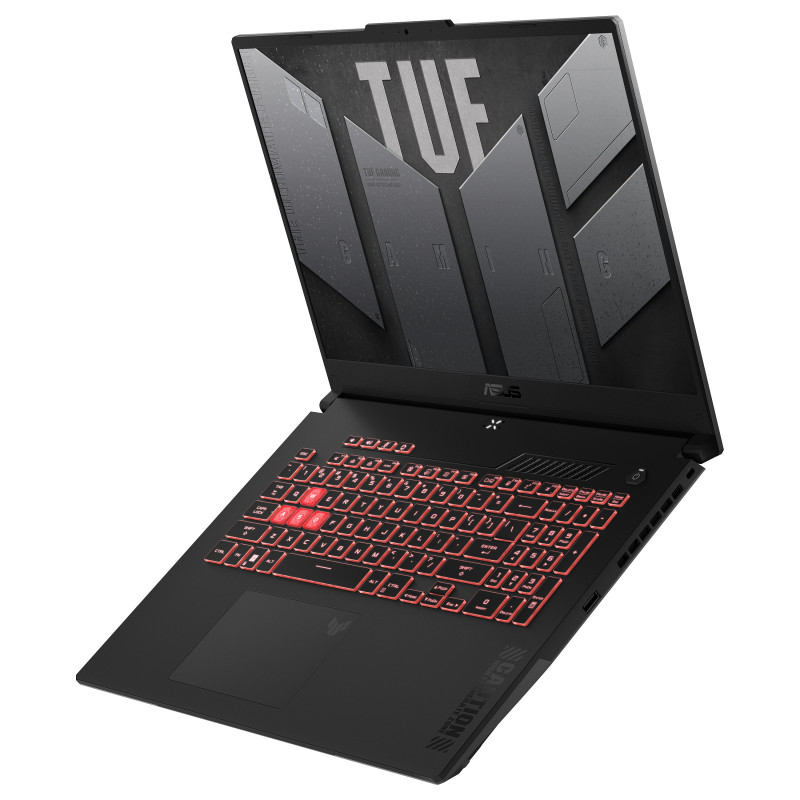

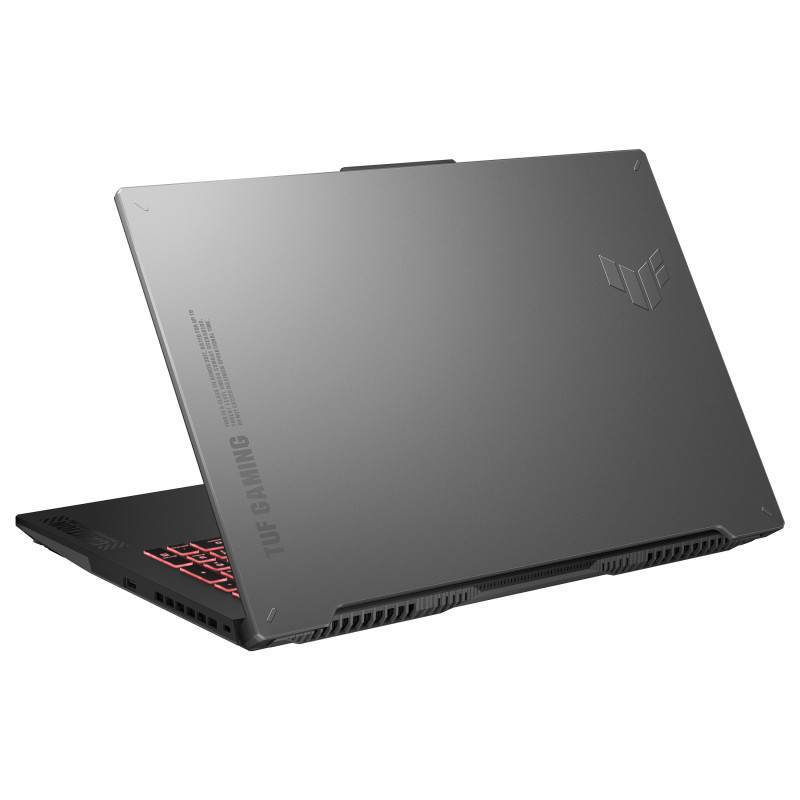

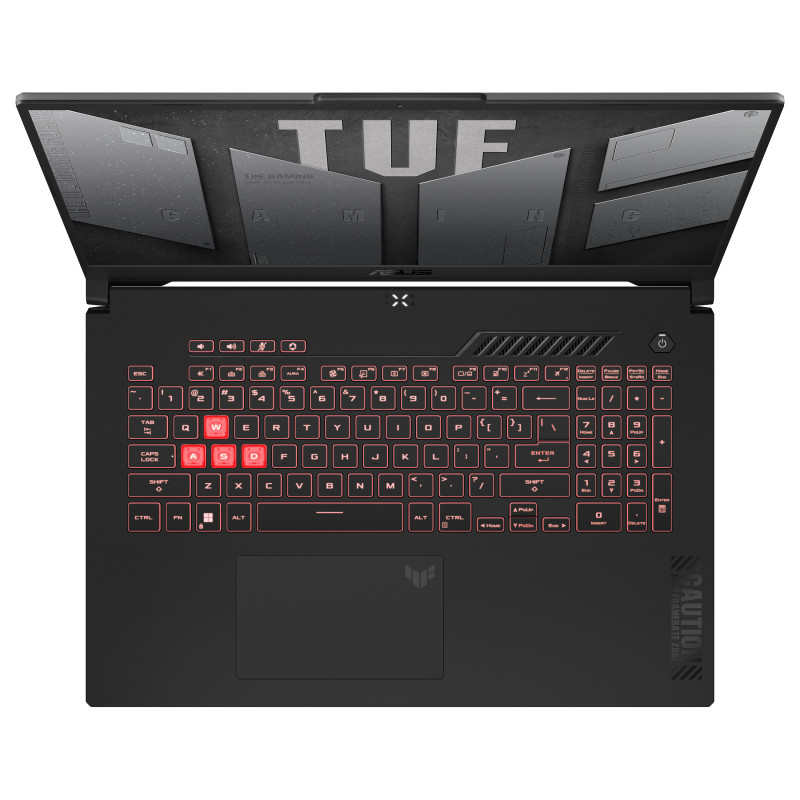

ASUS TUF Gaming A17 TUF707NUQ-DICHX146W

ASUS TUF Gaming A17 TUF707NUQ-DICHX146W. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen™ 7, Processor model: 170, Processor frequency: 3.2 GHz. Display diagonal: 43.9 cm (17.3"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: AMD Radeon 680M. Operating system installed: Windows 11 Home. Product colour: Black, Grey

BRAND NEW DESIGN
The chassis has been redesigned for 2023, now 4.5% smaller than the previous design. The two color options each have a different logo location, with the Jaeger Gray edition featuring a large laser-sculpted design, and the Mecha Gray edition showing off an embossed logo on the lid. The four-way indicators can be seen even while the clamshell is closed, and the touchpad features a mech-inspired TUF logo in the corner.

Design

Colour name: Jaeger Gray
Product type: Laptop
Product colour: Black, Grey
Form factor: Clamshell
Housing material: Plastic
Market positioning: Gaming

Display

Display diagonal: 43.9 cm (17.3")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Panel type: IPS-Level
Native aspect ratio: 16:9
Feature: Anti-glare screen
Display brightness: 250 cd/m²
RGB colour space: sRGB
Colour gamut: 62.5%
Maximum refresh rate: 144 Hz
Contrast ratio (typical): 960:1

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen™ 7
Processor generation: AMD Ryzen 100 Series
Processor model: 170
Processor cores: 8
Processor threads: 16
Processor boost frequency: 4.75 GHz
Processor frequency: 3.2 GHz
Processor cache type: L2 & L3
L3 cache: 16 MB
L2 cache: 4 MB

Memory

Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory clock speed: 5600 MHz
Memory form factor: SO-DIMM
Memory slots: 2x SO-DIMM
Maximum internal memory: 64 GB
Memory channels: Dual-channel

Storage

Total storage capacity: 512 GB
Storage media: SSD
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Optical drive type: No

Graphics

Discrete GPU manufacturer: NVIDIA
Discrete graphics card model: NVIDIA GeForce RTX 4050
Discrete graphics card memory: 6 GB
Discrete graphics memory type: GDDR6
Feature: On-board graphics card
On-board GPU manufacturer: AMD
Feature: Discrete graphics card
On-board graphics card family: AMD Radeon
On-board graphics card model: AMD Radeon 680M
Feature: NVIDIA G-SYNC

Audio

Audio system: Dolby Atmos
Number of built-in speakers: 2
Feature: Built-in microphone

Camera

Feature: Front camera
Front camera HD type: HD

Network

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Antenna type: 2x2
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.3

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode

Keyboard

Pointing device: Touchpad
Feature: Numeric keypad
Feature: Keyboard backlit
Keyboard backlit colour: RGB
Keyboard backlit zone: 1-zone RGB

Software

Operating system architecture: 64-bit
Trial software: 1-month trial for new Microsoft 365 customers. Credit card required, McAfee 30-day free trial
Operating system installed: Windows 11 Home

Battery

Battery technology: Lithium-Ion (Li-Ion)
Number of battery cells: 4
Battery capacity: 56 Wh
Feature: Fast charging
Fast charging time (50%): 30 min

Power

AC adapter power: 180 W
AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V
AC adapter output current: 9 A
AC adapter output voltage: 20 V
Feature: DC-in jack
Feature: USB Type-C charging port
Feature: USB Power Delivery (USB PD)

Security

Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Trusted Platform Module (TPM)
Feature: Password protection
Password protection type: BIOS, User

Sustainability

Sustainability certificates: ENERGY STAR, EPEAT Bronze

Weight & dimensions

Width: 395 mm
Depth: 264 mm
Height (front): 2.29 cm
Height (rear): 2.54 cm
Weight: 2.6 kg

Packaging content

Feature: AC adapter included
