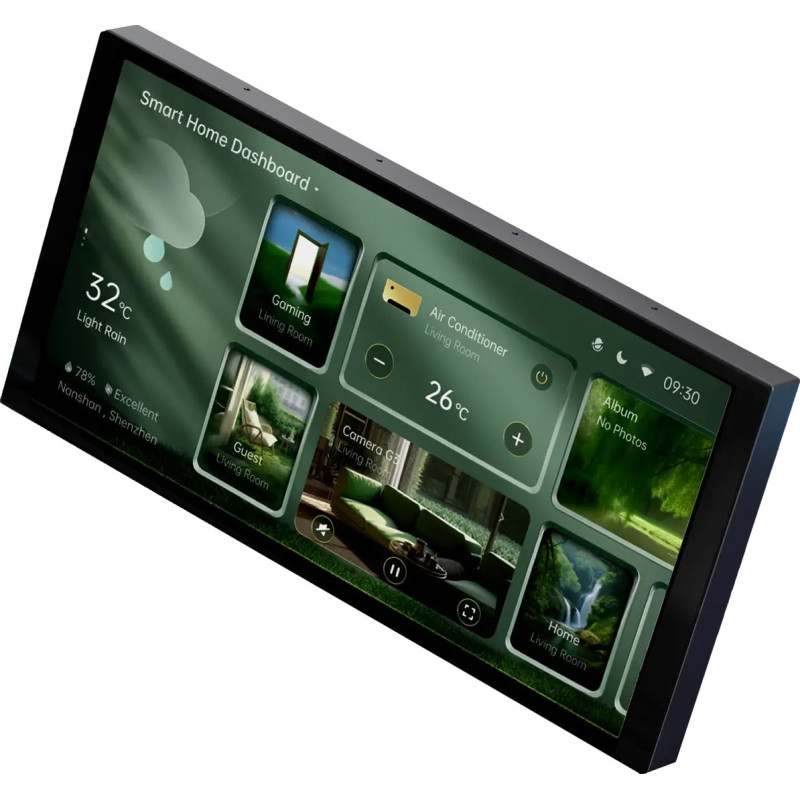

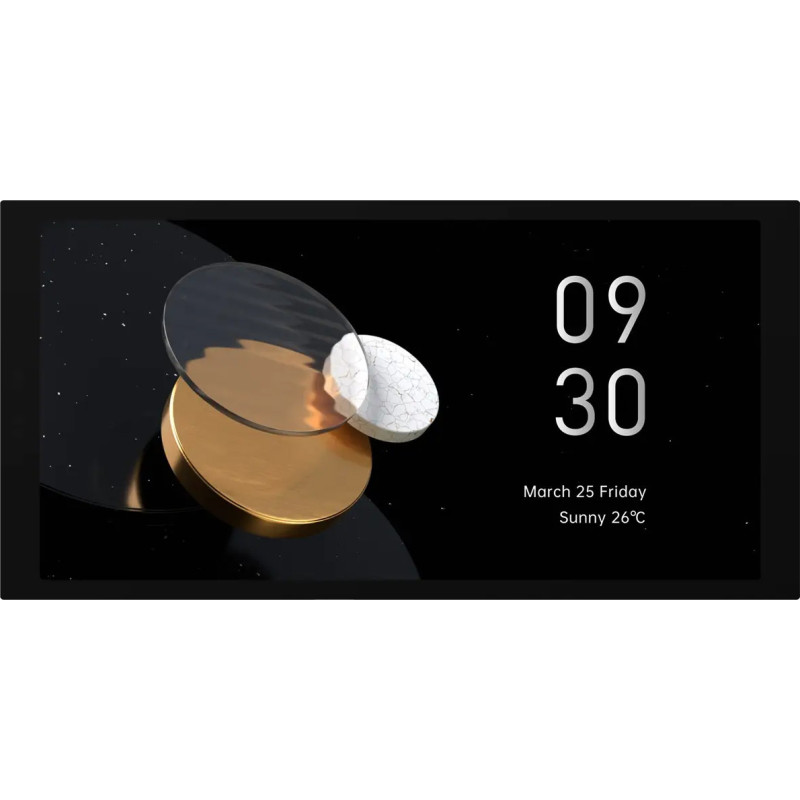

Aqara S1 Plus WiFi Control Panel

The Aqara S1 Plus (MP-K03D) is a multifunctional smart home control panel that combines the functions of a hub, touch panel, and device controller. It features a 6.9-inch touchscreen with a resolution of 1440 × 720 pixels, allowing convenient control of lighting, climate, curtains, and other Aqara devices. The panel supports Zigbee 3.0, Bluetooth, and Wi-Fi (2.4 GHz and 5 GHz) protocols, ensuring stable connectivity with a wide range of devices and ecosystems, including Matter, Apple Home, Google Home, and Alexa.

Technical Specifications:

•


  Model: MP-K03D





•


  Dimensions: 172 × 86 × 43.7 mm





•


  Screen: 6.9 inches, IPS, resolution 1440 × 720 pixels





•


  Power Supply: 100-240 V, 50/60 Hz; USB-C 5 V, 2 A





•


  Wireless Protocols: Wi-Fi (2.4 GHz / 5 GHz), Bluetooth, Zigbee 3.0





•


  Maximum Load: 2 channels, up to 2200 W (resistive), up to 400 W (non-resistive)





•


  Temperature Range: -10 °C to +40 °C





•


  Humidity: 0-95% non-condensing





•


  Color: Black





•


  Body Material: Plastic





•


  Control: Voice, button, smartphone, smart home scenarios





•


  Voice Assistants: Alexa, Google Assistant, Siri





•


  Backlight: Yes





•


  Package Contents: 1 × device, 1 × screw kit, 1 × screwdriver, 1 × user manual
